Kenmore
Furnace

Model # 867736232 Official Kenmore gas-fired direct vent wall furnace

Here are the diagrams and repair parts for Official Kenmore 867736232 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Gas Valve 506884
#24

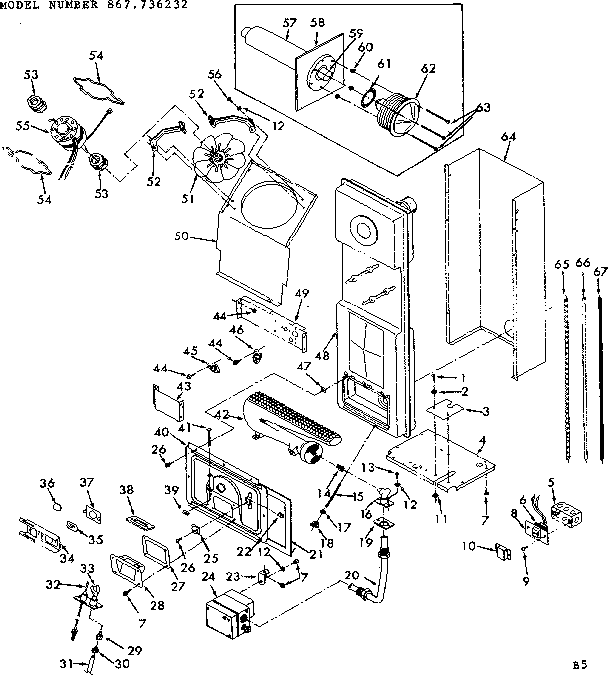

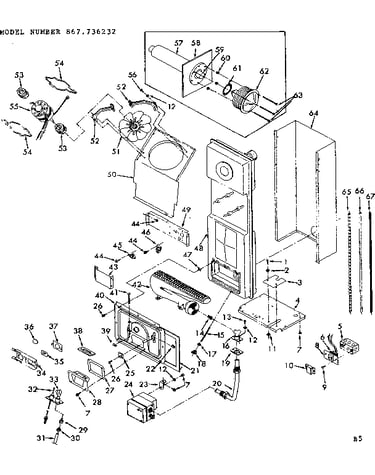

Functional replacement parts diagram

Gas valve

Part #506884

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 506884. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Transformer 86852
#6

Functional replacement parts diagram

Transformer

Part #86852

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 86852. Substitute parts can look different from the original.
$10.99
In Stock
Pilot Tubing 87410
#31

Functional replacement parts diagram

Pilot tubing

Part #87410

Replaced by #100108370

?
Manufacturer substitution
This part replaces 87410. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 505929
#32

Functional replacement parts diagram

Thermocouple

Part #505929

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 504871

#NI

All parts diagram

Thermostat

Part #504871

The manufacturer no longer makes this part, and there's no substitute part

Ferrule Nut 29441
#30

Functional replacement parts diagram

Ferrule nut

Part #29441

Replaced by #100108370

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
Guarantee F642-7276A

#NI

All parts diagram

Guarantee

Part #F642-7276A

The manufacturer no longer makes this part, and there's no substitute part

Pipe Inlet 504570
#57A

Functional replacement parts diagram

Pipe inlet

Part #504570

The manufacturer no longer makes this part, and there's no substitute part

Light Plate 505479

#NI

All parts diagram

Light plate

Part #505479

The manufacturer no longer makes this part, and there's no substitute part

Box 504448
#5

Functional replacement parts diagram

Box

Part #504448

The manufacturer no longer makes this part, and there's no substitute part
