Craftsman
Water Pump

Model # 390285530 Official Craftsman 2-wire submersible pump

Here are the diagrams and repair parts for Official Craftsman 390285530 2-wire submersible pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

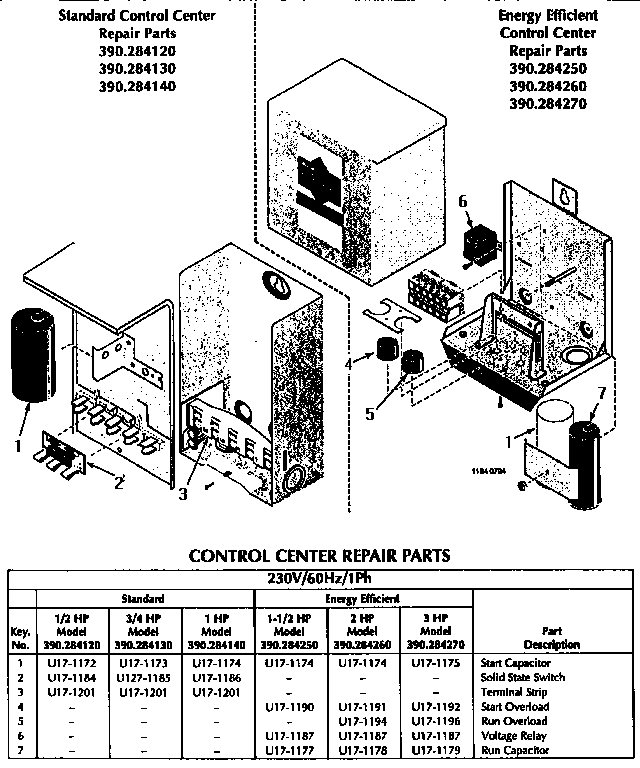

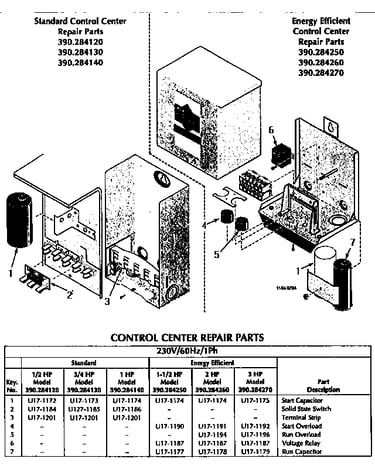

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Screen P8-20
#7

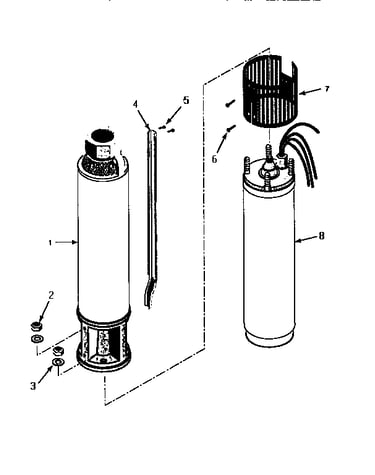

Replacement parts diagram

Screen

Part #P8-20

This item is not returnable
$5.19
In Stock
Lock Washer U43-115SS
#3

Replacement parts diagram

Lock washer

Part #U43-115SS

The manufacturer no longer makes this part, and there's no substitute part

Pnhd Fstnr U30-840SS
#5

Replacement parts diagram

Pnhd fstnr

Part #U30-840SS

The manufacturer no longer makes this part, and there's no substitute part

3/4 Hp Motor P564-33
#8

Replacement parts diagram

3/4 hp motor

Part #P564-33

The manufacturer no longer makes this part, and there's no substitute part

Hex Jam Nut U36-197SS
#2

Replacement parts diagram

Hex jam nut

Part #U36-197SS

The manufacturer no longer makes this part, and there's no substitute part

Lead Cover P3-511P
#4

Replacement parts diagram

Lead cover

Part #P3-511P

The manufacturer no longer makes this part, and there's no substitute part

Pump P364-24
#1

Replacement parts diagram

Pump

Part #P364-24

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F642-9410

#NI

All parts diagram

Owner's manual

Part #F642-9410

The manufacturer no longer makes this part, and there's no substitute part

Pan Head U30-927SS
#6

Replacement parts diagram

Pan head

Part #U30-927SS

The manufacturer no longer makes this part, and there's no substitute part
