Model # AZ28E12DACM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ28E12DACM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AZ28E12DACM1 Zoneline Air Conditioner
Control Cover WP71X10015
#1020

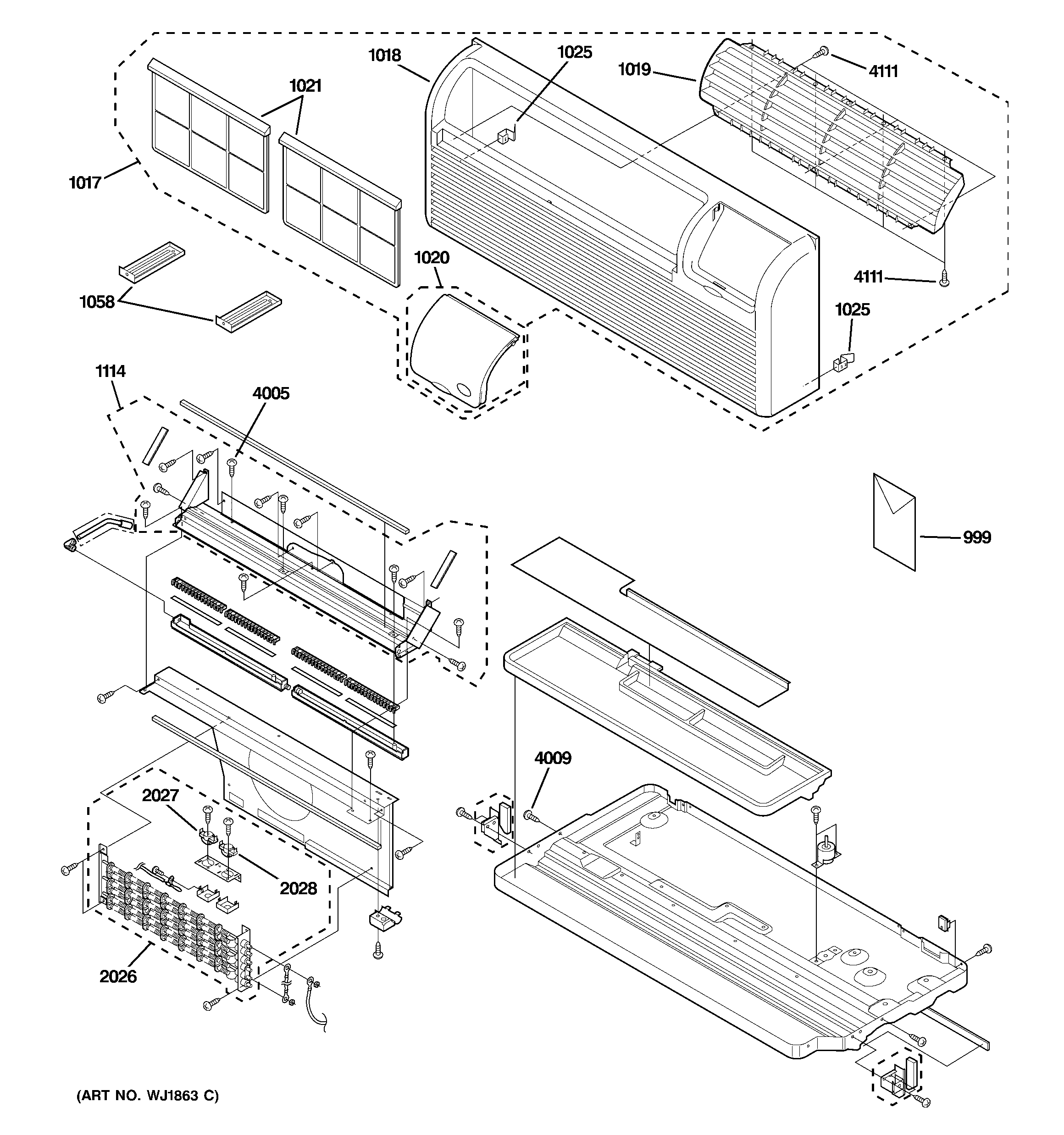

Grille, heater & base pan parts diagram

Control cover

Part #WP71X10015

Replaced by #WP71X10033

?
Manufacturer substitution
This part replaces WP71X10015. Substitute parts can look different from the original.
$22.20 |
21% OFF Phone Price : $28.20
In Stock
Room Air Conditioner Fan Motor Capacitor WP20X10022
#2022

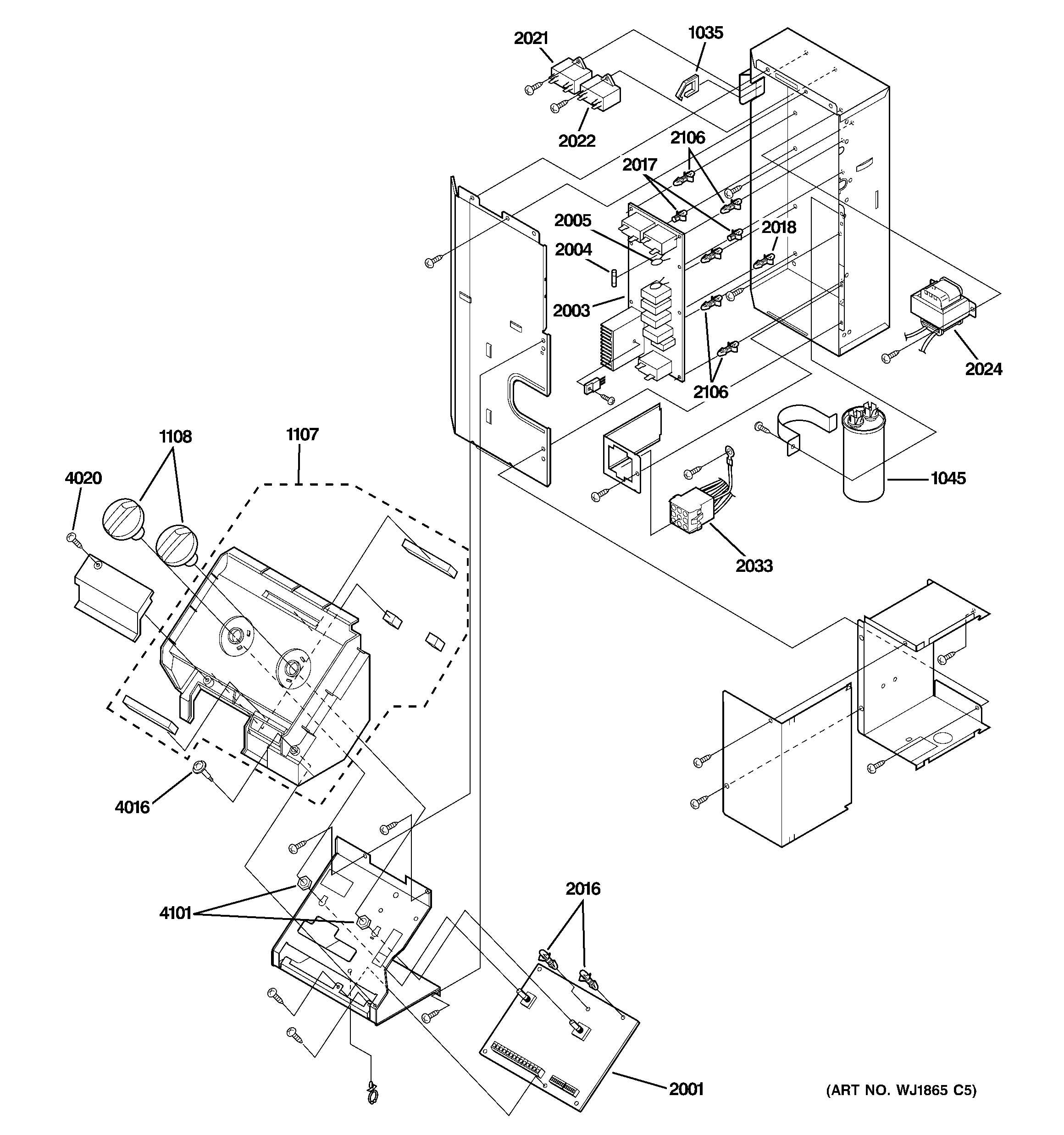

Control parts diagram

Room air conditioner fan motor capacitor

Part #WP20X10022

$29.76 |
17% OFF Phone Price : $35.76
In Stock
Washer WP01X10005
#1056

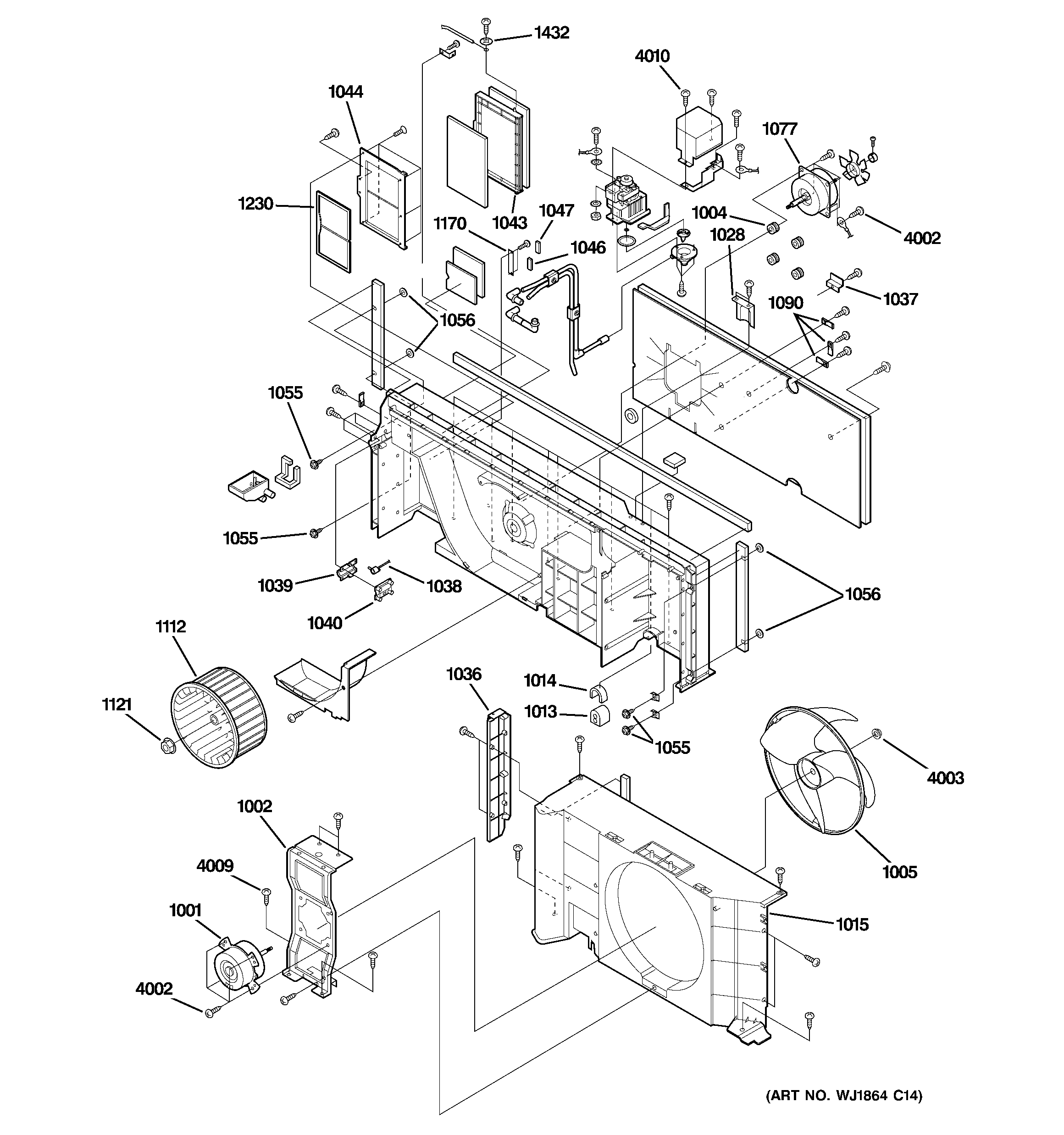

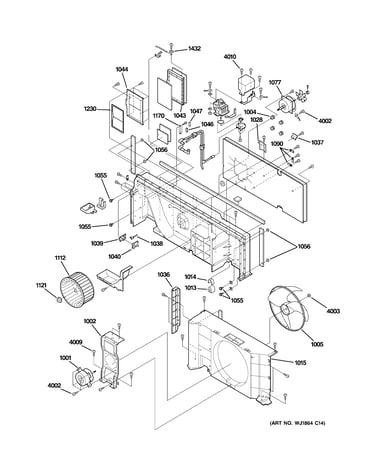

Motor & chassis parts diagram

Washer

Part #WP01X10005

$9.51
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10014
#2028

Grille, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10014

$63.51
In Stock
Room Air Conditioner Control Knob WP12X10002
#1108

Control parts diagram

Room air conditioner control knob

Part #WP12X10002

$28.25 |
18% OFF Phone Price : $34.25
In Stock
Spring Protector WJ02X10001
#3072

Unit parts diagram

Spring protector

Part #WJ02X10001

$16.57
In Stock
Tapping Screw WJ01X10038
#4005

Grille, heater & base pan parts diagram

Tapping screw

Part #WJ01X10038

This item is not returnable
$6.03
In Stock
Magnet Seal WP01X10002
#1047

Motor & chassis parts diagram

Magnet seal

Part #WP01X10002

$8.37
In Stock
Special Screw WJ01X10037
Special screw

Part #WJ01X10037

$14.74
In Stock
Spring WP02X10001
#1025

Grille, heater & base pan parts diagram

Spring

Part #WP02X10001

$9.51
In Stock
