Model # MT9114SFB0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT9114SFB0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

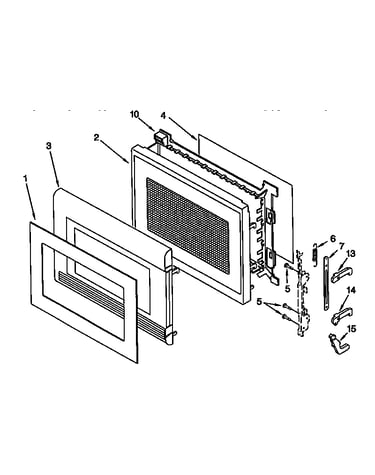

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Switch 4393570
#27

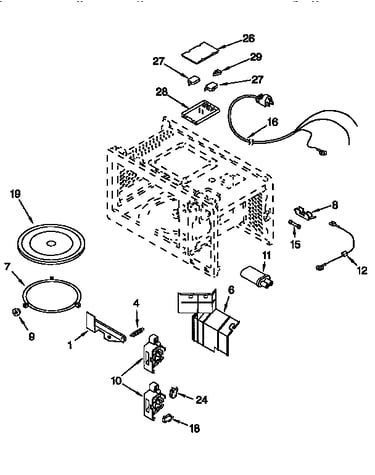

Cabinet and stirrer diagram

Switch

Part #4393570

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393570. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Thermal Fuse 4393308
#15

Cabinet and stirrer diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
BEST SELLER
$23.80
In Stock
Roller Table 4393494
#9

Cabinet and stirrer diagram

Roller table

Part #4393494

The manufacturer no longer makes this part, and there's no substitute part

Foot Base 4393280
#11

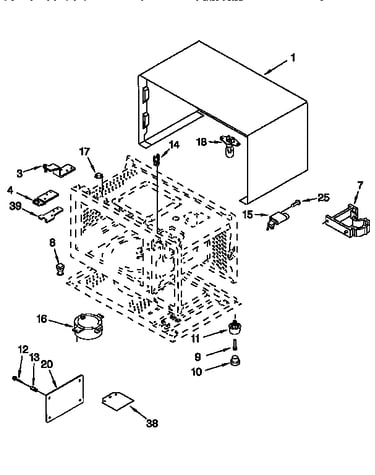

Wrapper diagram

Foot base

Part #4393280

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 4393540
#9

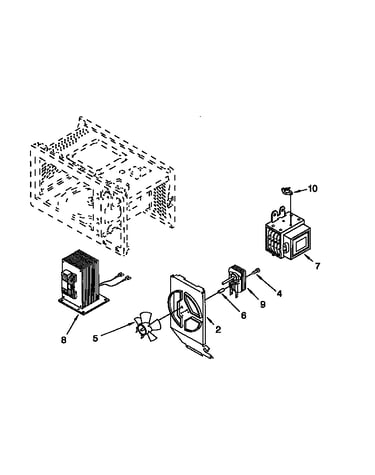

Magnetron and air flow diagram

Fan motor

Part #4393540

The manufacturer no longer makes this part, and there's no substitute part

Window 4393543
#10

Control panel diagram

Window

Part #4393543

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4393325
#10

Magnetron and air flow diagram

Thermostat

Part #4393325

The manufacturer no longer makes this part, and there's no substitute part

Air Plate 4393359
#20

Wrapper diagram

Air plate

Part #4393359

The manufacturer no longer makes this part, and there's no substitute part

Bushing 4393290
#13

Wrapper diagram

Bushing

Part #4393290

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4393304
#16

Cabinet and stirrer diagram

Power cord

Part #4393304

The manufacturer no longer makes this part, and there's no substitute part
