Model # T24ID80NLP/07 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24ID80NLP-07 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

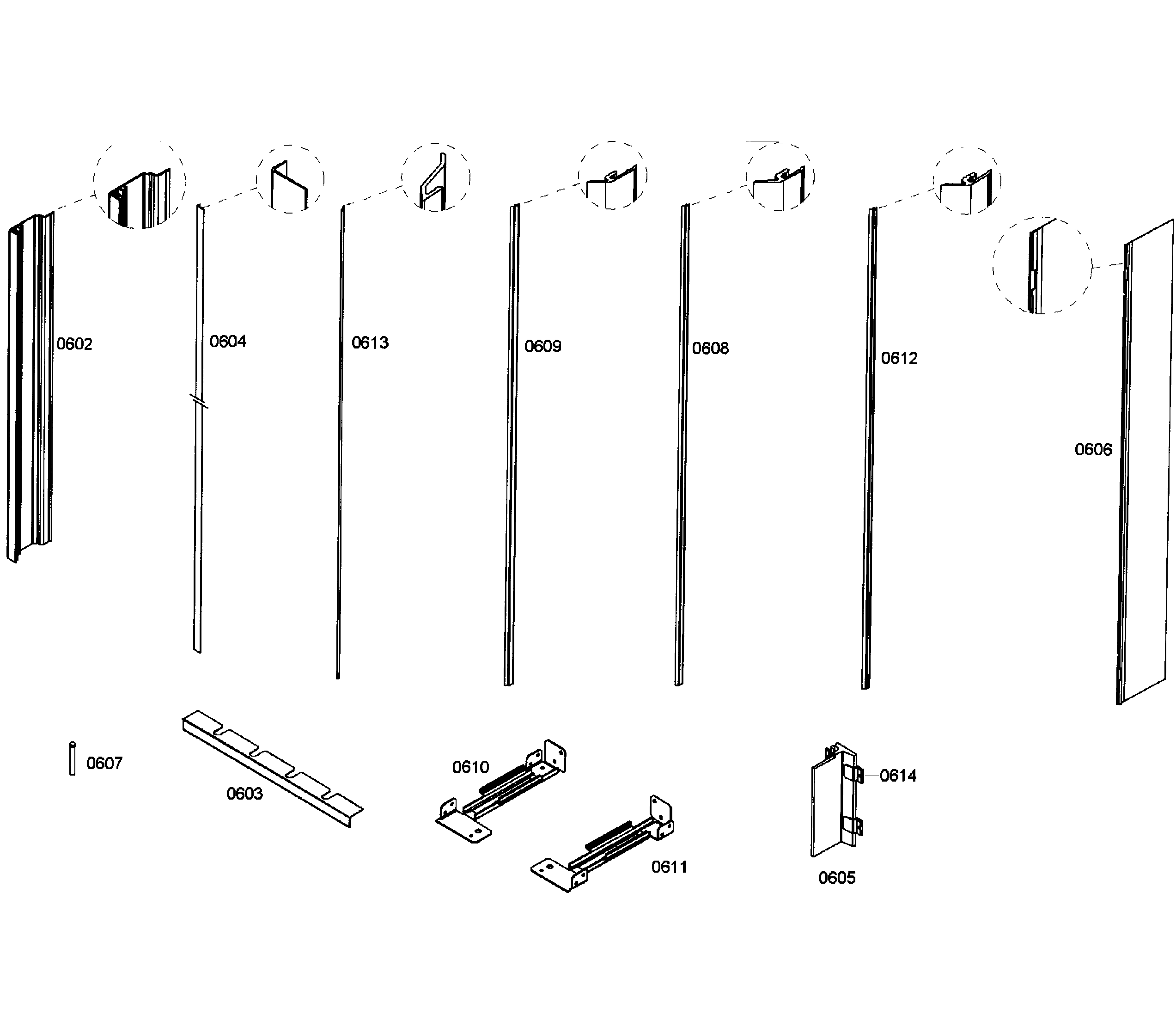

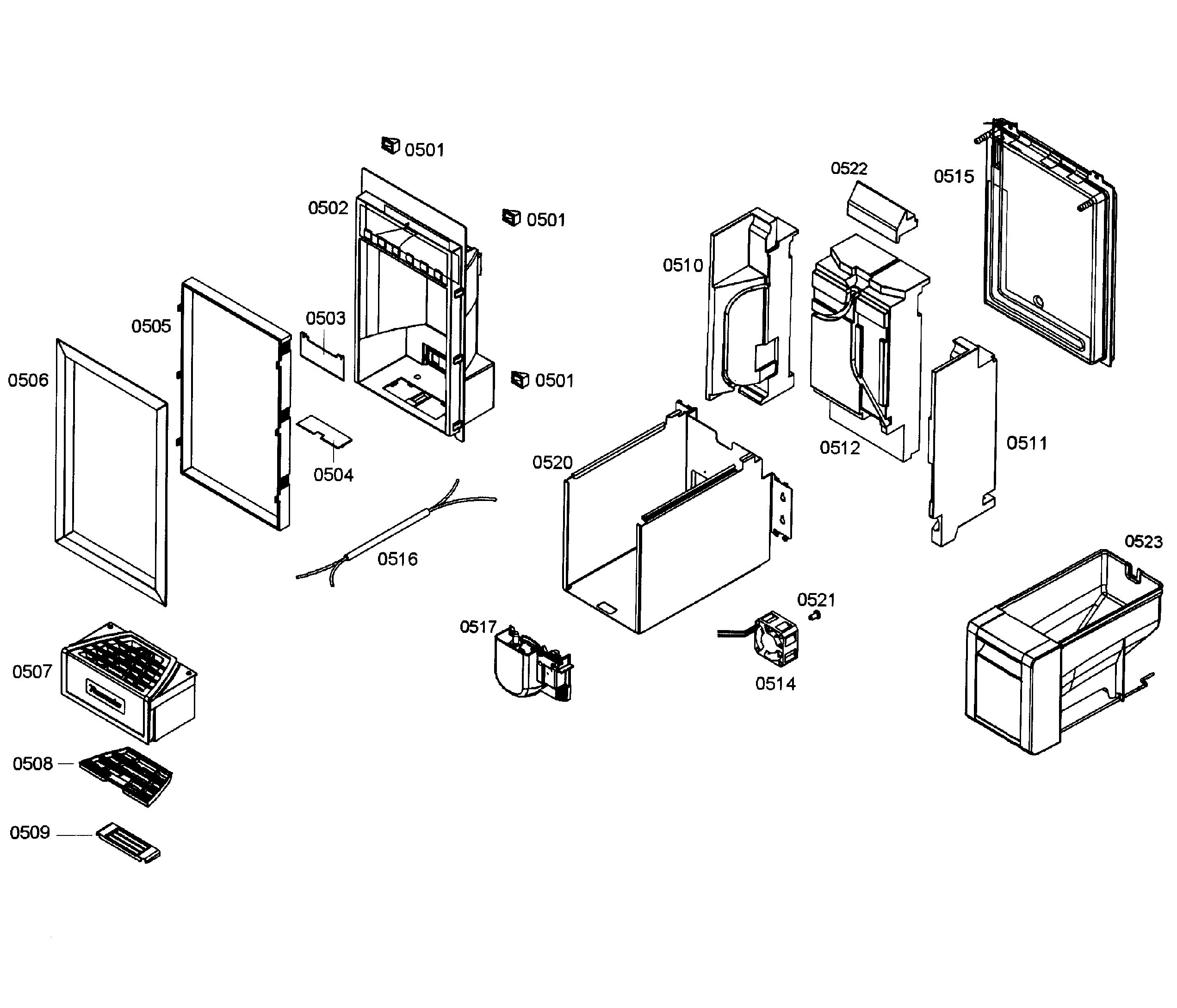

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Refrigerator Water Filter 641425
#411

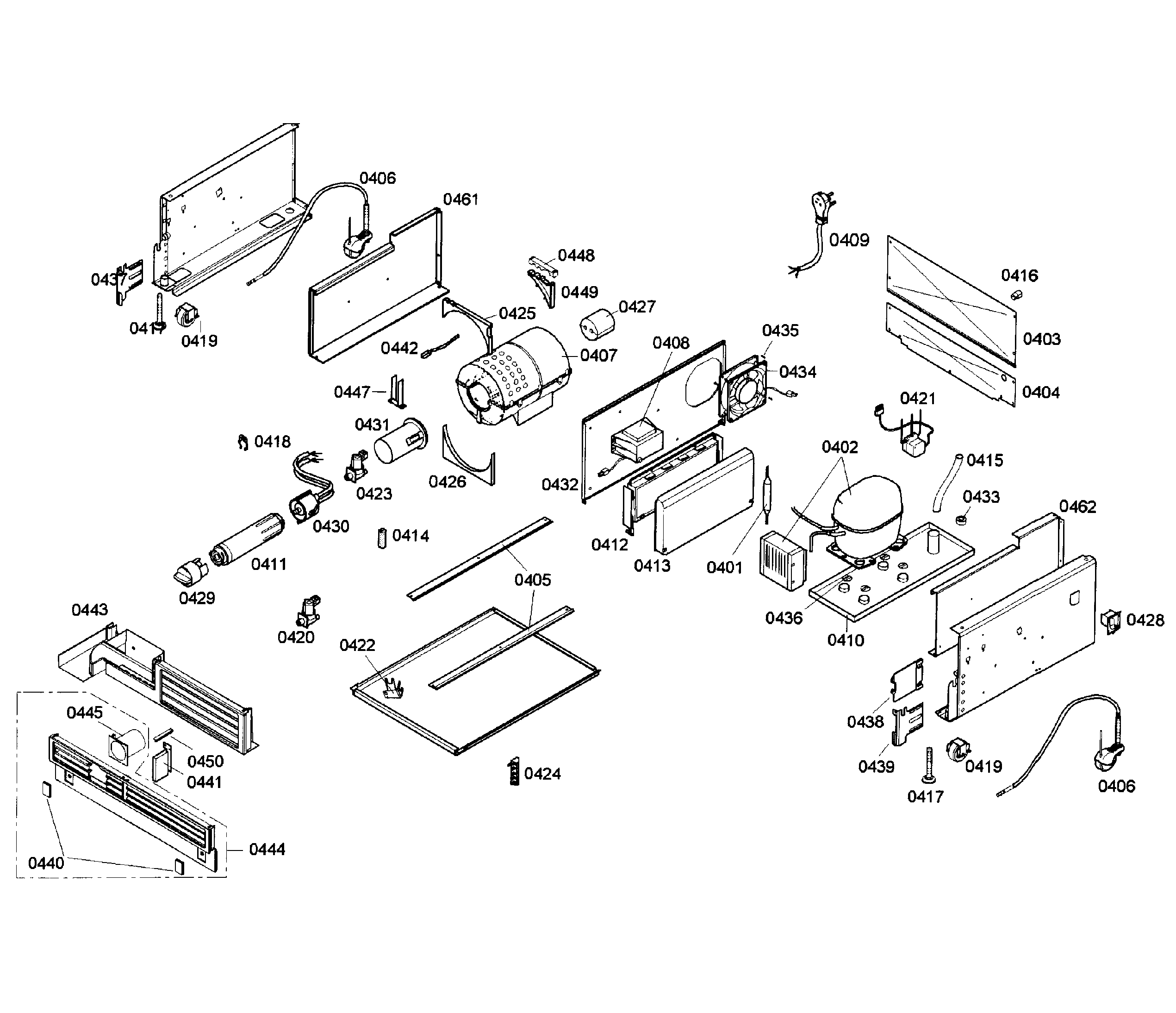

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Defrost Sensor 604025
#130

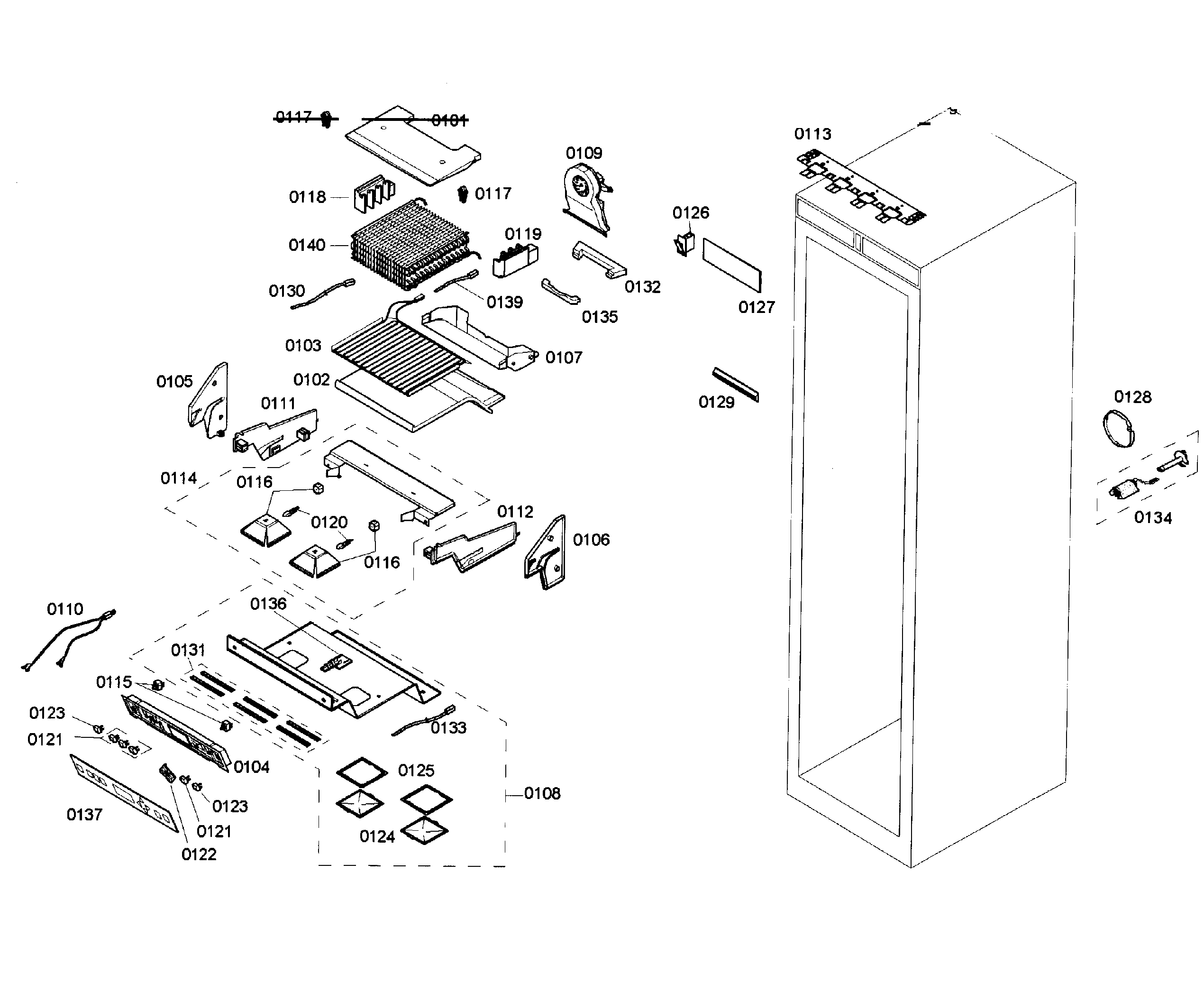

Cabinet parts diagram

Defrost sensor

Part #604025

Replaced by #00617203

?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Freezer Water Valve 603967
#423

Compressor diagram

Freezer water valve

Part #603967

Replaced by #00639065

?
Manufacturer substitution
This part replaces 603967. Substitute parts can look different from the original.
$39.19 |
13% OFF Phone Price : $45.19
In Stock
Module 448891
#104

Cabinet parts diagram

Module

Part #448891

Replaced by #11041652

?
Manufacturer substitution
This part replaces 448891. Substitute parts can look different from the original.
$239.70 |
5% OFF Phone Price : $251.70
Back Order
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
Back Order
Fixture 605404
#437

Compressor diagram

Fixture

Part #605404

Replaced by #00605404

?
Manufacturer substitution
This part replaces 605404. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Clip 603972
#321

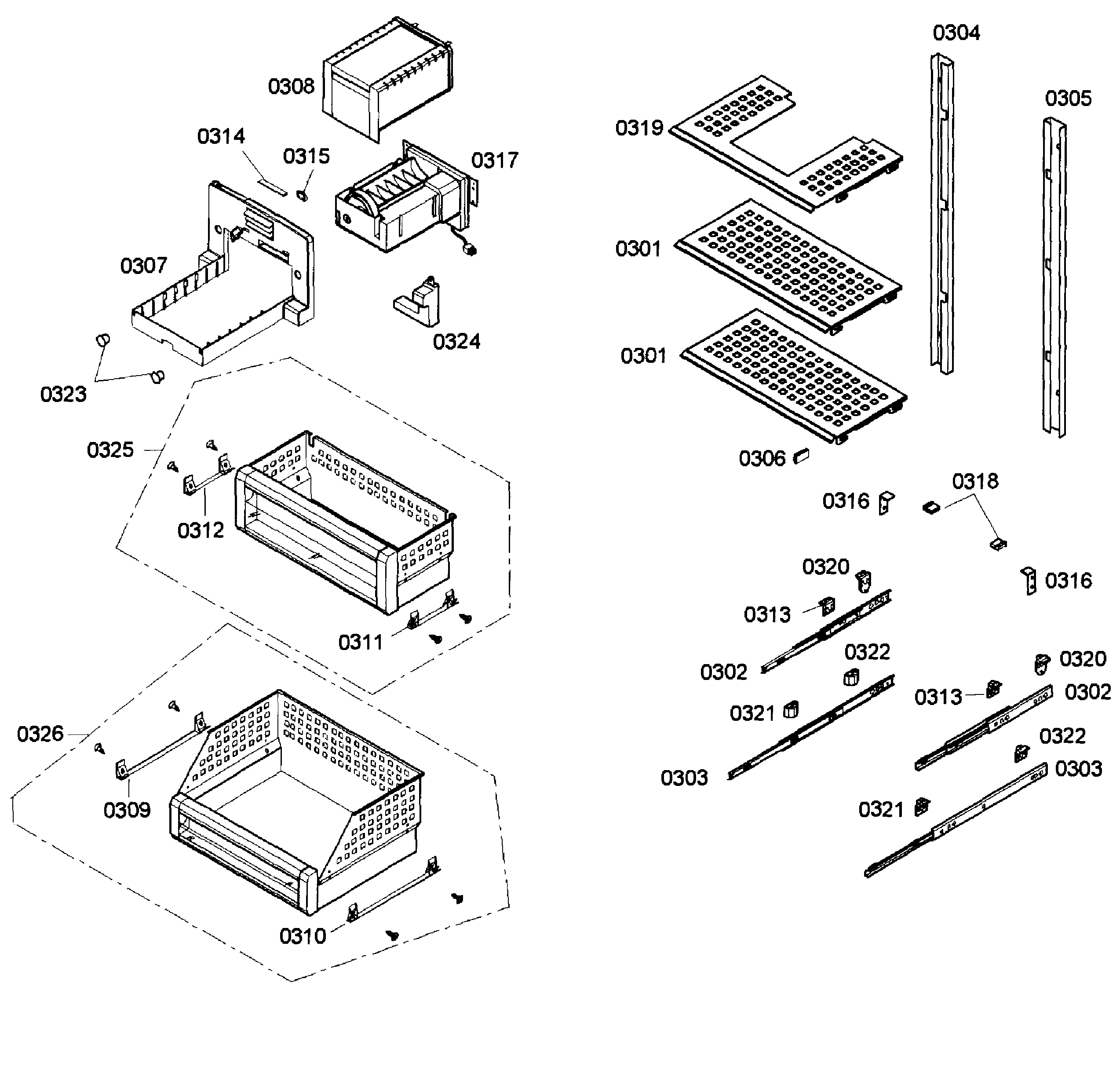

Shelfs diagram

Clip

Part #603972

Replaced by #00603972

?
Manufacturer substitution
This part replaces 603972. Substitute parts can look different from the original.
This item is not returnable
$5.49
In Stock
Clip 603971
#313

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Fixture 605604
#217

Door assy diagram

Fixture

Part #605604

Replaced by #00605604

?
Manufacturer substitution
This part replaces 605604. Substitute parts can look different from the original.
$12.71
In Stock
Fixing Kit 604240
#209

Door assy diagram

Fixing kit

Part #604240

Replaced by #00635355

?
Manufacturer substitution
This part replaces 604240. Substitute parts can look different from the original.
$9.06
In Stock
