Amana
Upright Freezer

Model # AFU2067BW Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana AFU2067BW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

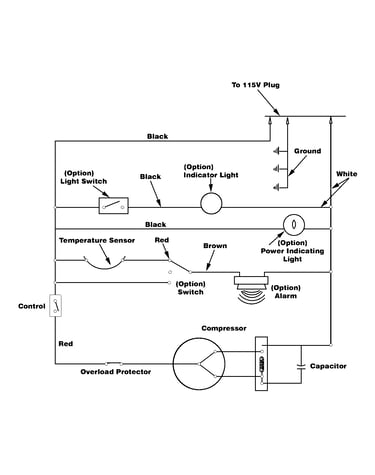

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Defrost Timer 68001115
#15

Unit compartment & system diagram

Defrost timer

Part #68001115

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 68001115. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
Thermostat 68001088
#18

Unit compartment & system diagram

Thermostat

Part #68001088

Replaced by #WP1-81801-001

?
Manufacturer substitution
This part replaces 68001088. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
Bracket Kit 68001321
#21

Unit compartment & system diagram

Bracket kit

Part #68001321

Replaced by #2-80028-101

?
Manufacturer substitution
This part replaces 68001321. Substitute parts can look different from the original.
$58.89
In Stock
Hinge Cover R9800513
#20

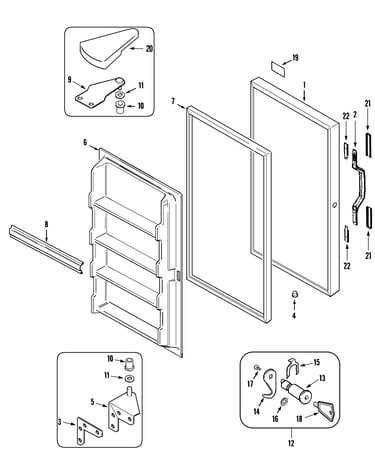

Door diagram

Hinge cover

Part #R9800513

Replaced by #3-80838-003

?
Manufacturer substitution
This part replaces R9800513. Substitute parts can look different from the original.
$29.89
In Stock
Shim 68001230
#9B

Door diagram

Shim

Part #68001230

Replaced by #4390489

?
Manufacturer substitution
This part replaces 68001230. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Evaporator 68001349
#14

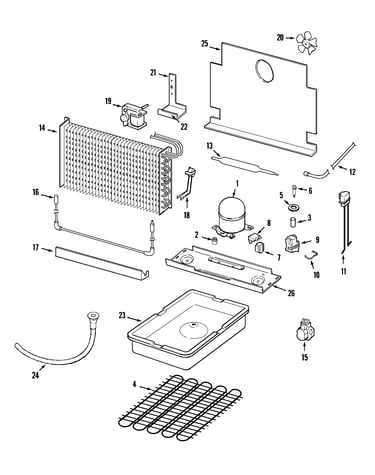

Unit compartment & system diagram

Evaporator

Part #68001349

Replaced by #WP4-81546

?
Manufacturer substitution
This part replaces 68001349. Substitute parts can look different from the original.
$255.87 |
$12.00 OFF Phone Price : $267.87
In Stock
Gasket Evaporator 68001502
#15

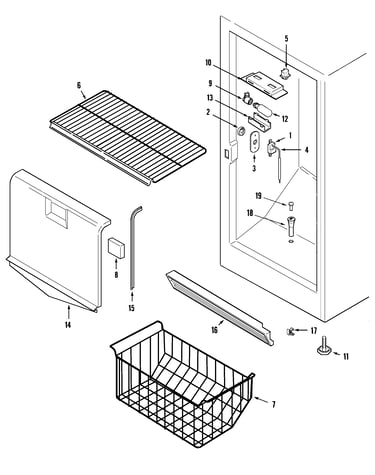

Freezer compartment diagram

Gasket evaporator

Part #68001502

Replaced by #4390663

?
Manufacturer substitution
This part replaces 68001502. Substitute parts can look different from the original.
$85.37 |
7% OFF Phone Price : $91.37
In Stock
Kick Plate 68001624
#16

Freezer compartment diagram

Kick plate

Part #68001624

Replaced by #WP4-60461-002

?
Manufacturer substitution
This part replaces 68001624. Substitute parts can look different from the original.
$43.99 |
12% OFF Phone Price : $49.99
In Stock
Door Gasket 68001109
#7

Door diagram

Door gasket

Part #68001109

Replaced by #WP4-81049-001

?
Manufacturer substitution
This part replaces 68001109. Substitute parts can look different from the original.
$221.81 |
5% OFF Phone Price : $233.81
In Stock
Kit Liner Screw 68001124
#6A

Door diagram

Kit liner screw

Part #68001124

Replaced by #4390598

?
Manufacturer substitution
This part replaces 68001124. Substitute parts can look different from the original.
$12.49
In Stock
