Model # E30WD75GPS5 Official Electrolux warming drawer

Here are the diagrams and repair parts for Official Electrolux E30WD75GPS5 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

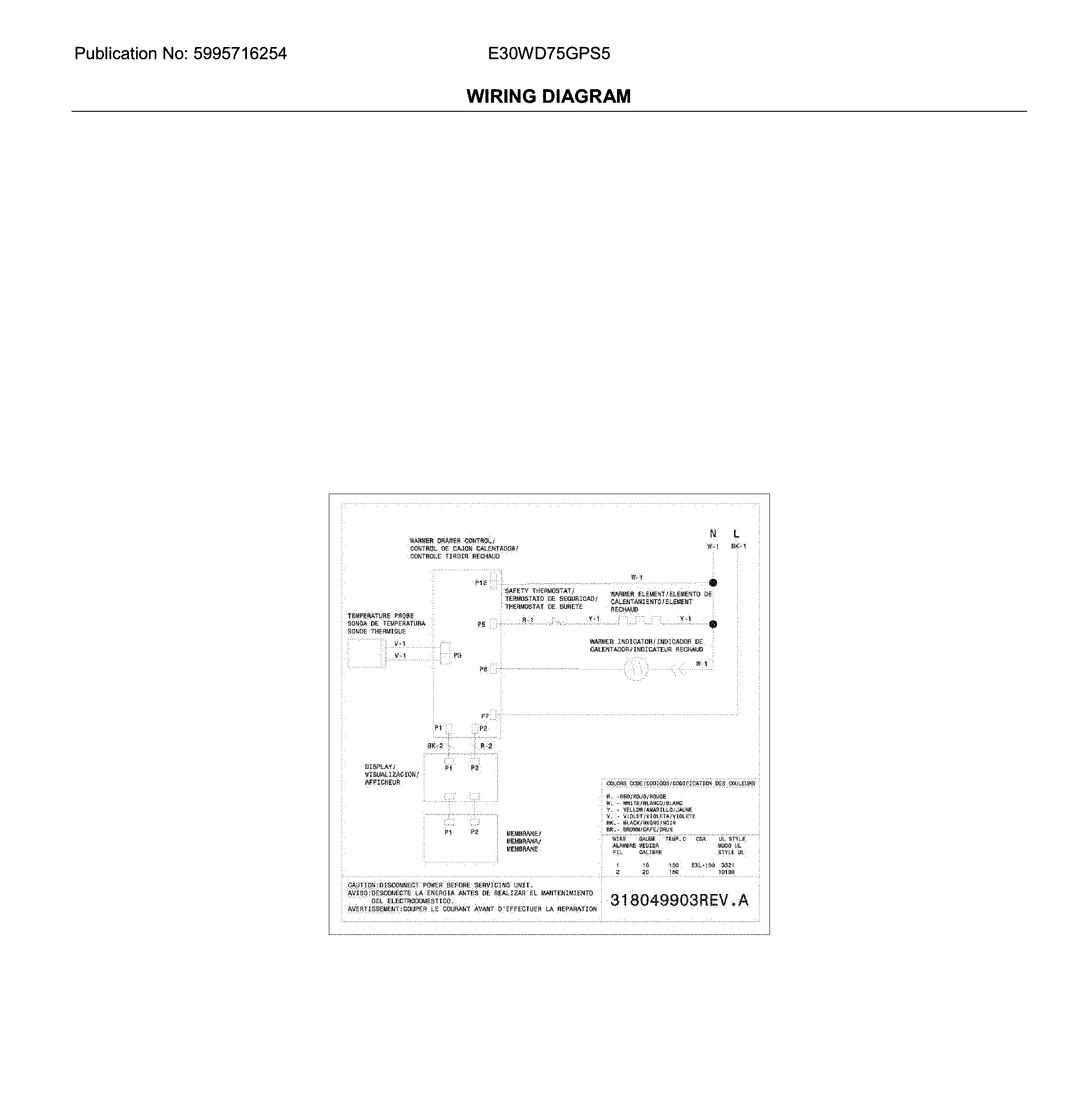

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Range Oven Temperature Sensor 318562500
#11

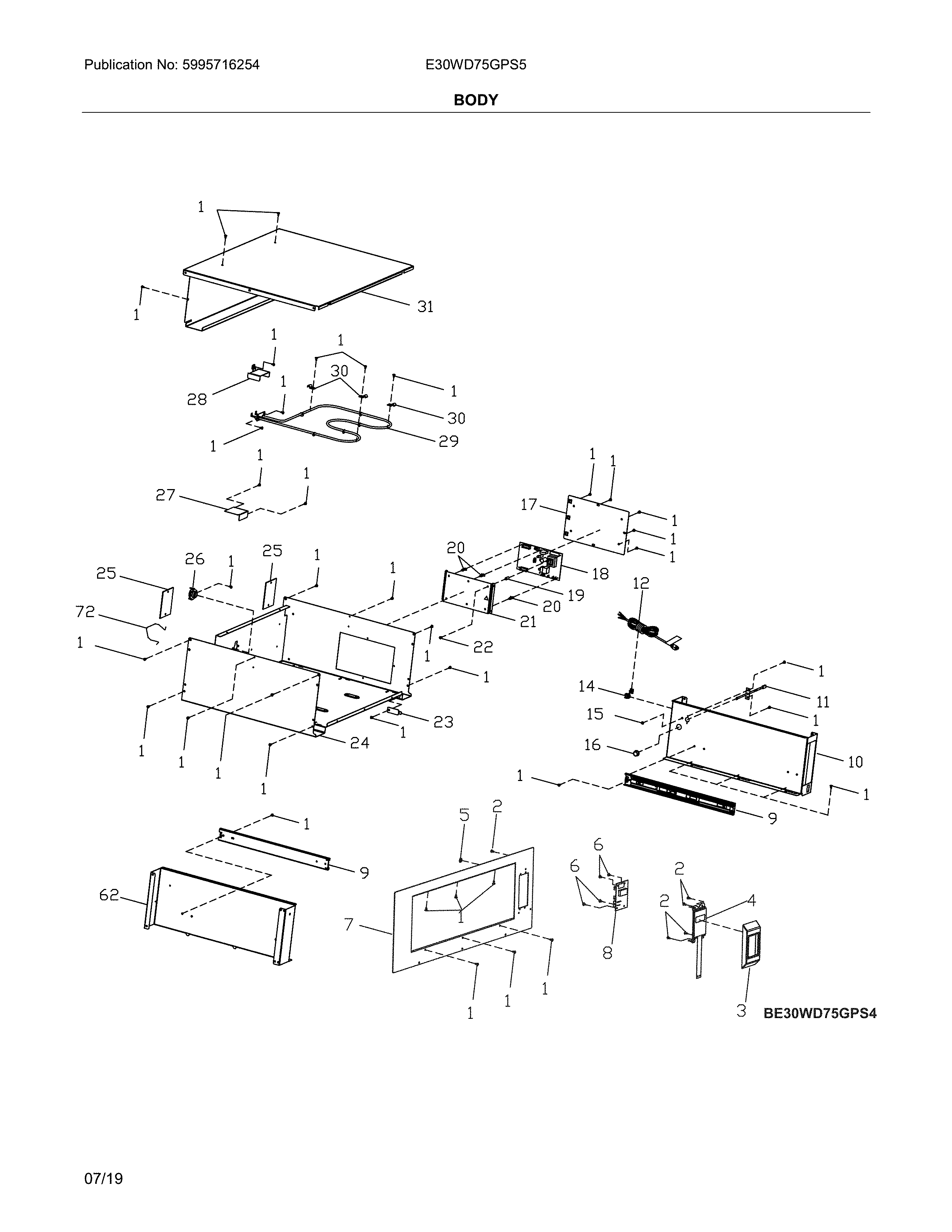

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56
16% OFF Phone Price : $37.56
In Stock
Refrigerator Nameplate 241603101
#54

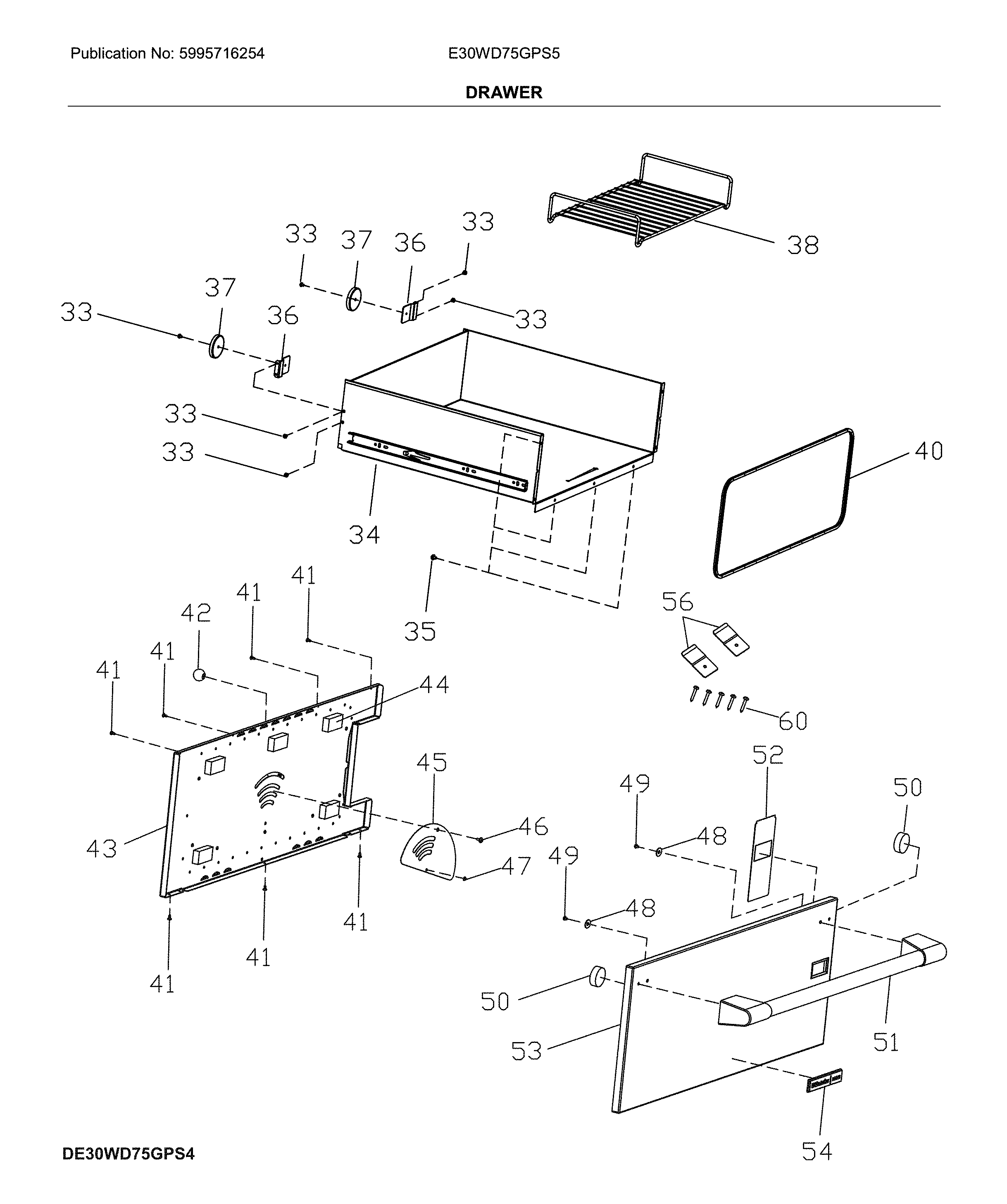

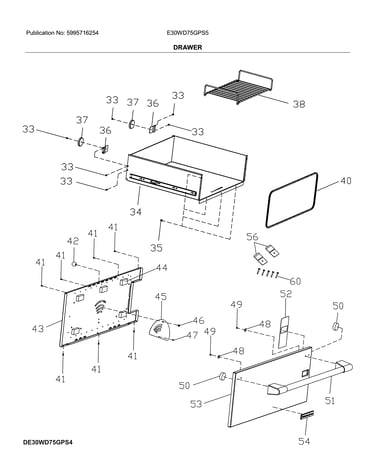

Drawer diagram

Refrigerator nameplate

Part #241603101

In Stock
Rack 318345601
#38

Drawer diagram

Rack

Part #318345601

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318345601. Substitute parts can look different from the original.
$65.52
8% OFF Phone Price : $71.52
In Stock
Screw 305338504
#33

Drawer diagram

Screw

Part #305338504

This item is not returnable
In Stock
Shield 807319701
#28

Body diagram

Shield

Part #807319701

In Stock
Ikea Holder 202855101
#72

Body diagram

Ikea holder

Part #202855101

This item is not returnable
In Stock
Screw 305309702
#1

Body diagram

Screw

Part #305309702

This item is not returnable
In Stock
Shield 807221801
#62

Body diagram

Shield

Part #807221801

In Stock
Kenmore Pro Washer 305338306
#48

Drawer diagram

Kenmore pro washer

Part #305338306

In Stock
Warming Drawer Slide Rail Assembly 318248410
#9

Body diagram

Warming drawer slide rail assembly

Part #318248410

In Stock
