Kenmore
Countertop Microwave

Model # 72162344301 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162344301 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

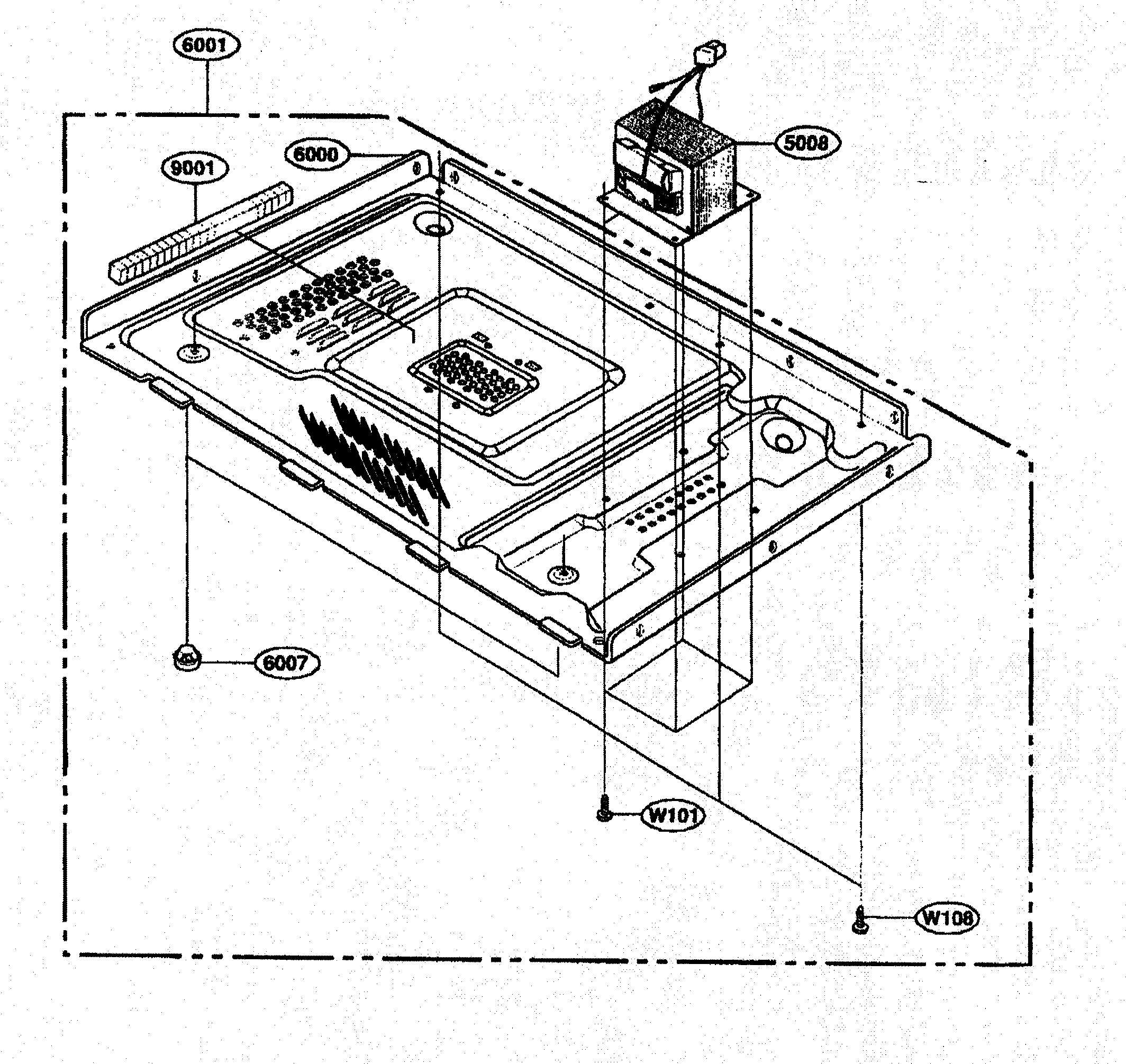

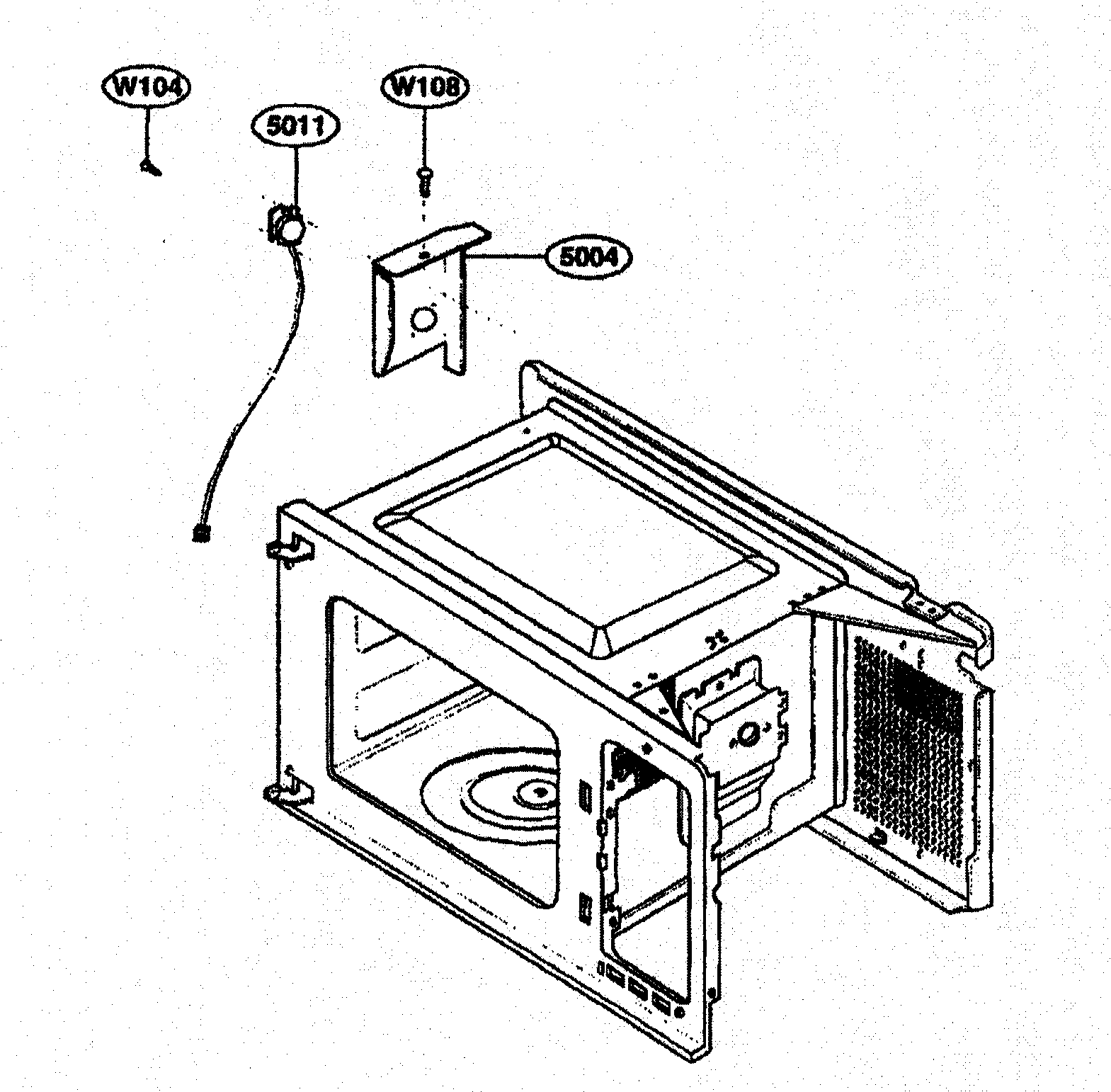

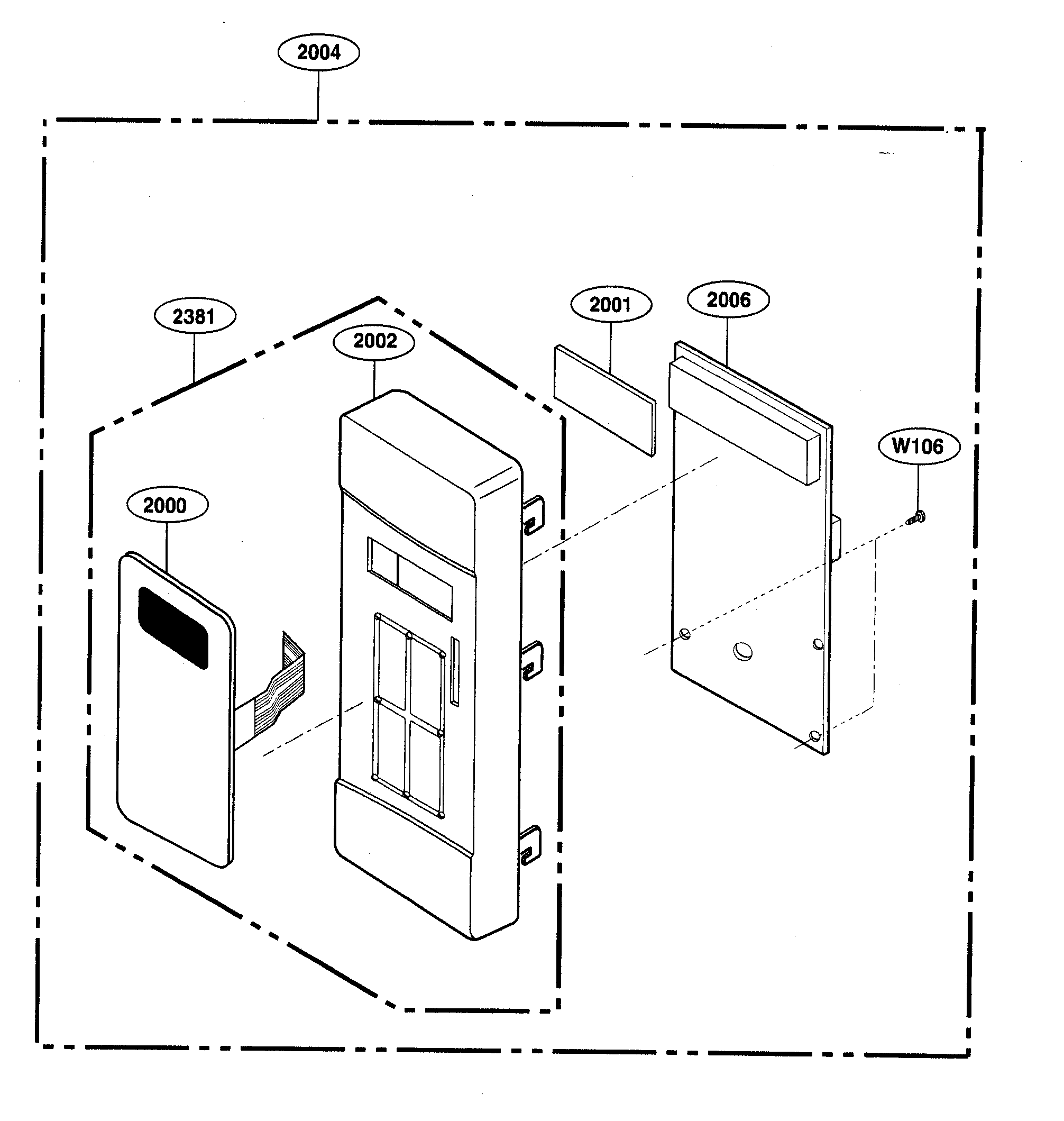

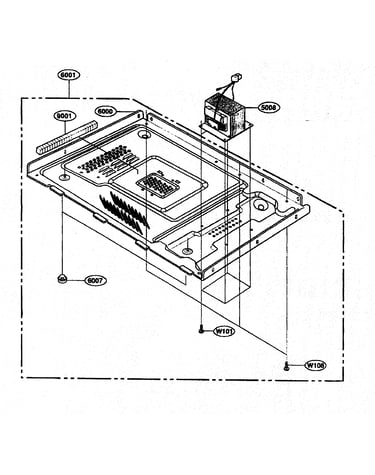

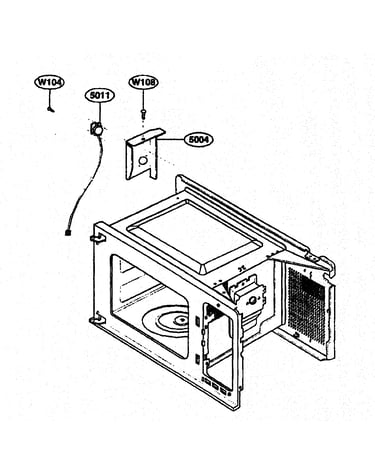

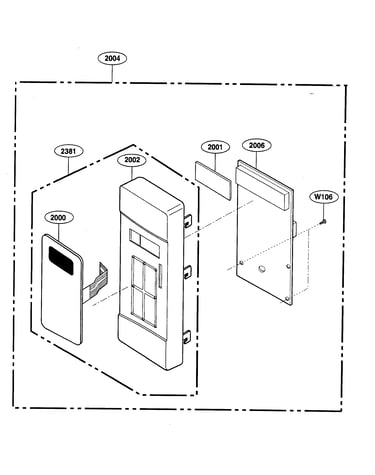

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Microwave Magnetron 6324W1A001A
#5009

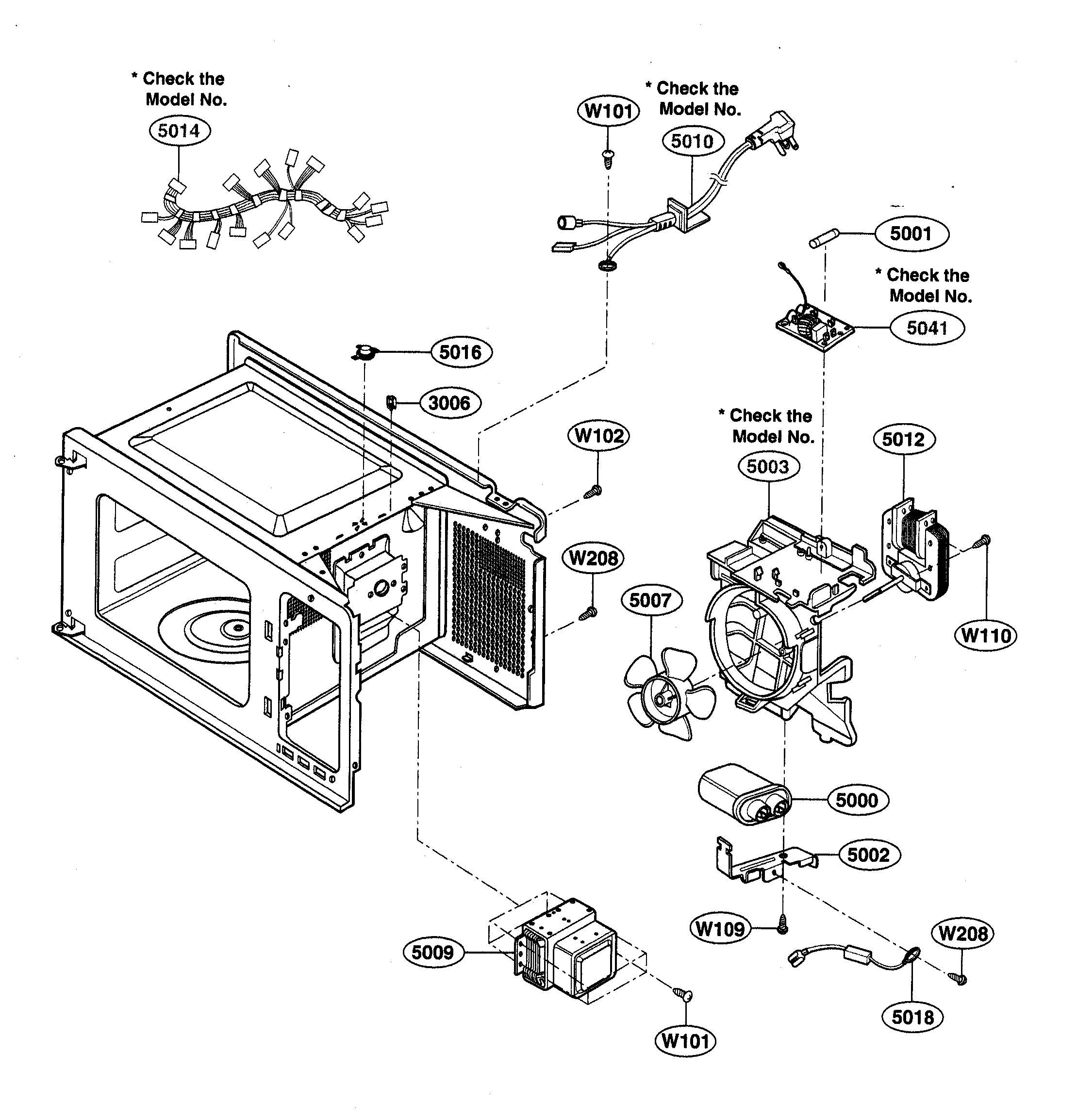

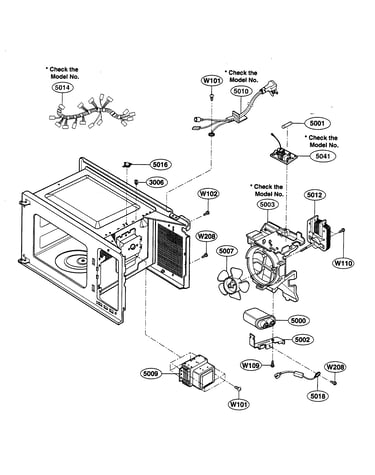

Interior parts diagram

Microwave magnetron

Part #6324W1A001A

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001A. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Capacitor 0CZZW1H005A
#5000

Interior parts diagram

Capacitor

Part #0CZZW1H005A

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H005A. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
17% OFF Phone Price : $34.54
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

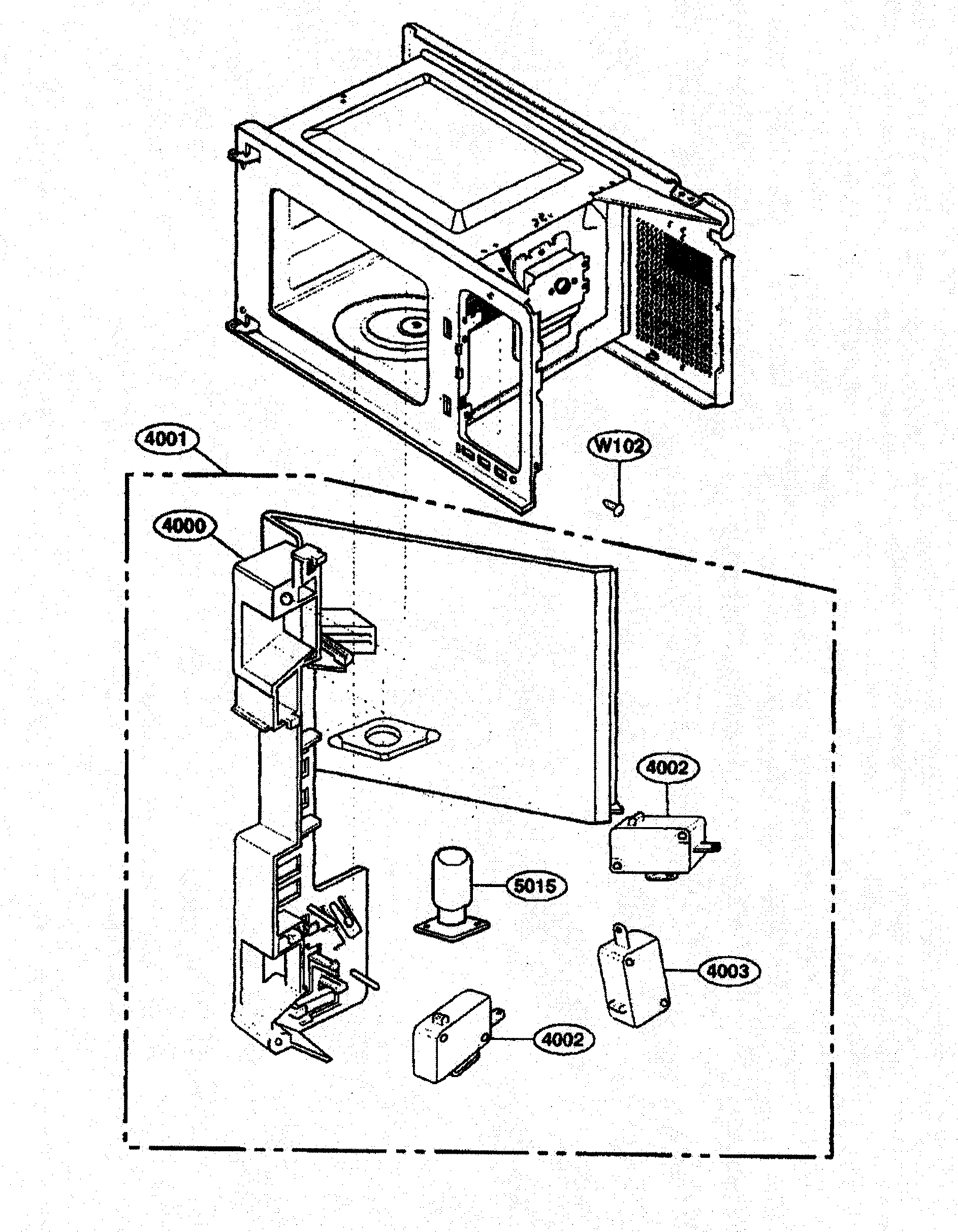

Latch board diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

Latch board diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Spring 4970WRA001D
#1007

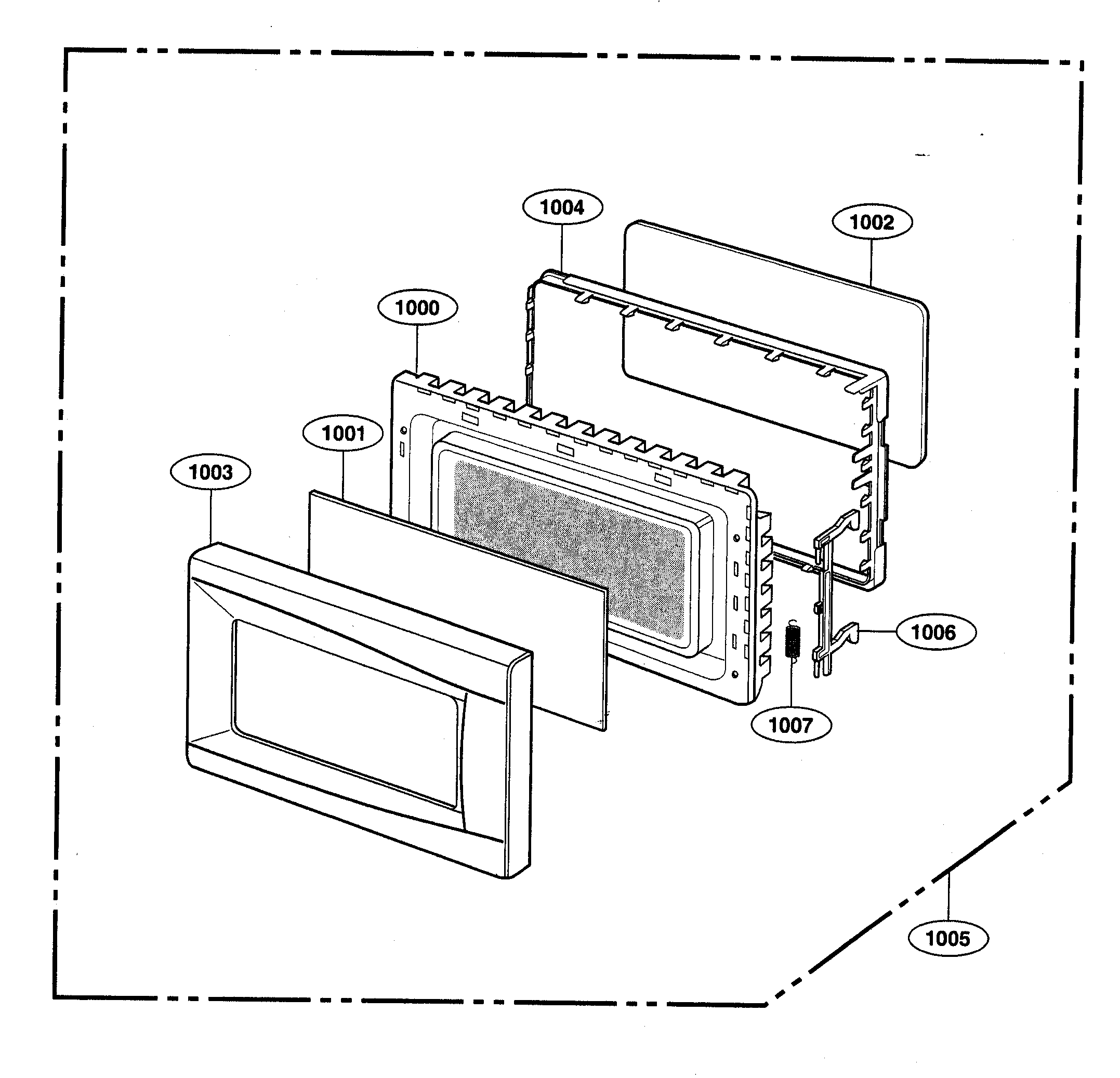

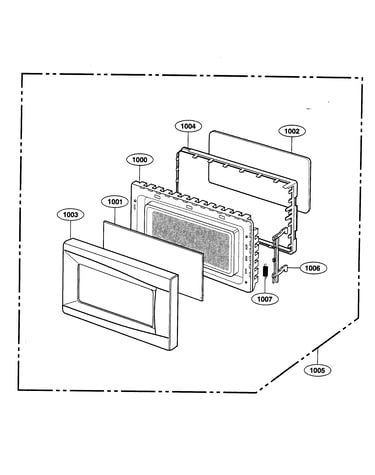

Door parts diagram

Spring

Part #4970WRA001D

Replaced by #4970WRA001G

?
Manufacturer substitution
This part replaces 4970WRA001D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3009

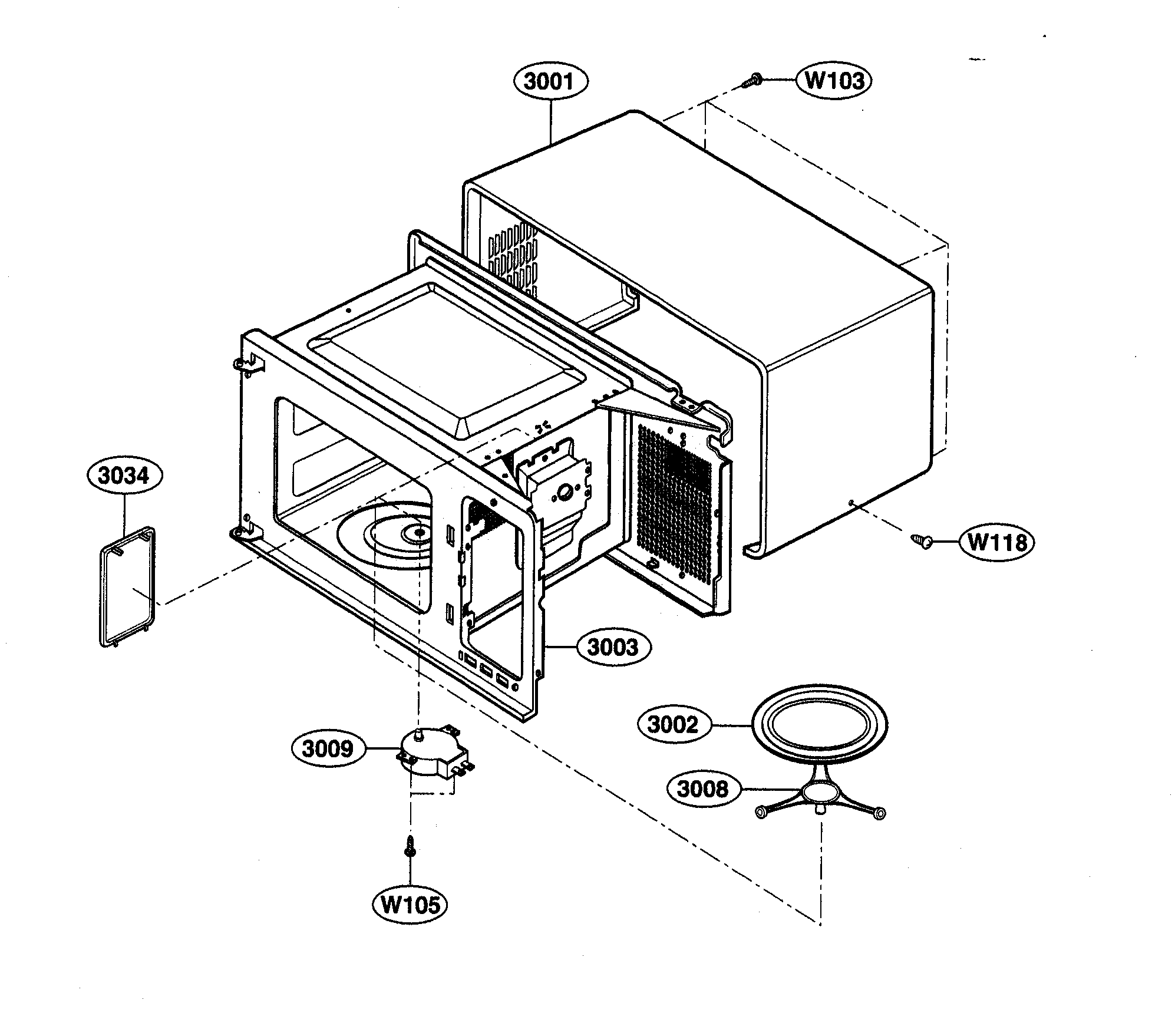

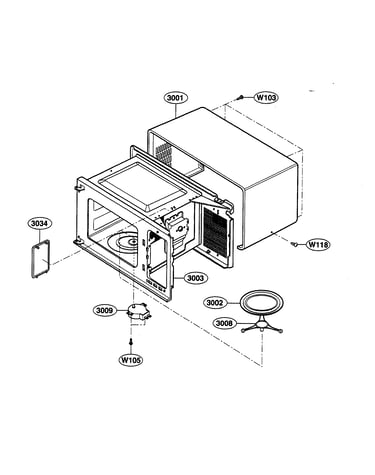

Oven cavity diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$21.20 |
22% OFF Phone Price : $27.20
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Interior parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTG0402422
#W118

Oven cavity diagram

Us pressed steel microwave screw

Part #1TTG0402422

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Waveguide Cover 3052W2A021A
#3034

Oven cavity diagram

Microwave waveguide cover

Part #3052W2A021A

Replaced by #3052W1M006A

?
Manufacturer substitution
This part replaces 3052W2A021A. Substitute parts can look different from the original.
$7.89
In Stock
Microwave Thermostat (replaces 6930wrt002f) 6930W1A003A
#5016

Interior parts diagram

Microwave thermostat (replaces 6930wrt002f)

Part #6930W1A003A

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
