GE
Top-Mount Refrigerator

Model # GTS18FMLFES Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTS18FMLFES top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

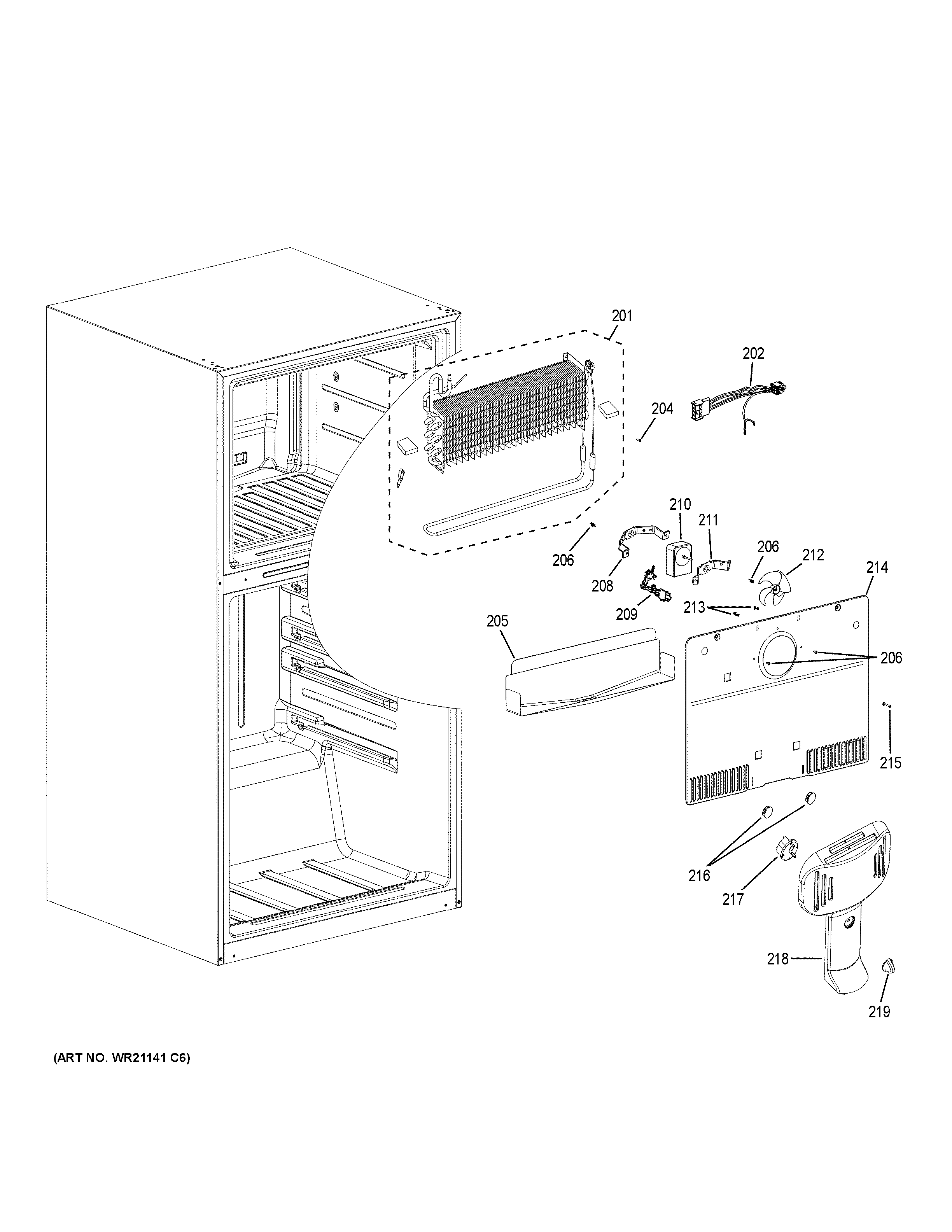

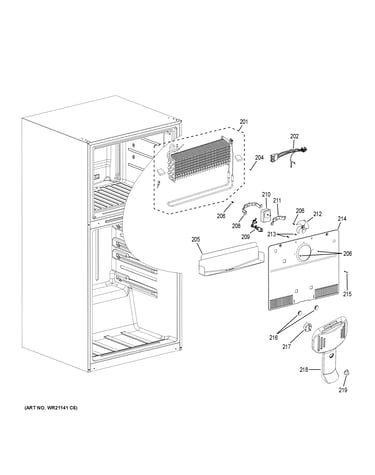

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
G.e. Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

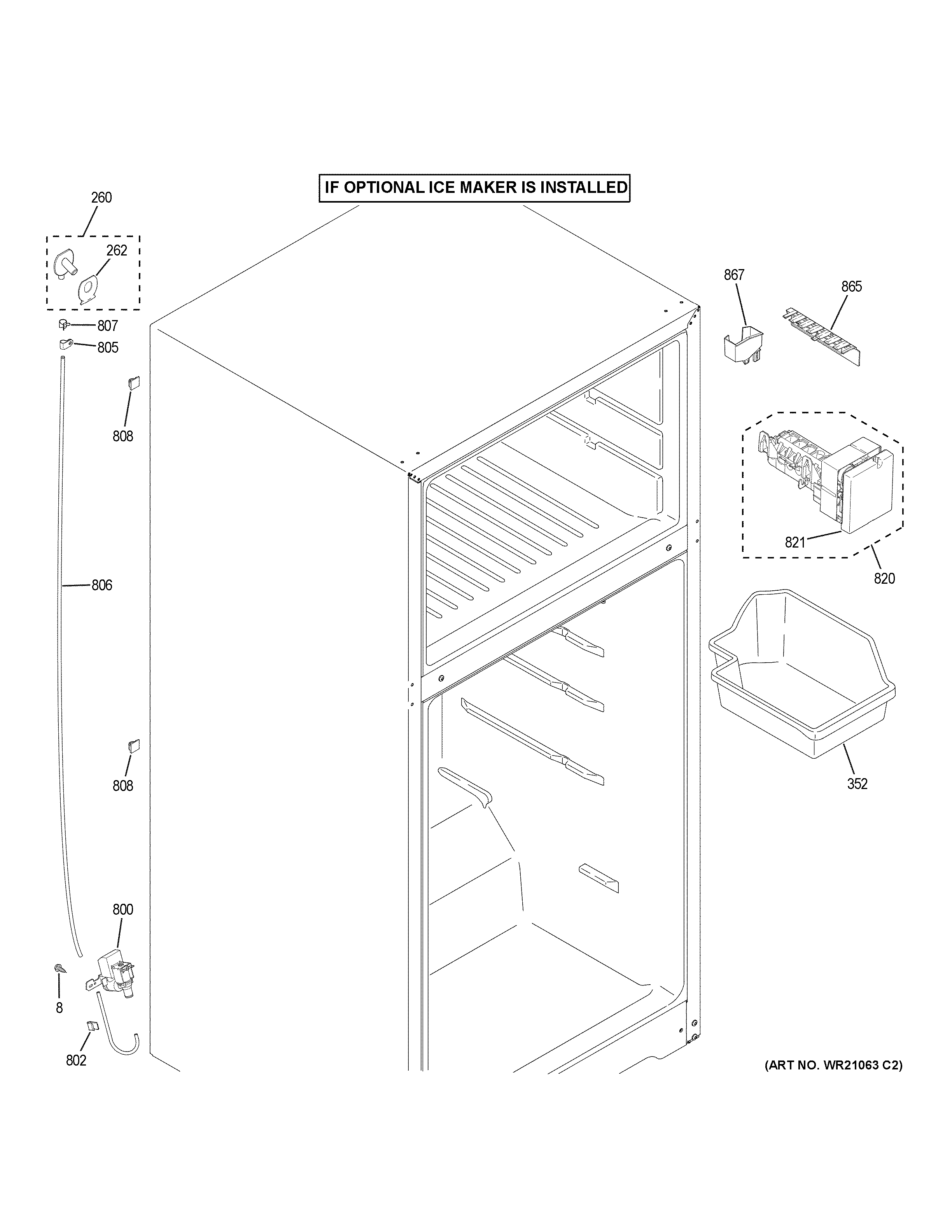

Ice maker diagram

G.e. refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Drier WR87X30548
#502

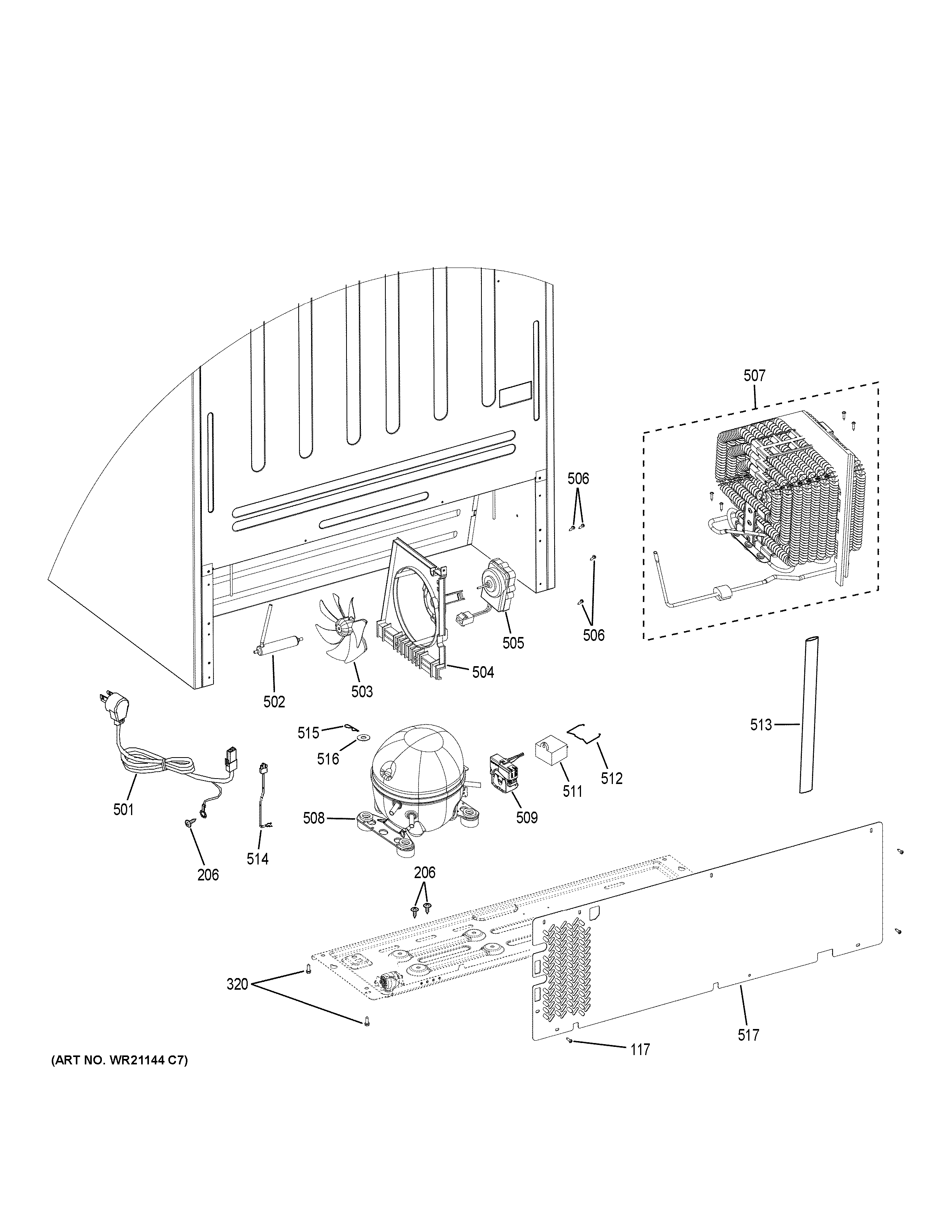

Machine compartment diagram

Drier

Part #WR87X30548

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR87X30548. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Run Capacitor WR55X23731
#511

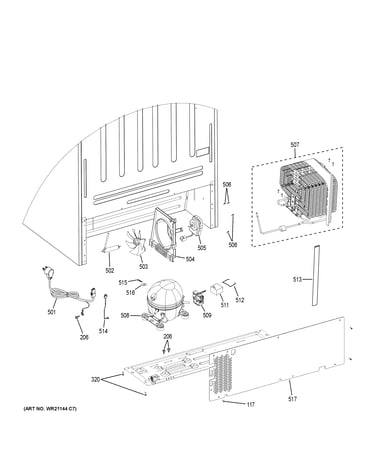

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X23731

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X23731. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Light Switch WR23X10143
#402

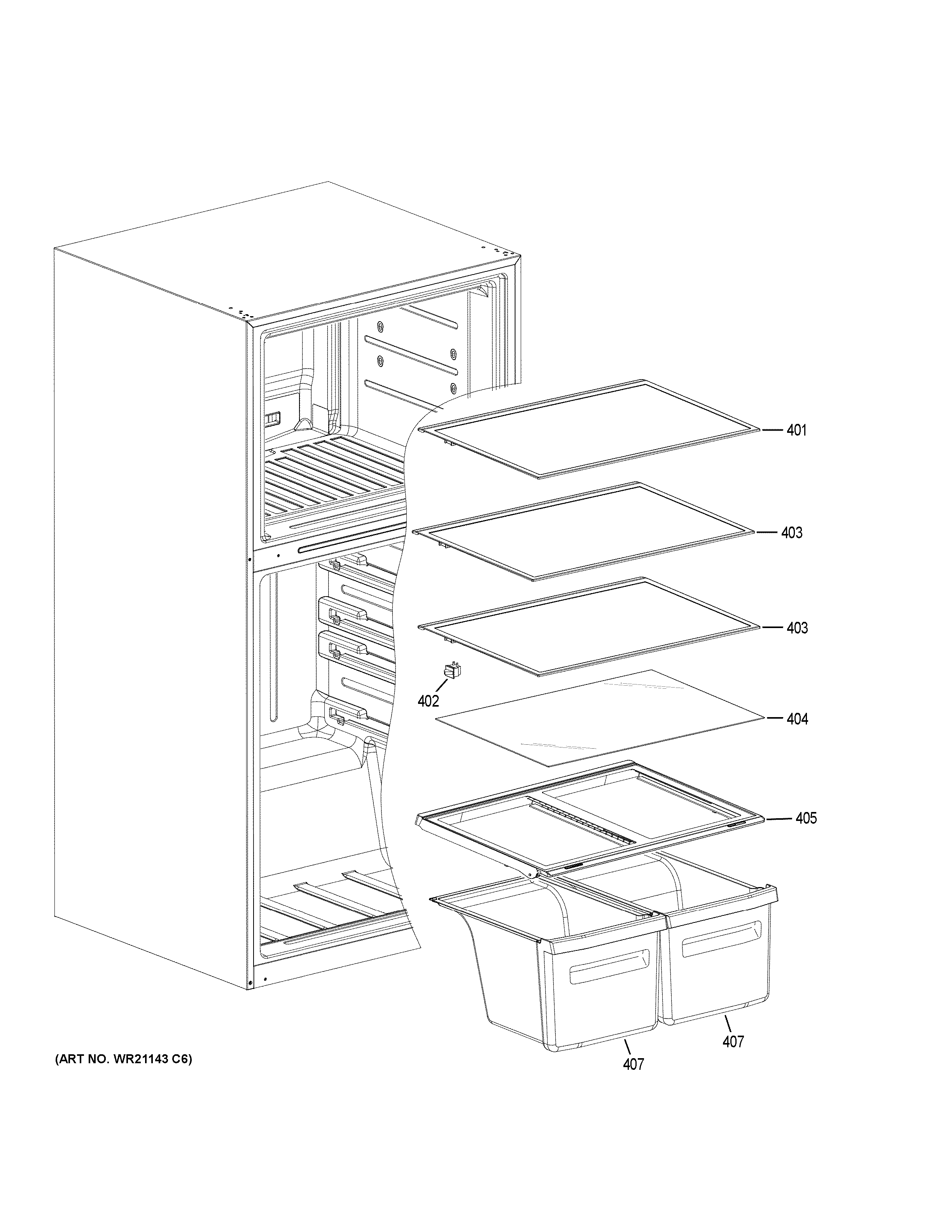

Shelves & drawers diagram

Refrigerator light switch

Part #WR23X10143

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Water Inlet Valve WR57X21246
Refrigerator water inlet valve

Part #WR57X21246

Replaced by #WR57X39965

?
Manufacturer substitution
This part replaces WR57X21246. Substitute parts can look different from the original.
$49.18
In Stock
Refrigerator Defrost Control Board (replaces Wr09x30979) WR09X28646
#310

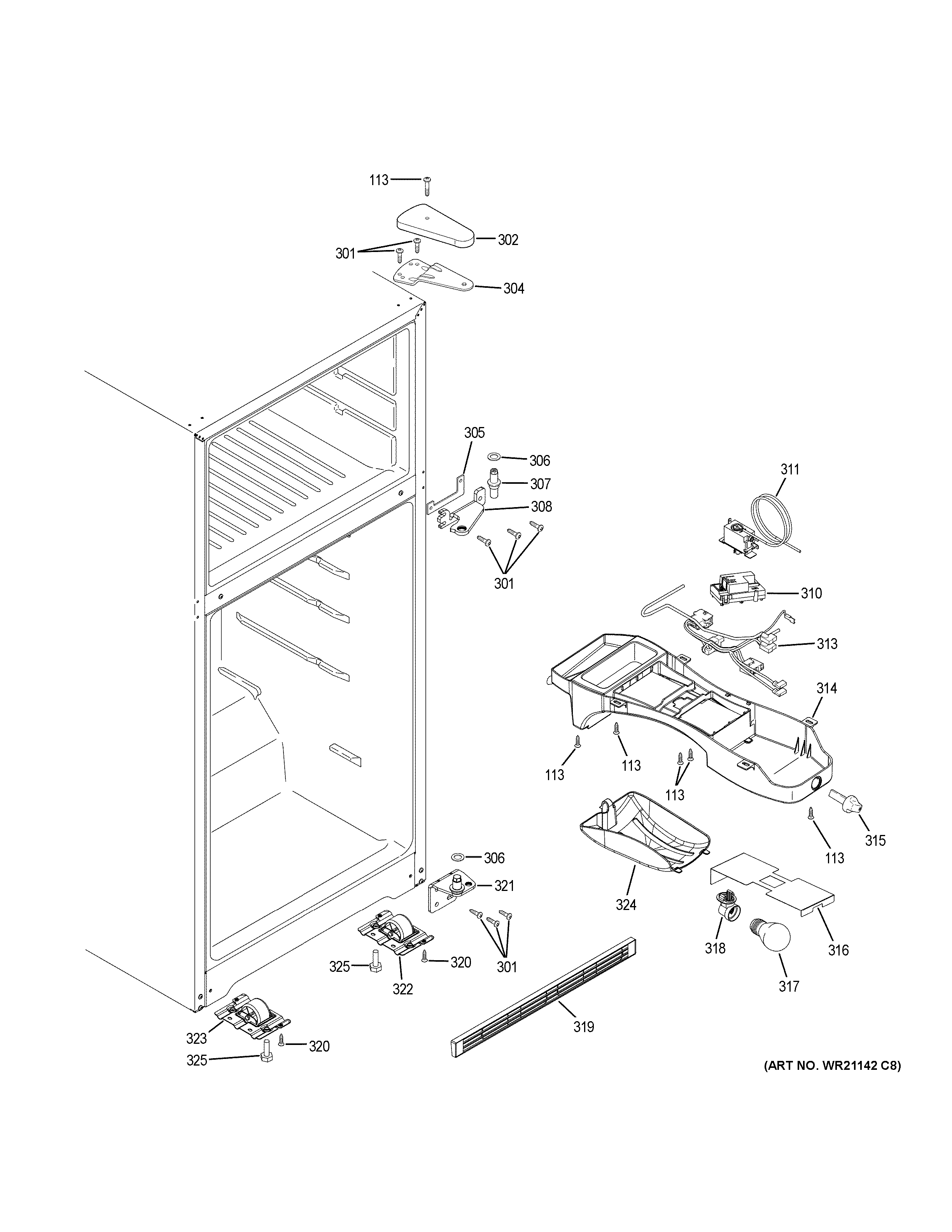

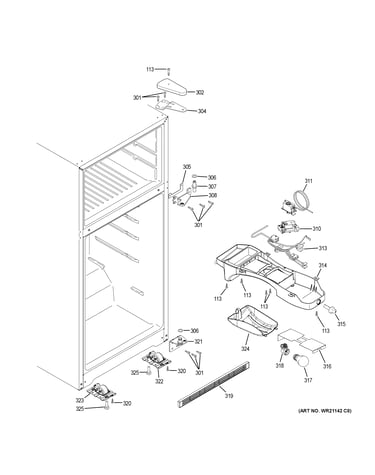

Fresh food section diagram

Refrigerator defrost control board (replaces wr09x30979)

Part #WR09X28646

$48.77 |
11% OFF Phone Price : $54.77
In Stock
Refrigerator Ice Maker Fill Cup WR29X10021
#867

Ice maker diagram

Refrigerator ice maker fill cup

Part #WR29X10021

Replaced by #WR29X10092

?
Manufacturer substitution
This part replaces WR29X10021. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Door Hole Plug (replaces Wr01x27941) WR02X21242
#102

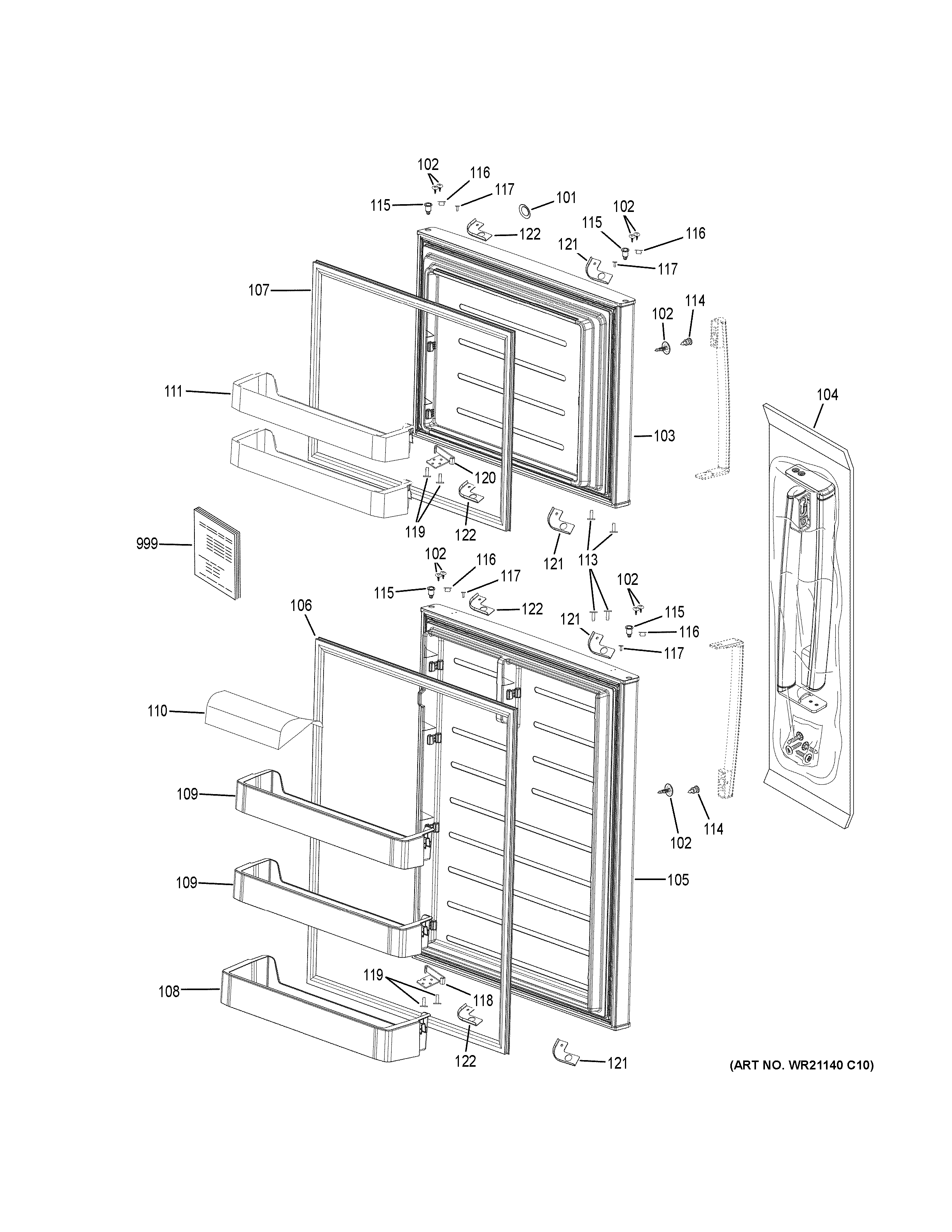

Doors diagram

Refrigerator door hole plug (replaces wr01x27941)

Part #WR02X21242

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Top Hinge WR13X27462
#304

Fresh food section diagram

Top hinge

Part #WR13X27462

$21.91
In Stock
Door Cap Right Corner Dorian Gray WR02X27410
#122

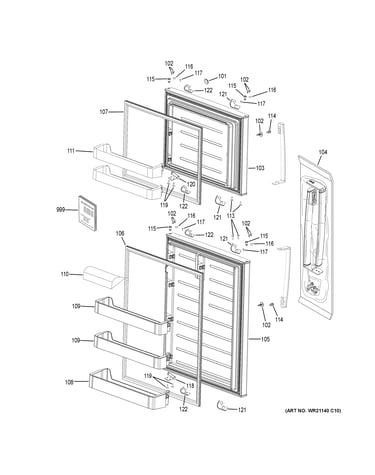

Doors diagram

Door cap right corner dorian gray

Part #WR02X27410

$8.11
In Stock
