Model # WVI75UC6DS4 Official Whirlpool hood/ventilation, vent systems

Here are the diagrams and repair parts for Official Whirlpool WVI75UC6DS4 hood/ventilation, vent systems, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Clip W10735735
#19

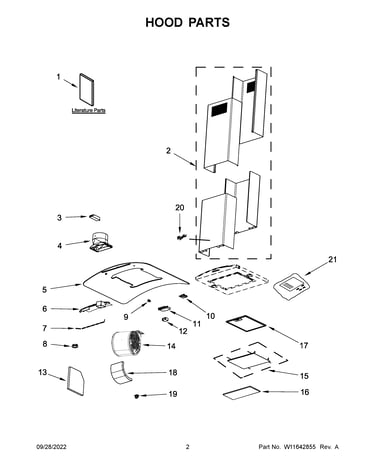

Hood parts diagram

Clip

Part #W10735735

Replaced by #W10854245

?
Manufacturer substitution
This part replaces W10735735. Substitute parts can look different from the original.
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Driver, Led W11281878
#3

Hood parts diagram

Driver, led

Part #W11281878

Replaced by #W11282989

?
Manufacturer substitution
This part replaces W11281878. Substitute parts can look different from the original.
$99.59 |
11% OFF Phone Price : $111.59
In Stock
Ikea Switch W10727051
#9

Hood parts diagram

Ikea switch

Part #W10727051

$34.38
In Stock
Ikea Light W10727052
#7

Hood parts diagram

Ikea light

Part #W10727052

$216.09
In Stock
Hardware W11034922
#21

Hood parts diagram

Hardware

Part #W11034922

$59.22
In Stock
Range Hood Flue Insulation W10717244
#13

Hood parts diagram

Range hood flue insulation

Part #W10717244

$54.06 |
10% OFF Phone Price : $60.06
In Stock
Ikea Sensor W10738544
#10

Hood parts diagram

Ikea sensor

Part #W10738544

$206.13
In Stock
Ikea Panel, Perimetric W10738508
#15

Hood parts diagram

Ikea panel, perimetric

Part #W10738508

$208.76
In Stock
Ikea Support W10738520
#6

Hood parts diagram

Ikea support

Part #W10738520

$42.58
In Stock
Range Hood Blower Assembly W10738514
#14

Hood parts diagram

Range hood blower assembly

Part #W10738514

$270.55
In Stock
