Model # 217586331 Official Craftsman 15.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586331 15.0-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

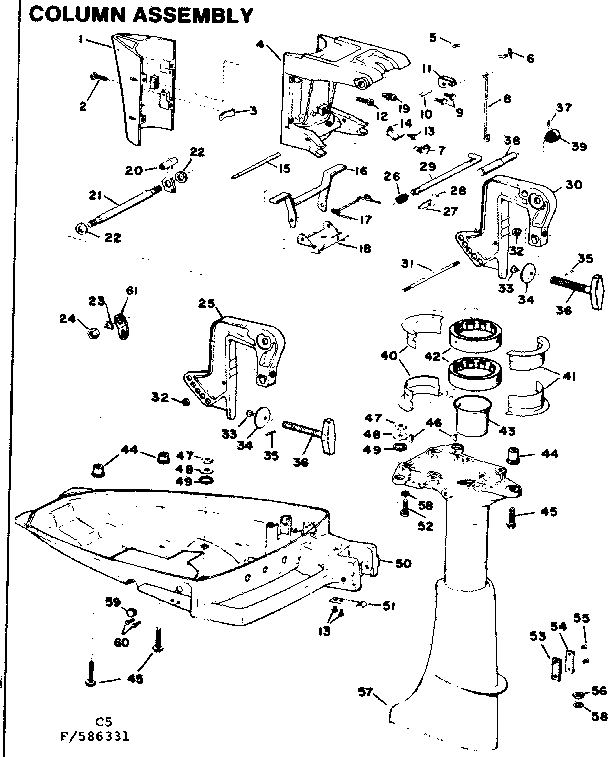

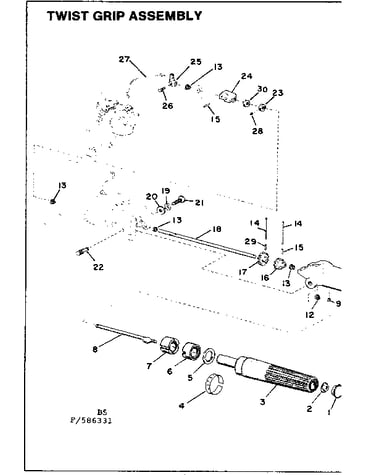

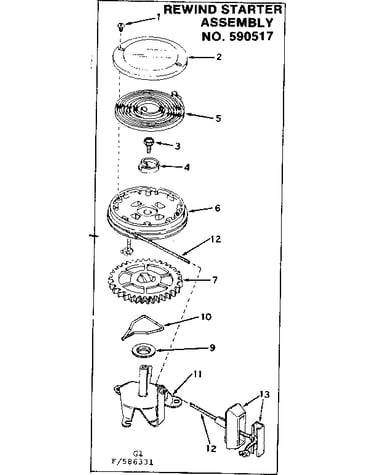

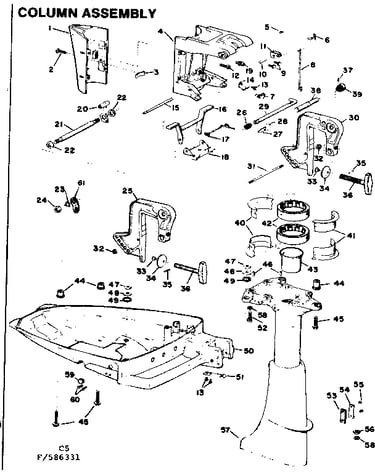

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 319 parts  |
Gasket 631028
#25

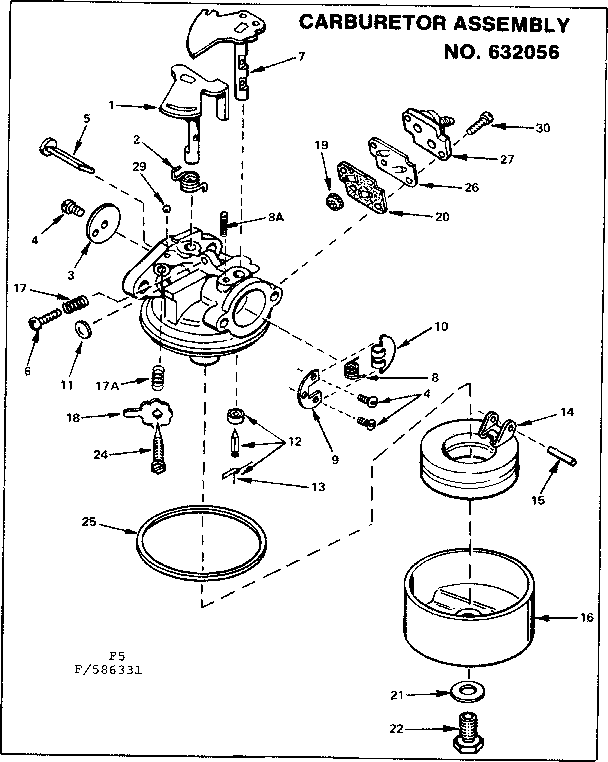

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#50

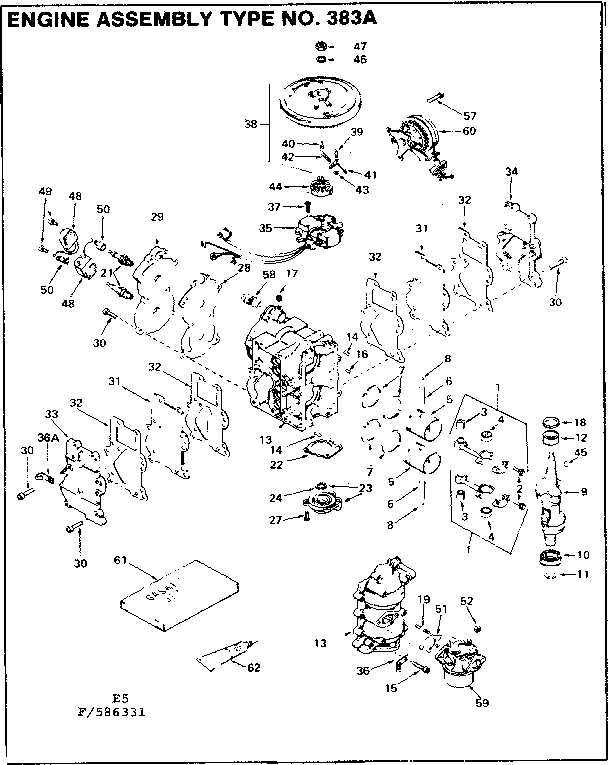

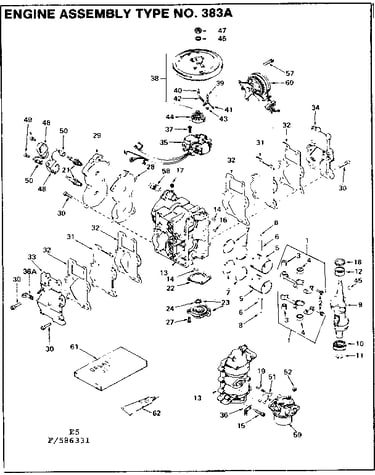

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Screw 650576
#27

Engine assembly diagram

Screw

Part #650576

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631334
#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#17

Carburetor assembly diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Element 630953
#5

Carburetor assembly diagram

Element

Part #630953

The manufacturer no longer makes this part, and there's no substitute part

Pin (silver) 6415
Pin (silver)

Part #6415

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Exercise Equipment Washer 96687
#6

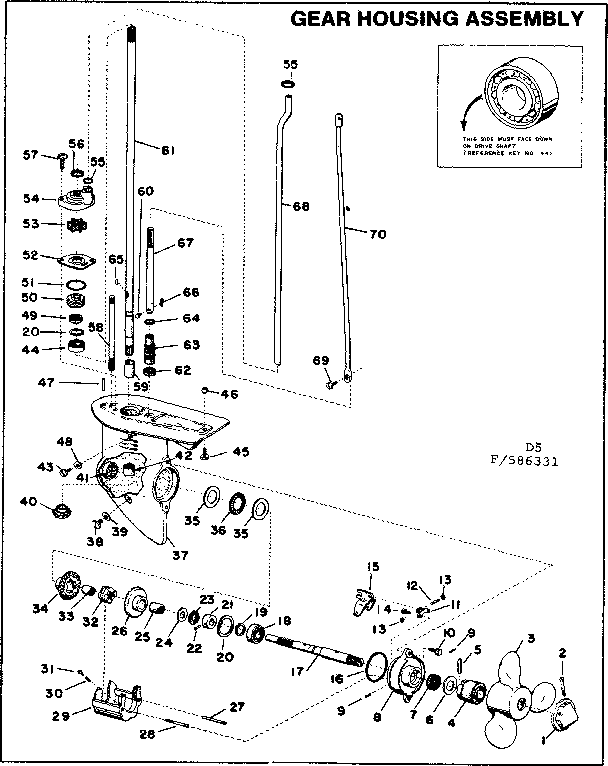

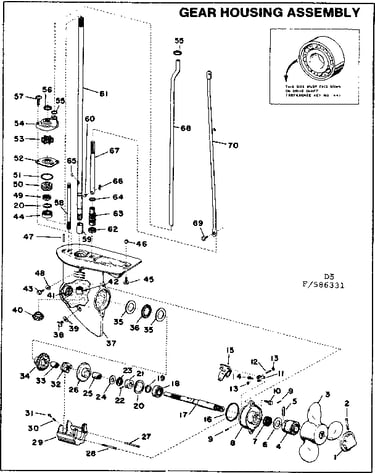

Gear housing assembly diagram

Tecumseh exercise equipment washer

Part #96687

The manufacturer no longer makes this part, and there's no substitute part

Shift Lever Handle 76130
#41

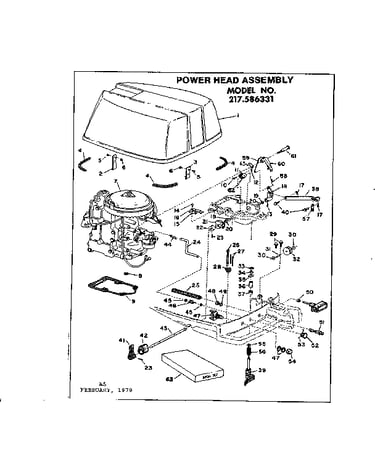

Power head assembly diagram

Shift lever handle

Part #76130

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Bushing 26243
#50

Power head assembly diagram

Tecumseh bushing

Part #26243

The manufacturer no longer makes this part, and there's no substitute part
