Kenmore
Side-By-Side Refrigerator

Model # 79551023011 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79551023011 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

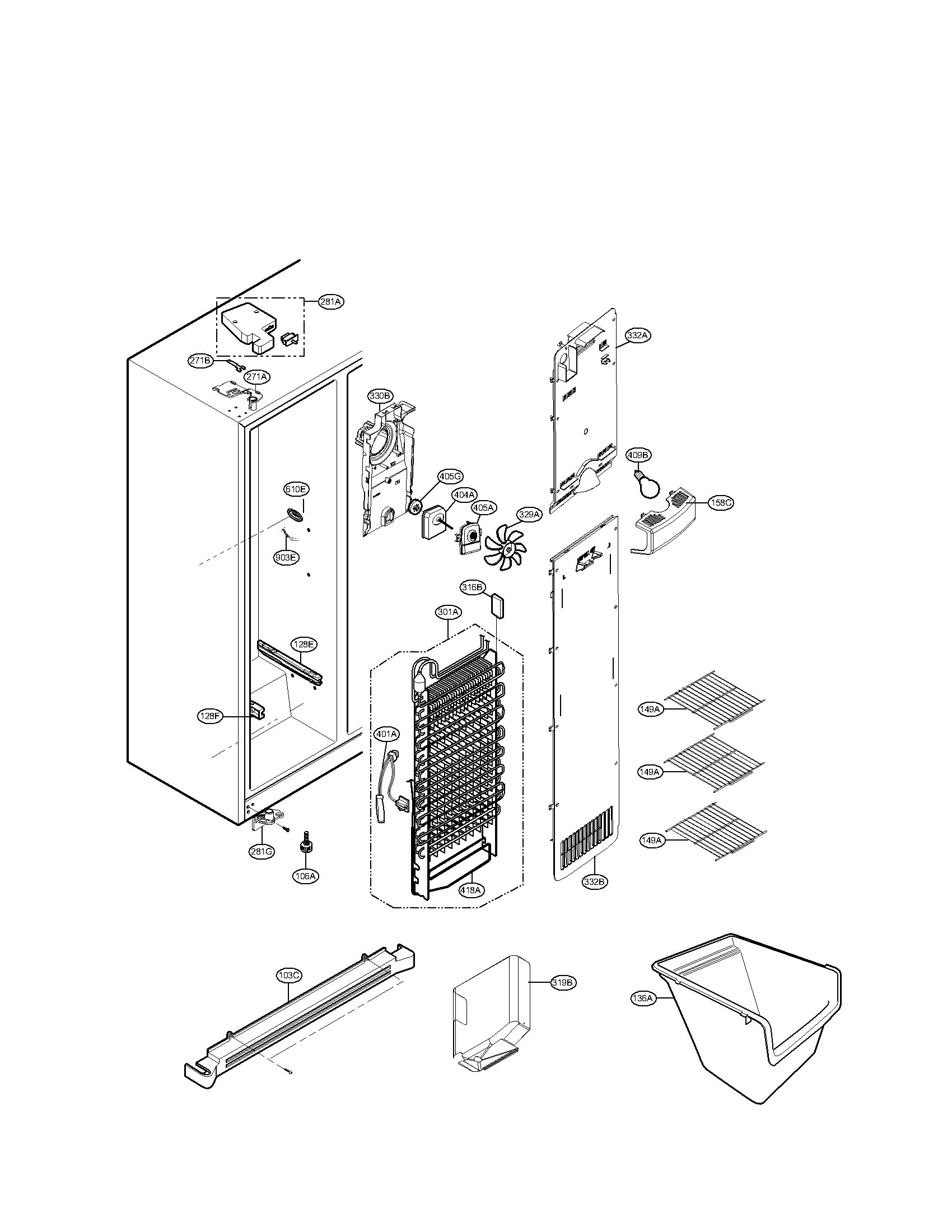

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Refrigerator Filter Dryer 5851JA2007A
#317A

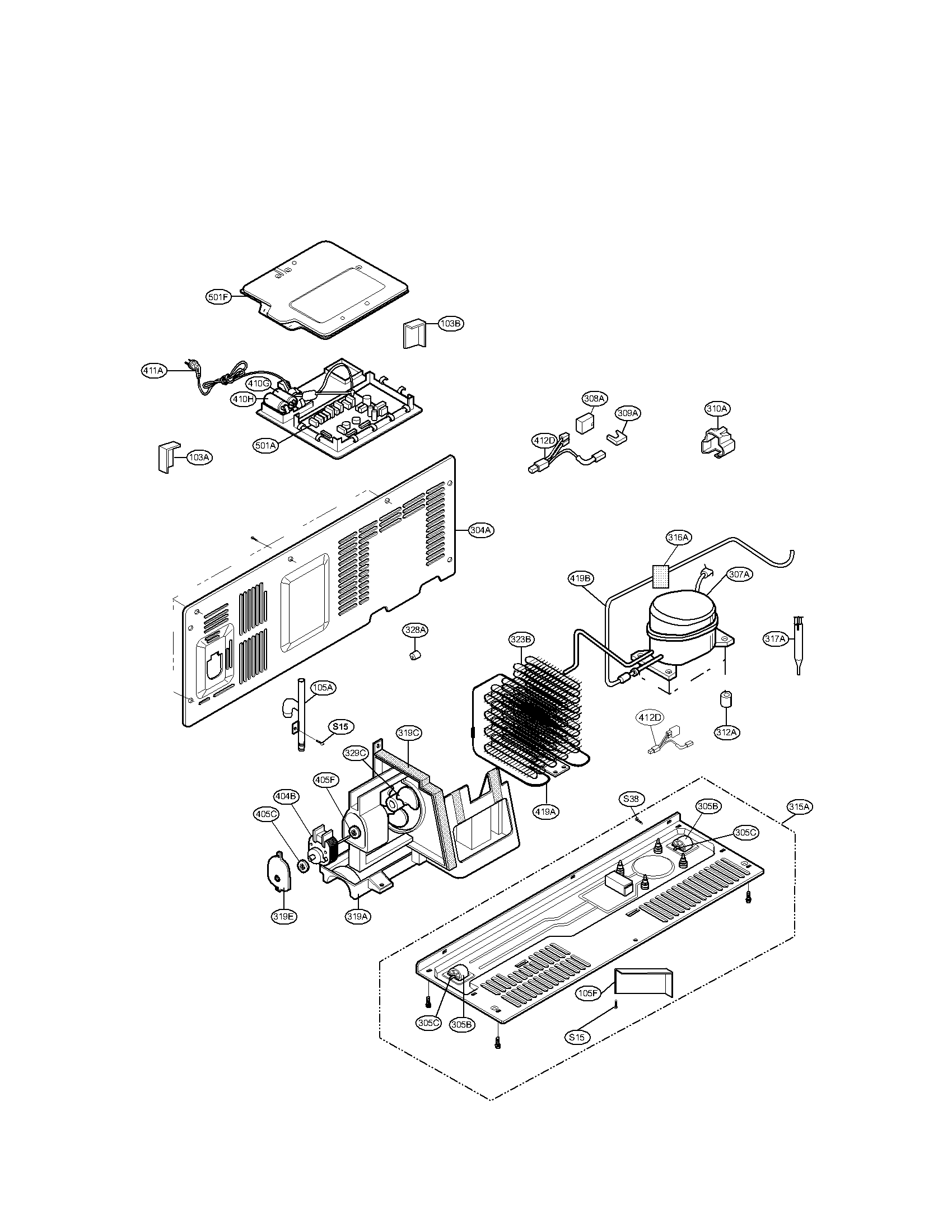

Mechanical compartment parts diagram

Refrigerator filter dryer

Part #5851JA2007A

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007A. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Refrigerator Auger Motor EAU59551201
#405H

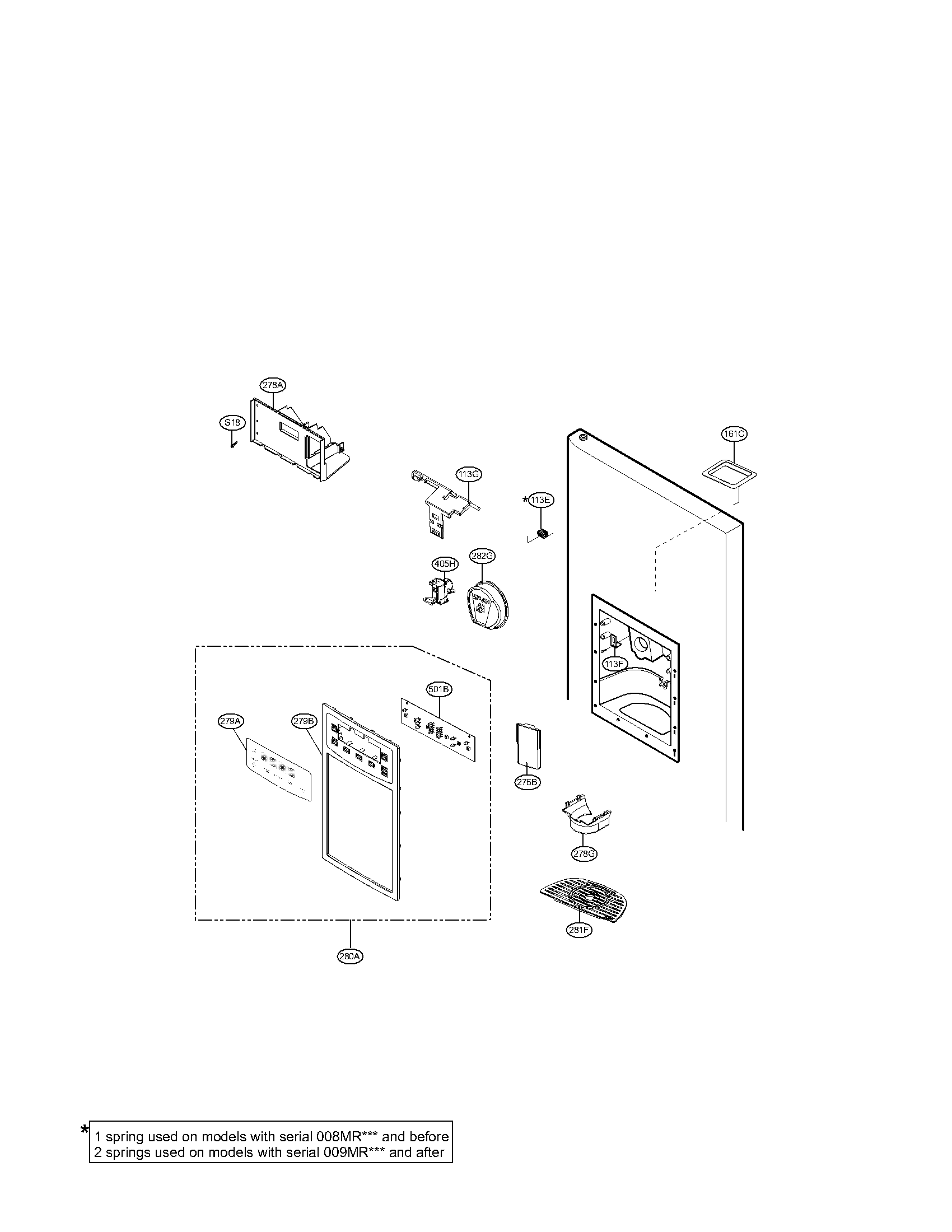

Dispenser parts diagram

Refrigerator auger motor

Part #EAU59551201

Replaced by #EAU59551204

?
Manufacturer substitution
This part replaces EAU59551201. Substitute parts can look different from the original.
BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Refrigerator Sensor 6500JK1003A
#903D

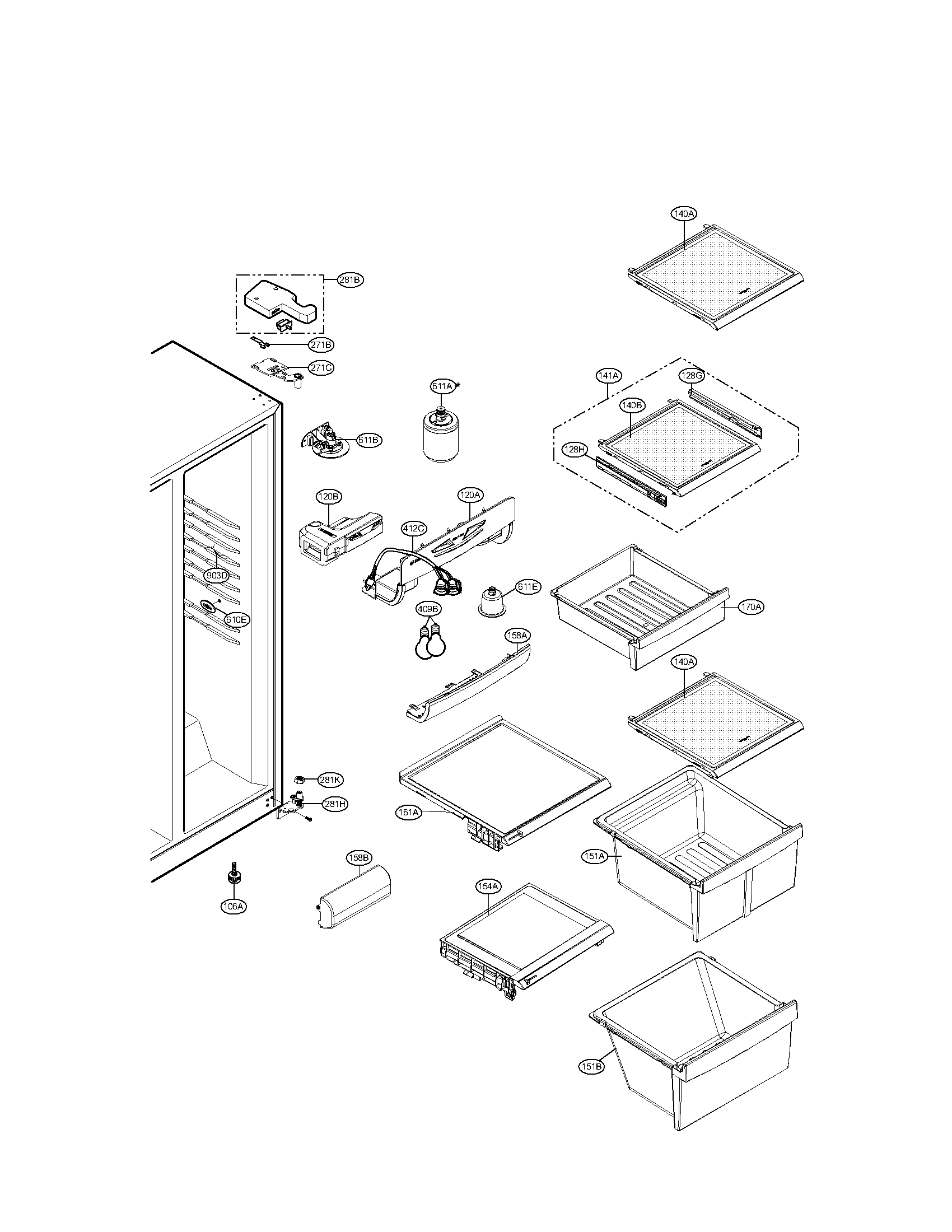

Refrigerator compartment parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Water Tank MJM61904701
#615A

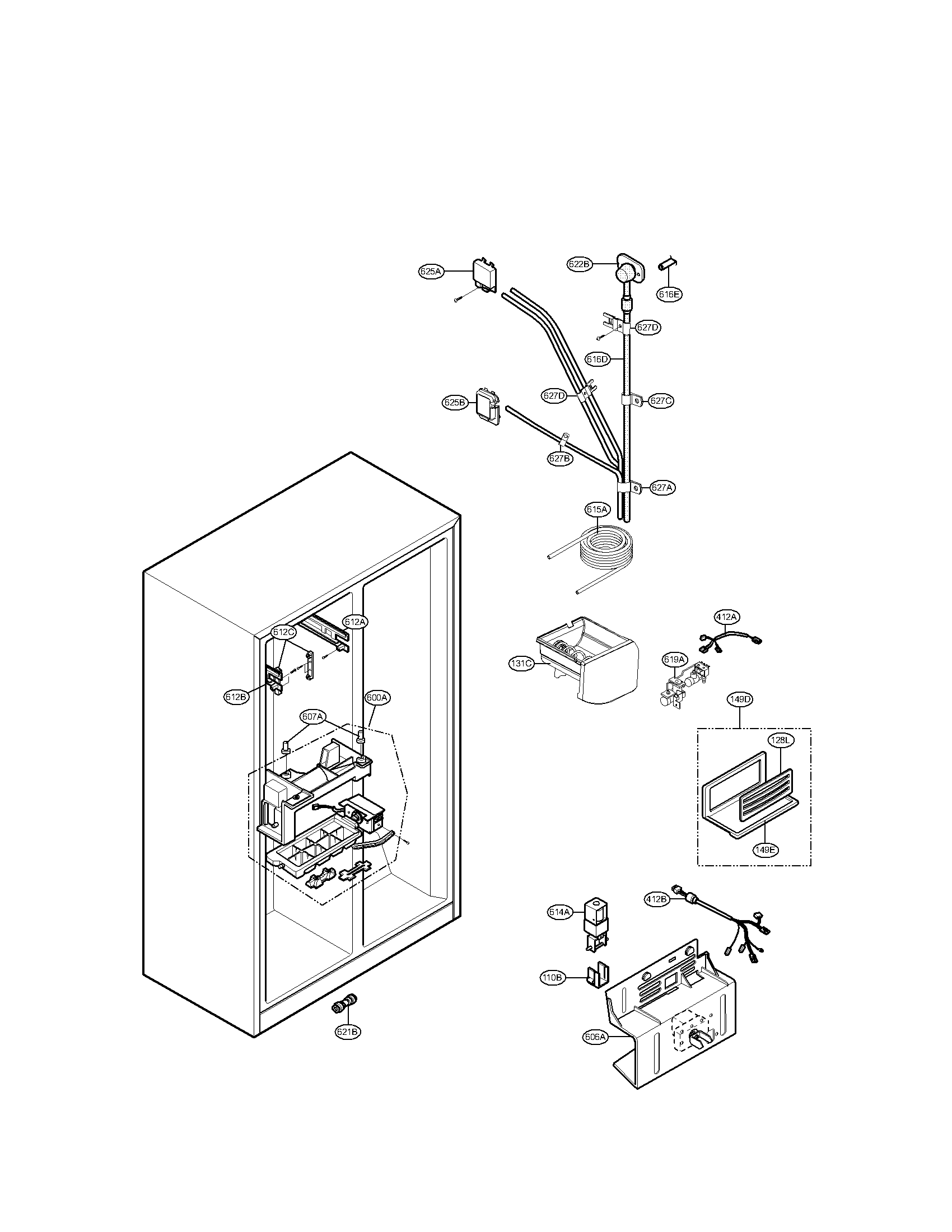

Ice and water parts diagram

Refrigerator water tank

Part #MJM61904701

Replaced by #MJM61904702

?
Manufacturer substitution
This part replaces MJM61904701. Substitute parts can look different from the original.
BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Refrigerator Compressor TCA31748011
#307A

Mechanical compartment parts diagram

Refrigerator compressor

Part #TCA31748011

Replaced by #TCA37091209

?
Manufacturer substitution
This part replaces TCA31748011. Substitute parts can look different from the original.
BEST SELLER
$316.23 |
$12.00 OFF Phone Price : $328.23
In Stock
Refrigerator Refrigerant Line Noise Damper 5072JA3003F
#316A

Mechanical compartment parts diagram

Refrigerator refrigerant line noise damper

Part #5072JA3003F

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Door Handle Mounting Bolt 4620JJ2010C
#212J

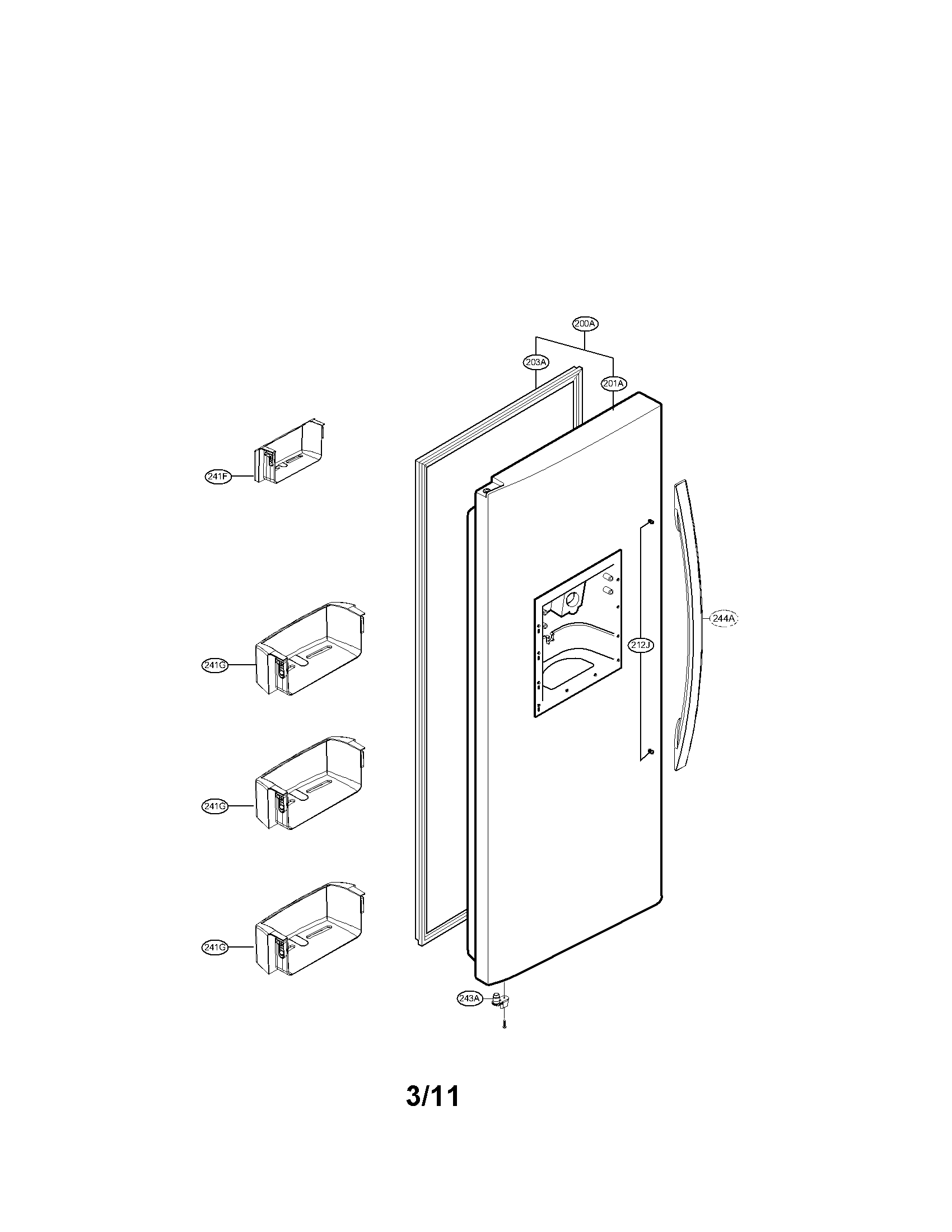

Freezer door parts diagram

Refrigerator door handle mounting bolt

Part #4620JJ2010C

Replaced by #MJB63190001

?
Manufacturer substitution
This part replaces 4620JJ2010C. Substitute parts can look different from the original.
BEST SELLER
$8.77 |
10% OFF Phone Price : $9.77
In Stock
Refrigerator Door Bin (replaces Aap72911202) MAN61844501
#241J

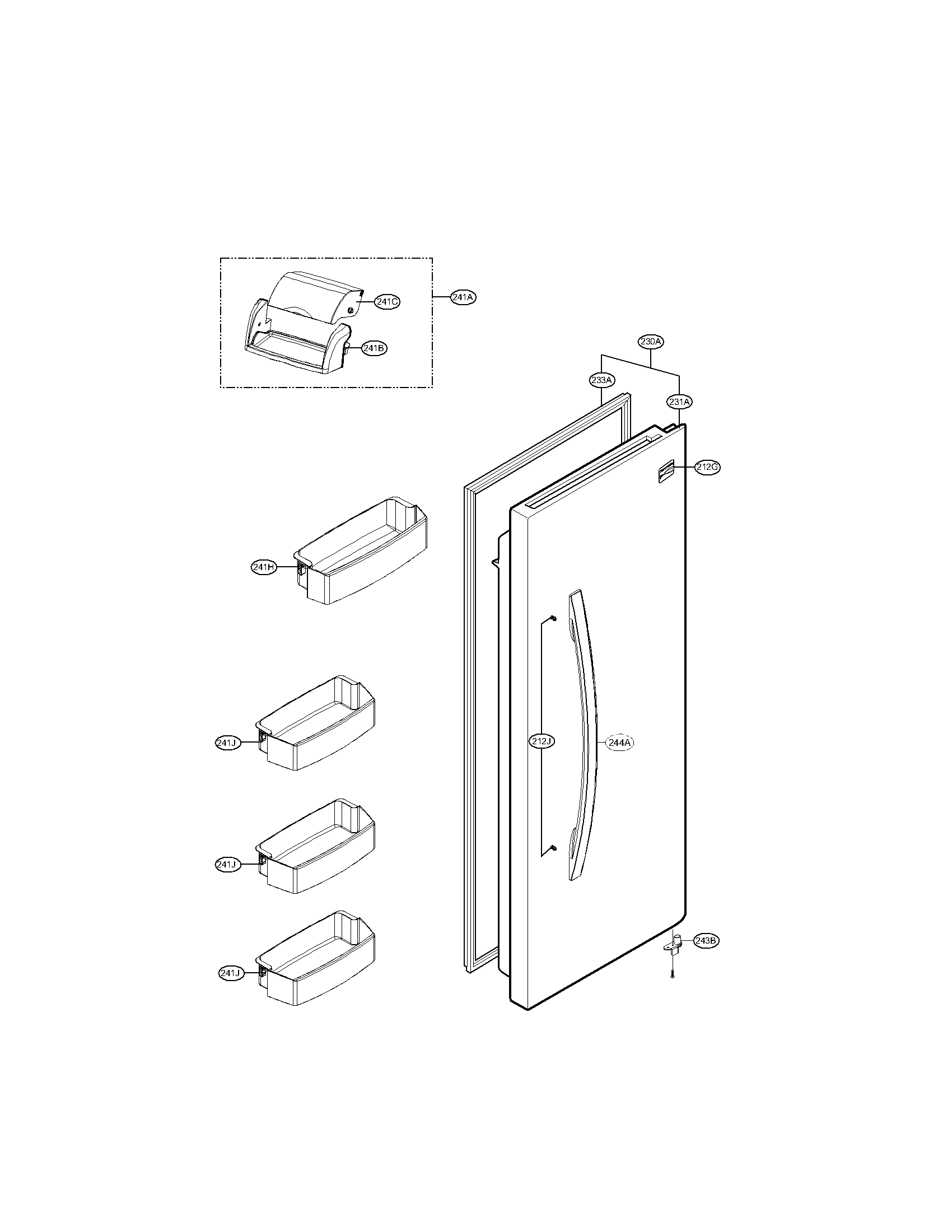

Refrigerator door parts diagram

Refrigerator door bin (replaces aap72911202)

Part #MAN61844501

BEST SELLER
$86.82 |
6% OFF Phone Price : $92.82
In Stock
Refrigerator Dispenser Ice Chute Door Hinge Spring 4970JA3011C
#113E

Dispenser parts diagram

Refrigerator dispenser ice chute door hinge spring

Part #4970JA3011C

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Drawer Slide Rail, Left MEA40002602
#128H

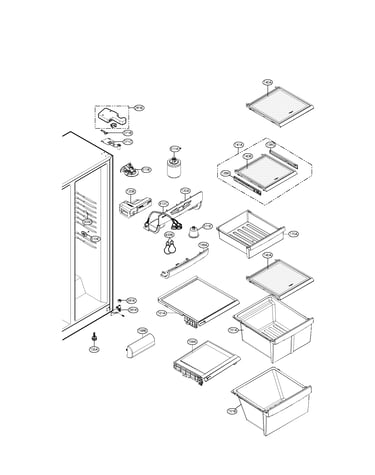

Refrigerator compartment parts diagram

Refrigerator drawer slide rail, left

Part #MEA40002602

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
