Model # PFTL20560 Official Proform 725 xt treadmill

Here are the diagrams and repair parts for Official Proform PFTL20560 725 xt treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
#13

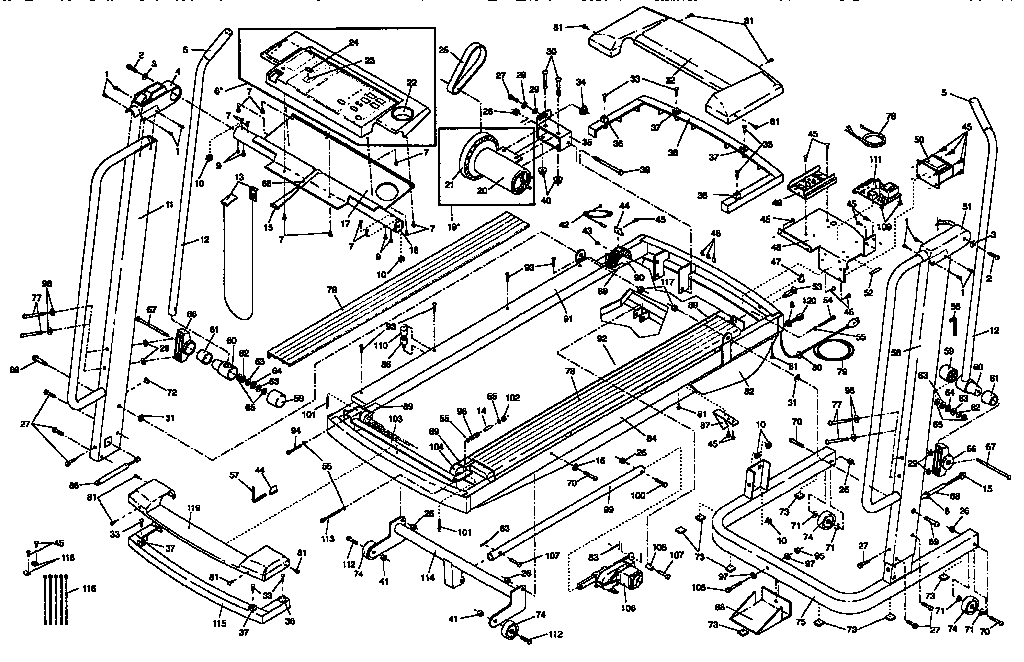

Unit parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Black & Decker Exercise Equipment Screw 105444
#94

Unit parts diagram

Black & decker exercise equipment screw

Part #105444

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Washer 014063
#98

Unit parts diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Treadmill Transport Wheel 052012
#74

Unit parts diagram

Treadmill transport wheel

Part #052012

This item is not returnable
$2.16
In Stock
Exercise Equipment Hex Nut 012056
Exercise equipment hex nut

Part #012056

This item is not returnable
$2.16
In Stock
Guide,belt,l 109265
#87

Unit parts diagram

Guide,belt,l

Part #109265

Replaced by #198640

?
Manufacturer substitution
This part replaces 109265. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
100" Grnd Wr 129824

#NI

All parts diagram

100" grnd wr

Part #129824

This item is not returnable
$5.99
In Stock
Image Exercise Equipment Nut 100553
#117

Unit parts diagram

Image exercise equipment nut

Part #100553

This item is not returnable
$2.16
In Stock
Black & Decker Clamp,8cabl 016057
#116

Unit parts diagram

Black & decker clamp,8cabl

Part #016057

This item is not returnable
$2.16
In Stock
Cotter Pin,3 106334
#83

Unit parts diagram

Cotter pin,3

Part #106334

This item is not returnable
$2.16
In Stock
