Model # JVM1542WF002 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1542WF002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

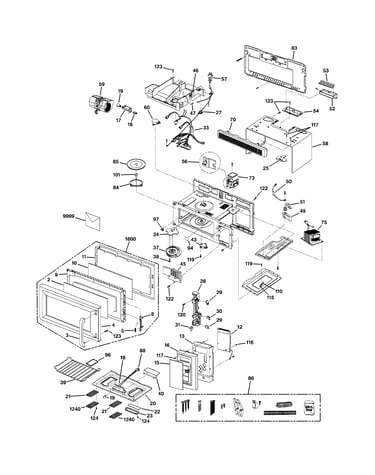

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Microwave Fuse WB27X10388
#47

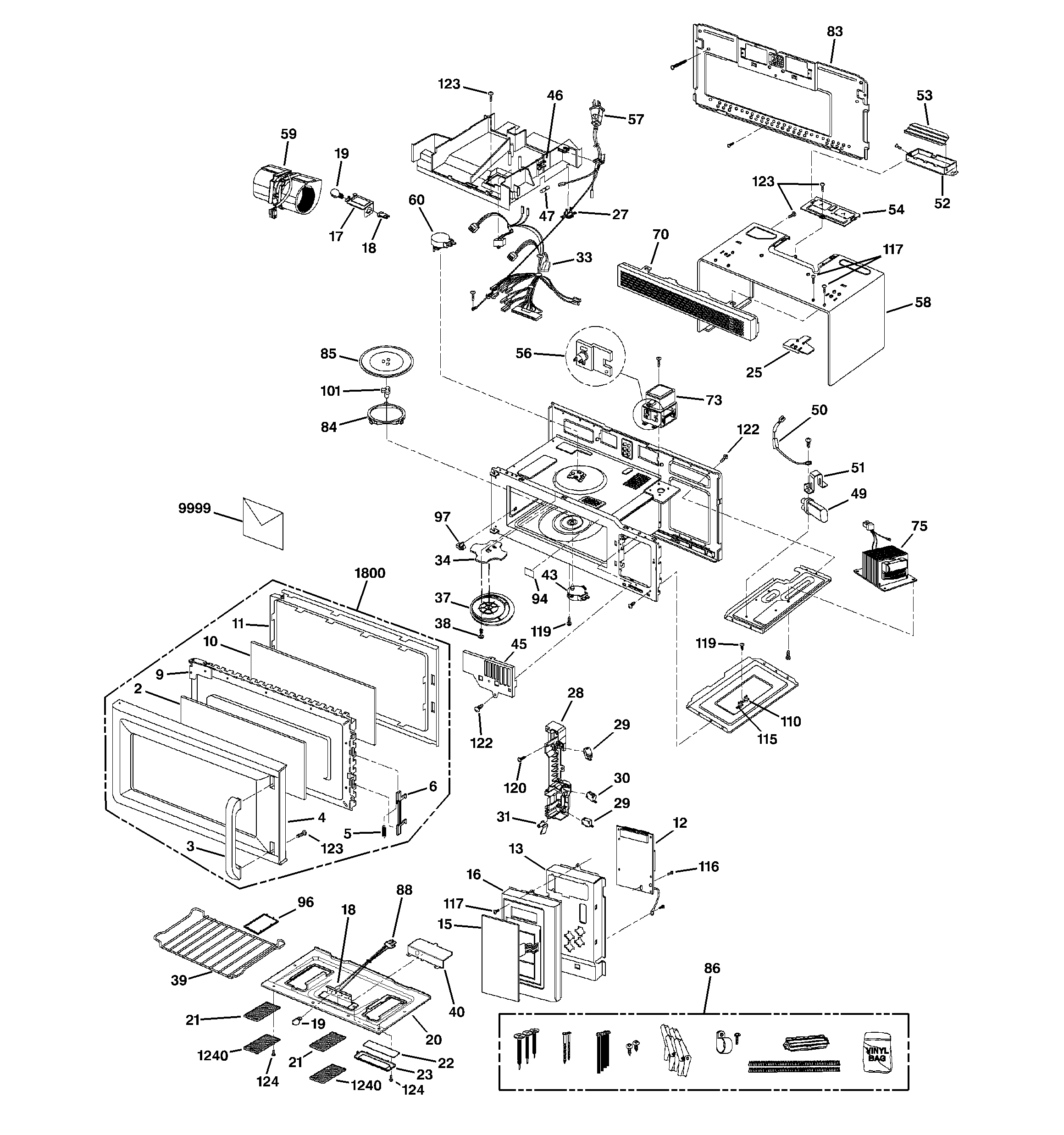

Microwave diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb18x10286, Wb27x1033, Wb27x10330) WB27X10037
#50

Microwave diagram

Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)

Part #WB27X10037

BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Thermostat WB20X10020
#110

Microwave diagram

Thermostat

Part #WB20X10020

Replaced by #WB21X10148

?
Manufacturer substitution
This part replaces WB20X10020. Substitute parts can look different from the original.
BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Microwave/hood Baseless Lamp WB36X10223
#19

Microwave diagram

Microwave/hood baseless lamp

Part #WB36X10223

Replaced by #WB36X10328

?
Manufacturer substitution
This part replaces WB36X10223. Substitute parts can look different from the original.
$15.30 |
12% OFF Phone Price : $17.30
In Stock
Microwave Grease Filter WB06X10359
#21

Microwave diagram

Microwave grease filter

Part #WB06X10359

$36.48 |
14% OFF Phone Price : $42.48
In Stock
Primary Switch WB24X0815
#29

Microwave diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10029

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
$36.39 |
14% OFF Phone Price : $42.39
In Stock
Monitor Switch WB24X0817
#30

Microwave diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X817

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Screw,ttl+4x (replaces Wb01x10432) WB01X10107
#124

Microwave diagram

Screw,ttl+4x (replaces wb01x10432)

Part #WB01X10107

$8.98 |
10% OFF Phone Price : $9.98
In Stock
Microwave Charcoal Filter WB02X10776
#1240

Microwave diagram

Microwave charcoal filter

Part #WB02X10776

Replaced by #WB02X33061

?
Manufacturer substitution
This part replaces WB02X10776. Substitute parts can look different from the original.
This item is not returnable
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Exhaust Damper WB06X10370
#53

Microwave diagram

Exhaust damper

Part #WB06X10370

Replaced by #WB06X10565

?
Manufacturer substitution
This part replaces WB06X10370. Substitute parts can look different from the original.
This item is not returnable
$8.66 |
10% OFF Phone Price : $9.66
In Stock
