GE
Gas Grill

Model # ZGG48L31YSS Official GE outdoor grill

Here are the diagrams and repair parts for Official GE ZGG48L31YSS outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Monogram Logo WB02X10349
#29

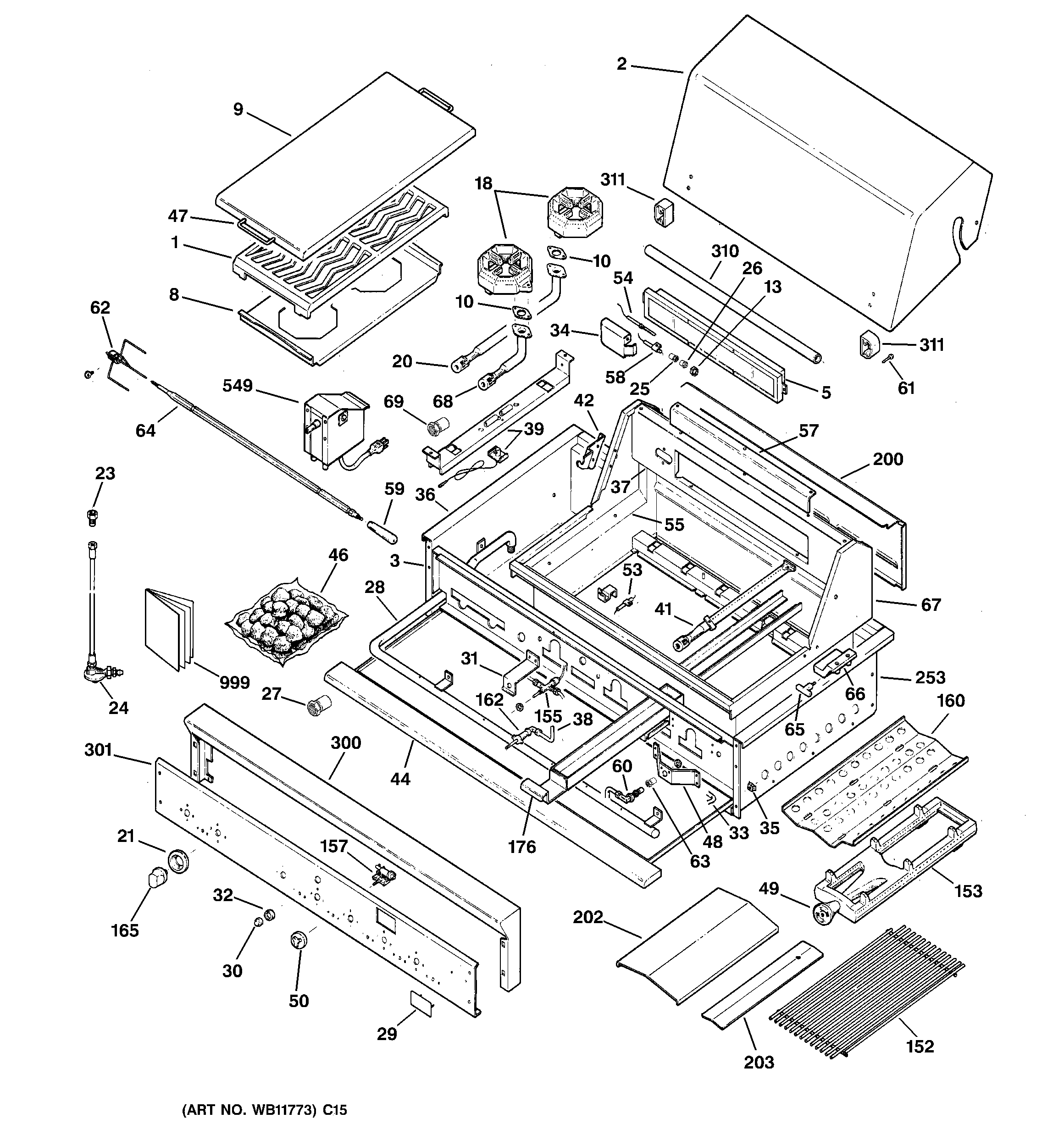

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
H-burner WB28X10008
#153

Gas grill parts diagram

H-burner

Part #WB28X10008

Replaced by #WB28X10021

?
Manufacturer substitution
This part replaces WB28X10008. Substitute parts can look different from the original.
$249.52 |
5% OFF Phone Price : $261.52
In Stock
Uc Only Outd 49-8822
#999

Gas grill parts diagram

Uc only outd

Part #49-8822

Replaced by #049-80377

?
Manufacturer substitution
This part replaces 49-8822. Substitute parts can look different from the original.
$17.99
In Stock
Landing Ledg WB07X10045
#300

Gas grill parts diagram

Landing ledg

Part #WB07X10045

The manufacturer no longer makes this part, and there's no substitute part

Safety Bezel WB07X10041
#32

Gas grill parts diagram

Safety bezel

Part #WB07X10041

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Rotisserie Motor WB26X10014
#549

Gas grill parts diagram

Gas grill rotisserie motor

Part #WB26X10014

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner Knob Bezel WB02X10383
#21

Gas grill parts diagram

Gas grill burner knob bezel

Part #WB02X10383

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter WB02X10387
#53

Gas grill parts diagram

Gas grill igniter

Part #WB02X10387

The manufacturer no longer makes this part, and there's no substitute part

Valve Panel WB07X10087
#301

Gas grill parts diagram

Valve panel

Part #WB07X10087

The manufacturer no longer makes this part, and there's no substitute part

Smoker Orifice WB21X10074
#63

Gas grill parts diagram

Smoker orifice

Part #WB21X10074

The manufacturer no longer makes this part, and there's no substitute part
