Whirlpool
Top-Mount Refrigerator

Model # 9ET16NKXDW03 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 9ET16NKXDW03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Light Bulb 946059
#17

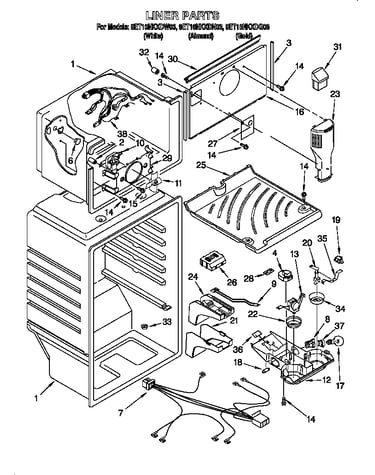

Liner diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drier Tube 2174865
#29

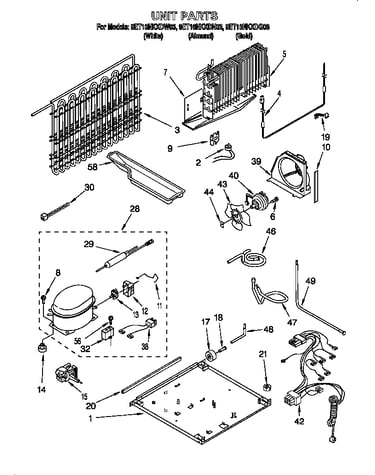

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2190529
#4

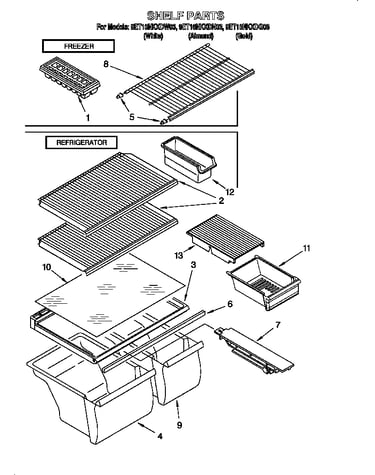

Shelf diagram

Refrigerator crisper pan

Part #2190529

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2190529. Substitute parts can look different from the original.
BEST SELLER
$82.04 |
7% OFF Phone Price : $88.04
Back Order
Refrigerator Defrost Bi-metal 2182380
#2

Unit diagram

Refrigerator defrost bi-metal

Part #2182380

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2182380. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Compressor 2169402
#28

Unit diagram

Refrigerator compressor

Part #2169402

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2169402. Substitute parts can look different from the original.
BEST SELLER
$282.03 |
$12.00 OFF Phone Price : $294.03
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Washer 487576
#38

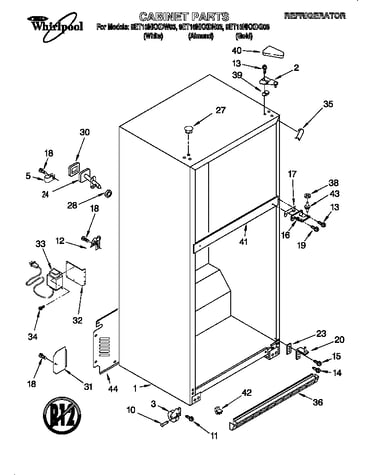

Cabinet diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Screw 487909
#17

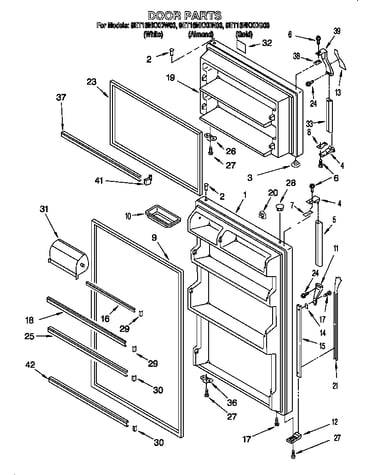

Door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
