Model # DV476GTHASU/A1-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV476GTHASU-A1-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

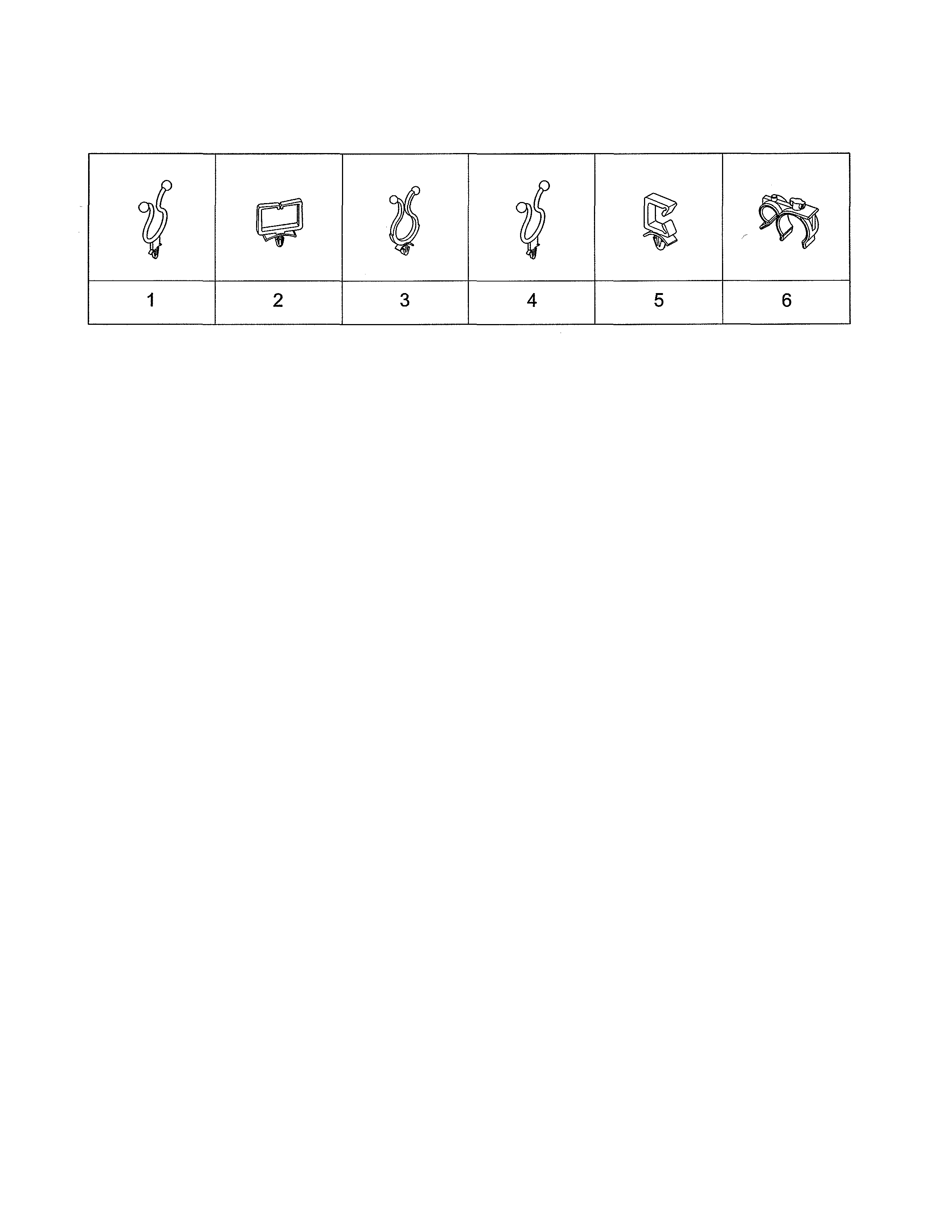

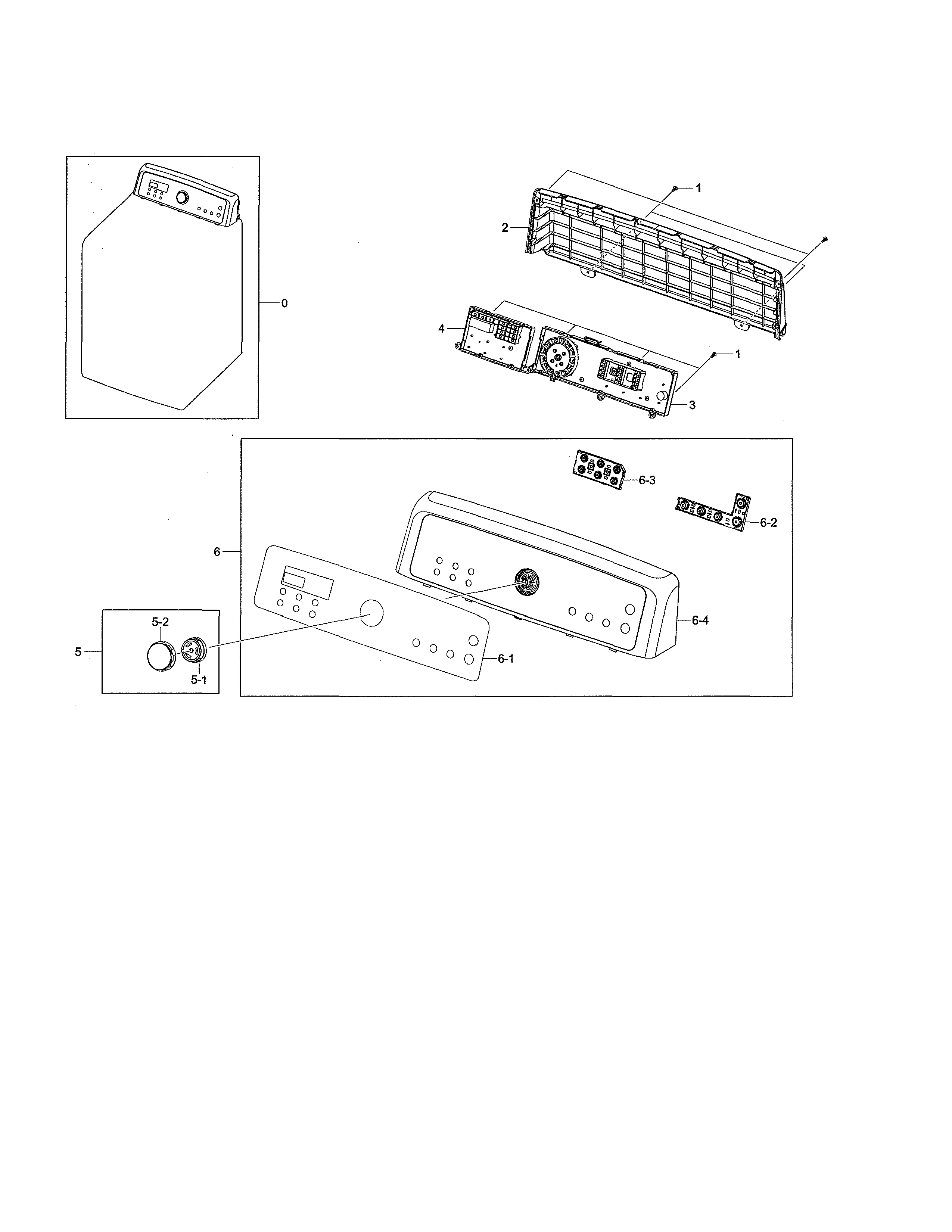

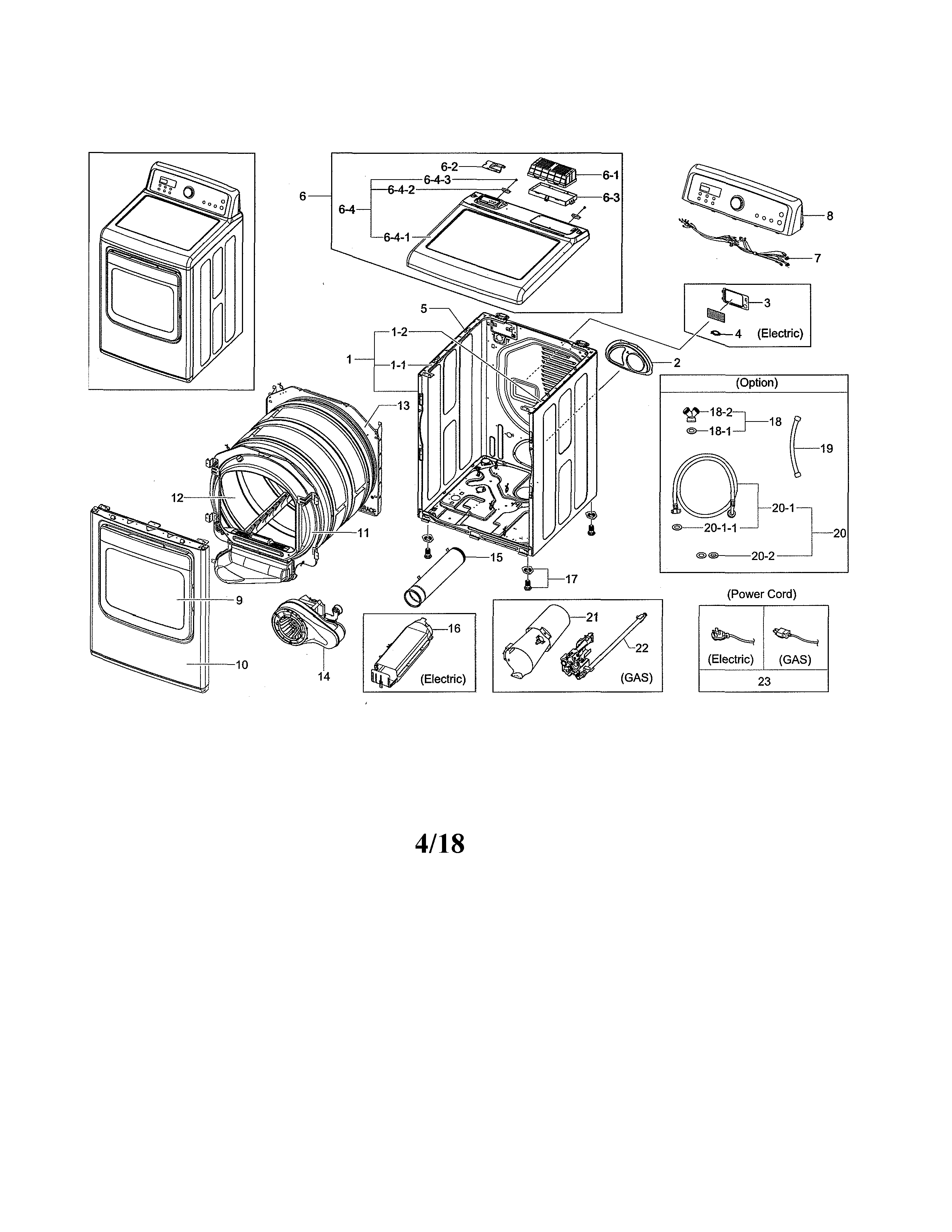

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Dryer Idler Assembly DC96-00882C
#2-9-7

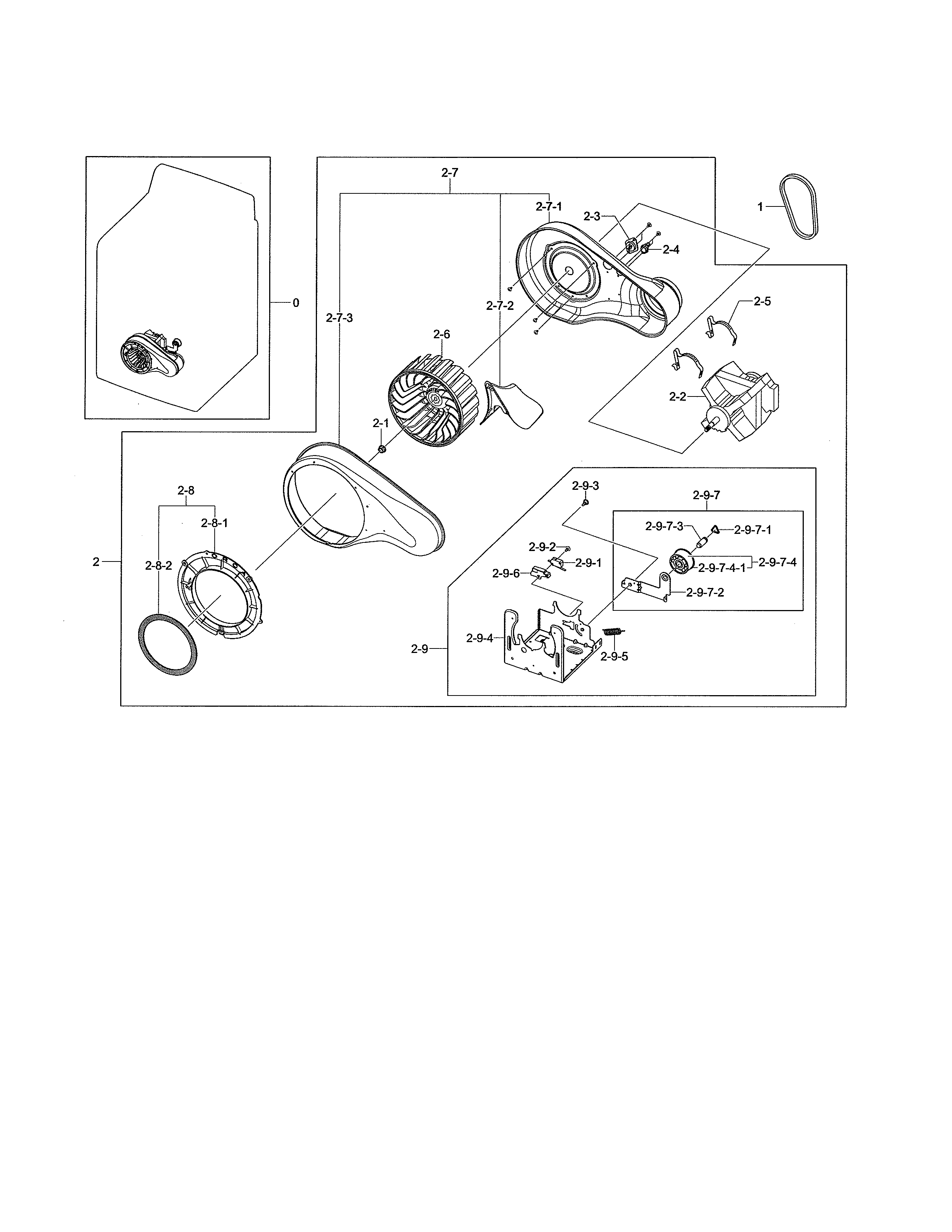

Duct motor diagram

Dryer idler assembly

Part #DC96-00882C

Replaced by #DC93-00634A

?
Manufacturer substitution
This part replaces DC96-00882C. Substitute parts can look different from the original.
BEST SELLER
$48.68 |
11% OFF Phone Price : $54.68
In Stock
Roller DC97-07523B
Roller

Part #DC97-07523B

Replaced by #DC97-16782A

?
Manufacturer substitution
This part replaces DC97-07523B. Substitute parts can look different from the original.
BEST SELLER
$40.58 |
13% OFF Phone Price : $46.58
In Stock
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#1

Duct motor diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#2-3

Duct motor diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$25.82 |
19% OFF Phone Price : $31.82
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#2-4

Duct motor diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$25.87 |
19% OFF Phone Price : $31.87
In Stock
Dryer Drive Motor DC31-00055H
#2-2

Duct motor diagram

Dryer drive motor

Part #DC31-00055H

Replaced by #DC31-00055G

?
Manufacturer substitution
This part replaces DC31-00055H. Substitute parts can look different from the original.
BEST SELLER
$213.61 |
5% OFF Phone Price : $225.61
In Stock
Dryer Door Switch DC64-00828B
#2-2-11

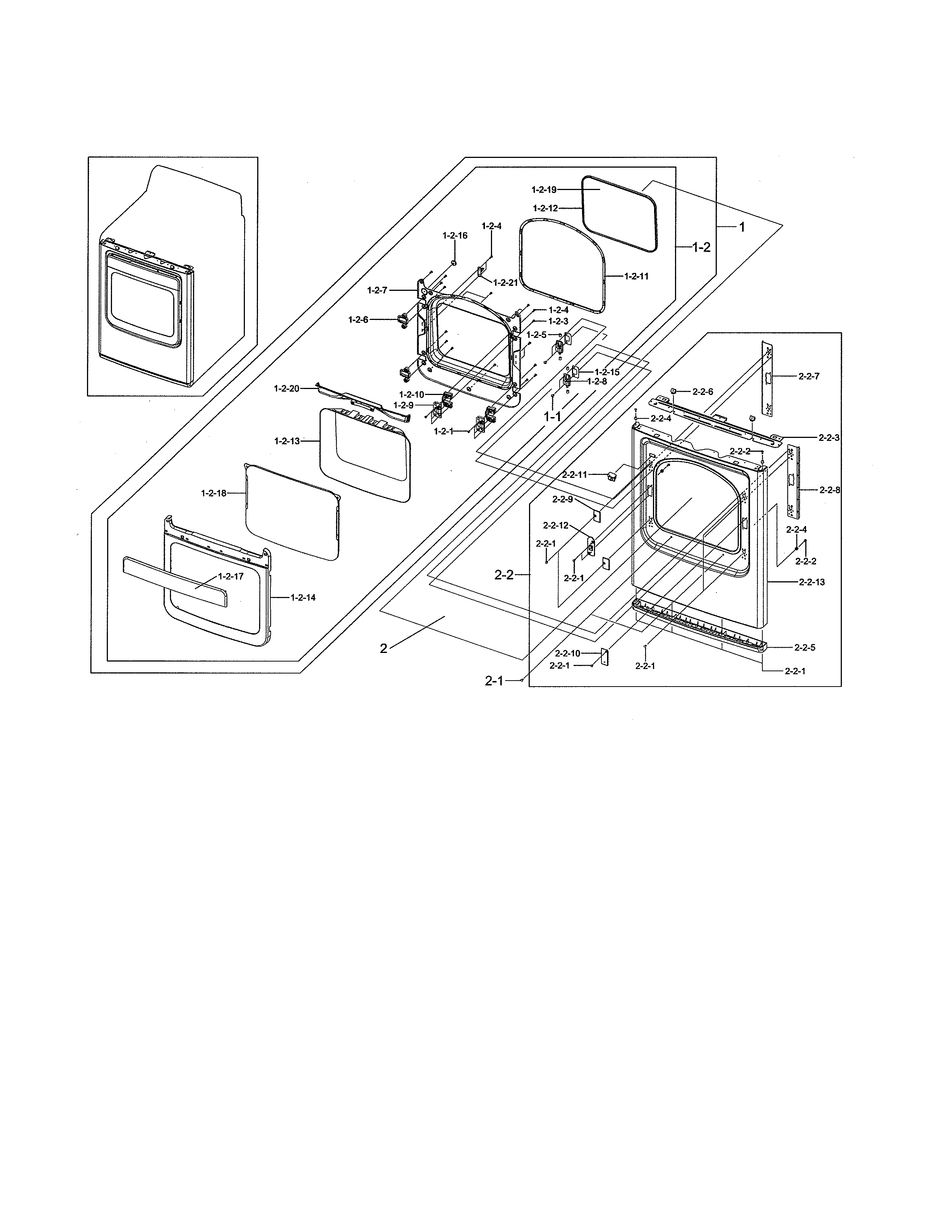

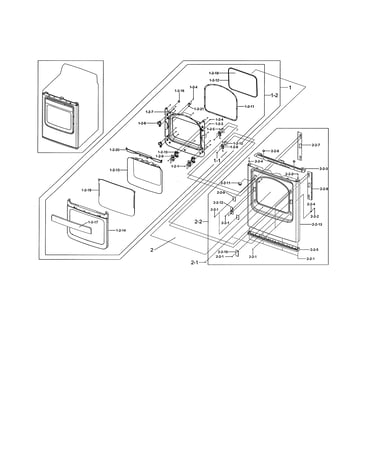

Front & door diagram

Dryer door switch

Part #DC64-00828B

BEST SELLER
$32.19 |
16% OFF Phone Price : $38.19
In Stock
Dryer Drum Seal DC97-07618A
#2-4

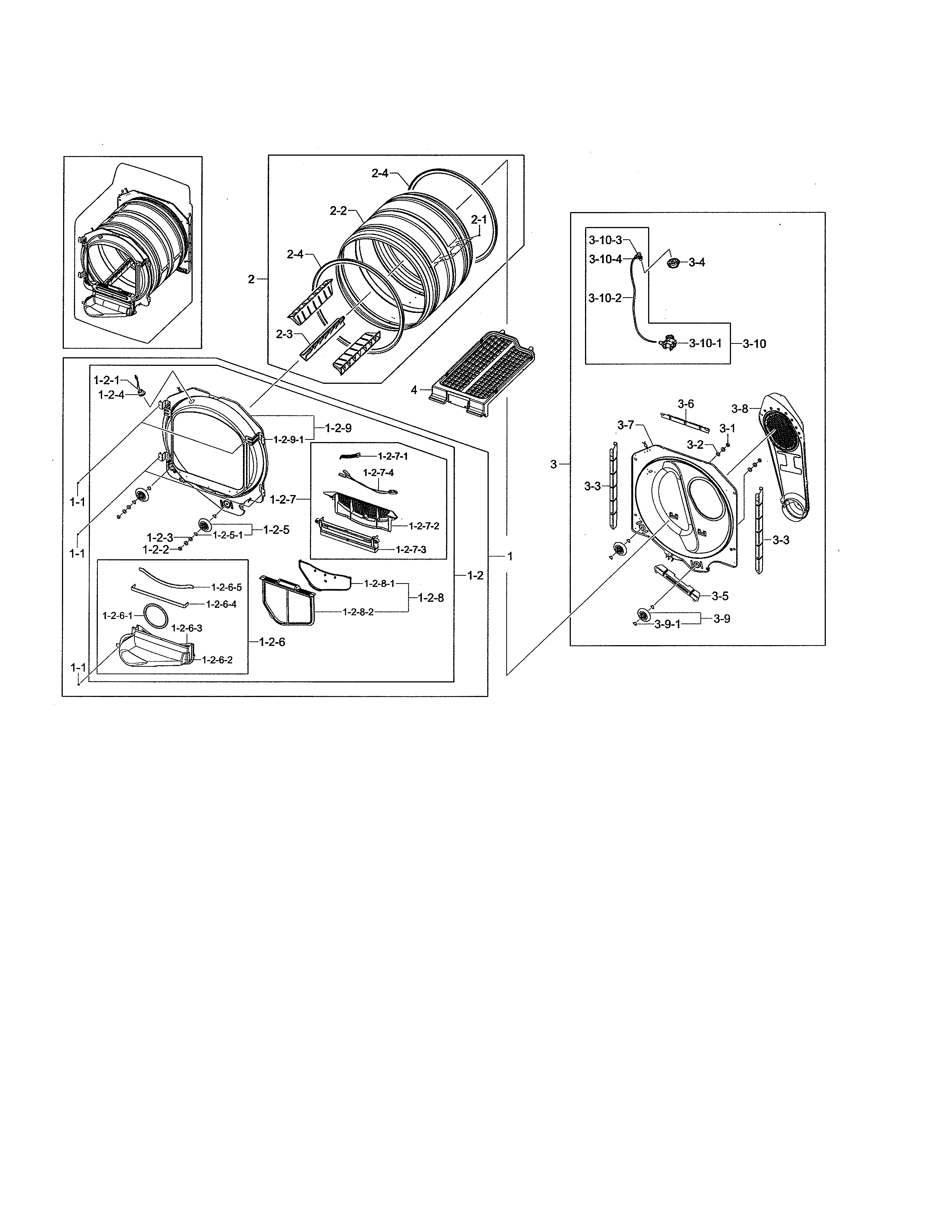

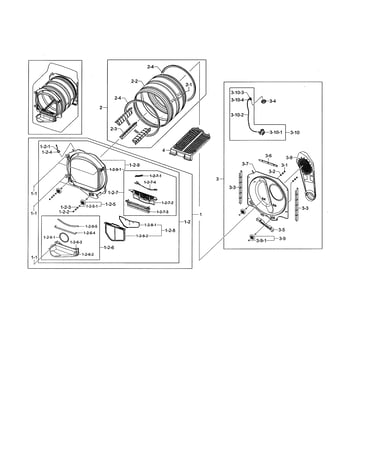

Drum diagram

Dryer drum seal

Part #DC97-07618A

BEST SELLER
$120.00
In Stock
Dryer Blower Wheel (replaces Dc67-00180a) DC67-00180B
#2-6

Duct motor diagram

Dryer blower wheel (replaces dc67-00180a)

Part #DC67-00180B

BEST SELLER
$92.59 |
6% OFF Phone Price : $98.59
In Stock
Dryer Radiant Sensor DC32-00008A
#1-2

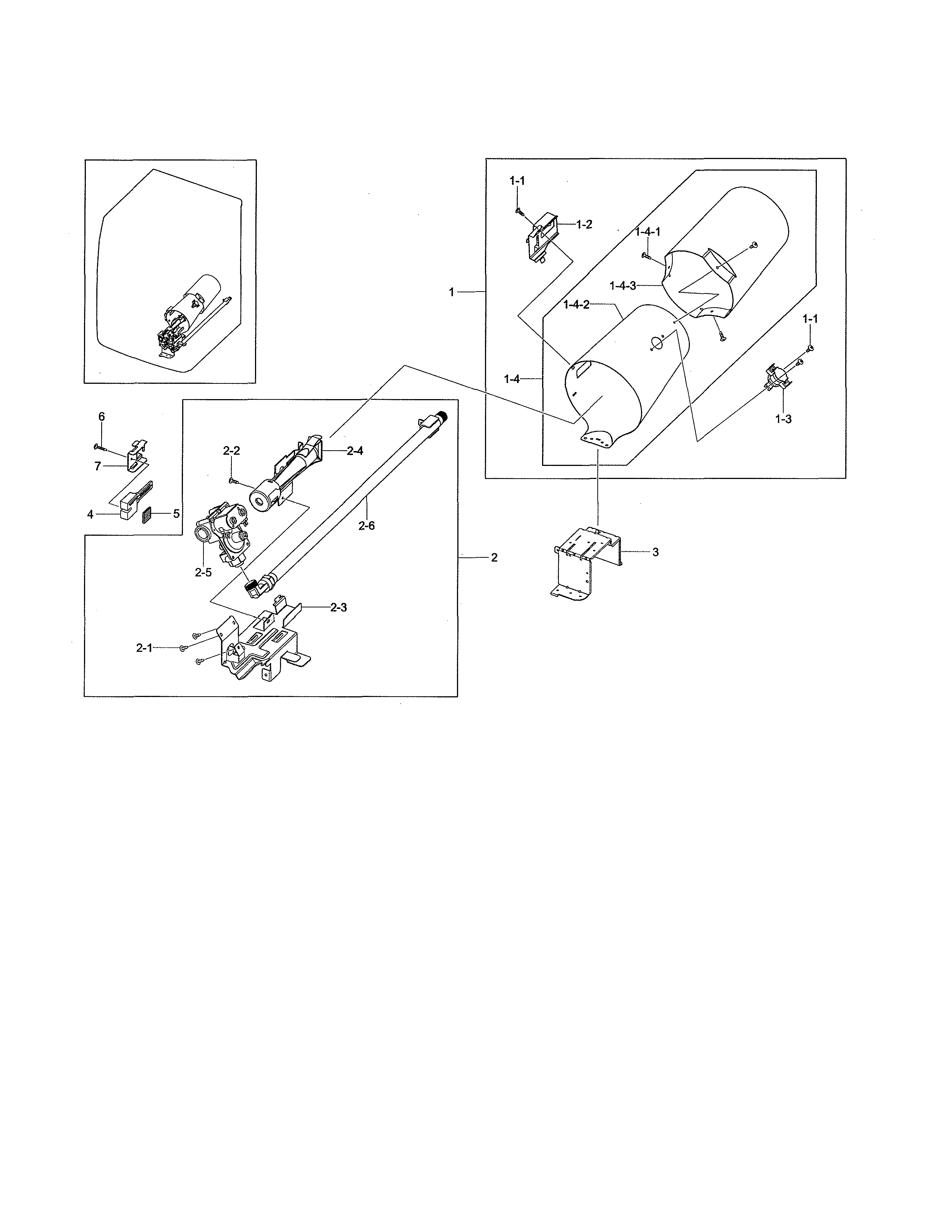

Duct & burner diagram
