GE
Top-Mount Refrigerator

Model # GPS12FGHBSB Official GE refrigerator

Here are the diagrams and repair parts for Official GE GPS12FGHBSB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Refrigerator Door Bin WR71X22032
#39

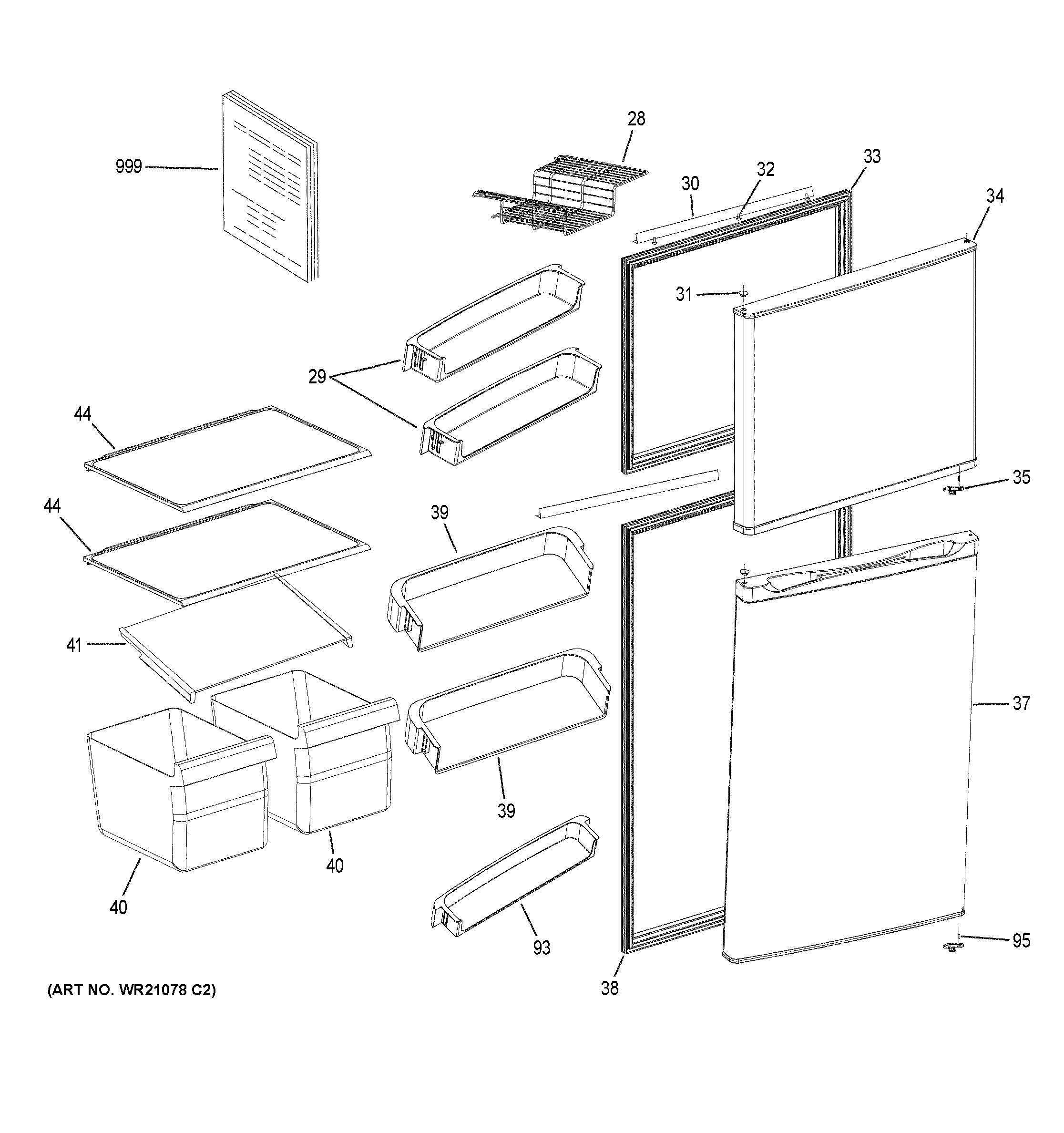

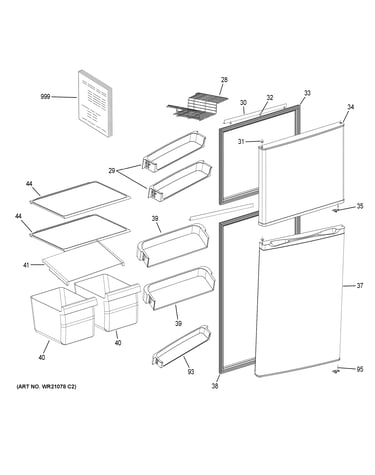

Doors & shelves diagram

Refrigerator door bin

Part #WR71X22032

$140.24 |
8% OFF Phone Price : $152.24
In Stock
Refrigerator Crisper Drawer Cover Assembly WR71X20361
#41

Doors & shelves diagram

Refrigerator crisper drawer cover assembly

Part #WR71X20361

$109.91 |
10% OFF Phone Price : $121.91
In Stock
Refrigerator Thermal Protector WR55X22043
#101

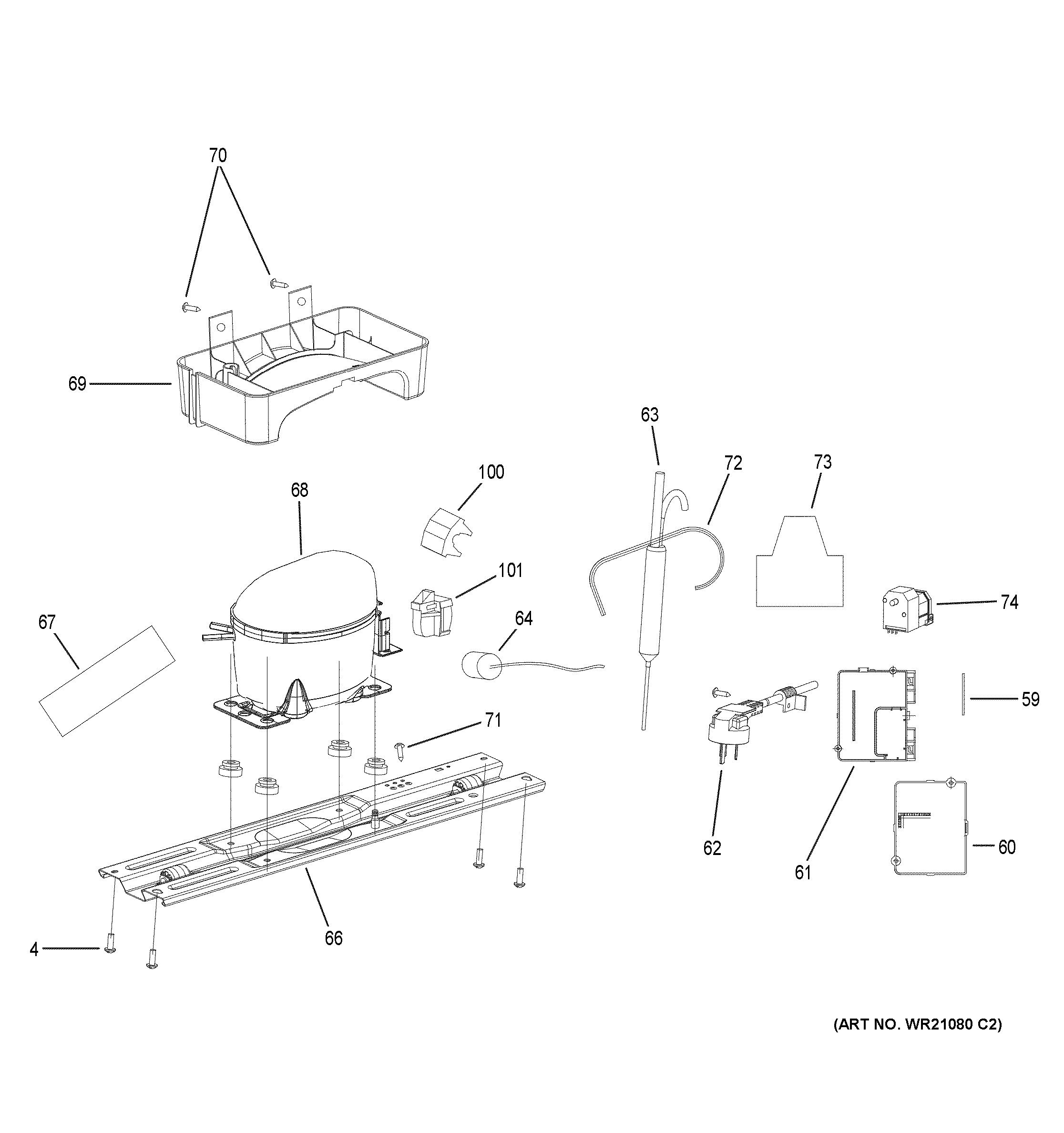

Machine compartment diagram

Refrigerator thermal protector

Part #WR55X22043

$69.78
In Stock
Adjustable Foot WR02X20374
#58

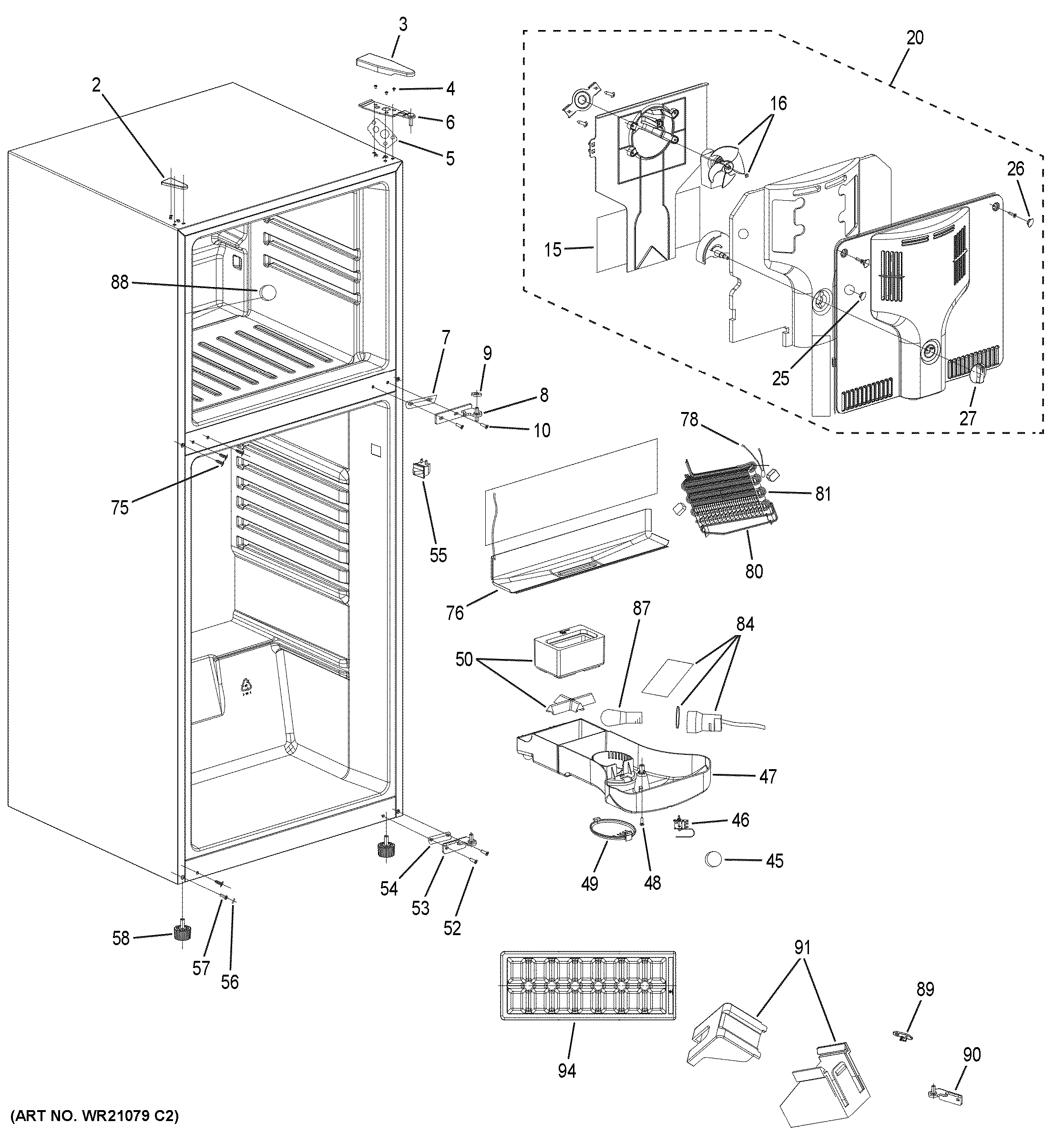

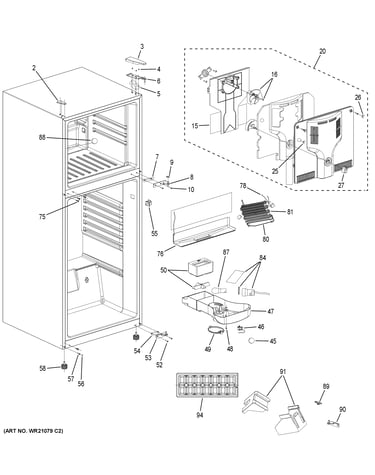

Cabinet diagram

Adjustable foot

Part #WR02X20374

$40.38
In Stock
Refrigerator Screw WR01X20373
#57

Cabinet diagram

Refrigerator screw

Part #WR01X20373

This item is not returnable
$4.35
In Stock
Reversible Door Hinge Plug WR02X20352
#31

Doors & shelves diagram

Reversible door hinge plug

Part #WR02X20352

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Defrost Drai WR17X20390
#76

Cabinet diagram

Defrost drai

Part #WR17X20390

$174.18
In Stock
Defrost Center WR02X22028
#60

Machine compartment diagram

Defrost center

Part #WR02X22028

$89.97
In Stock
Refrigeration Appliance Compressor Start Relay (replaces Wr09x27094, Wr55x20401, Wr87x24764, Wr87x27183) WR55X22042
#100

Machine compartment diagram

Refrigeration appliance compressor start relay (replaces wr09x27094, wr55x20401, wr87x24764, wr87x27183)

Part #WR55X22042

$98.39 |
11% OFF Phone Price : $110.39
In Stock
Capacitor WR55X22023
#64

Machine compartment diagram

Capacitor

Part #WR55X22023

$97.66 |
11% OFF Phone Price : $109.66
In Stock
