Model # 1617 Official Bosch router

Here are the diagrams and repair parts for Official Bosch 1617 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Craftsman Screw 2910641120
#74

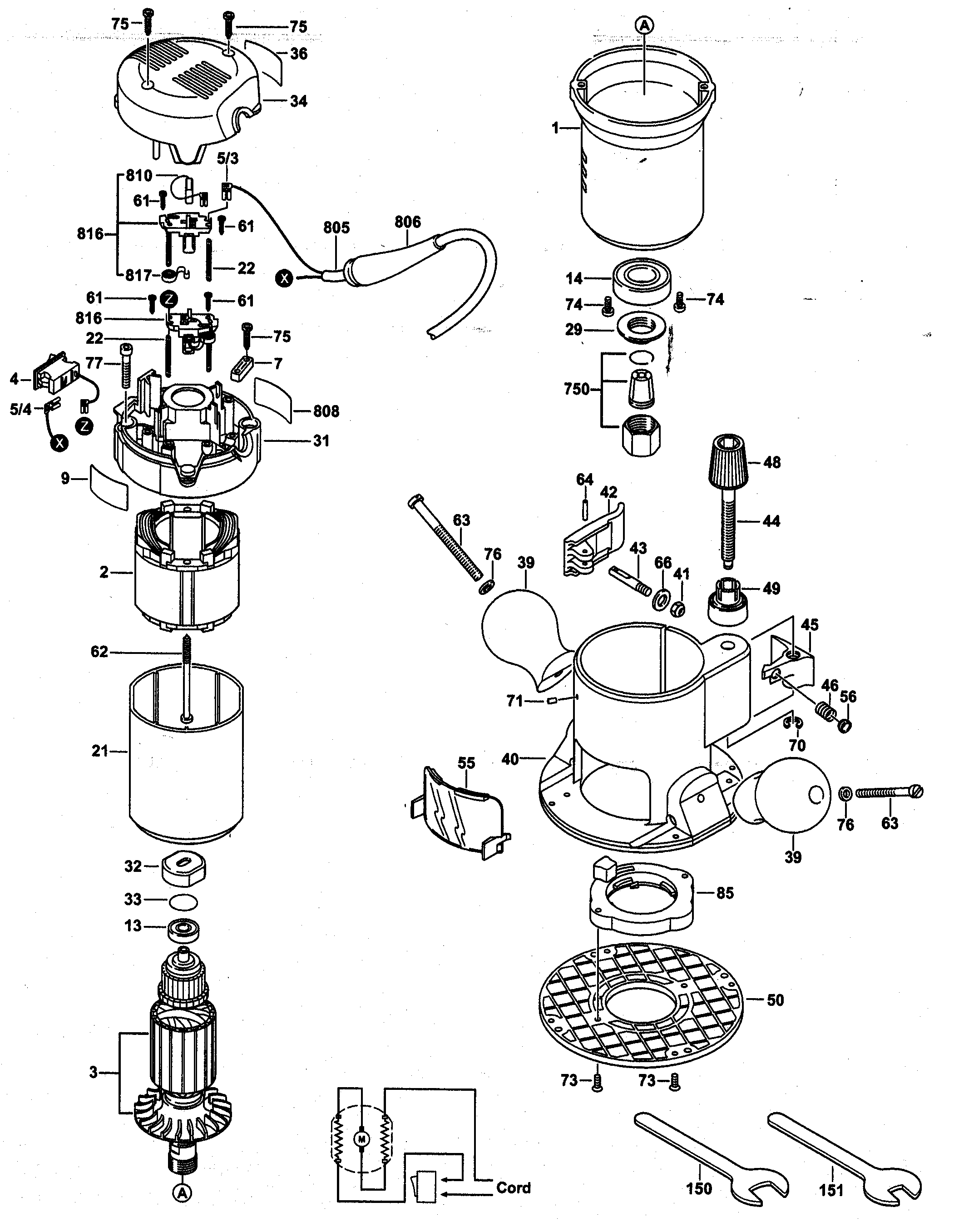

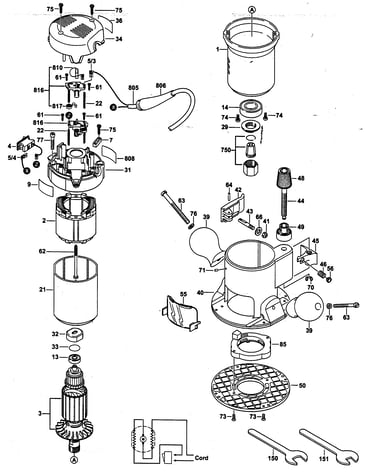

Router assy diagram

Craftsman screw

Part #2910641120

The manufacturer no longer makes this part, and there's no substitute part

Adapter 2610991370
#85

Router assy diagram

Adapter

Part #2610991370

The manufacturer no longer makes this part, and there's no substitute part

Nut 1613300006
#41

Router assy diagram

Nut

Part #1613300006

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Router Collet, 1/4-in 2610906283
#NI

Router assy diagram

Craftsman router collet, 1/4-in

Part #2610906283

The manufacturer no longer makes this part, and there's no substitute part

Pin 2610994492
#71

Router assy diagram

Pin

Part #2610994492

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Cap 2610991372
#56

Router assy diagram

Craftsman cap

Part #2610991372

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 2910141166
#77

Router assy diagram

Craftsman screw

Part #2910141166

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Retaining Ring 2610996054
#70

Router assy diagram

Craftsman retaining ring

Part #2610996054

The manufacturer no longer makes this part, and there's no substitute part

Washer 2918660004
#66

Router assy diagram

Washer

Part #2918660004

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Chip Shield 2610991389
#55

Router assy diagram

Craftsman chip shield

Part #2610991389

The manufacturer no longer makes this part, and there's no substitute part
