Caloric
Electric Range

Model # EKS395 Official Caloric electric self-cleaning range with microwave upper oven

Here are the diagrams and repair parts for Official Caloric EKS395 electric self-cleaning range with microwave upper oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Support Channel, L.h. 69402
#8

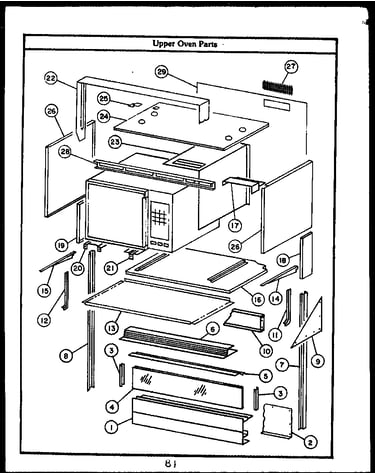

Upper oven parts diagram

Support channel, l.h.

Part #69402

The manufacturer no longer makes this part, and there's no substitute part

Jacket End, Avocado 64180V
#26D

Upper oven parts diagram

Jacket end, avocado

Part #64180V

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Switch 91363
#9

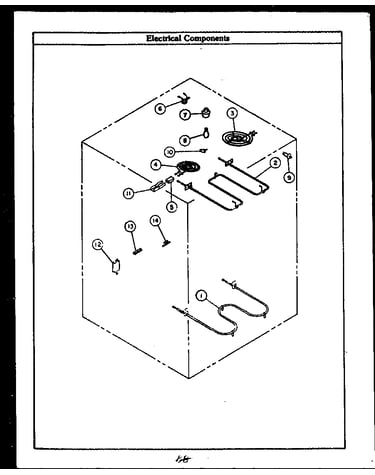

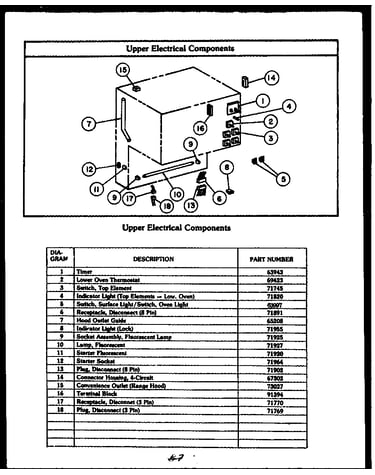

Electrical components diagram

Oven light switch

Part #91363

The manufacturer no longer makes this part, and there's no substitute part

Mounting Clip Timer 63832
#5

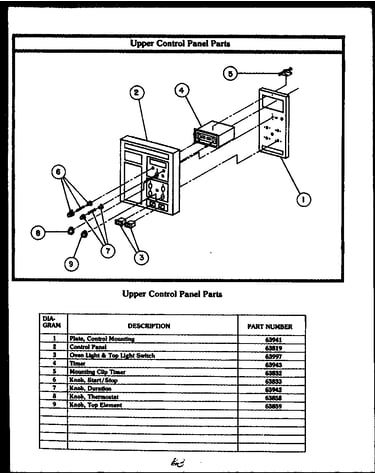

Upper control panel parts diagram

Mounting clip timer

Part #63832

The manufacturer no longer makes this part, and there's no substitute part

Fuse 45611
#49

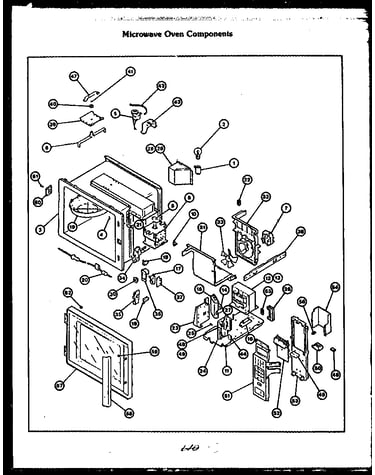

Microwave oven components diagram

Fuse

Part #45611

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 67998
#4

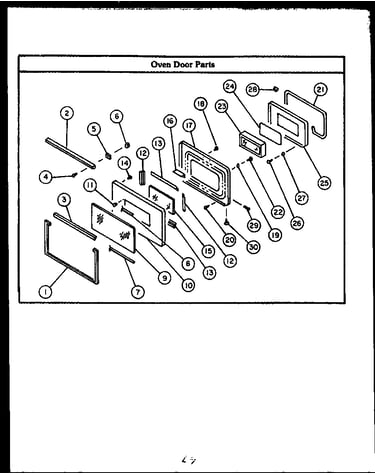

Oven door parts diagram

Handle screw

Part #67998

The manufacturer no longer makes this part, and there's no substitute part

Sub Backer, Oven Door 66142
#25

Oven door parts diagram

Sub backer, oven door

Part #66142

The manufacturer no longer makes this part, and there's no substitute part

Speed Clip, Control Panel Mtg. (2) 96604
#30

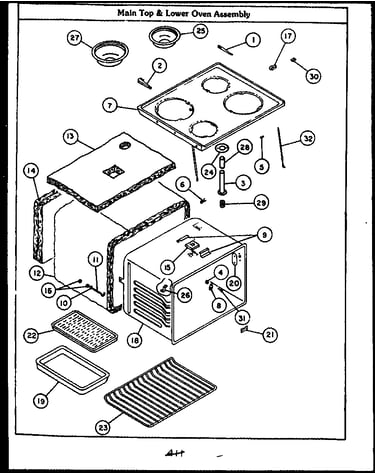

Main top & lower oven assembly diagram

Speed clip, control panel mtg. (2)

Part #96604

The manufacturer no longer makes this part, and there's no substitute part

Main End, Almond 67978N
#15C

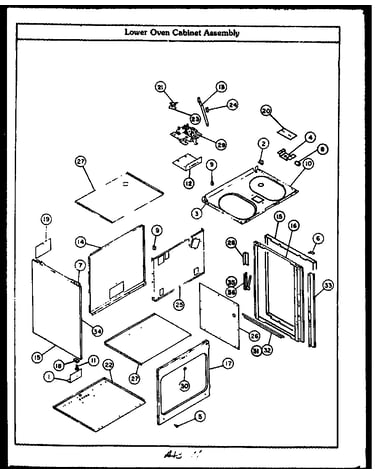

Lower oven cabinet assembly diagram

Main end, almond

Part #67978N

The manufacturer no longer makes this part, and there's no substitute part

Plastic Spacer 92583
#10

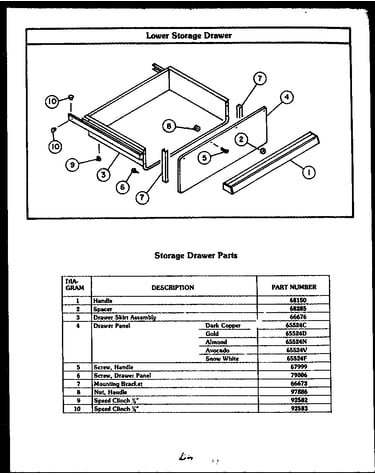

Lower storage drawer diagram

Plastic spacer

Part #92583

The manufacturer no longer makes this part, and there's no substitute part
