Model # WSLS1100H0WW Official GE washer

Here are the diagrams and repair parts for Official GE WSLS1100H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Washer Drain Pump WH23X10011
#38

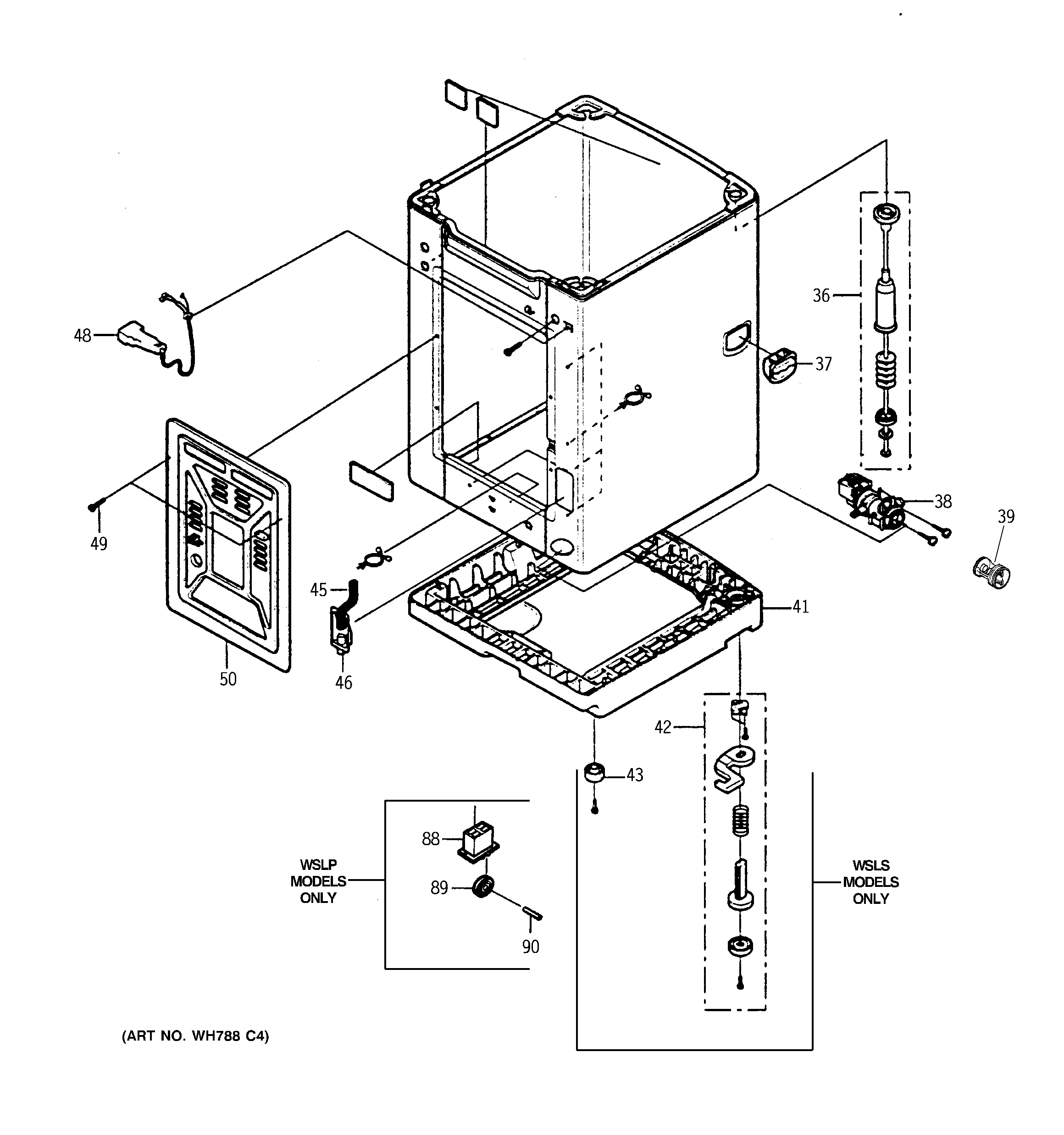

Cabinet & case diagram

Washer drain pump

Part #WH23X10011

$167.65 |
7% OFF Phone Price : $179.65
In Stock
Tapping Screw WH02X10081
#66

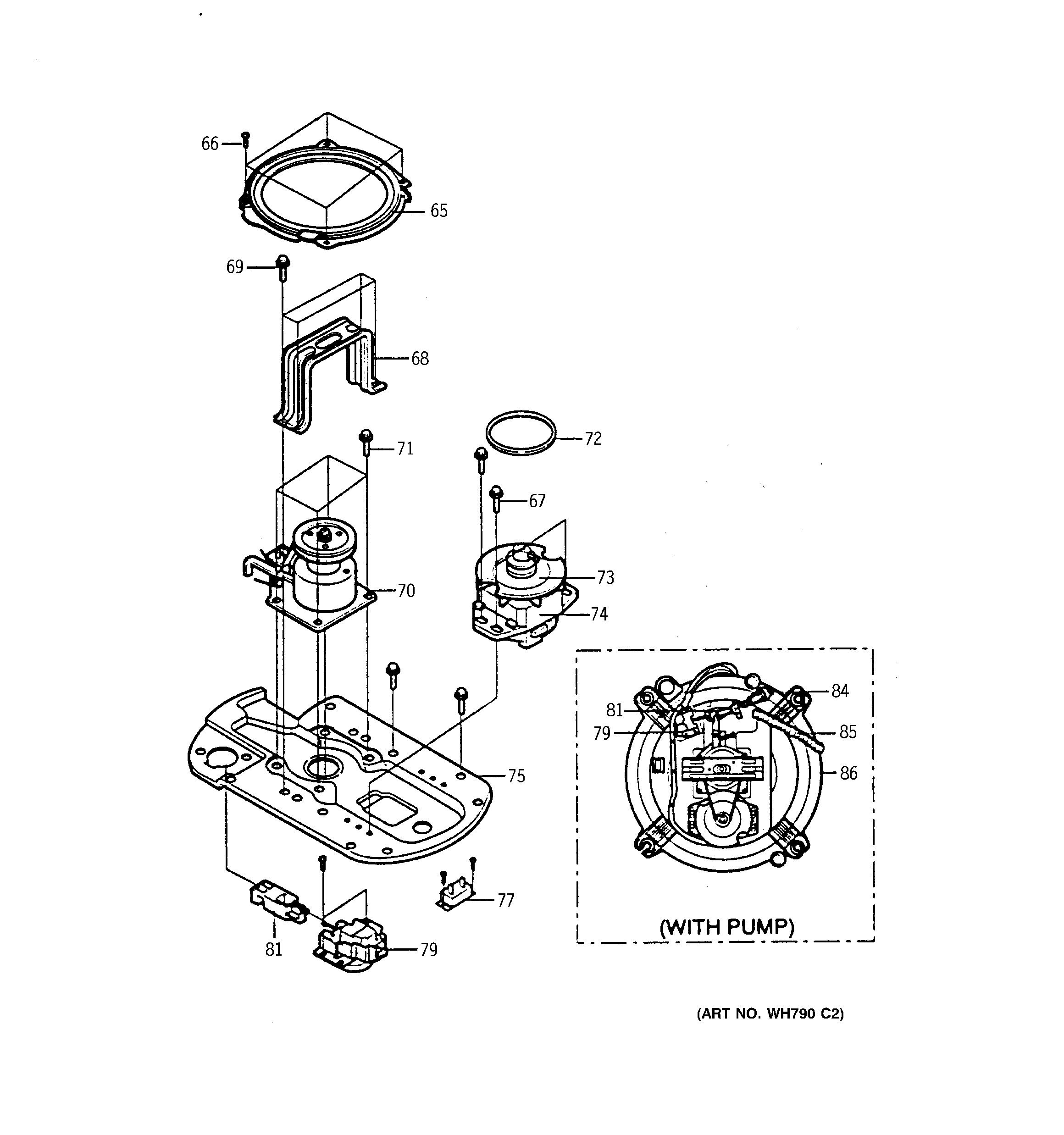

Drive assembly diagram

Tapping screw

Part #WH02X10081

$7.51
In Stock
Washer Faucet Adapter WD01X1447
#92

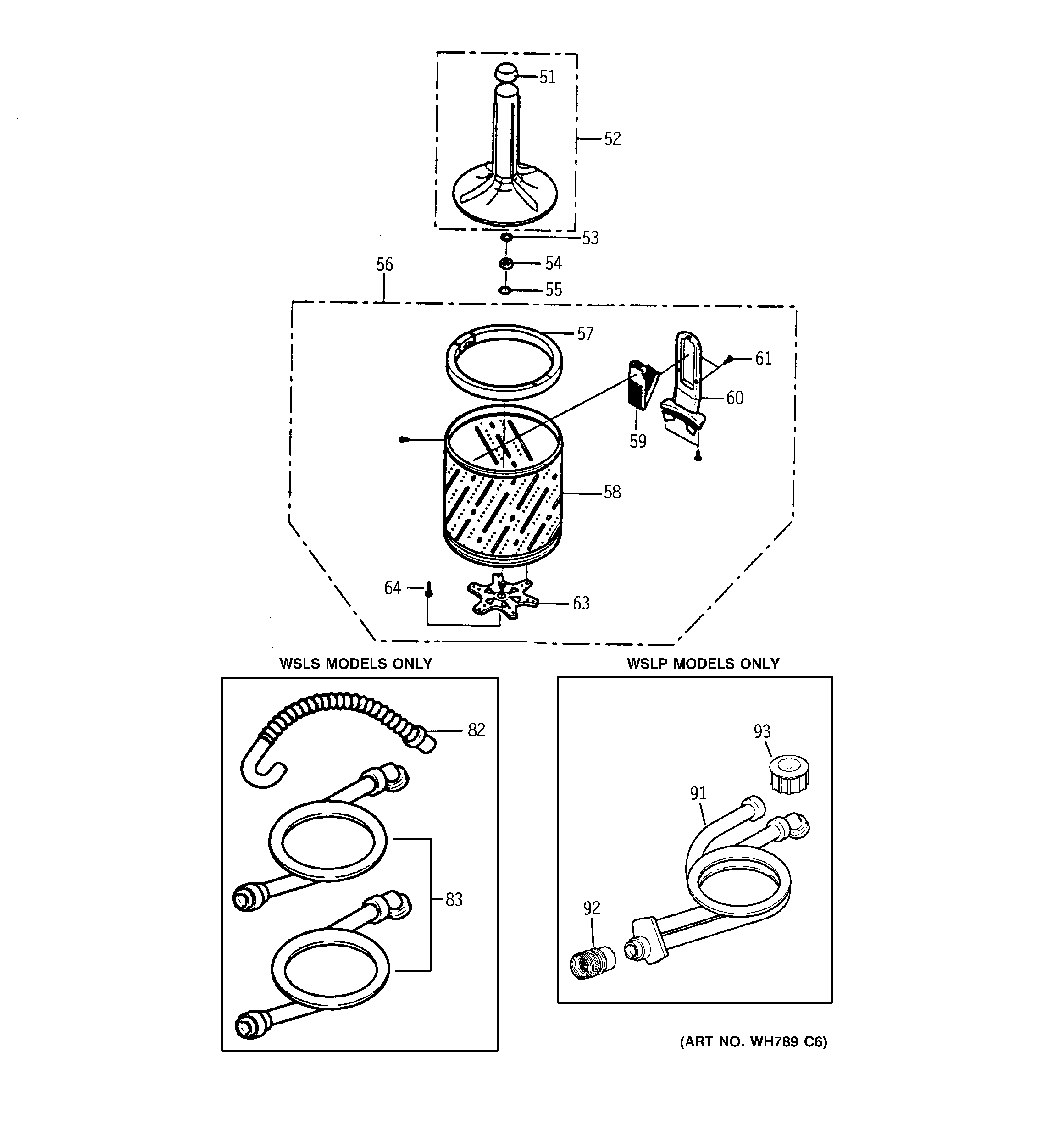

Tub & agitator diagram

Washer faucet adapter

Part #WD01X1447

This item is not returnable
$6.99
In Stock
Washer Lint Filter WH43X10036
#59

Tub & agitator diagram

Washer lint filter

Part #WH43X10036

Replaced by #WH42X10020

?
Manufacturer substitution
This part replaces WH43X10036. Substitute parts can look different from the original.
$59.04
In Stock
Joint-hose P WH41X10044
#46

Cabinet & case diagram

Joint-hose p

Part #WH41X10044

The manufacturer no longer makes this part, and there's no substitute part

Reed Switch WH12X10104
#22

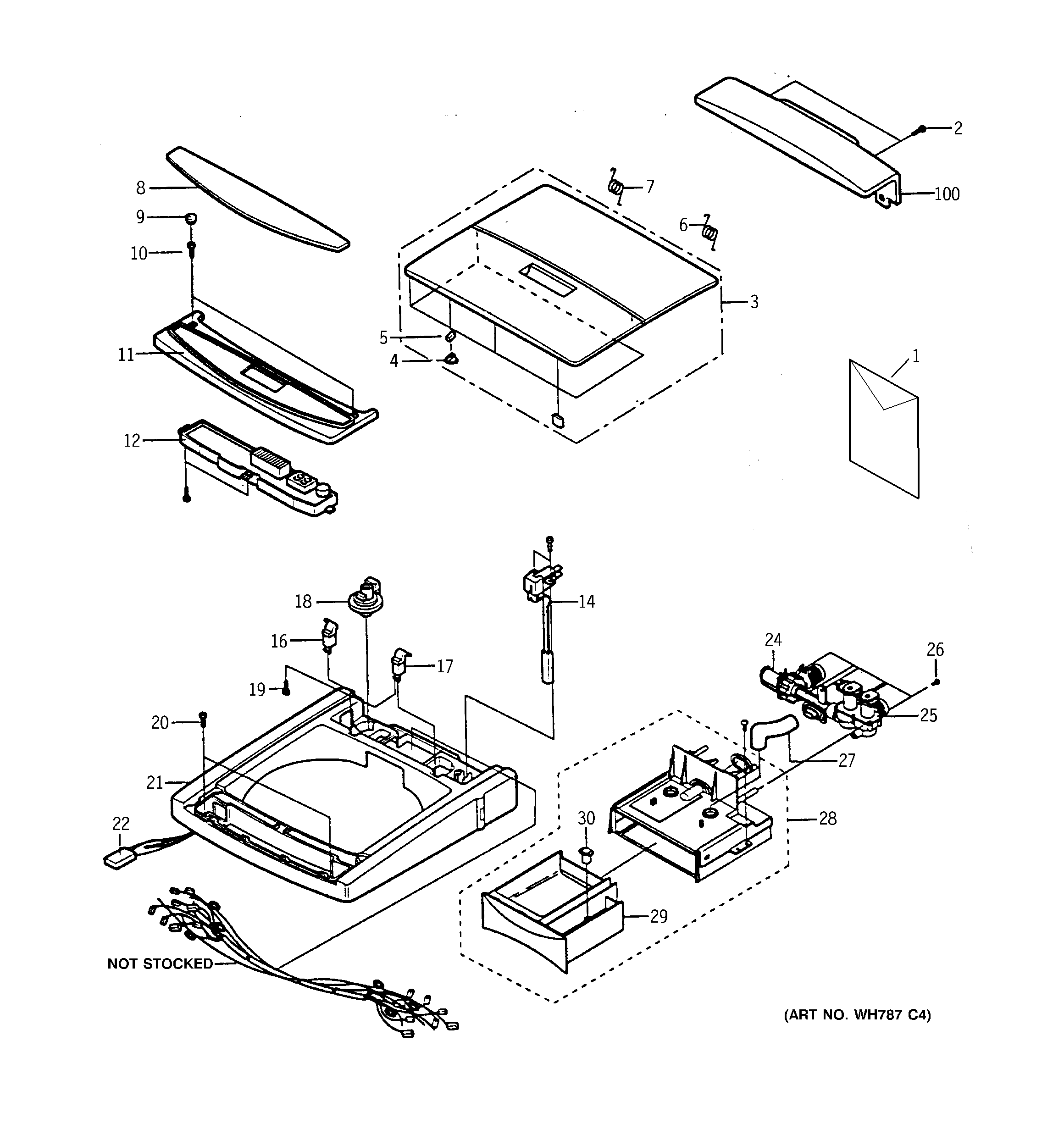

Lid & top diagram
