Model # WSM2480D2WW Official GE washer/dryer

Here are the diagrams and repair parts for Official GE WSM2480D2WW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

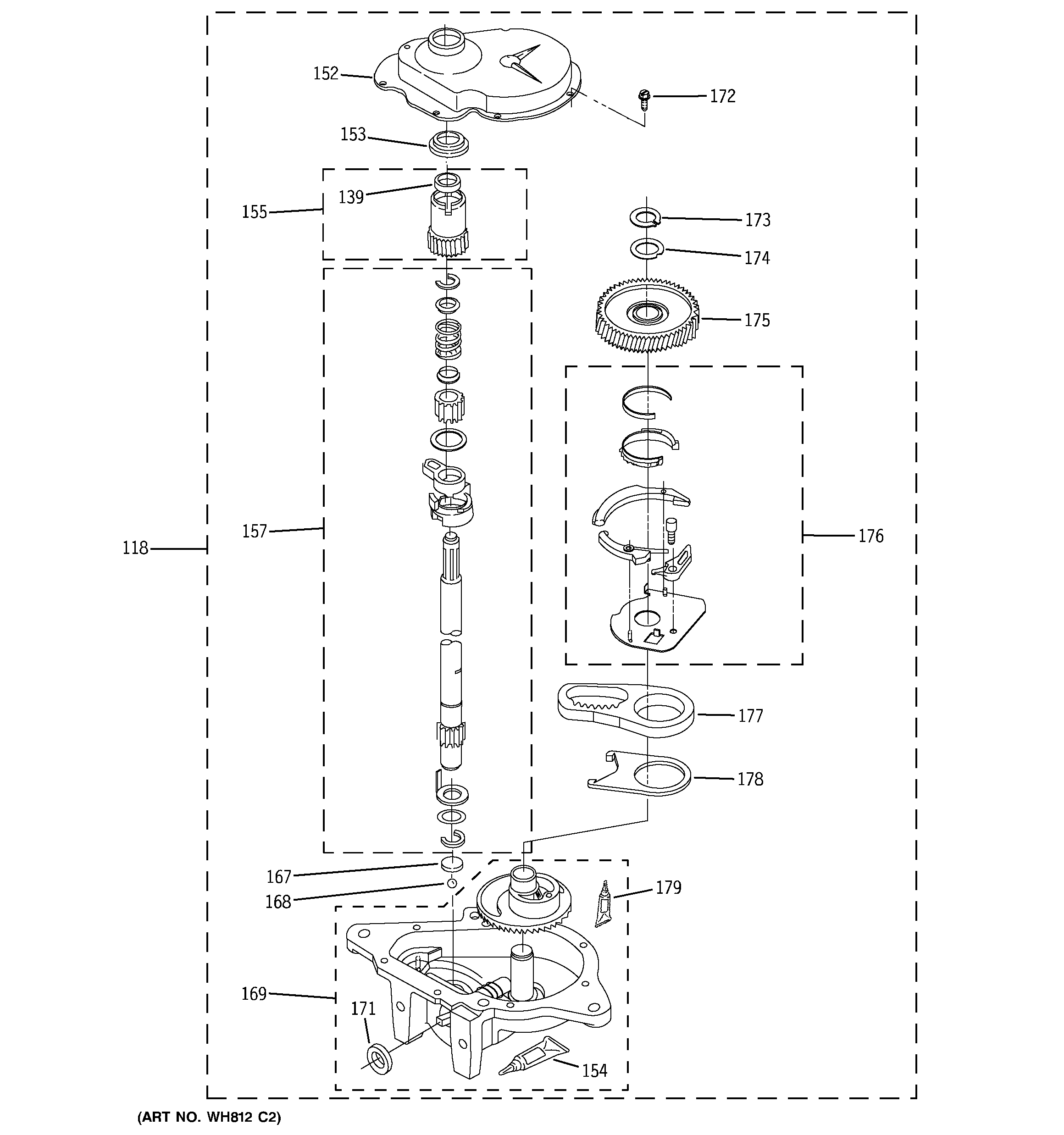

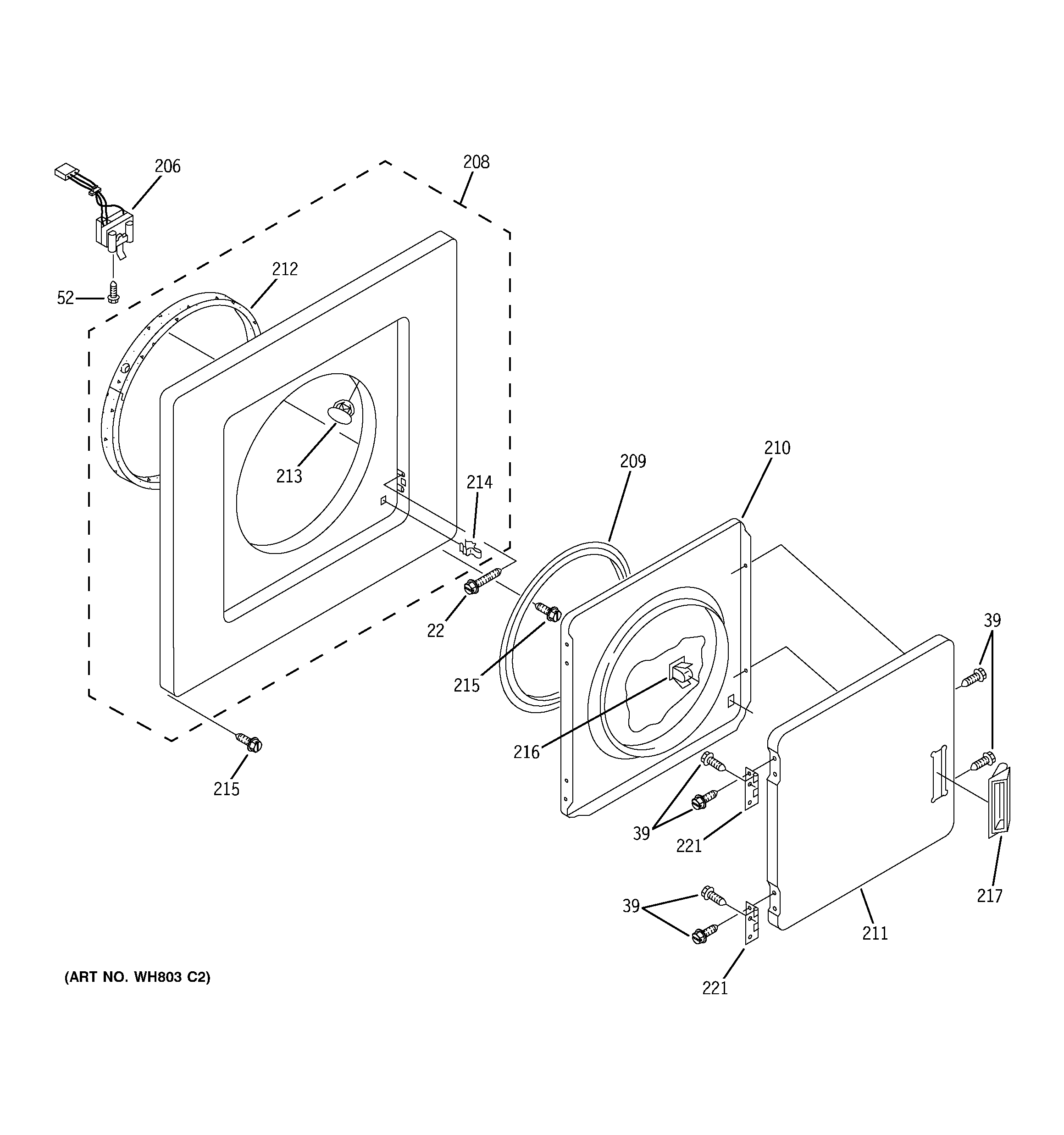

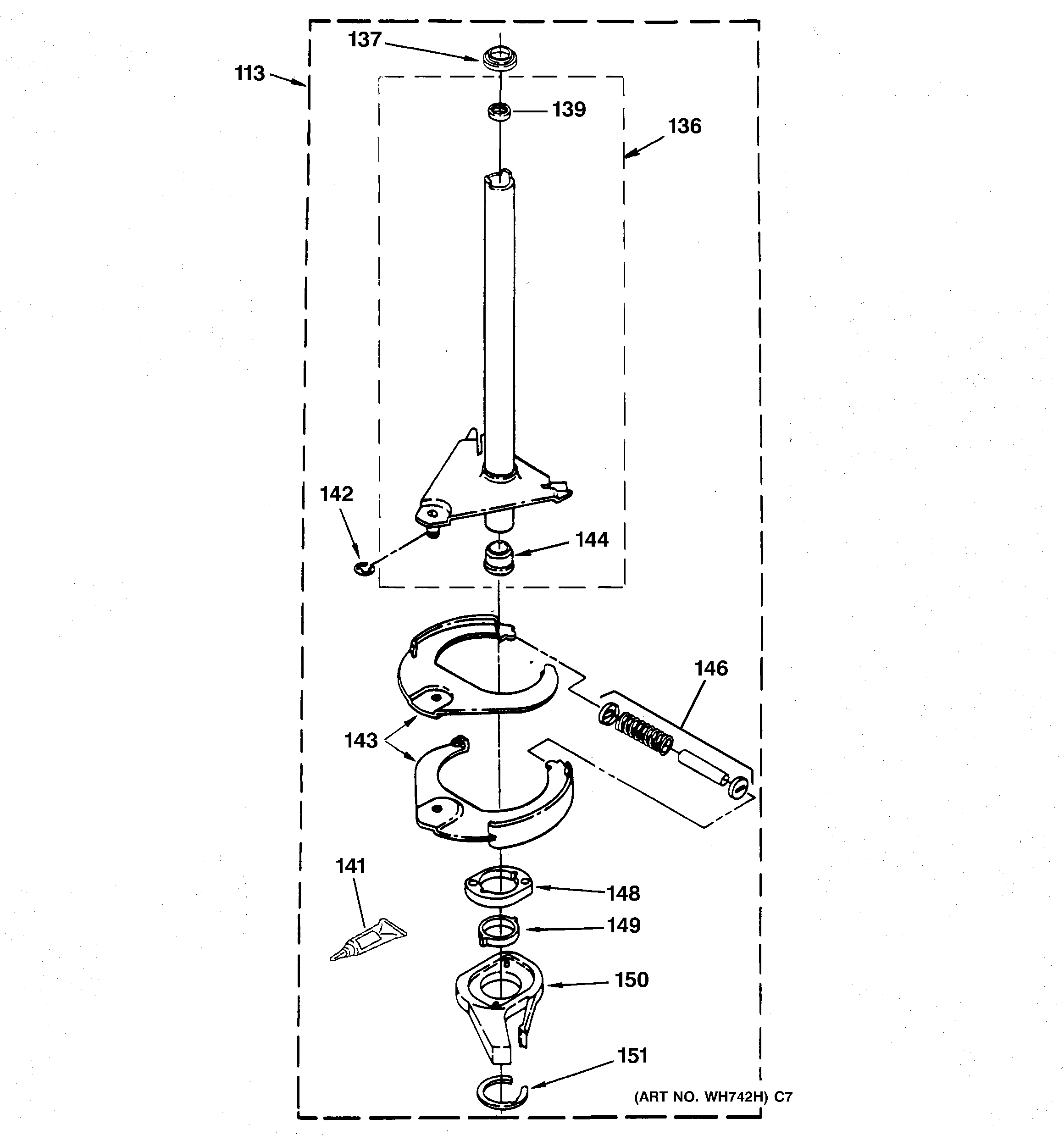

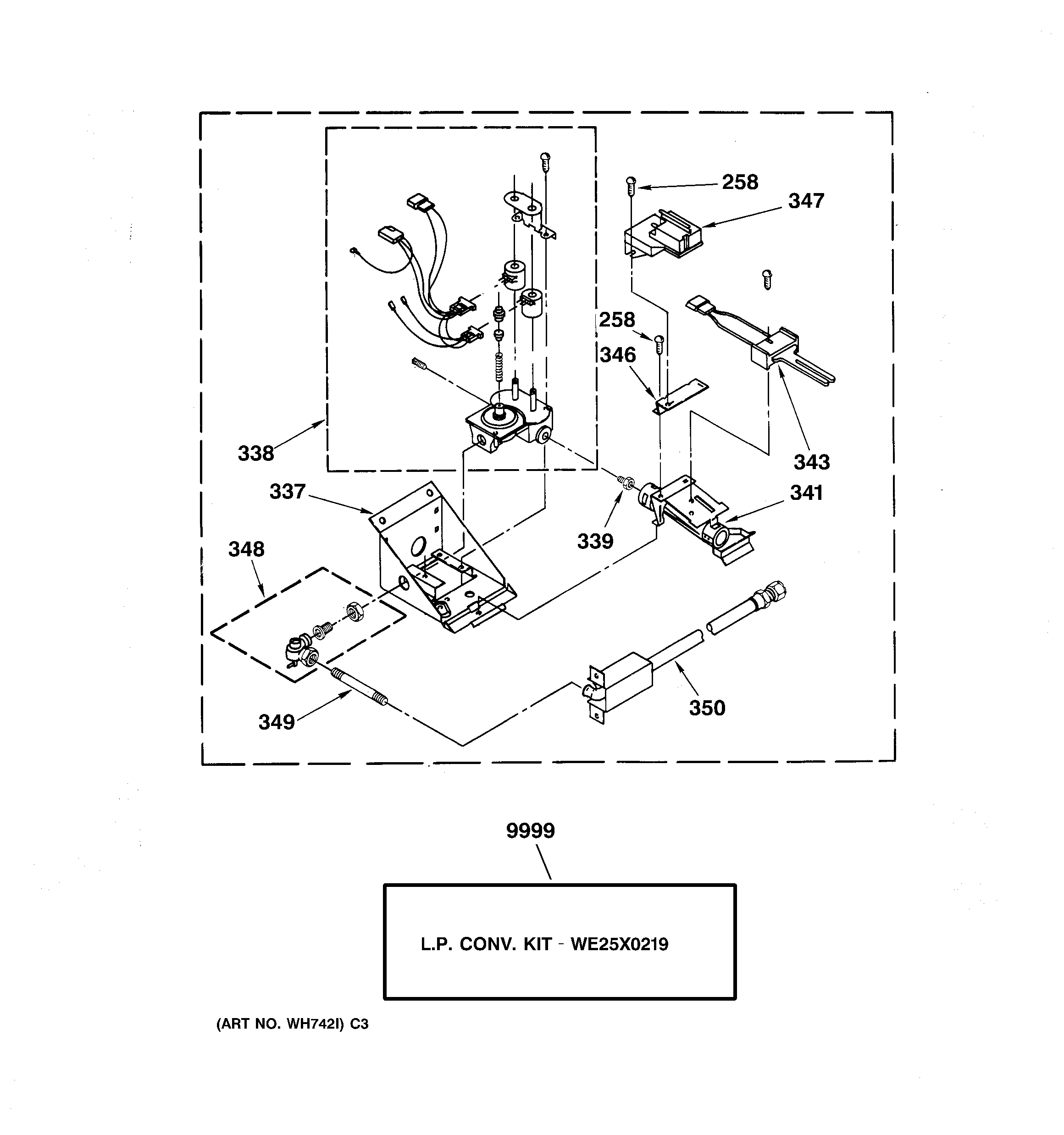

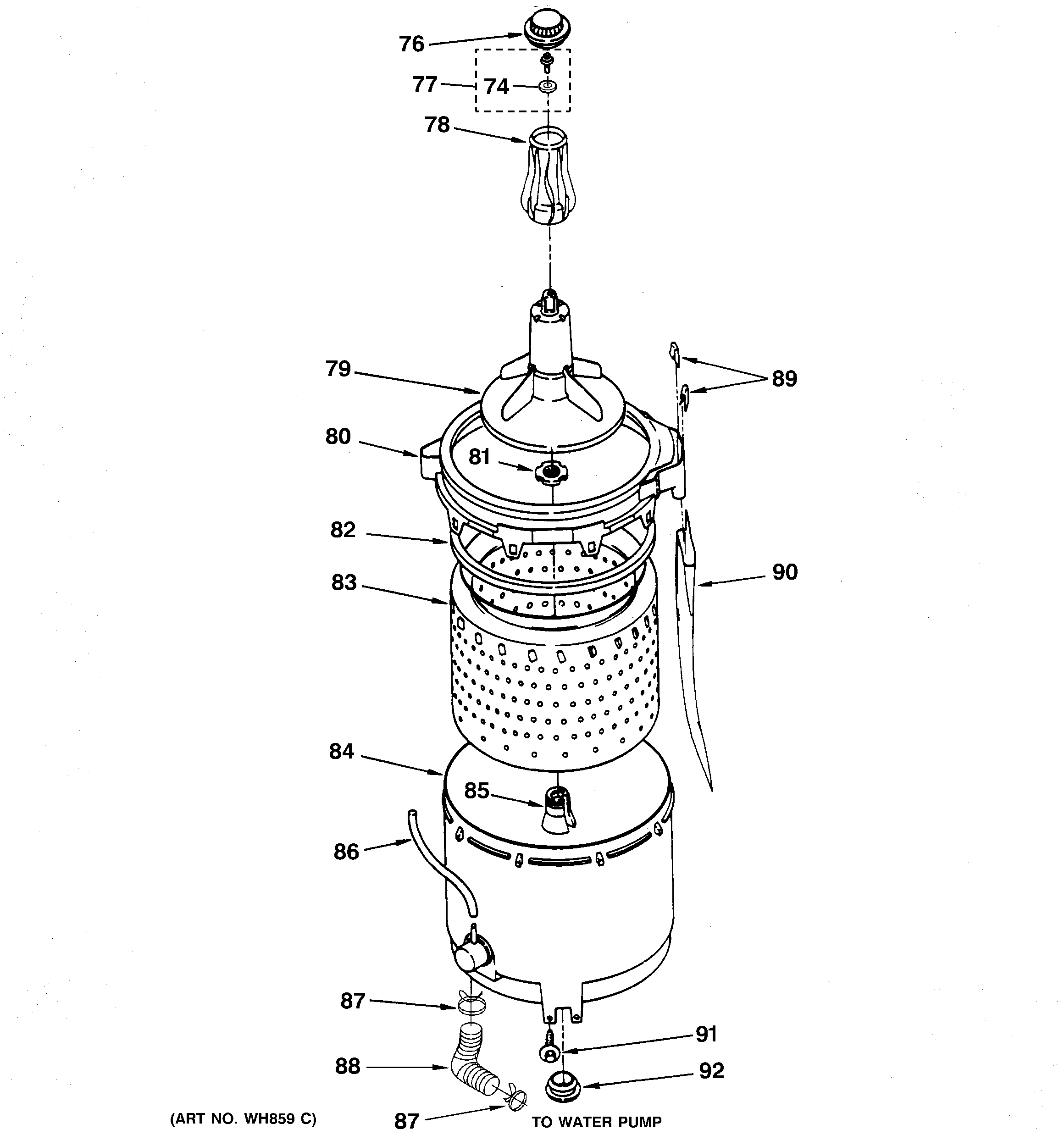

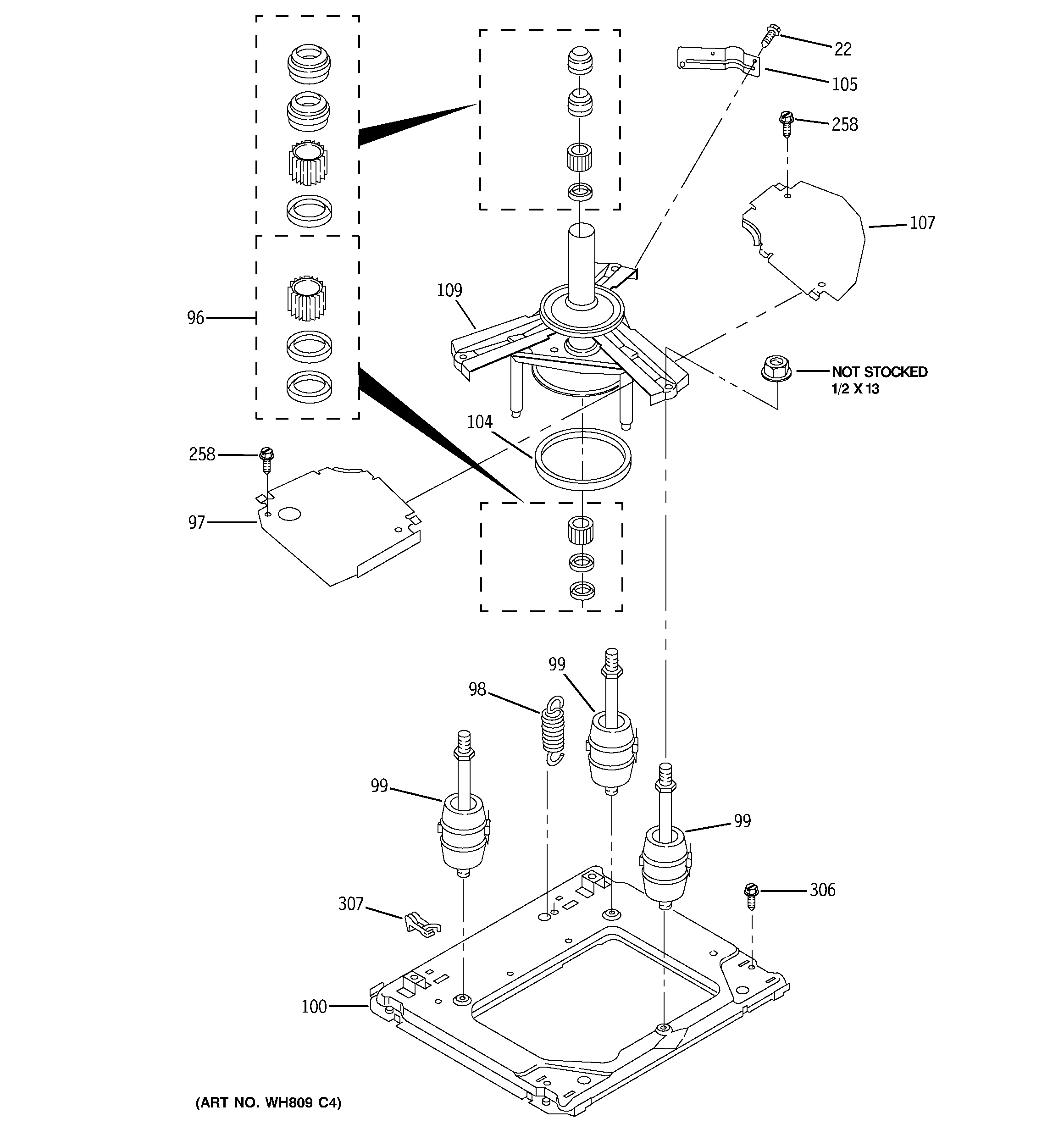

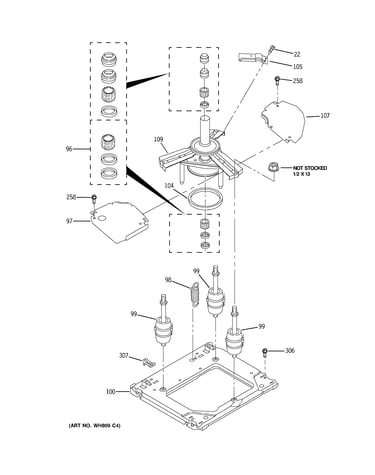

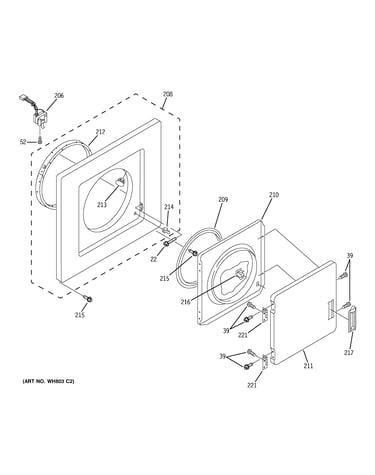

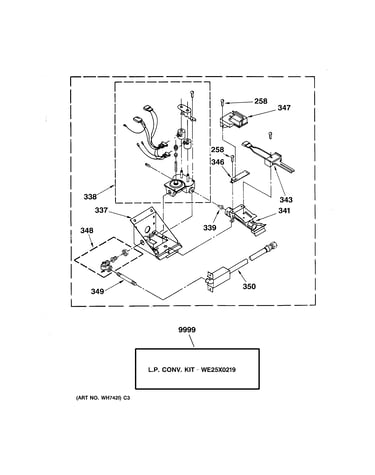

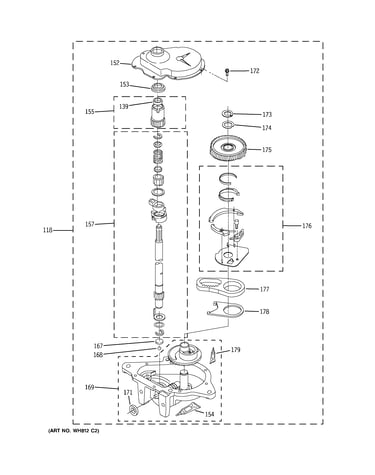

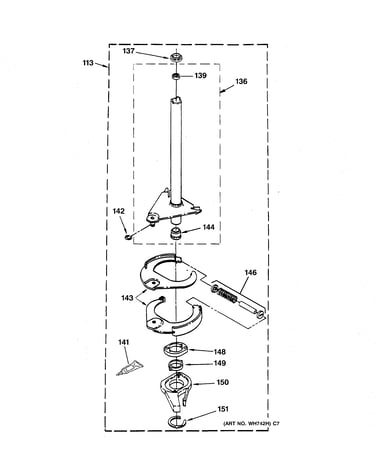

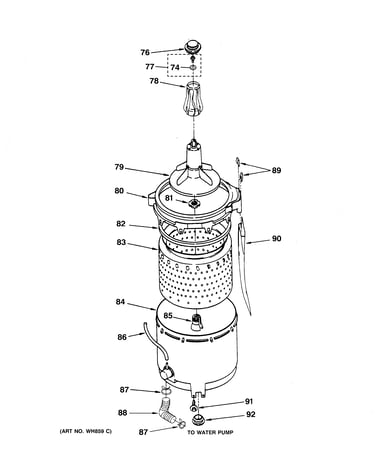

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Lid Switch WH12X0955
#72

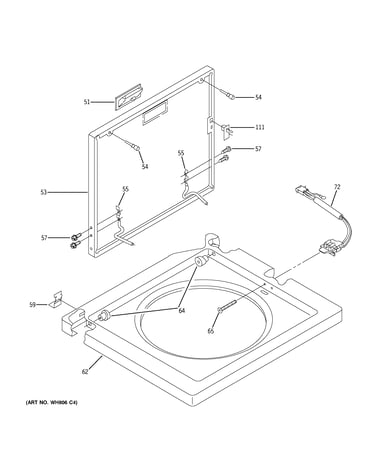

Washer top & lid diagram

Lid switch

Part #WH12X0955

Replaced by #WH12X955

?
Manufacturer substitution
This part replaces WH12X0955. Substitute parts can look different from the original.
$96.67 |
11% OFF Phone Price : $108.67
In Stock
Timer WH12X0950
#31

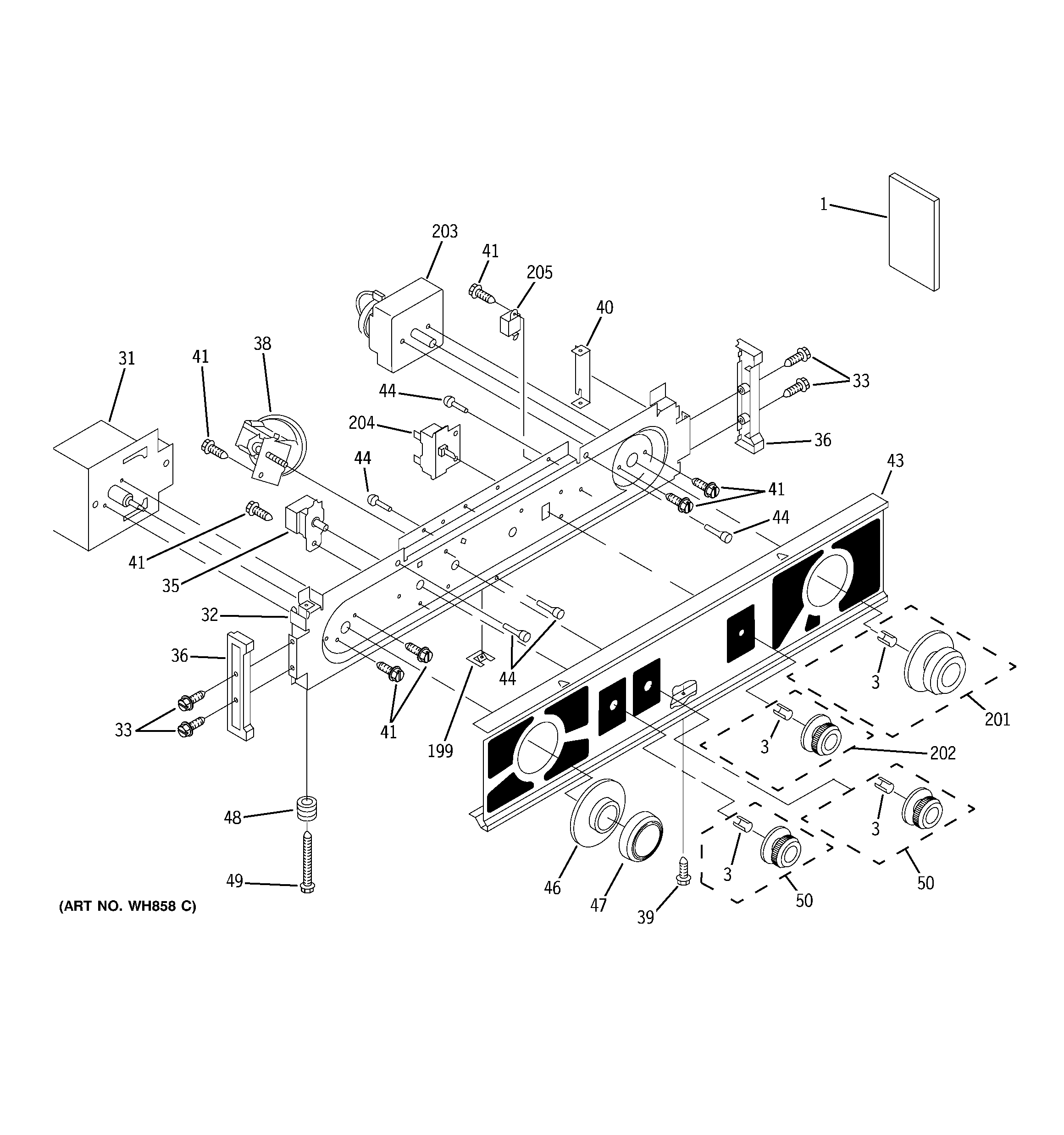

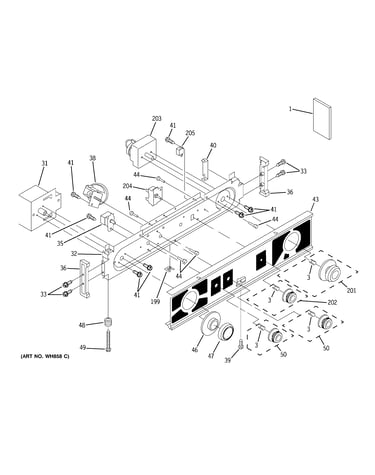

Washer/dryer control panel diagram

Timer

Part #WH12X0950

Replaced by #WH12X950

?
Manufacturer substitution
This part replaces WH12X0950. Substitute parts can look different from the original.
$192.10 |
6% OFF Phone Price : $204.10
In Stock
In.hose 4 Ft WH41X0058
#808

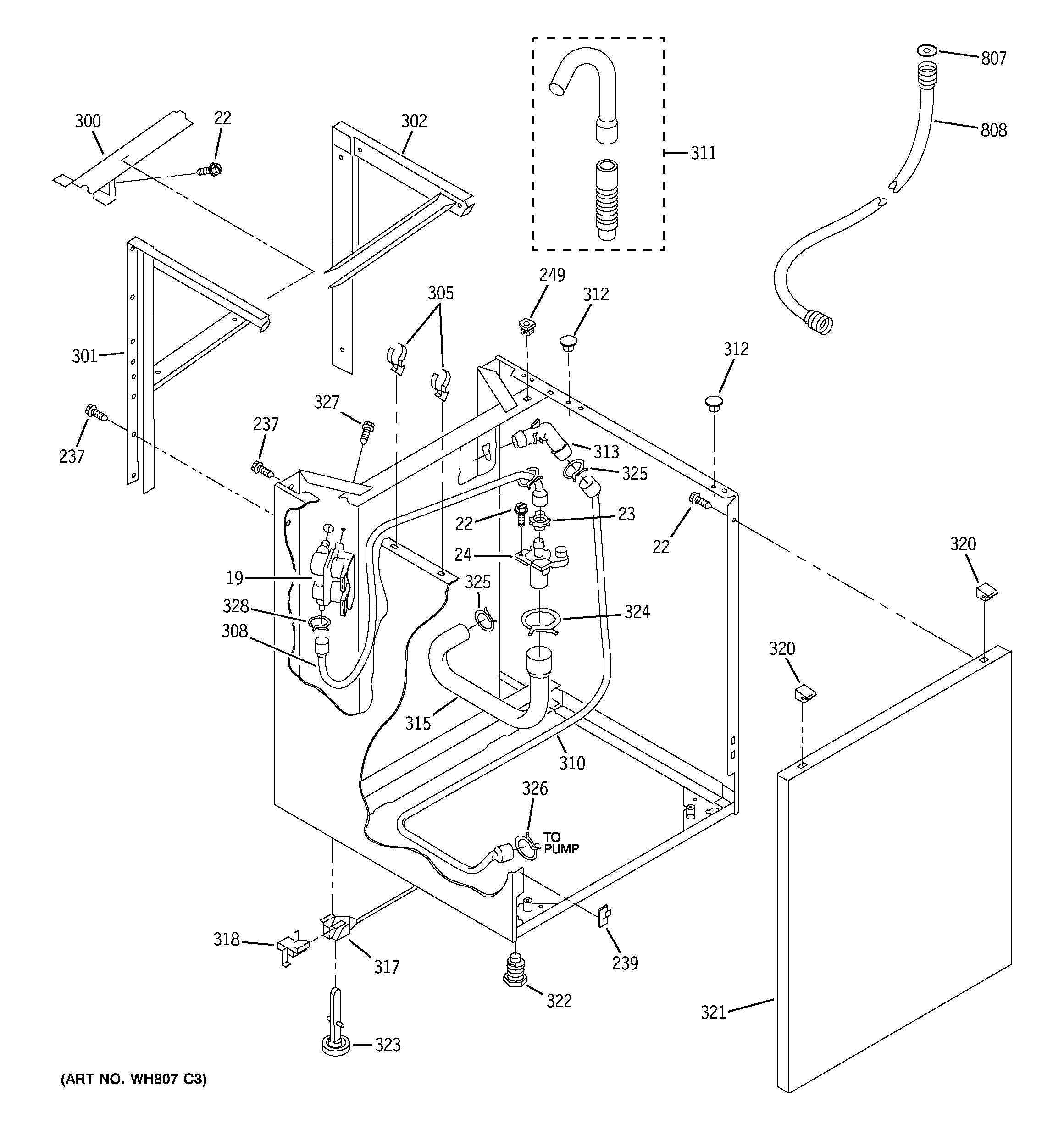

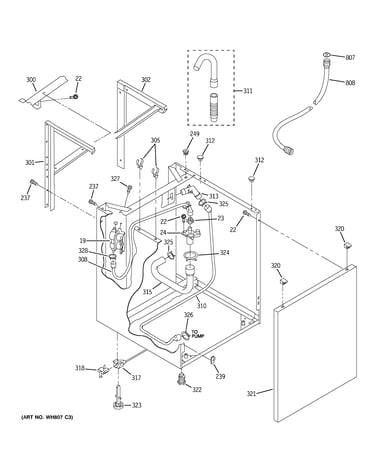

Dryer support & washer cabinet diagram

In.hose 4 ft

Part #WH41X0058

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X0058. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Lid WH44X1156
#53

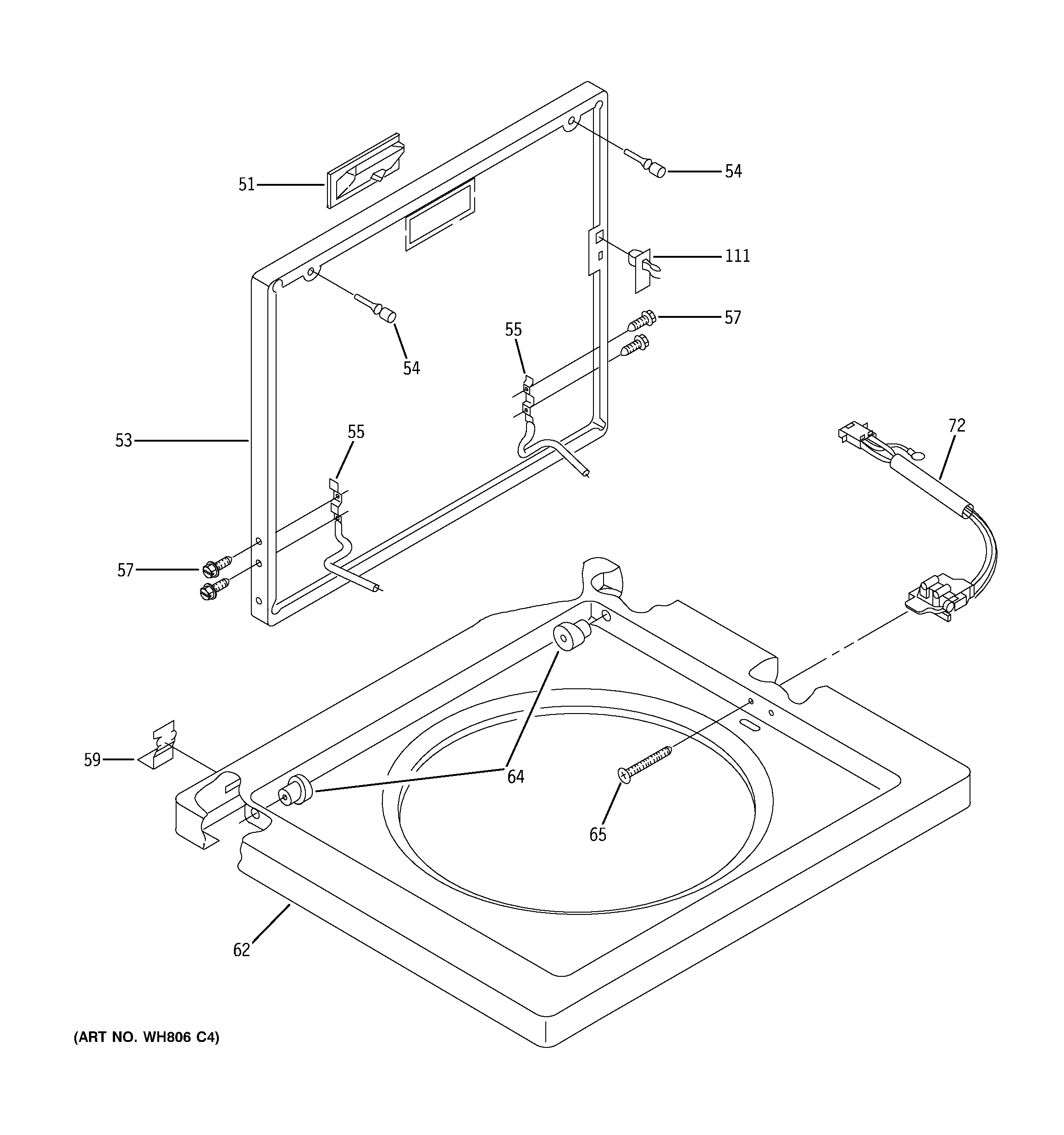

Washer top & lid diagram

Lid

Part #WH44X1156

$125.39 |
9% OFF Phone Price : $137.39
In Stock
Drive Belt WE12X10004
#244

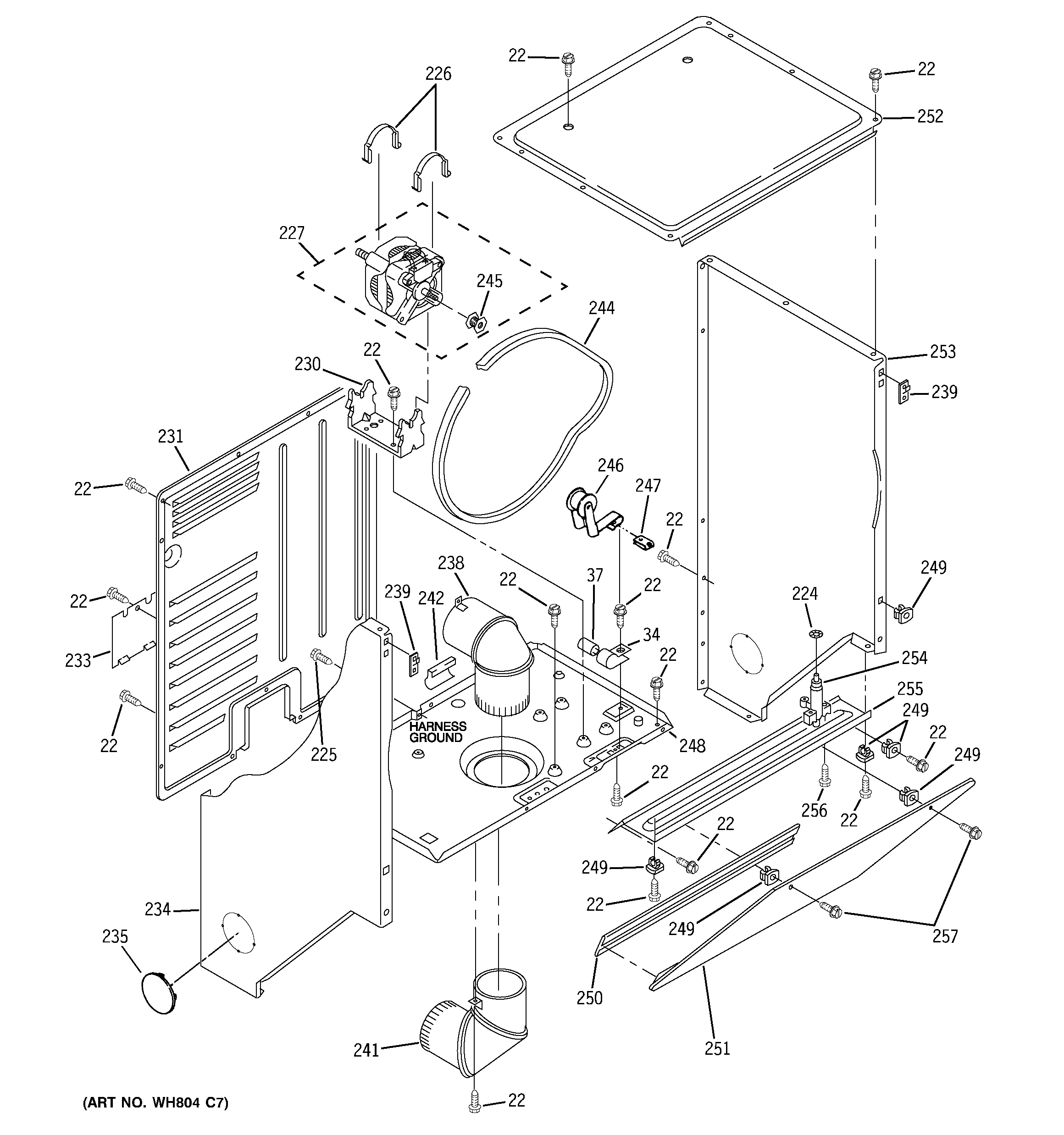

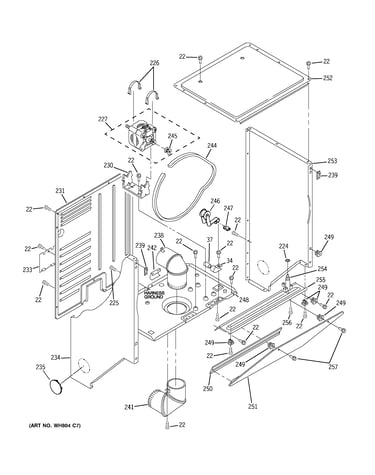

Dryer cabinet & motor diagram

Drive belt

Part #WE12X10004

Replaced by #WE12X93

?
Manufacturer substitution
This part replaces WE12X10004. Substitute parts can look different from the original.
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Lint Screen WE18X0055
#28

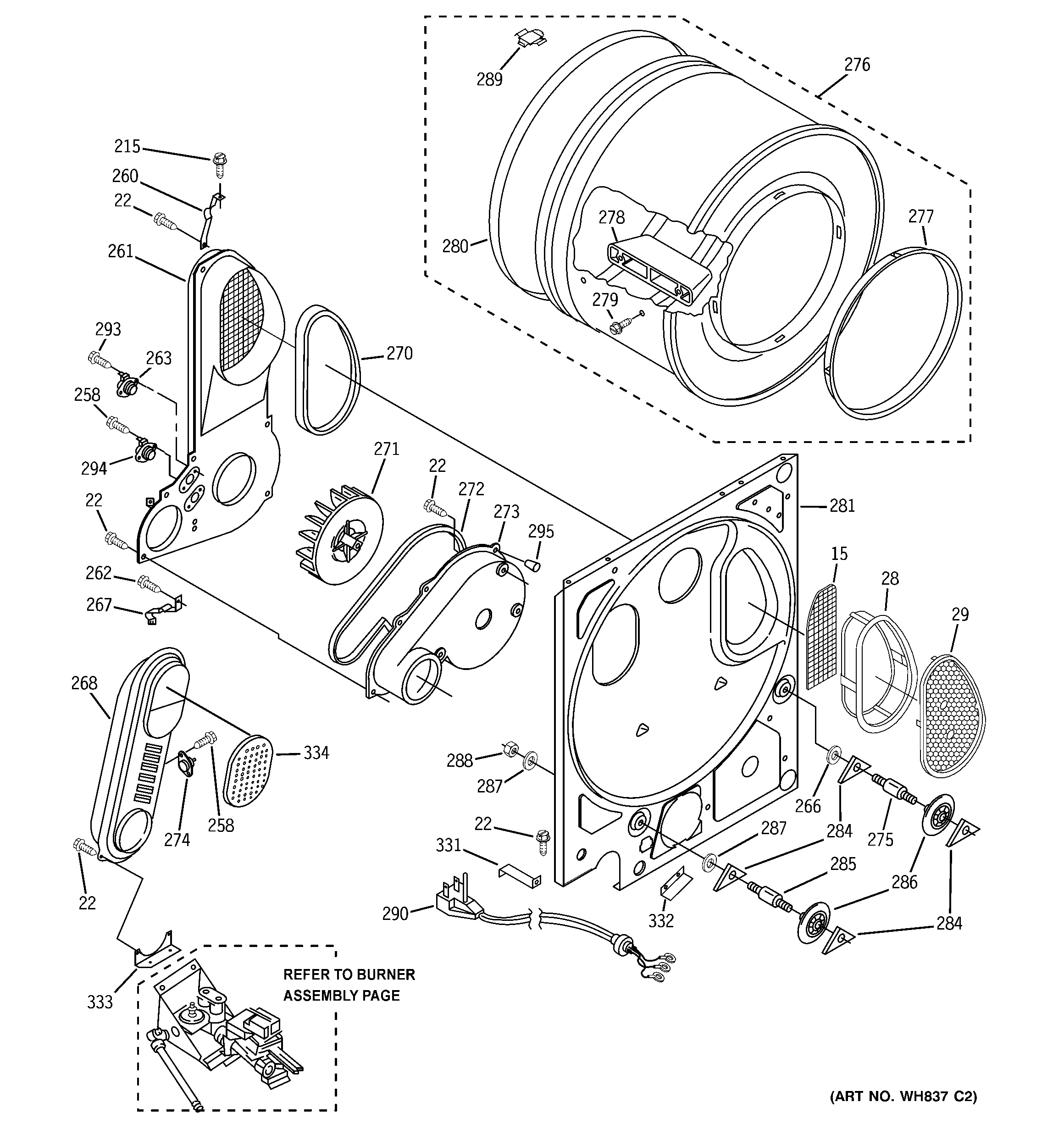

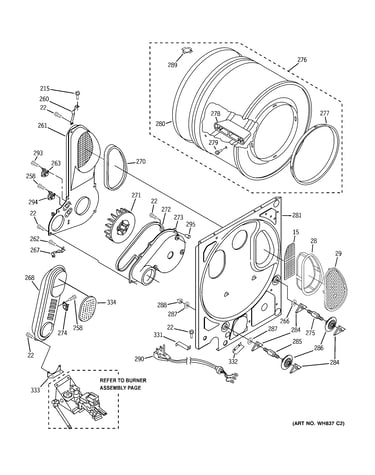

Dryer bulkhead parts diagram

Lint screen

Part #WE18X0055

Replaced by #WE18X25155

?
Manufacturer substitution
This part replaces WE18X0055. Substitute parts can look different from the original.
$137.81 |
8% OFF Phone Price : $149.81
In Stock
Water Valve WH13X10013
#19

Dryer support & washer cabinet diagram

Water valve

Part #WH13X10013

Replaced by #WH13X10014

?
Manufacturer substitution
This part replaces WH13X10013. Substitute parts can look different from the original.
$85.78 |
7% OFF Phone Price : $91.78
In Stock
Cvr Lint Scr WE18X0056
#29

Dryer bulkhead parts diagram

Cvr lint scr

Part #WE18X0056

Replaced by #WE18X25155

?
Manufacturer substitution
This part replaces WE18X0056. Substitute parts can look different from the original.
$137.81 |
8% OFF Phone Price : $149.81
In Stock
Laundry Center Dryer Drive Motor WE17X10004
#227

Dryer cabinet & motor diagram

Laundry center dryer drive motor

Part #WE17X10004

$406.43 |
$12.00 OFF Phone Price : $418.43
In Stock
Washer Drain Pump (replaces Wh23x80) WH23X10018
#128

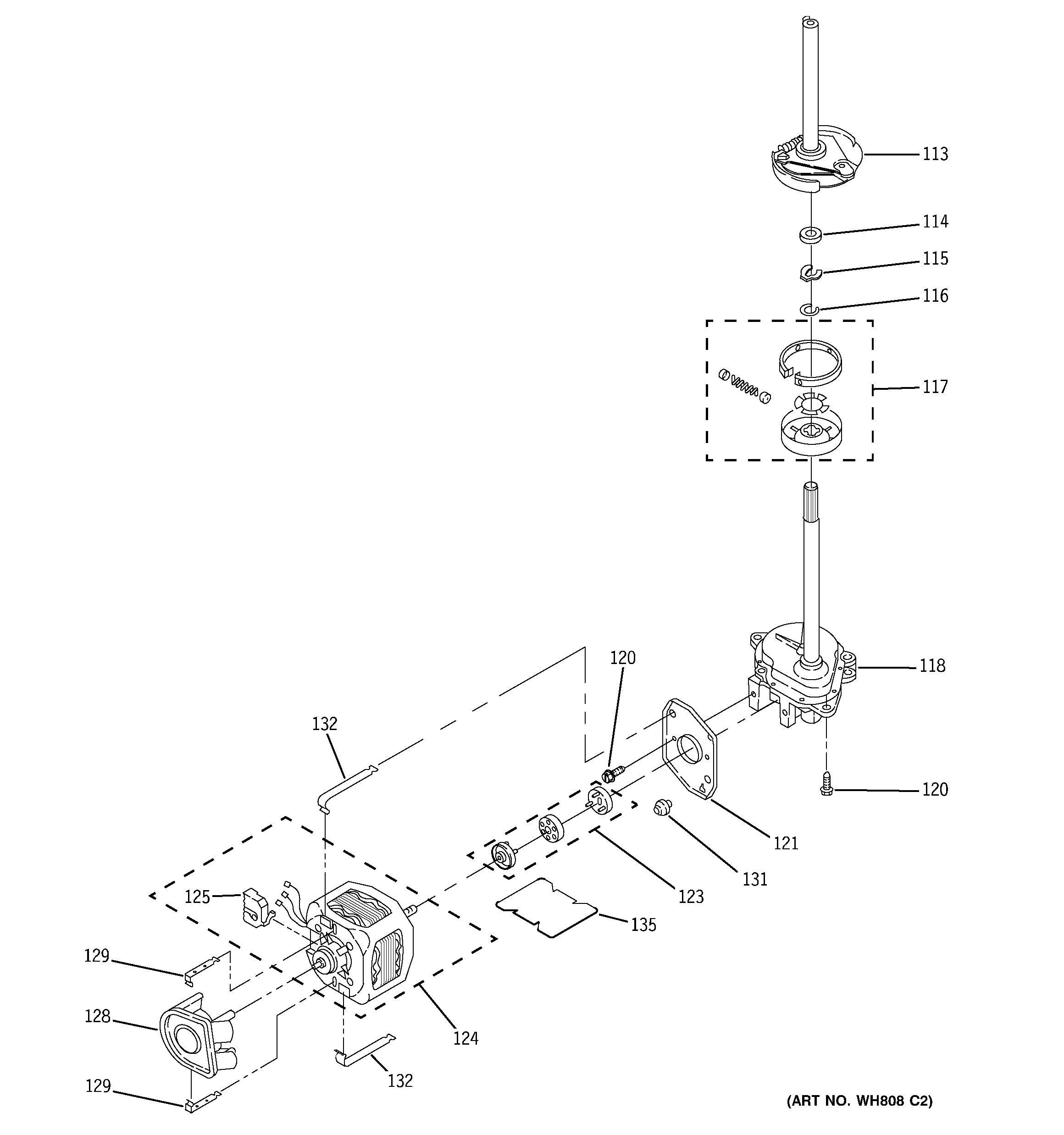

Motor & pump parts diagram

Washer drain pump (replaces wh23x80)

Part #WH23X10018

$68.46 |
8% OFF Phone Price : $74.46
In Stock
