Model # CPKJ30-1A Official Goodman split-system air conditioner

Here are the diagrams and repair parts for Official Goodman CPKJ30-1A split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Muffler B1219300
#20

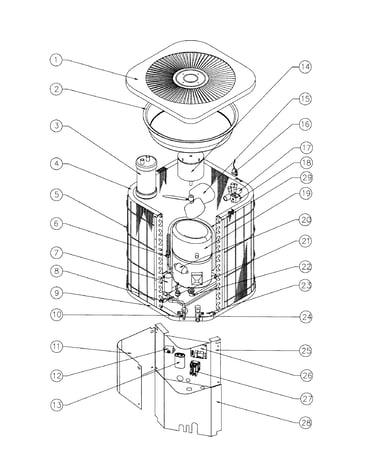

A/c parts diagram

Muffler

Part #B1219300

$32.27
In Stock
Core,valve B1787000
#23

A/c parts diagram

Core,valve

Part #B1787000

$8.29
In Stock
Goodman Tube B2114452
#6

A/c parts diagram

Goodman tube

Part #B2114452

$37.96
In Stock
Central Air Conditioner Suction Accumulator B1226206
#3

A/c parts diagram

Central air conditioner suction accumulator

Part #B1226206

$158.90
In Stock
Grommet B1339530
#22

A/c parts diagram

Grommet

Part #B1339530

This item is not returnable
$2.40
Back Order
Capacitor B94575300
#13

A/c parts diagram

Capacitor

Part #B94575300

Replaced by #12972

?
Manufacturer substitution
This part replaces B94575300. Substitute parts can look different from the original.
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Base Valve B1282565
#10

A/c parts diagram

Base valve

Part #B1282565

Replaced by #20163801

?
Manufacturer substitution
This part replaces B1282565. Substitute parts can look different from the original.
$174.10
In Stock
Sw,low-pre B1360719
#21

A/c parts diagram

Sw,low-pre

Part #B1360719

Replaced by #0130R00058

?
Manufacturer substitution
This part replaces B1360719. Substitute parts can look different from the original.
$30.73
In Stock
Reverse Vlve B1227302
#17

A/c parts diagram

Reverse vlve

Part #B1227302

Replaced by #0151R00069SP

?
Manufacturer substitution
This part replaces B1227302. Substitute parts can look different from the original.
$195.68
In Stock
Board B1226008
#26

A/c parts diagram

Board

Part #B1226008

Replaced by #ICM318

?
Manufacturer substitution
This part replaces B1226008. Substitute parts can look different from the original.
$78.08 |
7% OFF Phone Price : $84.08
In Stock
