Kenmore
Bottom-Mount Refrigerator

Model # 79572023110 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79572023110 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

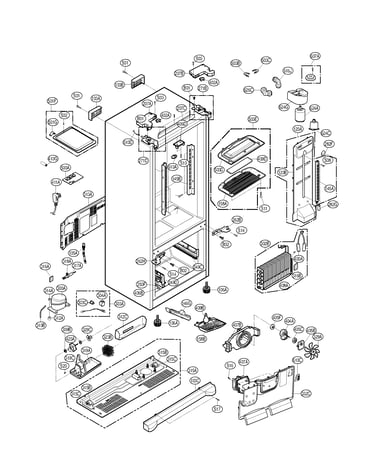

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Kenmore Elite Refrigerator Water Filter 9890 (replaces 5231ja2002b, 9890, Adq72910907) ADQ72910902
#624A

Case parts diagram

Kenmore elite refrigerator water filter 9890 (replaces 5231ja2002b, 9890, adq72910907)

Part #ADQ72910902

BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Water Tubing (replaces 5210ja3004u, 5210ja3029u, Mju62070601, Mju62070606, Mju62070611, Mju62070615) MJU62070602
#616F

Valve and water tube parts diagram

Refrigerator water tubing (replaces 5210ja3004u, 5210ja3029u, mju62070601, mju62070606, mju62070611, mju62070615)

Part #MJU62070602

BEST SELLER
$13.94 |
13% OFF Phone Price : $15.94
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P
#310B

Case parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2011j) MJX41178908
#619A

Valve and water tube parts diagram

Refrigerator water inlet valve (replaces 5221ja2011j)

Part #MJX41178908

BEST SELLER
$41.23 |
13% OFF Phone Price : $47.23
In Stock
Refrigerator Door Gasket MDS38201406
#203A

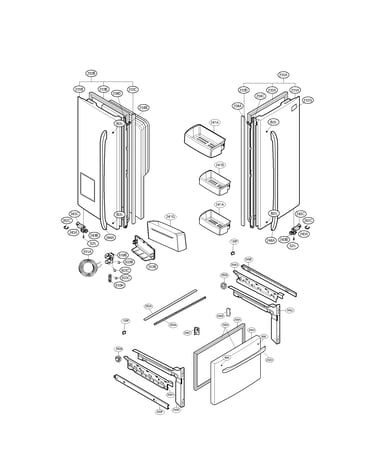

Door parts diagram

Refrigerator door gasket

Part #MDS38201406

Replaced by #MDS64172919

?
Manufacturer substitution
This part replaces MDS38201406. Substitute parts can look different from the original.
BEST SELLER
$60.93 |
9% OFF Phone Price : $66.93
In Stock
Refrigerator Temperature Sensor And Cover ACQ73244001
#610C

Case parts diagram

Refrigerator temperature sensor and cover

Part #ACQ73244001

BEST SELLER
$27.48 |
18% OFF Phone Price : $33.48
In Stock
Refrigerator Evaporator Fan Motor EAU60694512
#404A

Case parts diagram

Refrigerator evaporator fan motor

Part #EAU60694512

Replaced by #4681JB1027C

?
Manufacturer substitution
This part replaces EAU60694512. Substitute parts can look different from the original.
BEST SELLER
$75.90 |
7% OFF Phone Price : $81.90
In Stock
Refrigerator Drain Tube (replaces 5251ja3003a, 5251ja3003e) 5251JA3003D
#105A

Case parts diagram

Refrigerator drain tube (replaces 5251ja3003a, 5251ja3003e)

Part #5251JA3003D

BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…
