Kenmore
Wine & Beverage Cooler

Model # 40599279 Official Kenmore wine cooler

Here are the diagrams and repair parts for Official Kenmore 40599279 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Refrigerator Filter Dryer 501602000031
#22

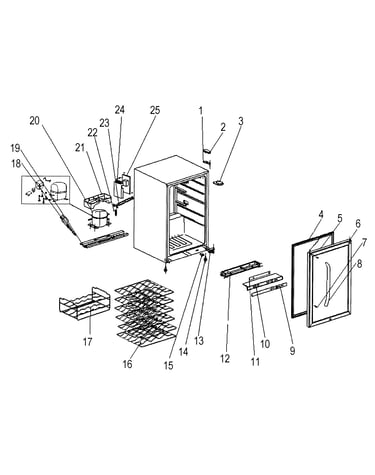

Cooler assy diagram

Refrigerator filter dryer

Part #501602000031

This item is not returnable
$7.49
In Stock
Harness 502403000344
#23

Cooler assy diagram

Harness

Part #502403000344

$49.49
In Stock
Lamp 502410000077
#3

Cooler assy diagram

Lamp

Part #502410000077

$12.49
In Stock
Wine Cooler Light Switch 502408000105
#15

Cooler assy diagram

Wine cooler light switch

Part #502408000105

$17.99
In Stock
Sticker 50209996000Y
#9

Cooler assy diagram

Sticker

Part #50209996000Y

This item is not returnable
$6.99
In Stock
Sleeve 501123110068
#6

Cooler assy diagram

Sleeve

Part #501123110068

$9.49
In Stock
Mount 501112560003
#12

Cooler assy diagram

Mount

Part #501112560003

$34.49
In Stock
Power Cord 502401000306
#18

Cooler assy diagram

Power cord

Part #502401000306

The manufacturer no longer makes this part, and there's no substitute part

Cover 501112960011
#24

Cooler assy diagram

Cover

Part #501112960011

The manufacturer no longer makes this part, and there's no substitute part

Gasket 501112960002
#4

Cooler assy diagram

Gasket

Part #501112960002

$77.99
In Stock
