Rear-Tine Tiller

Model # 21AA414A752 Official MTD rear-tine tiller

Here are the diagrams and repair parts for Official MTD 21AA414A752 rear-tine tiller, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
21AA414A752 Tillers
Bearing 741-0124
#34

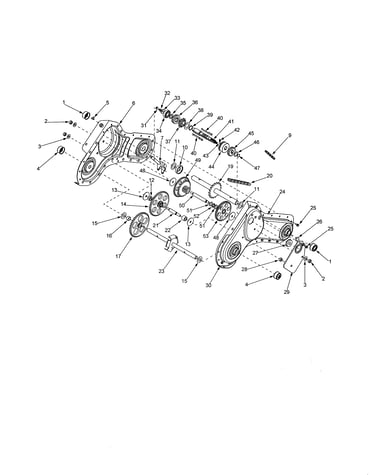

Gear case diagram

Bearing

Part #741-0124

Replaced by #941-0600

?
Manufacturer substitution
This part replaces 741-0124. Substitute parts can look different from the original.
BEST SELLER
$32.24 |
16% OFF Phone Price : $38.24
In Stock
Yard Machines Lawn & Garden Equipment Bell Washer (replaces 936-0242) 736-0242
#9

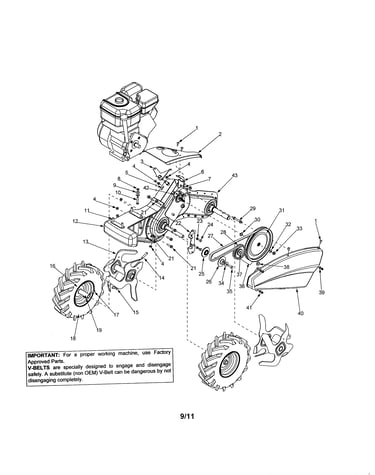

Engine/wheels/tines diagram

Yard machines lawn & garden equipment bell washer (replaces 936-0242)

Part #736-0242

This item is not returnable
$6.58 |
13% OFF Phone Price : $7.58
Back Order
Tiller Wing Nut 712-0421
#33

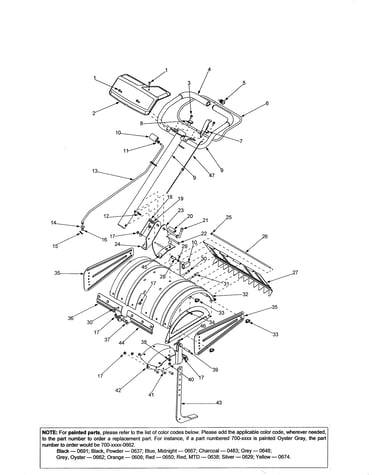

Shield & handle diagram

Tiller wing nut

Part #712-0421

Replaced by #712-0421

?
Manufacturer substitution
This part replaces 712-0421. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Ryobi Lawn & Garden Equipment Hex Nut (replaces 912-3010) 712-3010
#8

Engine/wheels/tines diagram

Ryobi lawn & garden equipment hex nut (replaces 912-3010)

Part #712-3010

In Stock
Toro Lawn & Garden Equipment Lock Washer (replaces 936-0169) 736-0169
#38

Shield & handle diagram

Toro lawn & garden equipment lock washer (replaces 936-0169)

Part #736-0169

This item is not returnable
In Stock
Aircap Lawn & Garden Equipment Hex Screw 710-0896
Aircap lawn & garden equipment hex screw

Part #710-0896

This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Shaft Seal 721-0378
#1

Gear case diagram

Shaft seal

Part #721-0378

Replaced by #921-0378

?
Manufacturer substitution
This part replaces 721-0378. Substitute parts can look different from the original.
This item is not returnable
$24.37 |
20% OFF Phone Price : $30.37
In Stock
Ryobi Lawn & Garden Equipment Hex Nut, 7/16-20 712-0378
#2

Gear case diagram

Ryobi lawn & garden equipment hex nut, 7/16-20

Part #712-0378

This item is not returnable
$10.56 |
16% OFF Phone Price : $12.56
In Stock
Ryobi Tiller Detent Ball 741-0862
#43

Gear case diagram

Ryobi tiller detent ball

Part #741-0862

This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Tiller Shift Fork (replaces 618-0245a) 618-0245B
#7

Gear case diagram

Tiller shift fork (replaces 618-0245a)

Part #618-0245B

$112.79 |
10% OFF Phone Price : $124.79
In Stock
