GE
Microwave/Hood Combo

Model # JVM133J01 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM133J01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Switch WB24X426

#1447

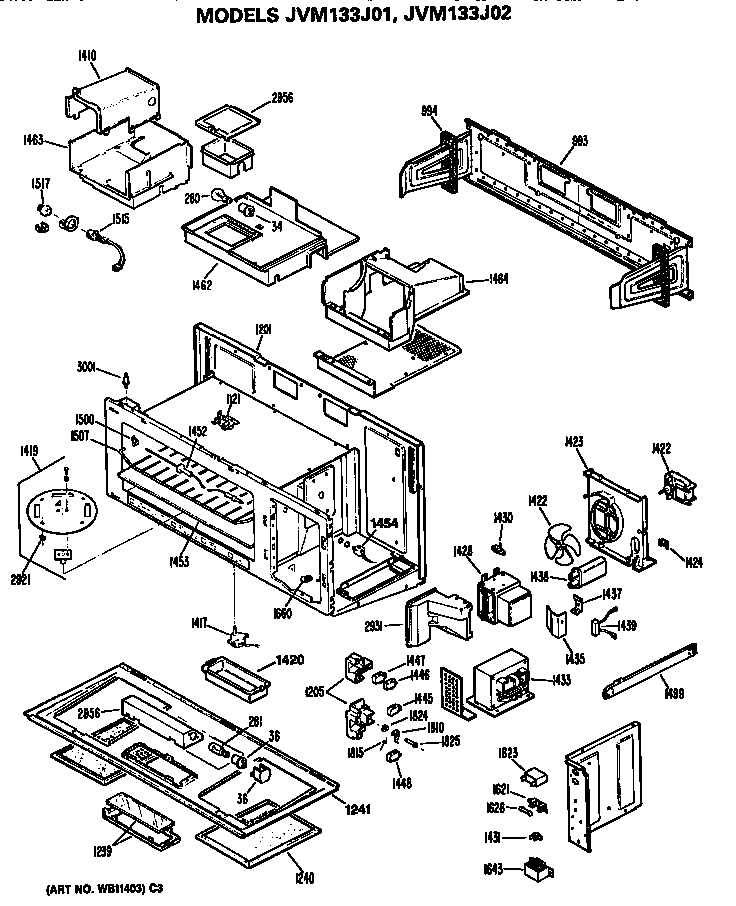

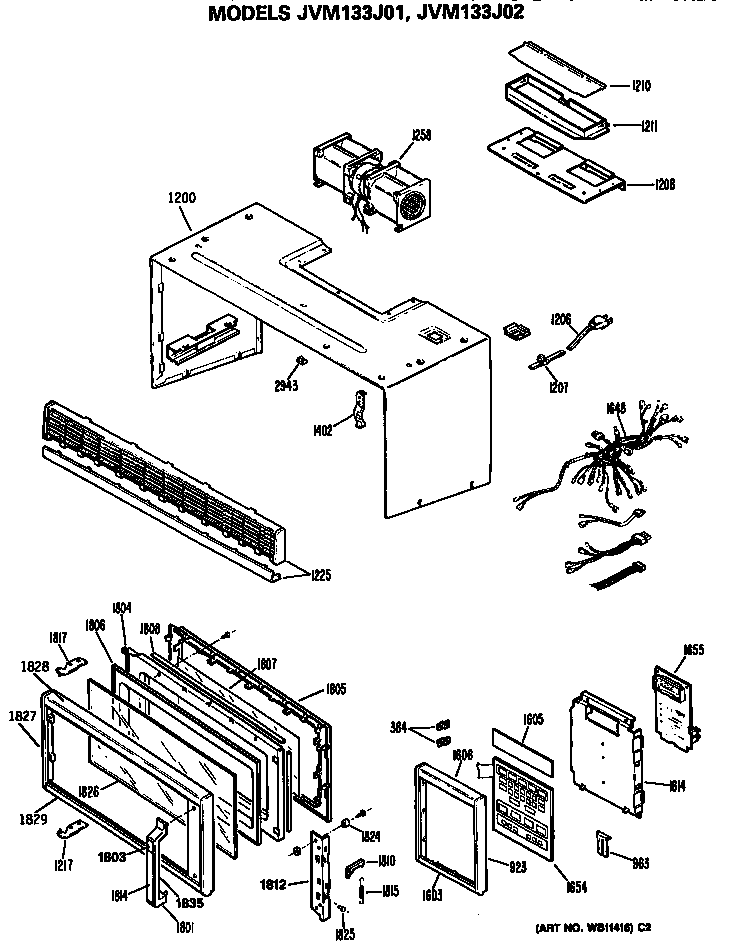

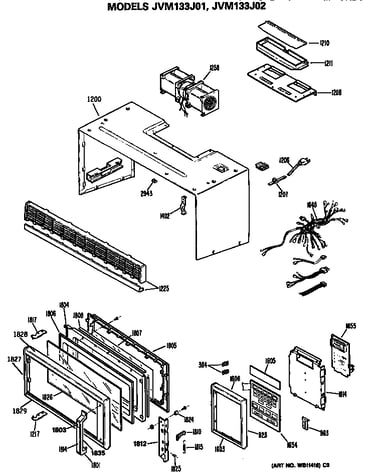

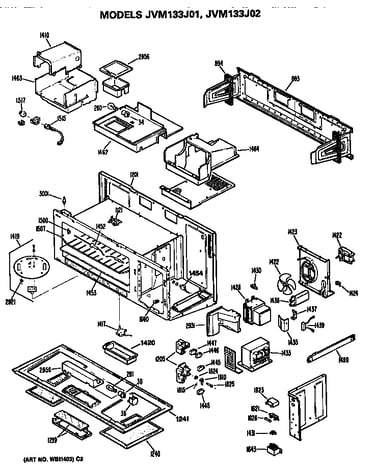

All parts diagram

Switch

Part #WB24X426

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X426. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch-mi WB24X414

#1445

All parts diagram

Switch-mi

Part #WB24X414

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X414. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X330

#1439

All parts diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Maytag Microwave Thermostat (replaces Wb27x0709) WB27X709

#1431

All parts diagram

Maytag microwave thermostat (replaces wb27x0709)

Part #WB27X709

BEST SELLER
This item is not returnable
$26.60 |
18% OFF Phone Price : $32.60
In Stock
Capacitor WB27X705

#1623

All parts diagram

Capacitor

Part #WB27X705

Replaced by #WB27X10170

?
Manufacturer substitution
This part replaces WB27X705. Substitute parts can look different from the original.
$48.79 |
11% OFF Phone Price : $54.79
In Stock
Magnetron WB27X706

#1428

All parts diagram

Magnetron

Part #WB27X706

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide 49-8098

#9999

All parts diagram

Use and care guide

Part #49-8098

$8.49
In Stock
Handle WB7X1898

#1835

All parts diagram

Handle

Part #WB7X1898

Replaced by #WB15X310

?
Manufacturer substitution
This part replaces WB7X1898. Substitute parts can look different from the original.
$82.19 |
7% OFF Phone Price : $88.19
In Stock
Service Manual 49-8078

#9999

All parts diagram

Service manual

Part #49-8078

Replaced by #49-8247

?
Manufacturer substitution
This part replaces 49-8078. Substitute parts can look different from the original.
$26.99
In Stock
Gas Sensor WB2X4513

#1517

All parts diagram

Gas sensor

Part #WB2X4513

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB2X4513. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
