Kenmore
Dishwasher

Model # 587760614 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587760614 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

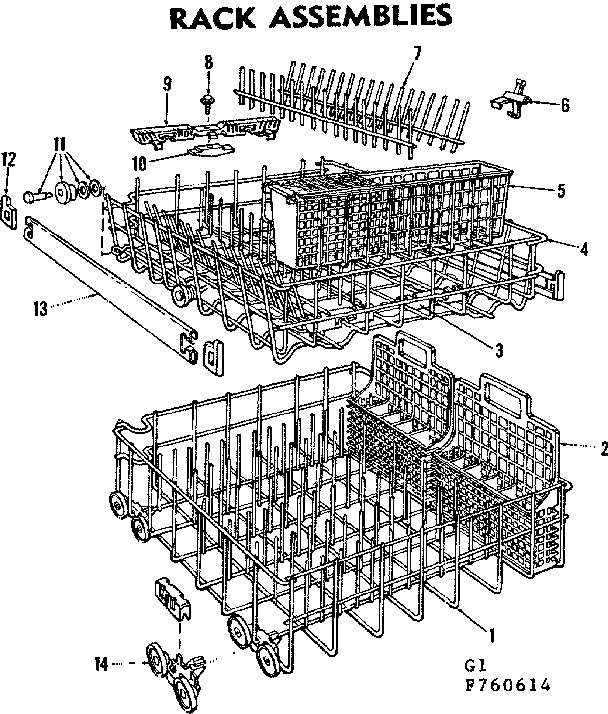

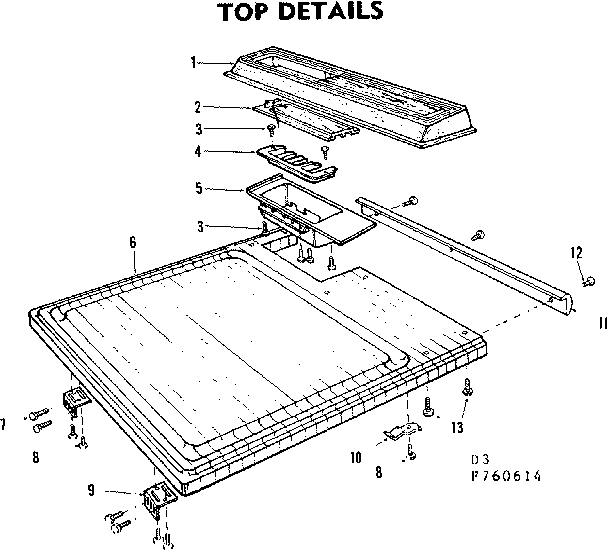

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 252 parts  |
Nut 806834
#22

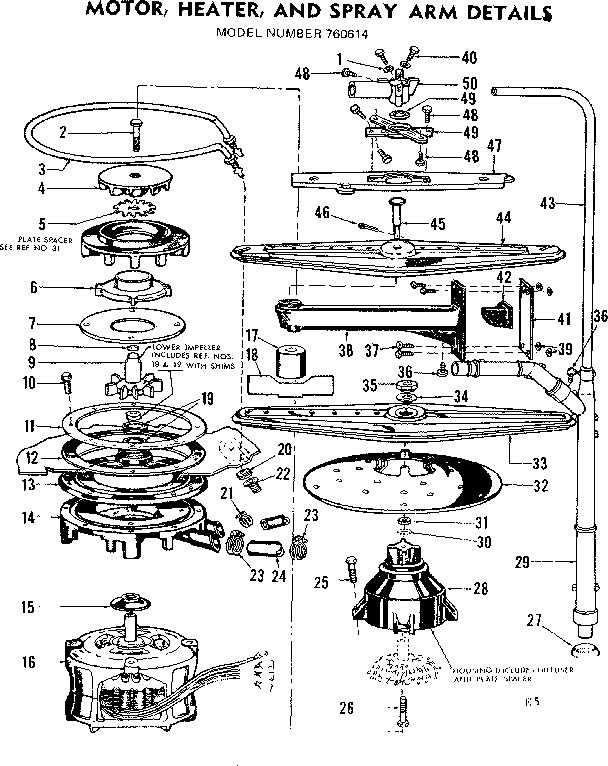

Motor, heater and spray arm details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 806890
#6

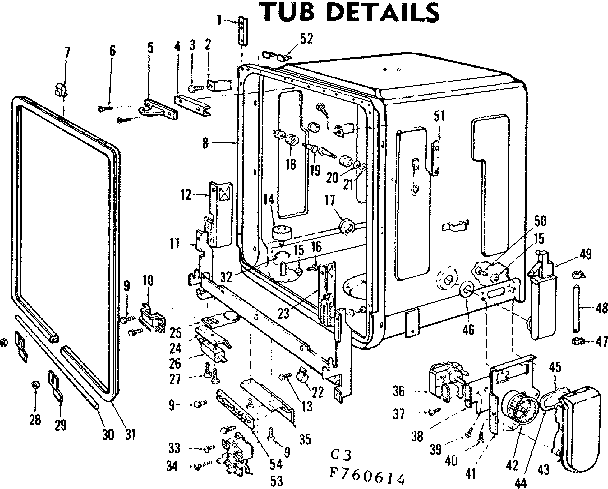

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Crct Brd Asm 807133
#11

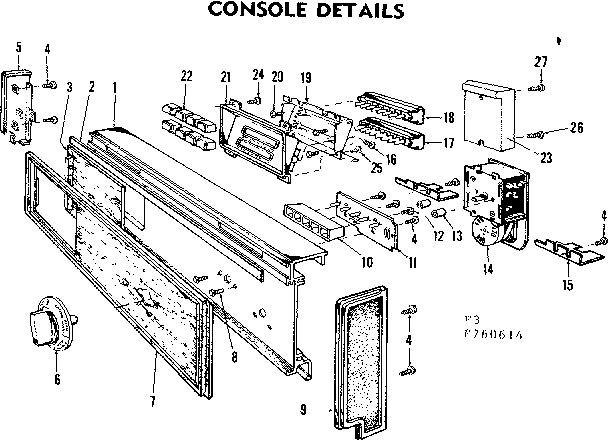

Console details diagram

Crct brd asm

Part #807133

Replaced by #5300807133

?
Manufacturer substitution
This part replaces 807133. Substitute parts can look different from the original.
$19.99
In Stock
Washer 807373
#5

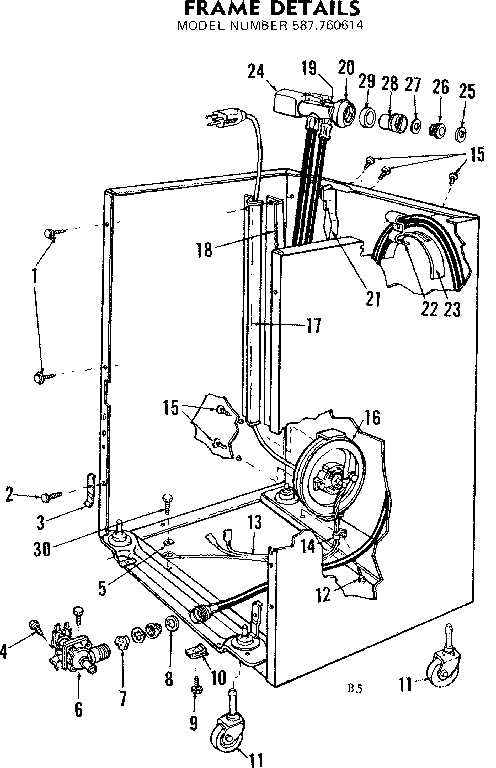

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Cam Spring 806567
#51

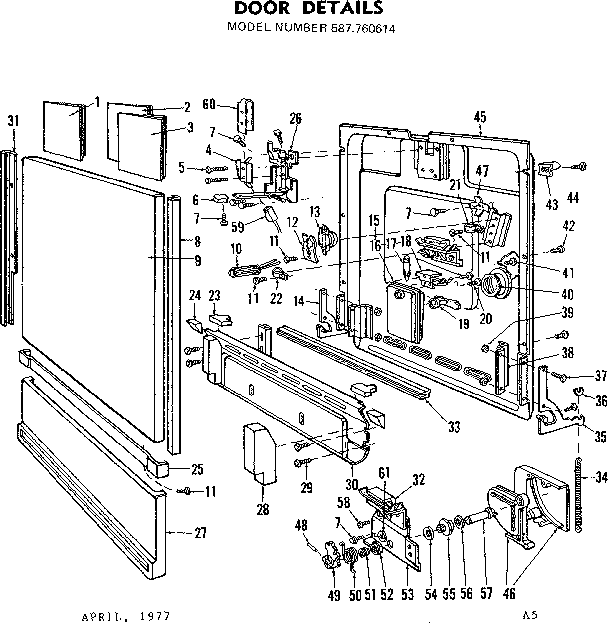

Door details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Arm Assembly 805681
#35

Door details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$79.52
In Stock
Gasket 805763
#7

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Screw 806967
#42

Door details diagram

Screw

Part #806967

Replaced by #5300806967

?
Manufacturer substitution
This part replaces 806967. Substitute parts can look different from the original.
This item is not returnable
$2.72
In Stock
Washer 800787
#8

Frame details diagram

Washer

Part #800787

Replaced by #5300800787

?
Manufacturer substitution
This part replaces 800787. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Nut 804527
#31

Motor, heater and spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
