Samsung
Bottom-Mount Refrigerator

Model # RF267ACRS/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF267ACRS-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

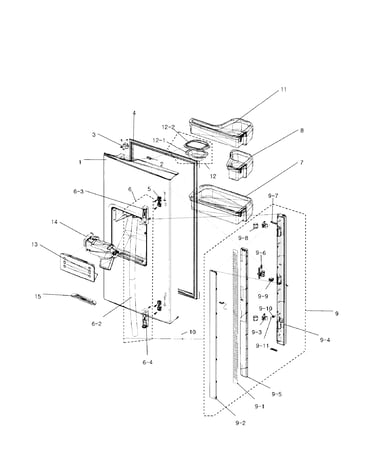

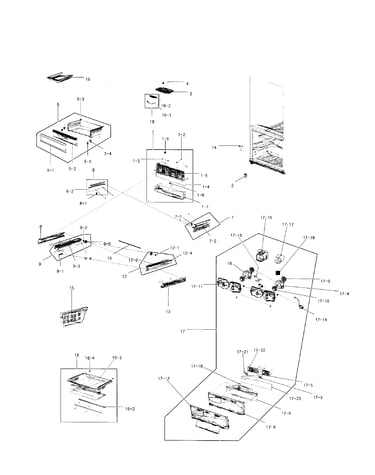

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 299 parts  |
Refrigerator Ice Maker Assembly DA97-05422A
#34

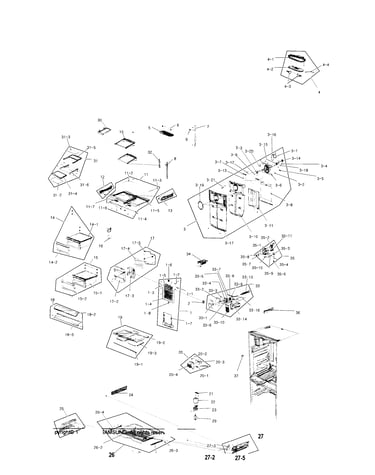

Refrigerator diagram

Refrigerator ice maker assembly

Part #DA97-05422A

BEST SELLER
$168.81 |
7% OFF Phone Price : $180.81
In Stock
Refrigerator Cover Assembly DA97-07020A
#18

Refrigerator diagram

Refrigerator cover assembly

Part #DA97-07020A

Replaced by #DA97-07020C

?
Manufacturer substitution
This part replaces DA97-07020A. Substitute parts can look different from the original.
BEST SELLER
$110.54 |
10% OFF Phone Price : $122.54
In Stock
Refrigerator Gasket Assembly DA97-07192A
#2

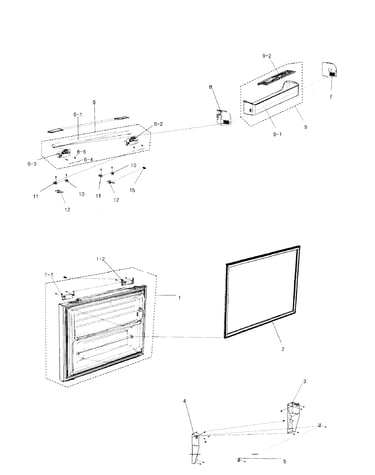

Freezer door diagram

Refrigerator gasket assembly

Part #DA97-07192A

Replaced by #DA97-05557Y

?
Manufacturer substitution
This part replaces DA97-07192A. Substitute parts can look different from the original.
BEST SELLER
$158.15 |
7% OFF Phone Price : $170.15
In Stock
Refrigerator Water Filter Head (replaces Da97-06317e) DA97-06317A
#23

Refrigerator diagram

Refrigerator water filter head (replaces da97-06317e)

Part #DA97-06317A

BEST SELLER
$92.21 |
6% OFF Phone Price : $98.21
In Stock
Refrigerator Compressor MK172DR2U/SM1
#17

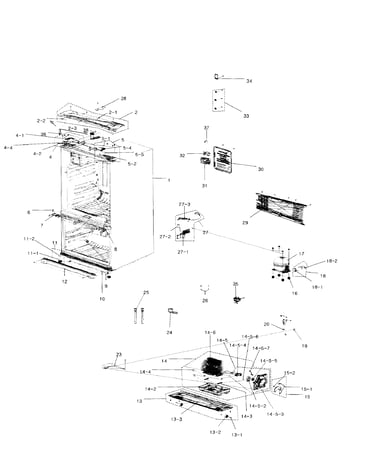

Cabinet diagram

Refrigerator compressor

Part #MK172DR2U/SM1

Replaced by #MSE166CL1H/ASH

?
Manufacturer substitution
This part replaces MK172DR2U/SM1. Substitute parts can look different from the original.
BEST SELLER
$265.82 |
6% OFF Was : $282.79
In Stock
Refrigerator Condenser Fan (replaces Da31-00220a) DA31-00146B
#1452

Cabinet diagram

Refrigerator condenser fan (replaces da31-00220a)

Part #DA31-00146B

BEST SELLER
$87.94 |
6% OFF Phone Price : $93.94
In Stock
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Refrigerator Cover Assembly DA97-07189A
#20

Refrigerator diagram

Refrigerator cover assembly

Part #DA97-07189A

Replaced by #DA97-07189E

?
Manufacturer substitution
This part replaces DA97-07189A. Substitute parts can look different from the original.
$128.08 |
9% OFF Phone Price : $140.08
In Stock
Refrigerator Cap Assembly DA97-06970A
#25

Cabinet diagram

Refrigerator cap assembly

Part #DA97-06970A

$22.37
In Stock
Refrigerator Pantry Drawer Thermistor DA32-00006R
#20-2

Refrigerator diagram

Refrigerator pantry drawer thermistor

Part #DA32-00006R

This item is not returnable
$22.11 |
21% OFF Phone Price : $28.11
In Stock
