Model # 50GV-3T NAT Official Williams wall furnace

Here are the diagrams and repair parts for Official Williams 50GV-3T-NAT wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 52 parts |

#16A

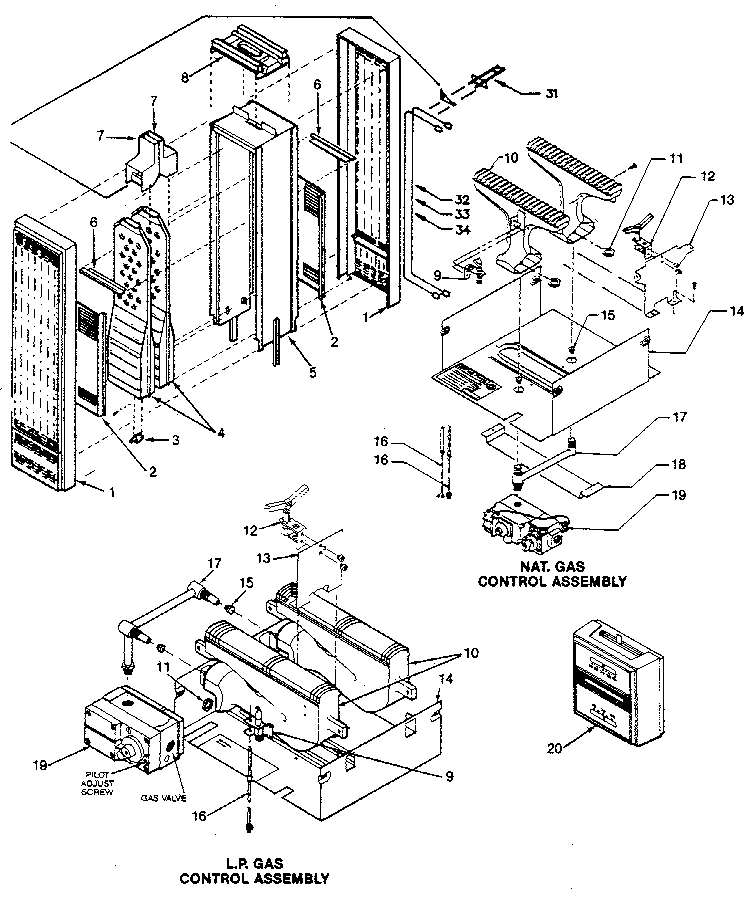

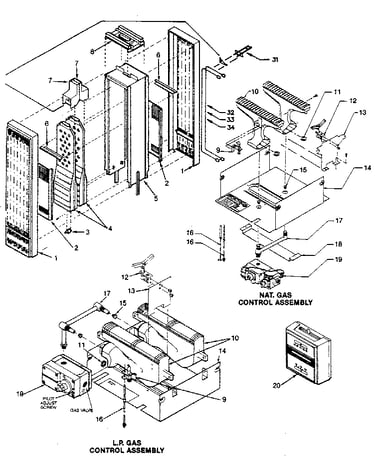

Replacement parts diagram

Thermocouple

Part #P042100

The manufacturer no longer makes this part, and there's no substitute part

#20

Replacement parts diagram

Thermostat

Part #P251000

The manufacturer no longer makes this part, and there's no substitute part

#16

Replacement parts diagram

Generator

Part #P043800

The manufacturer no longer makes this part, and there's no substitute part

#12

Replacement parts diagram

Pilot

Part #P320758

The manufacturer no longer makes this part, and there's no substitute part

#29

Replacement parts diagram

Furnace 2-speed fan switch

Part #P320911A

The manufacturer no longer makes this part, and there's no substitute part

#25

Replacement parts diagram

Motor

Part #P320905

The manufacturer no longer makes this part, and there's no substitute part

#30

Replacement parts diagram

Wire bridle

Part #P320912

The manufacturer no longer makes this part, and there's no substitute part

#12A

Replacement parts diagram

Pilot

Part #P320778

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Furnace pilot burner

Part #P179900

The manufacturer no longer makes this part, and there's no substitute part

#26

Replacement parts diagram

Fan blade

Part #P320907

The manufacturer no longer makes this part, and there's no substitute part
