GE
Dishwasher

Model # GDT635HGJ2BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDT635HGJ2BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

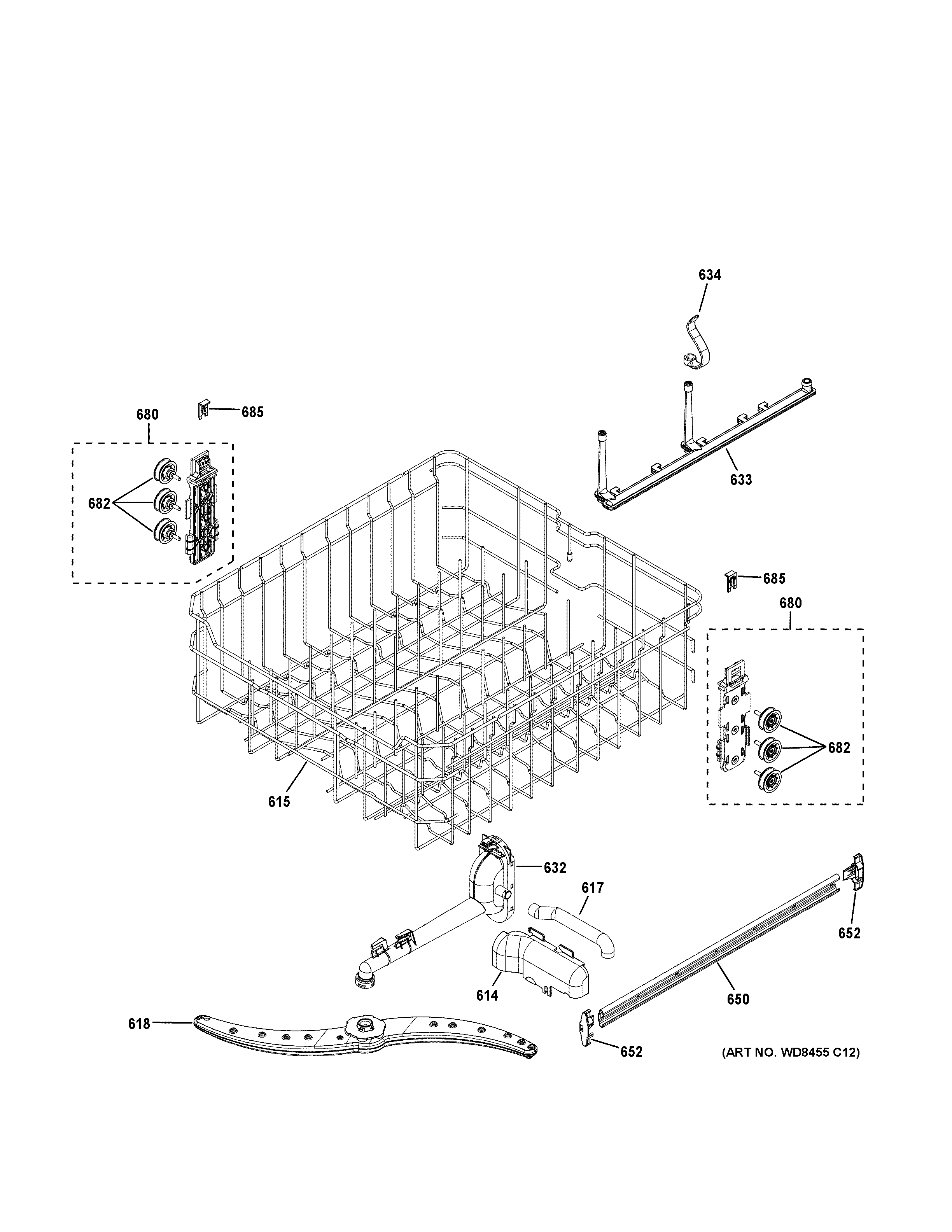

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Dishwasher Spray Arm, Lower WD22X10091
#501

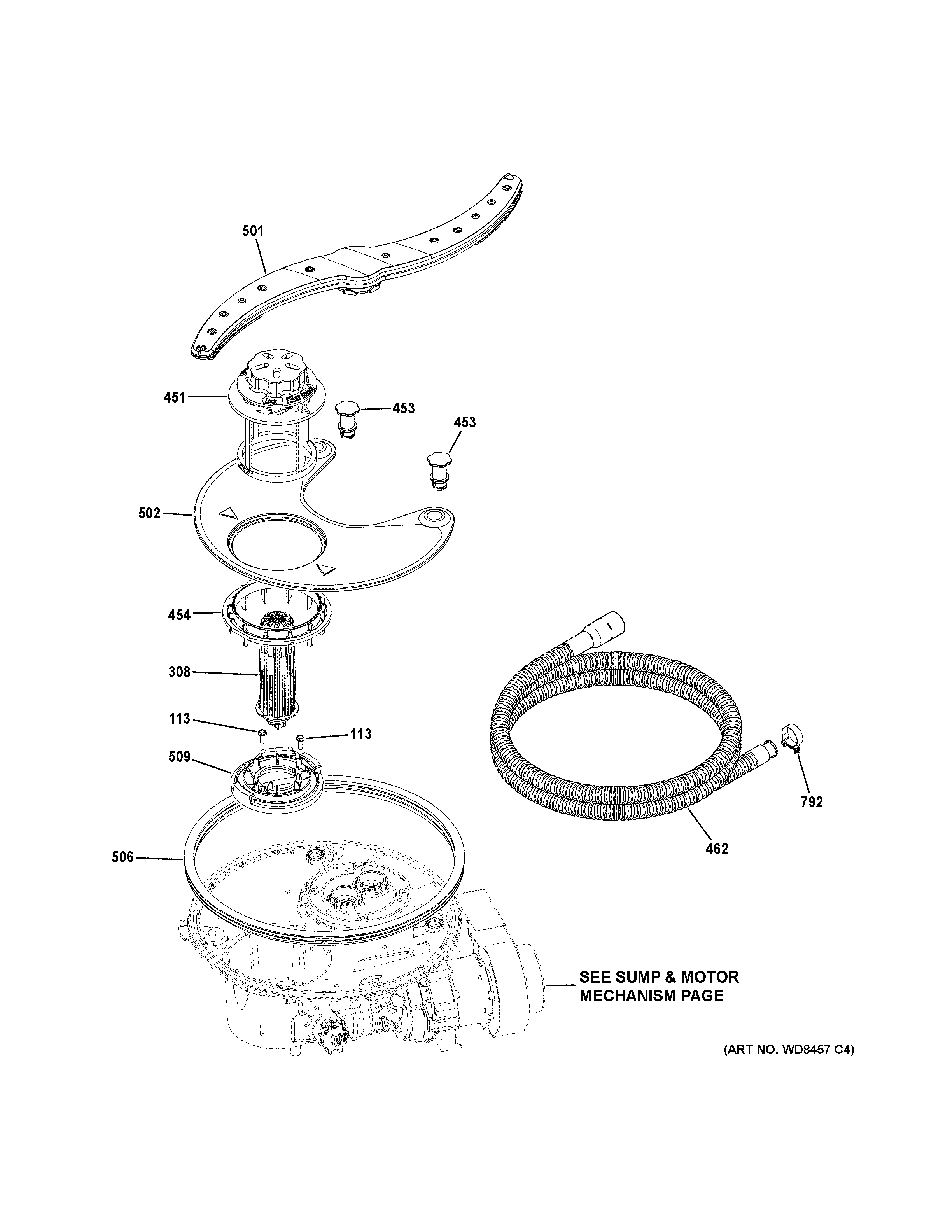

Sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X10091

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X10091. Substitute parts can look different from the original.
BEST SELLER
$21.27 |
22% OFF Phone Price : $27.27
In Stock
Kit Svc Ui T WD21X22956
#718

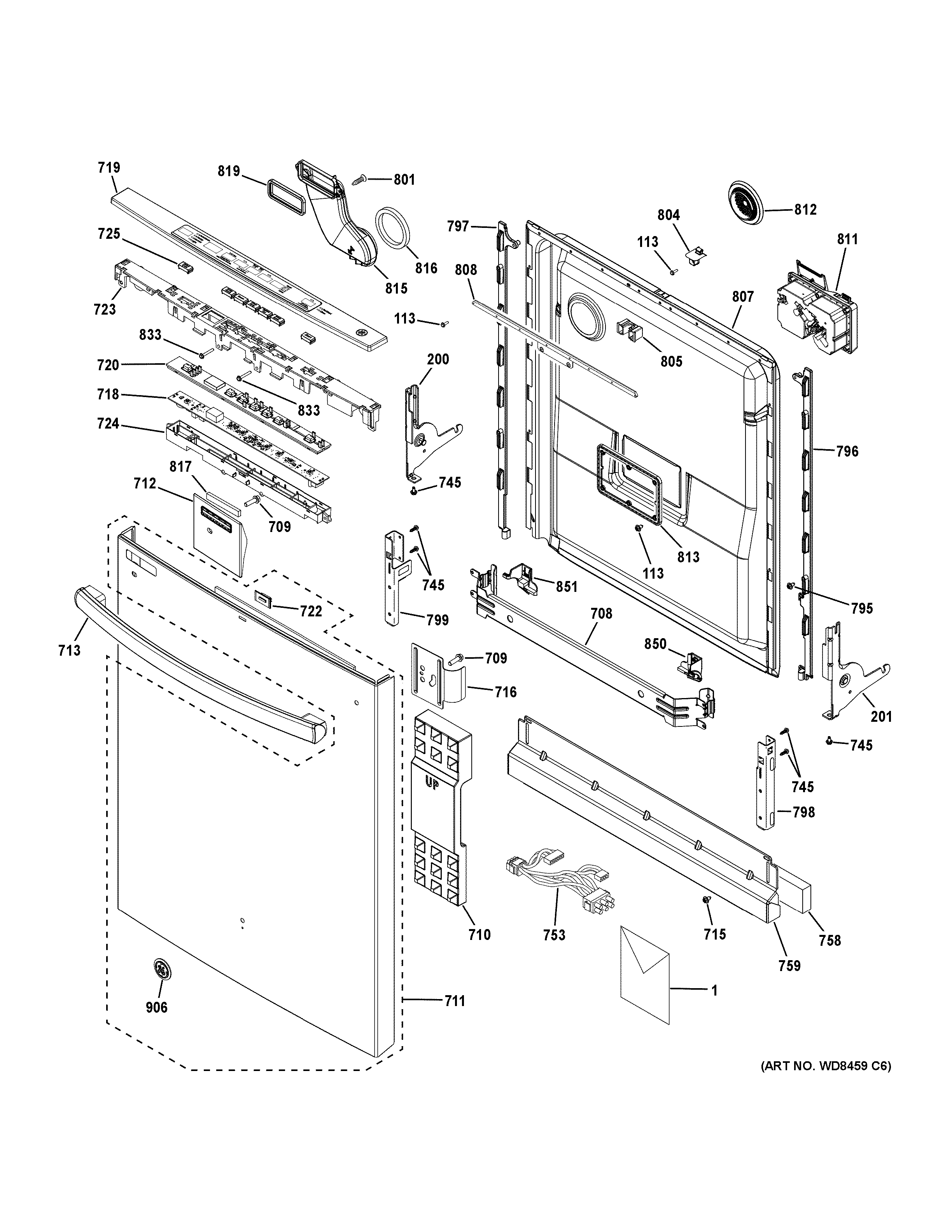

Escutcheon & door assembly diagram

Kit svc ui t

Part #WD21X22956

Replaced by #WD21X31902

?
Manufacturer substitution
This part replaces WD21X22956. Substitute parts can look different from the original.
BEST SELLER
$163.85 |
7% OFF Phone Price : $175.85
In Stock
Dishwasher Door Latch Lock WD21X10490
#803

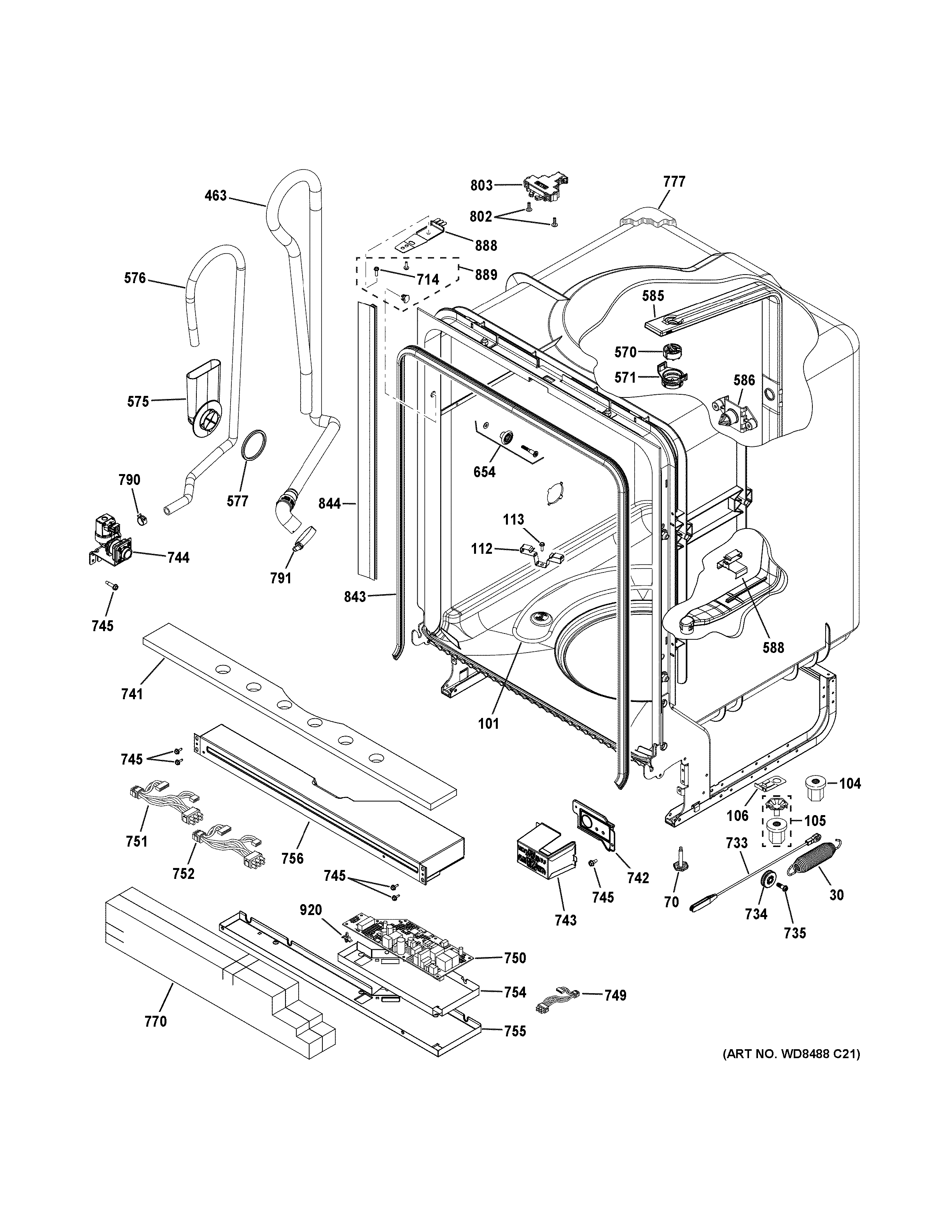

Body parts diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$28.66 |
17% OFF Phone Price : $34.66
In Stock
Rack Lower A WD28X22696
#701

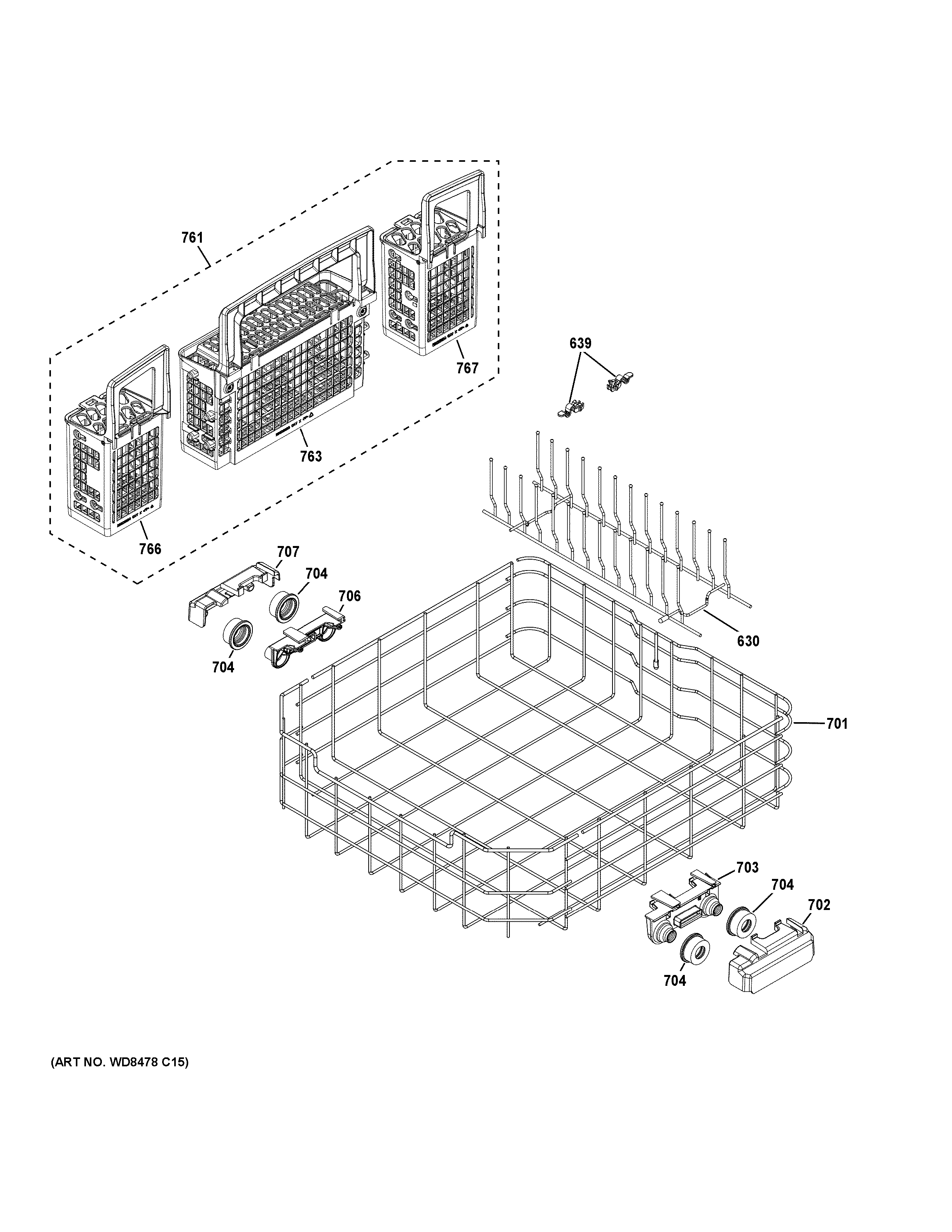

Lower rack assembly diagram

Rack lower a

Part #WD28X22696

Replaced by #WD28X26099

?
Manufacturer substitution
This part replaces WD28X22696. Substitute parts can look different from the original.
BEST SELLER
$79.49 |
7% OFF Phone Price : $85.49
In Stock
Dishwasher Circulation Pump WD26X22285
#310

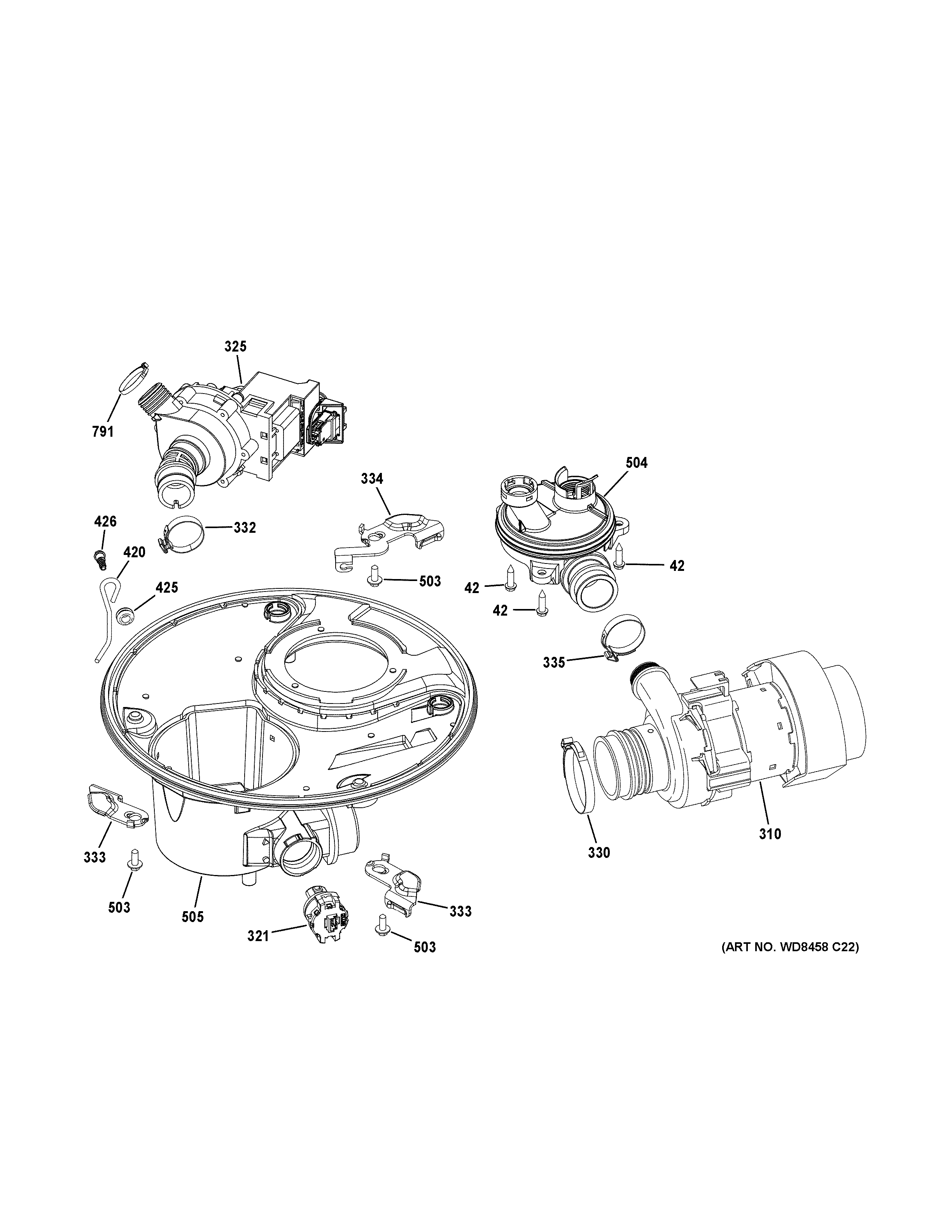

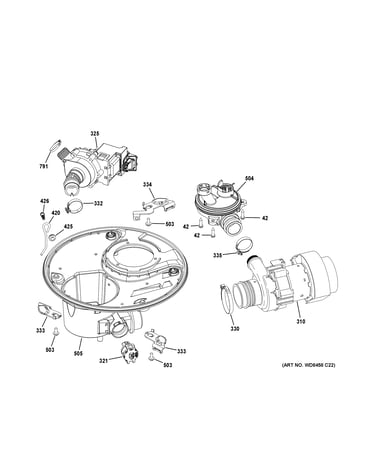

Sump & motor mechanism diagram

Dishwasher circulation pump

Part #WD26X22285

Replaced by #WD26X23258

?
Manufacturer substitution
This part replaces WD26X22285. Substitute parts can look different from the original.
BEST SELLER
$87.76 |
6% OFF Phone Price : $93.76
In Stock
Kit - Piranh WD01X10572
#335

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10572

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10572. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Kit - Piranh WD01X10573
#332

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10573

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10573. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Clamp WD01X20302
#330

Sump & motor mechanism diagram

Clamp

Part #WD01X20302

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X20302. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Dishwasher Heating Element WD05X21716
#101

Body parts diagram

Dishwasher heating element

Part #WD05X21716

Replaced by #WD05X30818

?
Manufacturer substitution
This part replaces WD05X21716. Substitute parts can look different from the original.
BEST SELLER
$47.32 |
11% OFF Phone Price : $53.32
In Stock
Dishwasher Drain Pump WD26X21697
#325

Sump & motor mechanism diagram

Dishwasher drain pump

Part #WD26X21697

Replaced by #WD19X25187

?
Manufacturer substitution
This part replaces WD26X21697. Substitute parts can look different from the original.
BEST SELLER
$96.88 |
11% OFF Phone Price : $108.88
In Stock
