Model # 867819330 Official Kenmore residential & mobile home package air conditioner
Here are the diagrams and repair parts for Official Kenmore 867819330 residential & mobile home package air conditioner, as well as links to manuals and error code tables, if available.
By Schematic

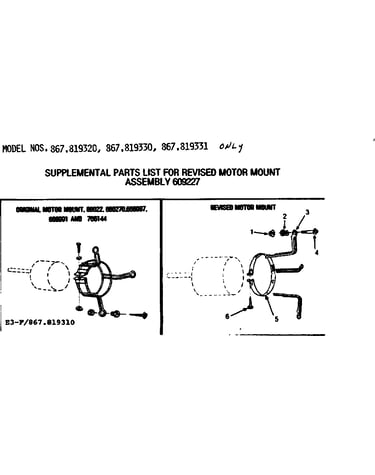

SELECT DIAGRAM
Browse Parts for
867819330 Residential & Mobile Home Package Air Conditioner
#45

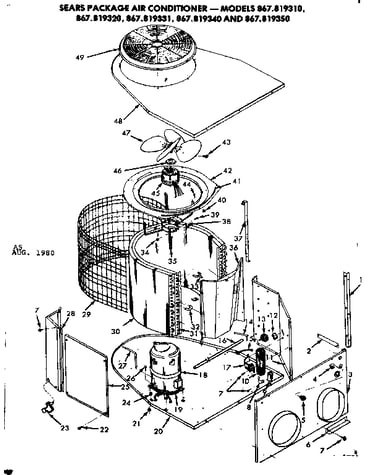

Functional replacement parts diagram
Motor
Part #96799
Replaced by #WG840465
?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
$234.47
In Stock
#49
Functional replacement parts diagram
Outlet grille
Part #708690
Replaced by #512848
?
Manufacturer substitution
This part replaces 708690. Substitute parts can look different from the original.
$164.46 |
7% OFF Phone Price : $176.46
In Stock
Capacitor
Part #706437
Replaced by #12005
?
Manufacturer substitution
This part replaces 706437. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#17C

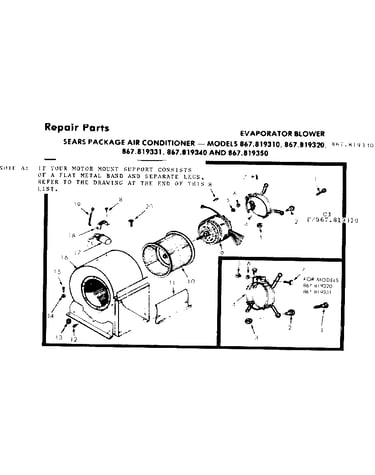

Blower assembly diagram
Capacitor
Part #706723
Replaced by #12005
?
Manufacturer substitution
This part replaces 706723. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#23B

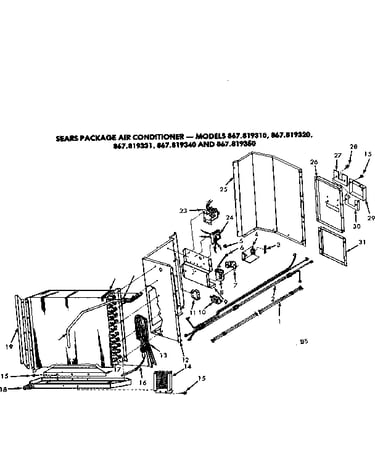

Control box diagram
Contactor
Part #704410
Replaced by #90-170
?
Manufacturer substitution
This part replaces 704410. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
#47B
Functional replacement parts diagram
Fan blade
Part #707222
Replaced by #1080764
?
Manufacturer substitution
This part replaces 707222. Substitute parts can look different from the original.
$79.27
In Stock
#10C
Blower assembly diagram
Wheel
Part #703494
$144.56
In Stock
#4A
Blower assembly diagram
Support
Part #86023
Replaced by #1050254
?
Manufacturer substitution
This part replaces 86023. Substitute parts can look different from the original.
$125.18
In Stock
#10B
Blower assembly diagram
Blower wheel
Part #706037
Replaced by #1056309
?
Manufacturer substitution
This part replaces 706037. Substitute parts can look different from the original.
$174.68
In Stock
Screw
Part #609206
Replaced by #1050254
?
Manufacturer substitution
This part replaces 609206. Substitute parts can look different from the original.
$125.18
In Stock
