Model # DSC-W80 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W80 digital camera, as well as links to manuals and error code tables, if available.

By Schematic

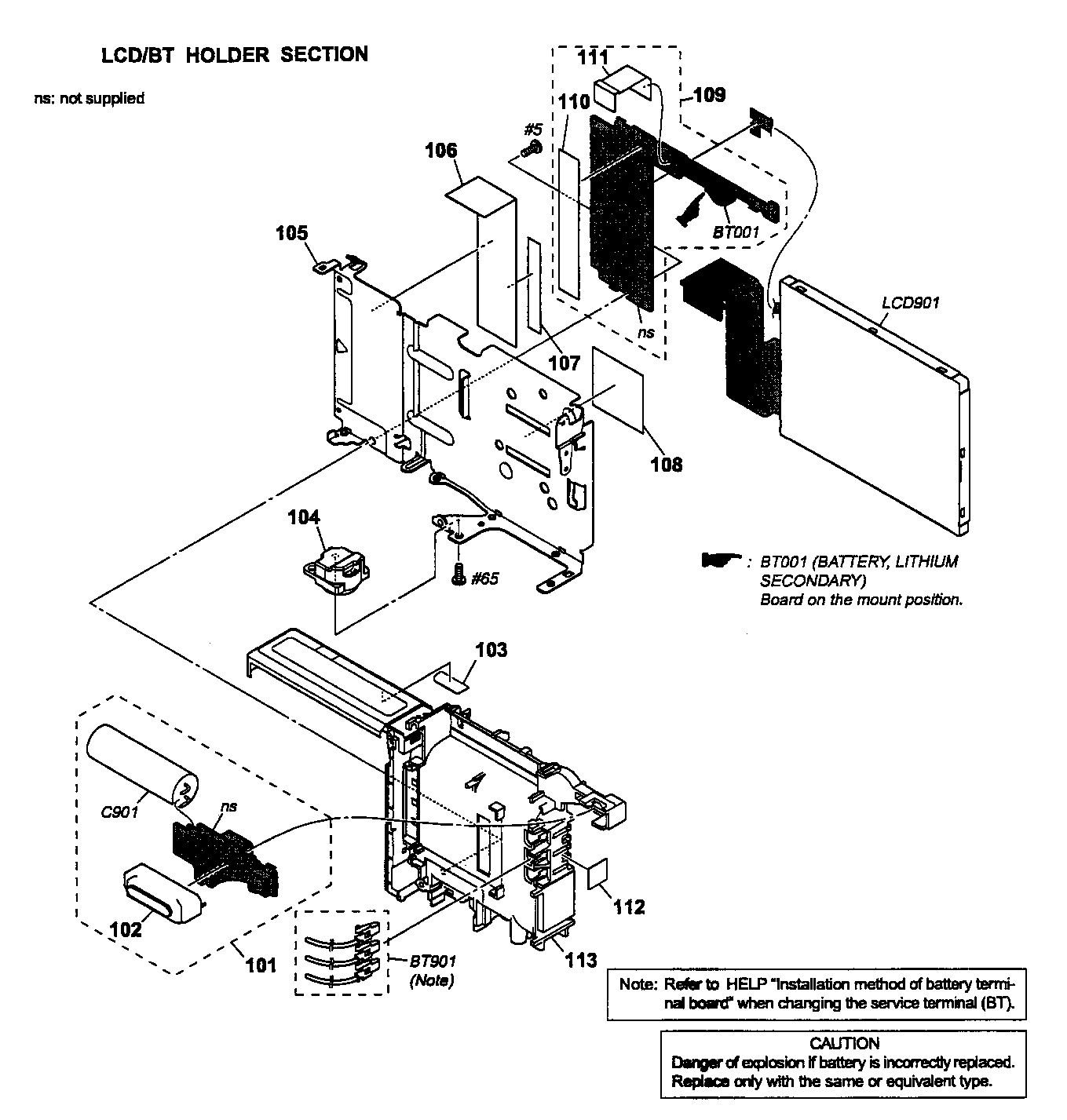

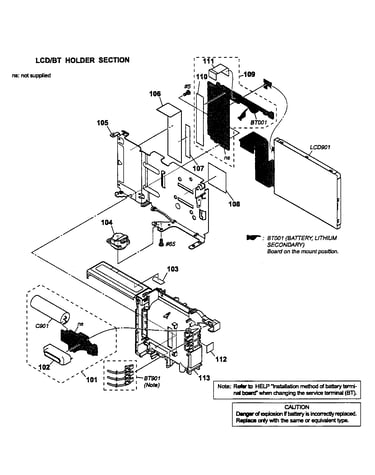

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DSC-W80 Digital Camera
Sony Gear X21772031
#157

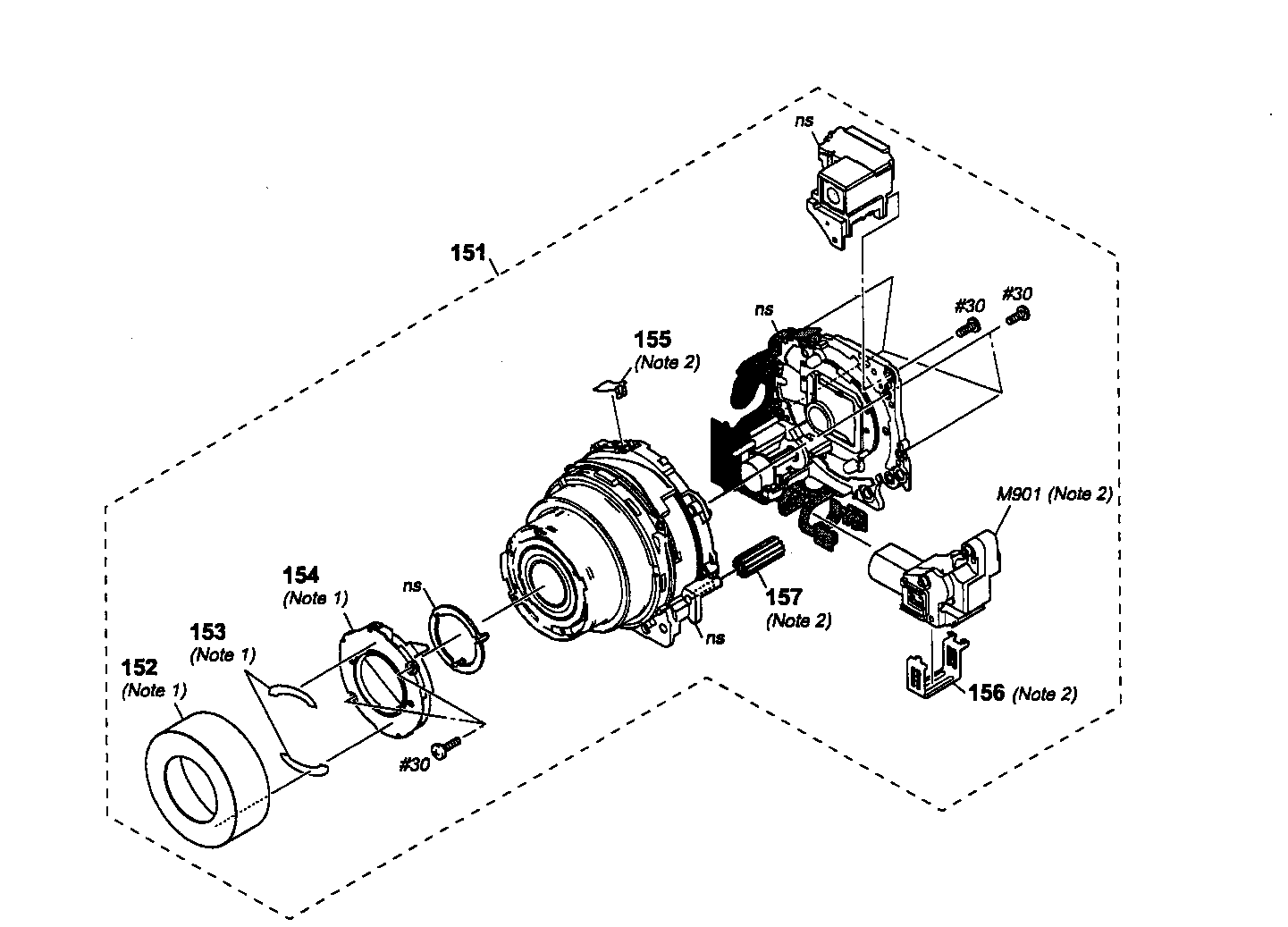

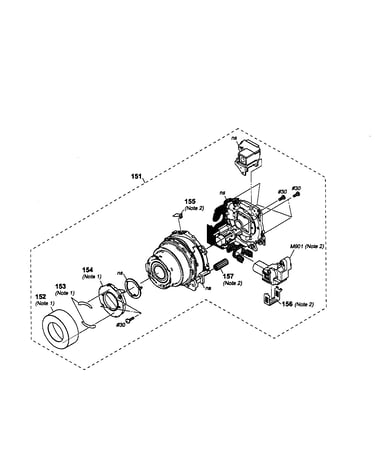

Lens assy diagram

Sony gear

Part #X21772031

In Stock
Sony Sy-173 Pcb A1253161A
#51

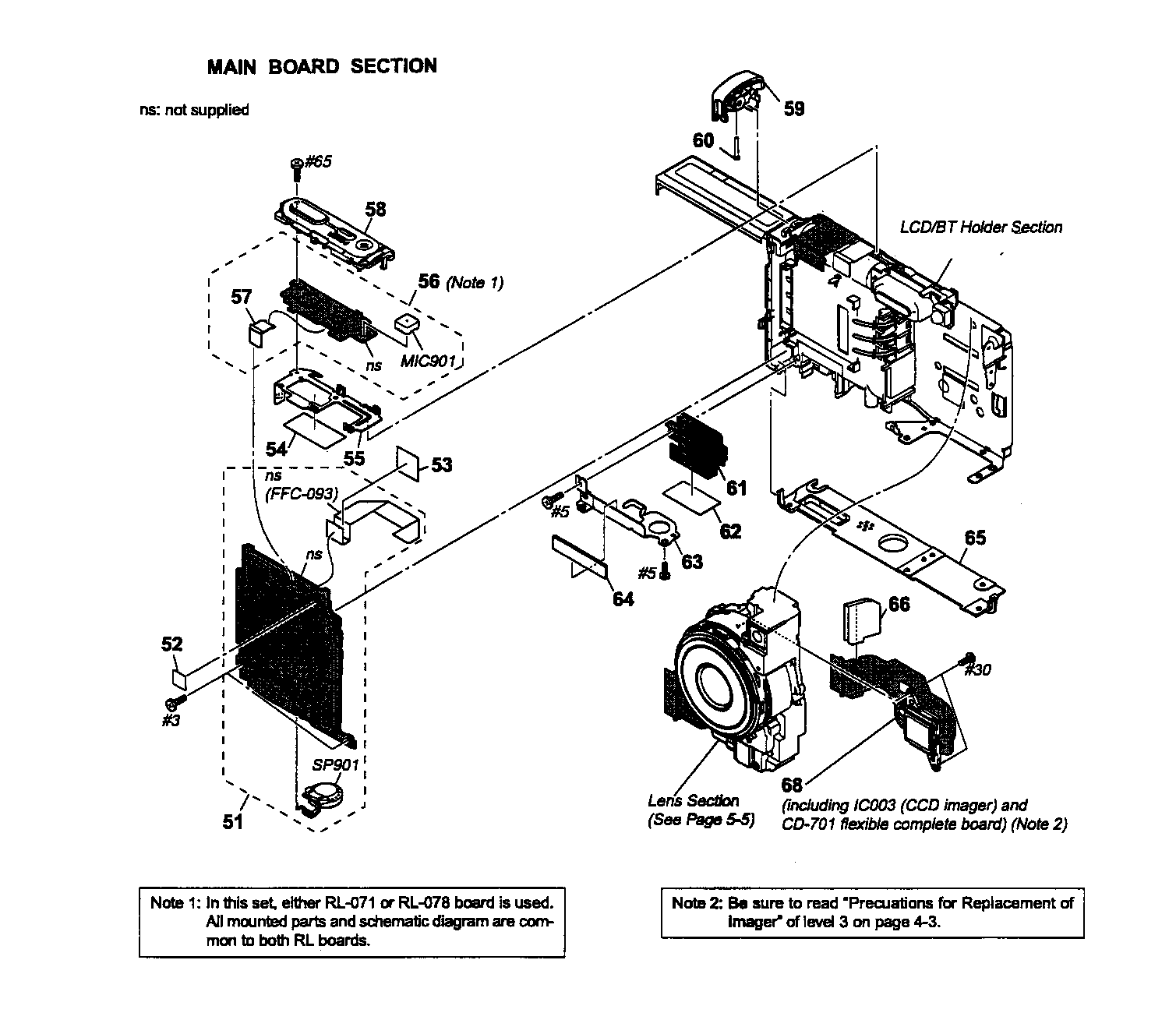

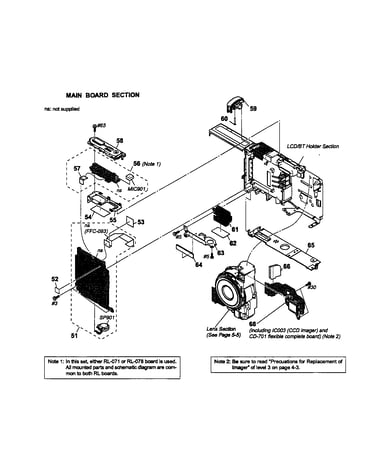

Main board assy diagram

Sony sy-173 pcb

Part #A1253161A

In Stock
Gear Block 147986411
#M901

Lens assy diagram

Gear block

Part #147986411

In Stock
Sony Camcorder Block A1253768A
#68

Main board assy diagram

Sony camcorder block

Part #A1253768A

In Stock

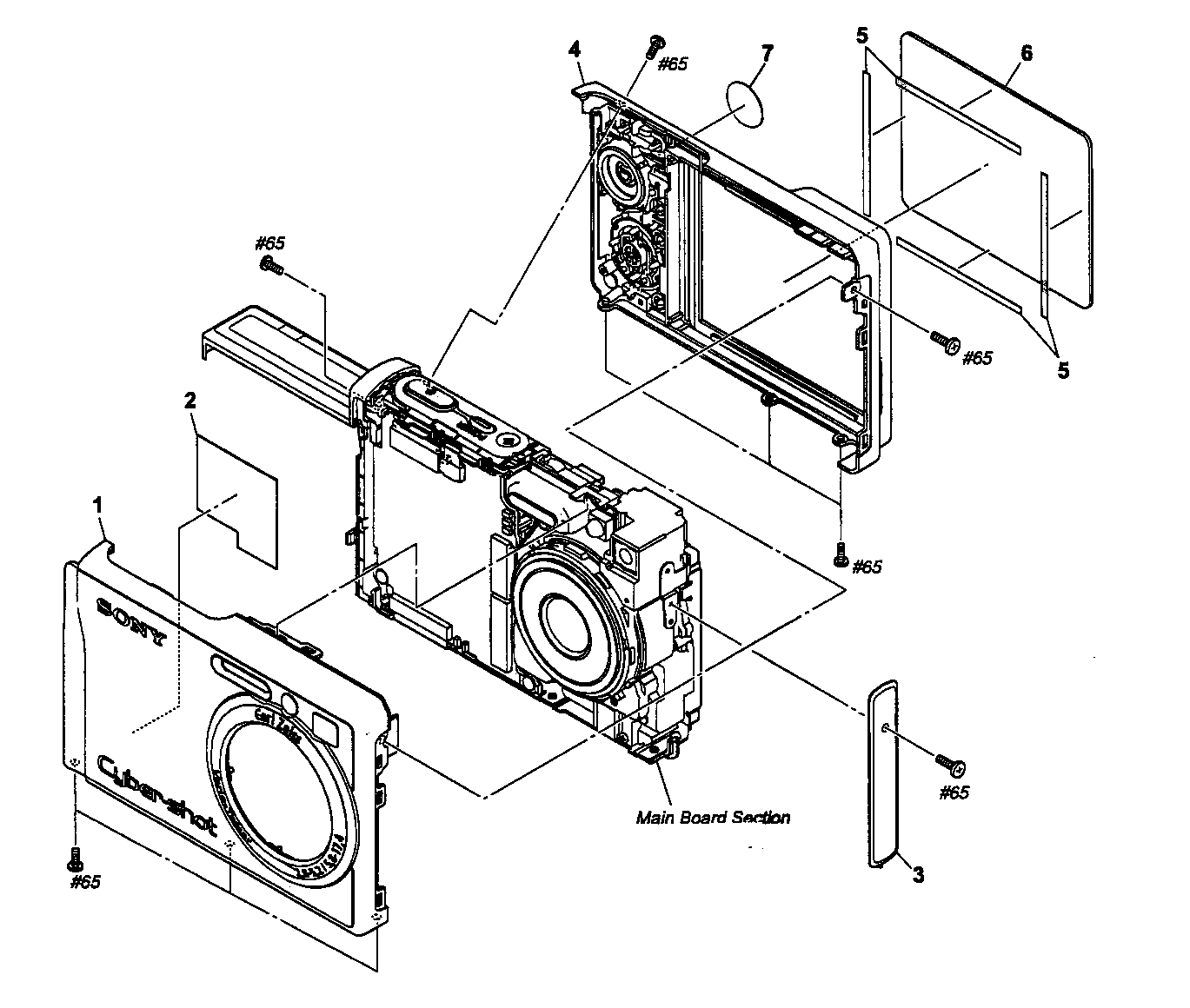

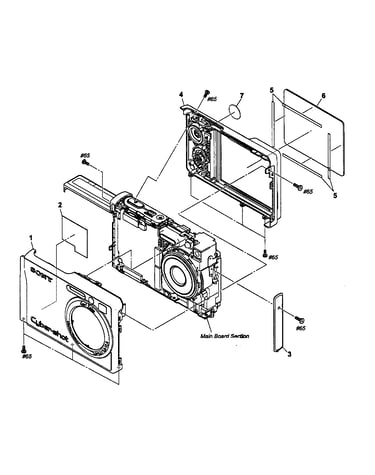

Sony Cabinet Assembly X21770641
#4C

Cabinet part diagram

Sony cabinet assembly

Part #X21770641

In Stock
Tape 269189001
#153

Lens assy diagram

Tape

Part #269189001

In Stock
Plate Mode 309962501
#7

Cabinet part diagram

Plate mode

Part #309962501

In Stock
Sony Cabinet Assembly X21770511
#1A

Cabinet part diagram

Sony cabinet assembly

Part #X21770511

In Stock
Mc-176 Pcb A1246051A
#61

Main board assy diagram

Mc-176 pcb

Part #A1246051A

In Stock
Sony Cabinet Assembly X21770501
#1

Cabinet part diagram

Sony cabinet assembly

Part #X21770501

In Stock
