Onan
Lawn & Garden Engine

Model # B48G-GA018/3560A Official Onan engine

Here are the diagrams and repair parts for Official Onan B48G-GA018-3560A engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

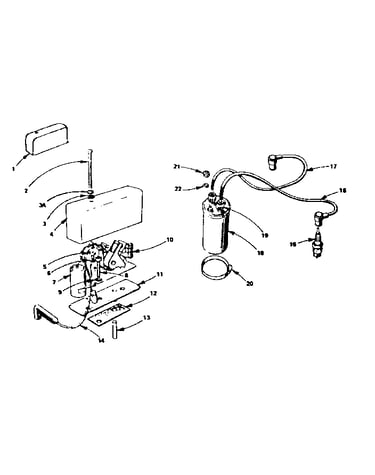

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Pre-clner 140-1259
#20

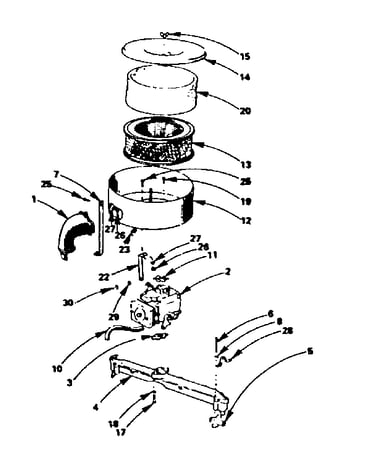

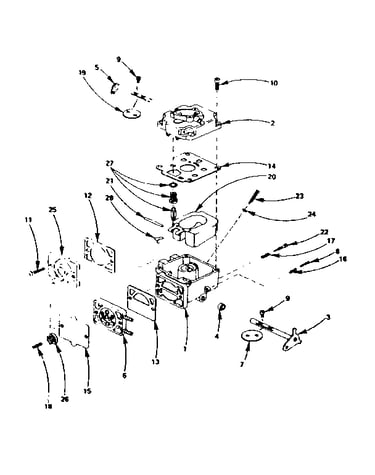

Fuel system group diagram

Pre-clner

Part #140-1259

Replaced by #45-083-01-S

?
Manufacturer substitution
This part replaces 140-1259. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Flat Washer 526-0214
#3

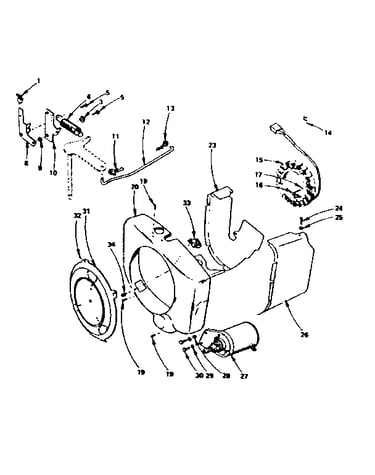

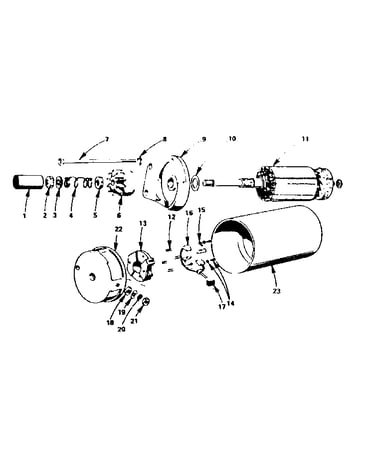

Governor, starter, charging alternator & blower housing grp diagram

Flat washer

Part #526-0214

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 526-0018
#5

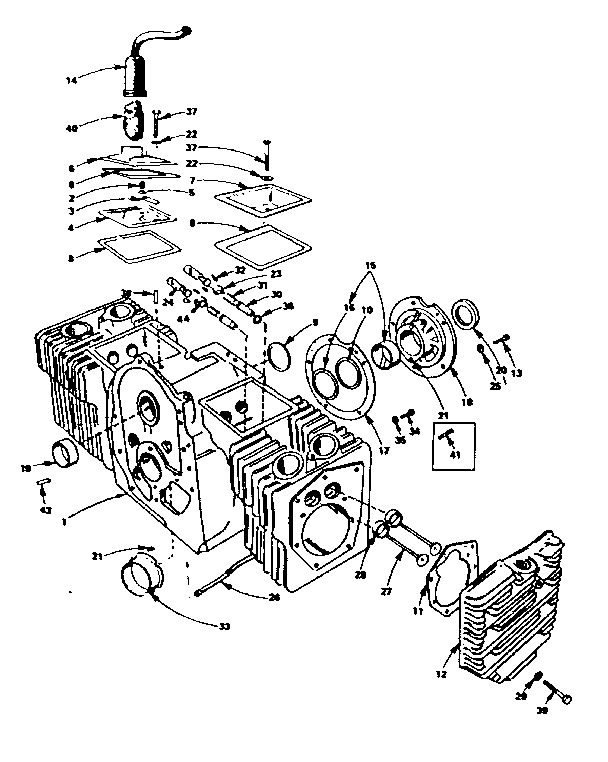

Cylinder block group diagram

Flat washer

Part #526-0018

The manufacturer no longer makes this part, and there's no substitute part

Scr Lk Flywh 821-0010
#34

Governor, starter, charging alternator & blower housing grp diagram

Scr lk flywh

Part #821-0010

The manufacturer no longer makes this part, and there's no substitute part

Screw 815-0261
#19

Governor, starter, charging alternator & blower housing grp diagram

Screw

Part #815-0261

The manufacturer no longer makes this part, and there's no substitute part

Screw 800-0545
#38A

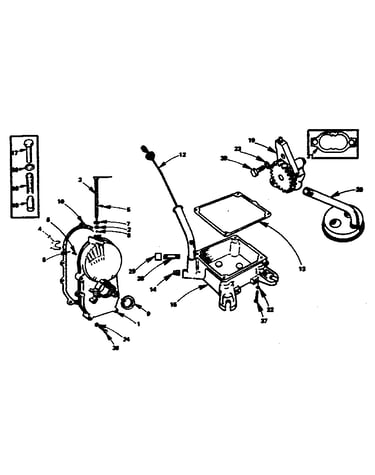

Gear cover, oil base and oil pump group diagram

Screw

Part #800-0545

The manufacturer no longer makes this part, and there's no substitute part

Breathr Tube 123-1277
#14

Cylinder block group diagram

Breathr tube

Part #123-1277

The manufacturer no longer makes this part, and there's no substitute part

Spacer 150-1257
#29

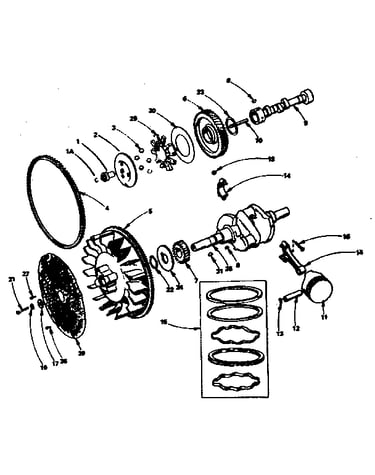

Crankshaft, flywheel, camshaft and piston group diagram

Spacer

Part #150-1257

The manufacturer no longer makes this part, and there's no substitute part

Nut 870-0302
#18

Crankshaft, flywheel, camshaft and piston group diagram

Nut

Part #870-0302

The manufacturer no longer makes this part, and there's no substitute part

Arm 150-1576
#10

Governor, starter, charging alternator & blower housing grp diagram

Arm

Part #150-1576

The manufacturer no longer makes this part, and there's no substitute part
