Model # U5063930 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5063930 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Vacuum Spring 34572002
#17

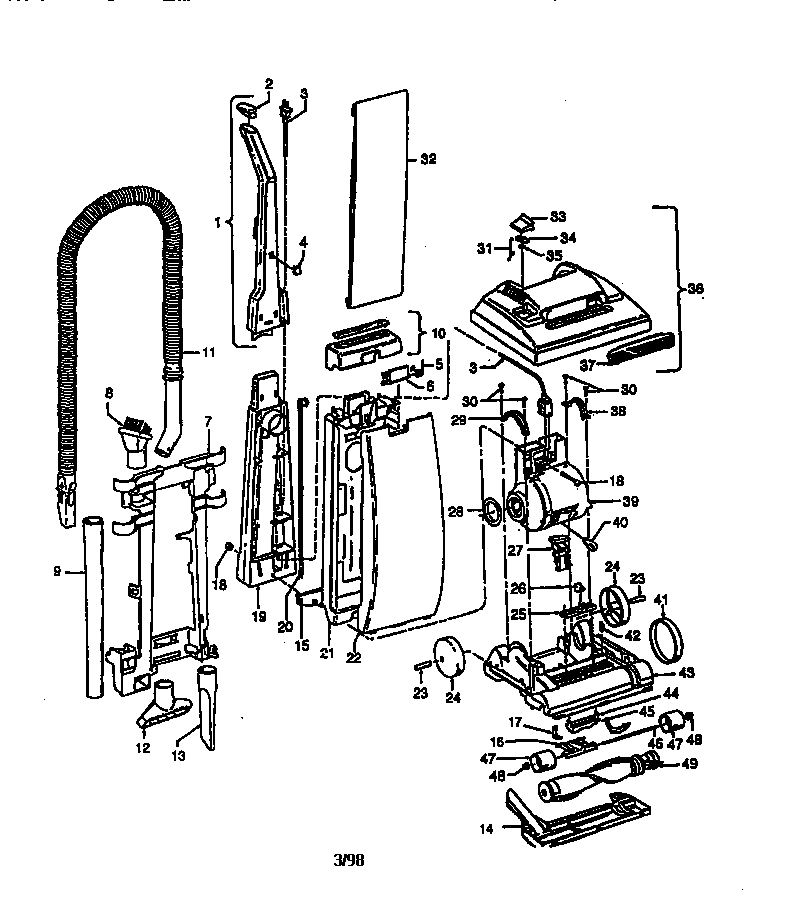

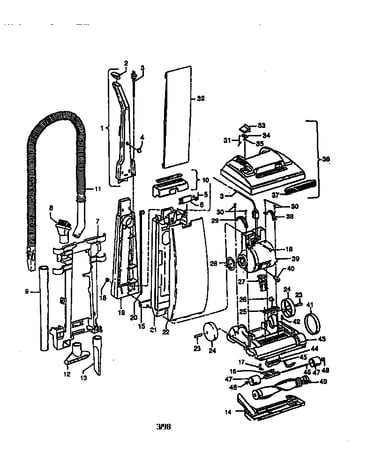

Convertible/ spirit diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Speed Nut 21362006
#35

Convertible/ spirit diagram

Kenmore speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Spring 38355008
#5

Convertible/ spirit diagram

Kenmore spring

Part #38355008

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#32

Convertible/ spirit diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313101
#40

Convertible/ spirit diagram

Vacuum light bulb

Part #27313101

The manufacturer no longer makes this part, and there's no substitute part

Plug 37911061
#4

Convertible/ spirit diagram

Plug

Part #37911061

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#30

Convertible/ spirit diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#28

Convertible/ spirit diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#24

Convertible/ spirit diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Bag Housing Cap 37959100
#10

Convertible/ spirit diagram

Bag housing cap

Part #37959100

The manufacturer no longer makes this part, and there's no substitute part
