Model # 3545 Official Bissell powerglide upright vacuum

Here are the diagrams and repair parts for Official Bissell 3545 powerglide upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Vacuum Exhaust Filter 2031009
#17

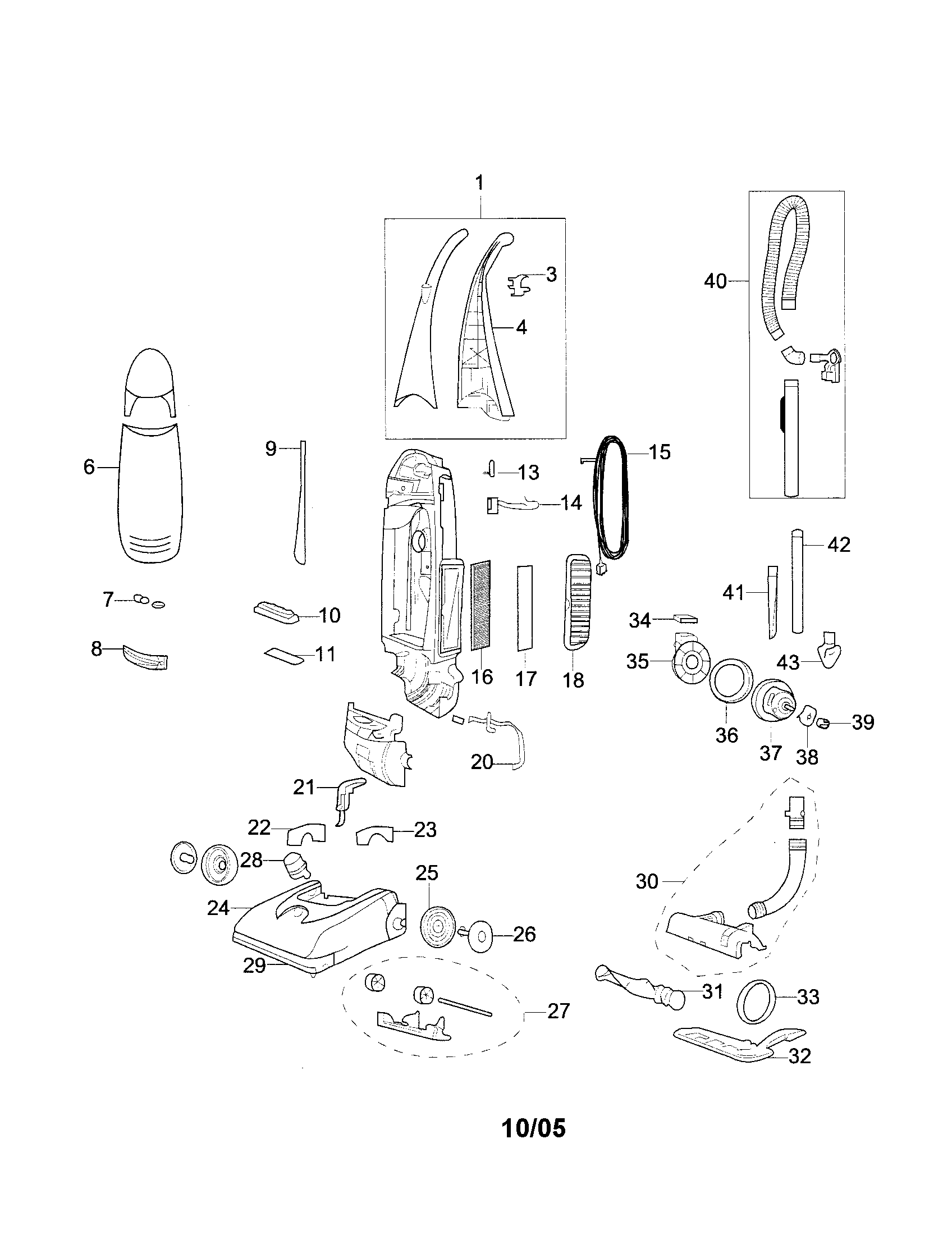

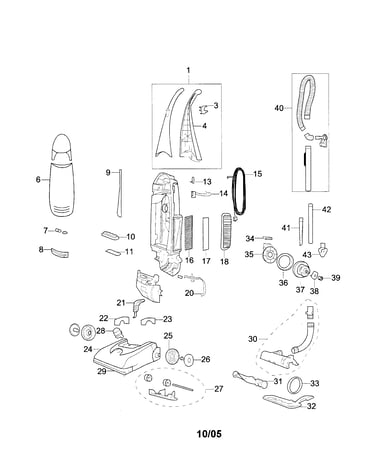

Powerglide vac diagram

Vacuum exhaust filter

Part #2031009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Screw 2031003

#(NI)

All parts diagram

Vacuum handle screw

Part #2031003

The manufacturer no longer makes this part, and there's no substitute part

Bissell Handle 2031002
#1B

Powerglide vac diagram

Bissell handle

Part #2031002

The manufacturer no longer makes this part, and there's no substitute part

Case Drum 2031046
#30

Powerglide vac diagram

Case drum

Part #2031046

The manufacturer no longer makes this part, and there's no substitute part

Power Rocker 2031035
#14

Powerglide vac diagram

Power rocker

Part #2031035

The manufacturer no longer makes this part, and there's no substitute part

Grille 2031014
#10

Powerglide vac diagram

Grille

Part #2031014

The manufacturer no longer makes this part, and there's no substitute part

Wand 2031022
#42

Powerglide vac diagram

Wand

Part #2031022

The manufacturer no longer makes this part, and there's no substitute part

Belt 2031093
#33

Powerglide vac diagram

Belt

Part #2031093

The manufacturer no longer makes this part, and there's no substitute part

Roller Assembly 2031080
#27

Powerglide vac diagram

Roller assembly

Part #2031080

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 2031019
#40

Powerglide vac diagram

Vacuum hose

Part #2031019

The manufacturer no longer makes this part, and there's no substitute part
