Model # 315116920 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116920 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

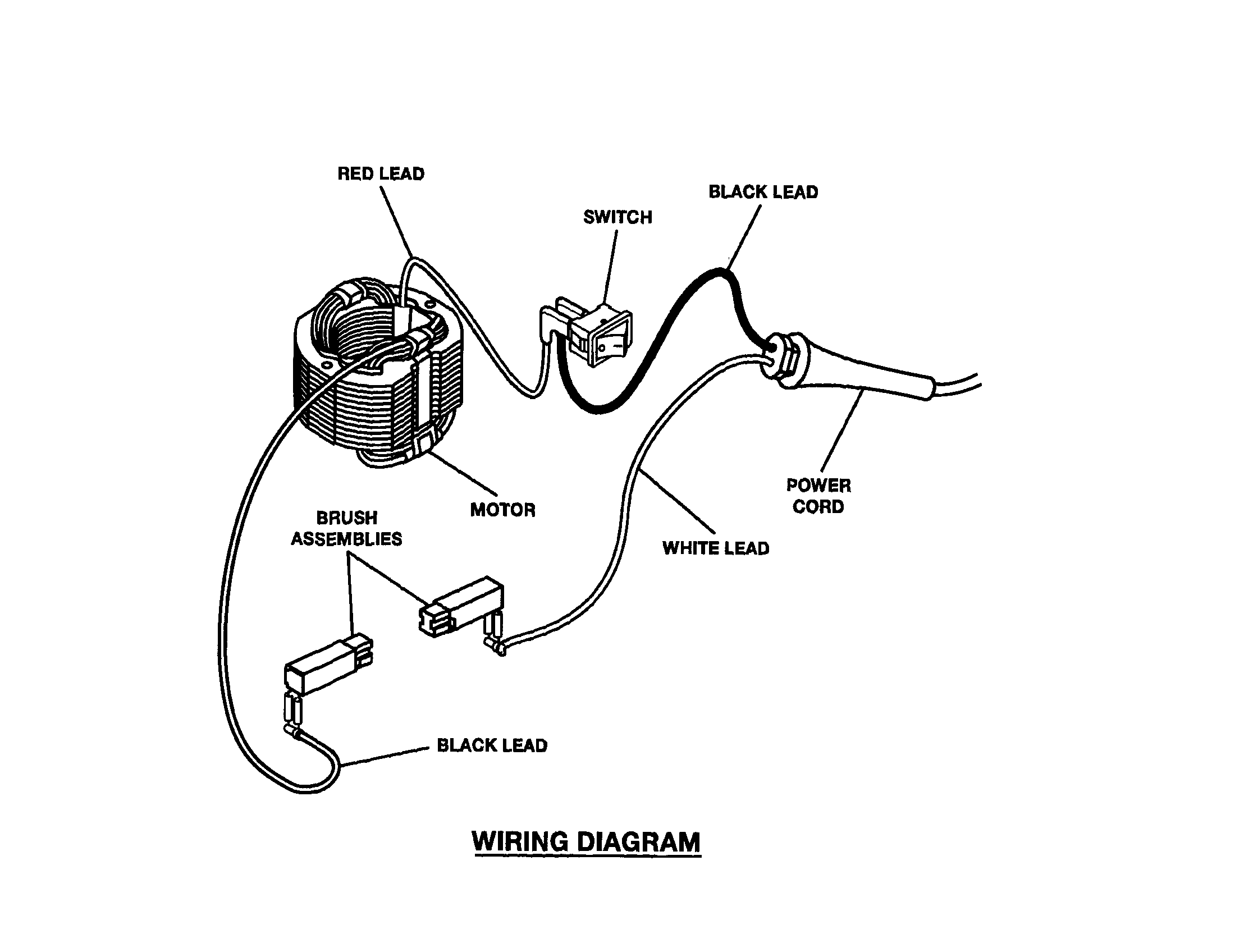

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#11

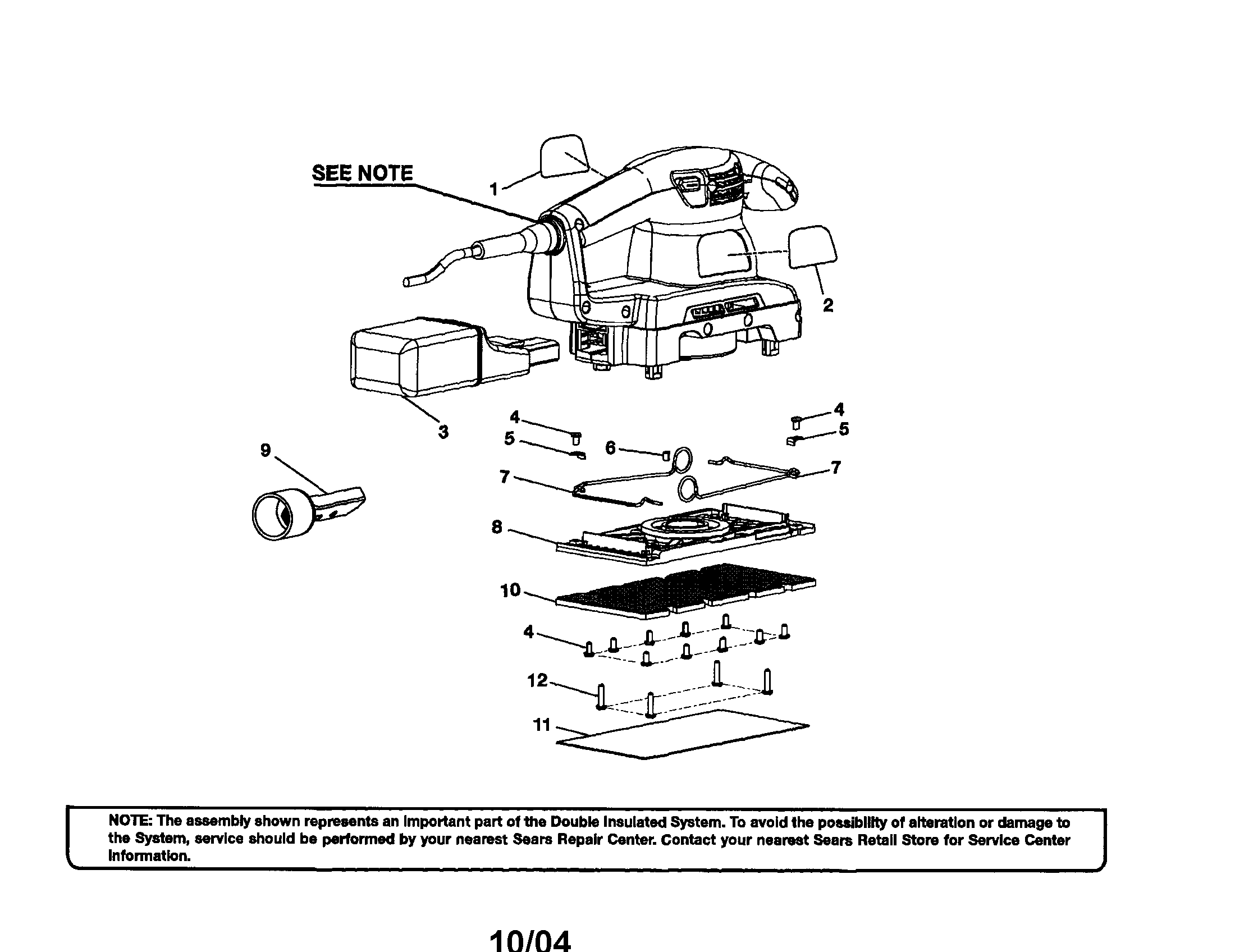

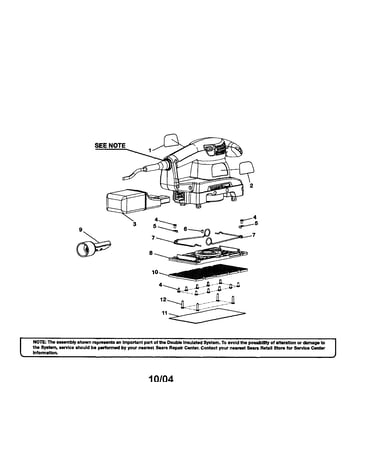

Dust bag/pad assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Sander Screw 030155001003
#4

Dust bag/pad assembly diagram

Sander screw

Part #030155001003

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag 030156001022
#3A

Dust bag/pad assembly diagram

Dust bag

Part #030156001022

The manufacturer no longer makes this part, and there's no substitute part

Armature 030156001010
#3

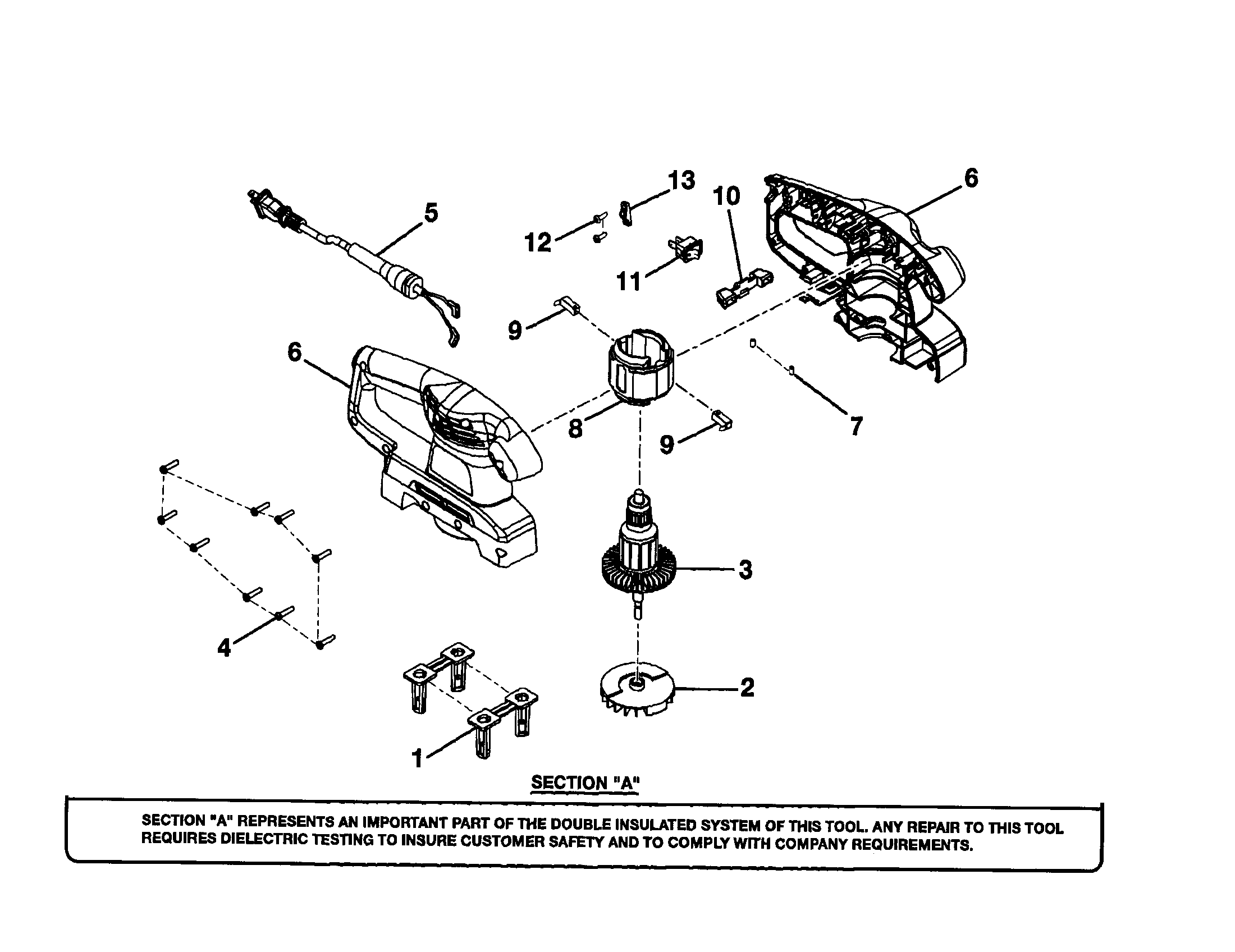

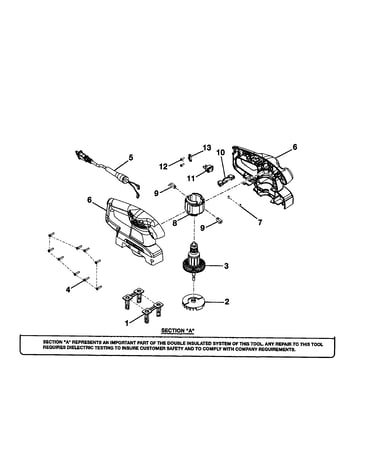

Fan/housing/armature diagram

Armature

Part #030156001010

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000-494R

#NI02

All parts diagram

Repair sheet

Part #983000-494R

The manufacturer no longer makes this part, and there's no substitute part

Screw 030155001024
#12

Fan/housing/armature diagram

Screw

Part #030155001024

The manufacturer no longer makes this part, and there's no substitute part

Sander Dust Bag 030156001018
#3

Dust bag/pad assembly diagram

Sander dust bag

Part #030156001018

The manufacturer no longer makes this part, and there's no substitute part

Platen 030156001004
#8

Dust bag/pad assembly diagram

Platen

Part #030156001004

The manufacturer no longer makes this part, and there's no substitute part

Fan Assembly 030156001009
#2

Fan/housing/armature diagram

Fan assembly

Part #030156001009

The manufacturer no longer makes this part, and there's no substitute part

Sander Base Plate Spring Clamp 030156001005
#7

Dust bag/pad assembly diagram

Sander base plate spring clamp

Part #030156001005

The manufacturer no longer makes this part, and there's no substitute part
