Haier
Top-Mount Refrigerator

Model # HA10TG31SB Official Haier refrigerator

Here are the diagrams and repair parts for Official Haier HA10TG31SB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Screw St3.5 X 9.5 WR01X27789
#39

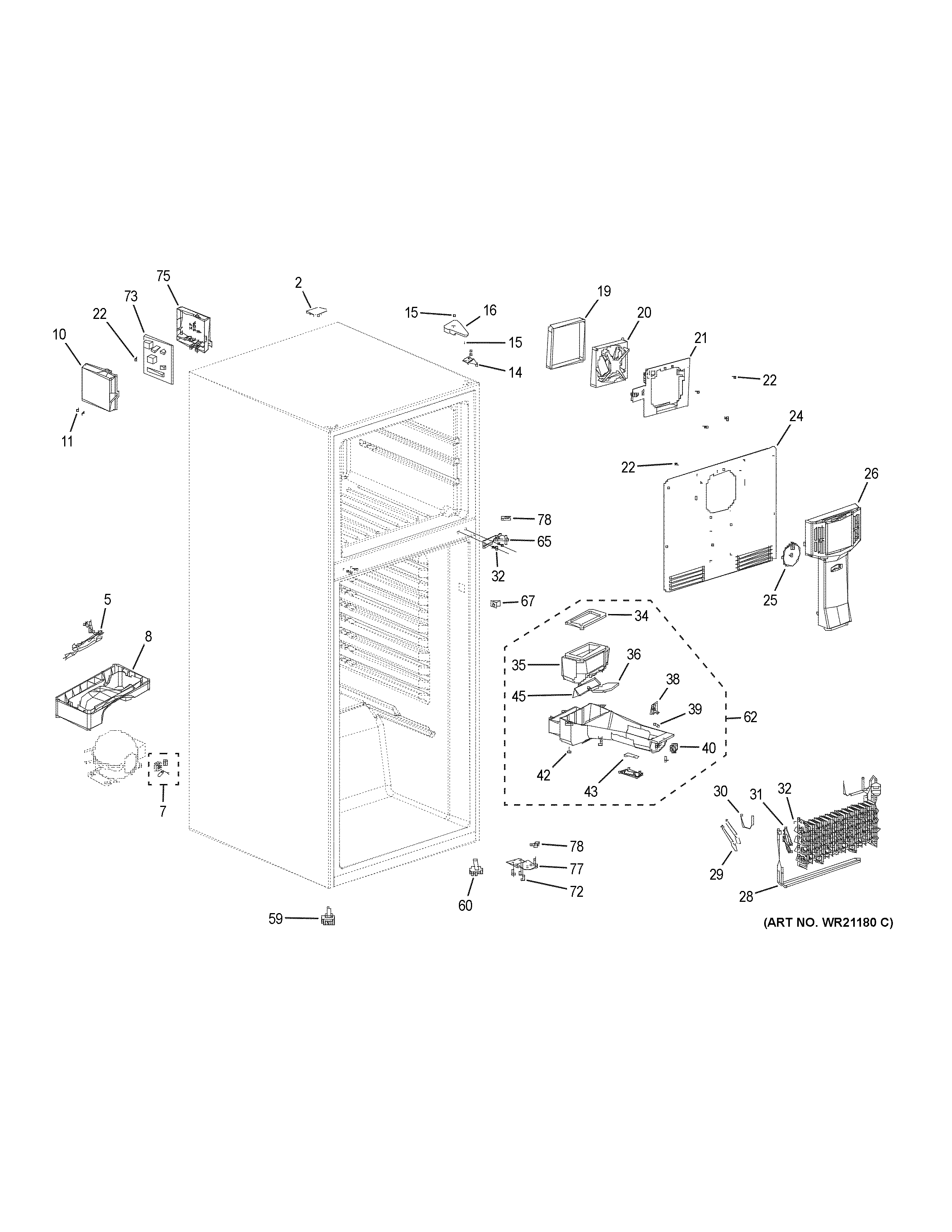

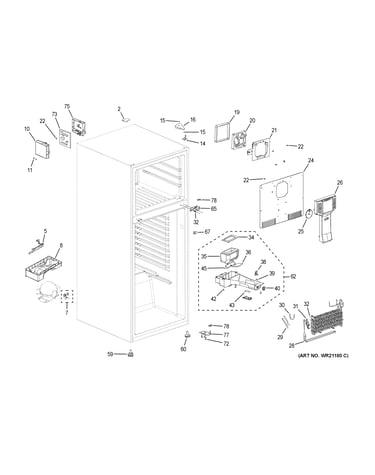

Cabinet diagram

Screw st3.5 x 9.5

Part #WR01X27789

$8.11
In Stock
Door Gasket WR14X27769
#48

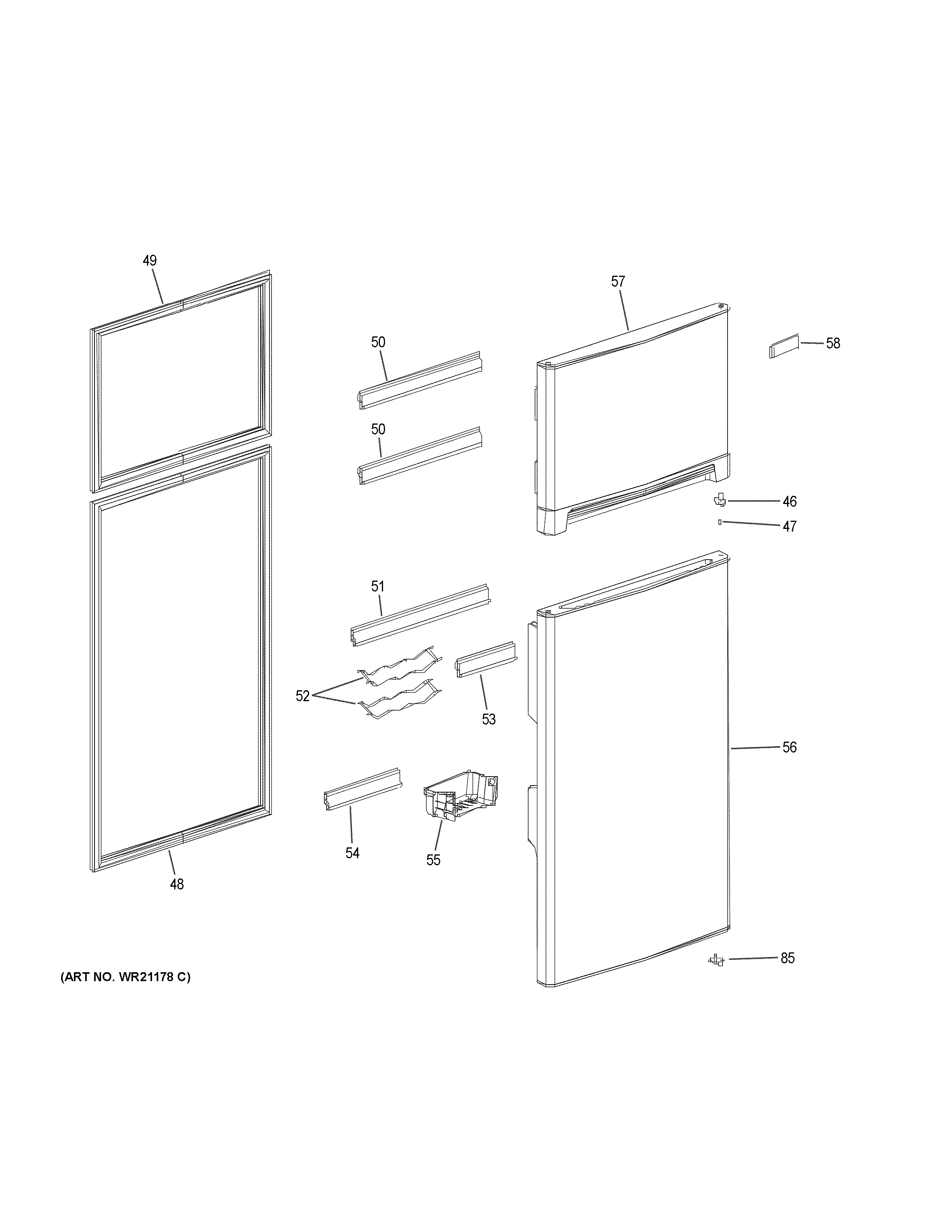

Doors diagram

Door gasket

Part #WR14X27769

$57.39 |
9% OFF Phone Price : $63.39
In Stock
Refrigerator Sensor WR09X27791
#30

Cabinet diagram

Refrigerator sensor

Part #WR09X27791

$17.52 |
10% OFF Phone Price : $19.52
In Stock
Refrigerator Compressor Overload And Start Relay Kit WR87X27758
#7

Cabinet diagram

Refrigerator compressor overload and start relay kit

Part #WR87X27758

Replaced by #WR49X30819

?
Manufacturer substitution
This part replaces WR87X27758. Substitute parts can look different from the original.
$123.81 |
9% OFF Phone Price : $135.81
In Stock
Temperature Sensor WR09X27792
#36

Cabinet diagram

Temperature sensor

Part #WR09X27792

$8.11
In Stock
Hinge Top & WR13X27778
#14

Cabinet diagram

Hinge top &

Part #WR13X27778

$20.11
In Stock
Refrigerator Shelf End Cap WR71X27793
#61

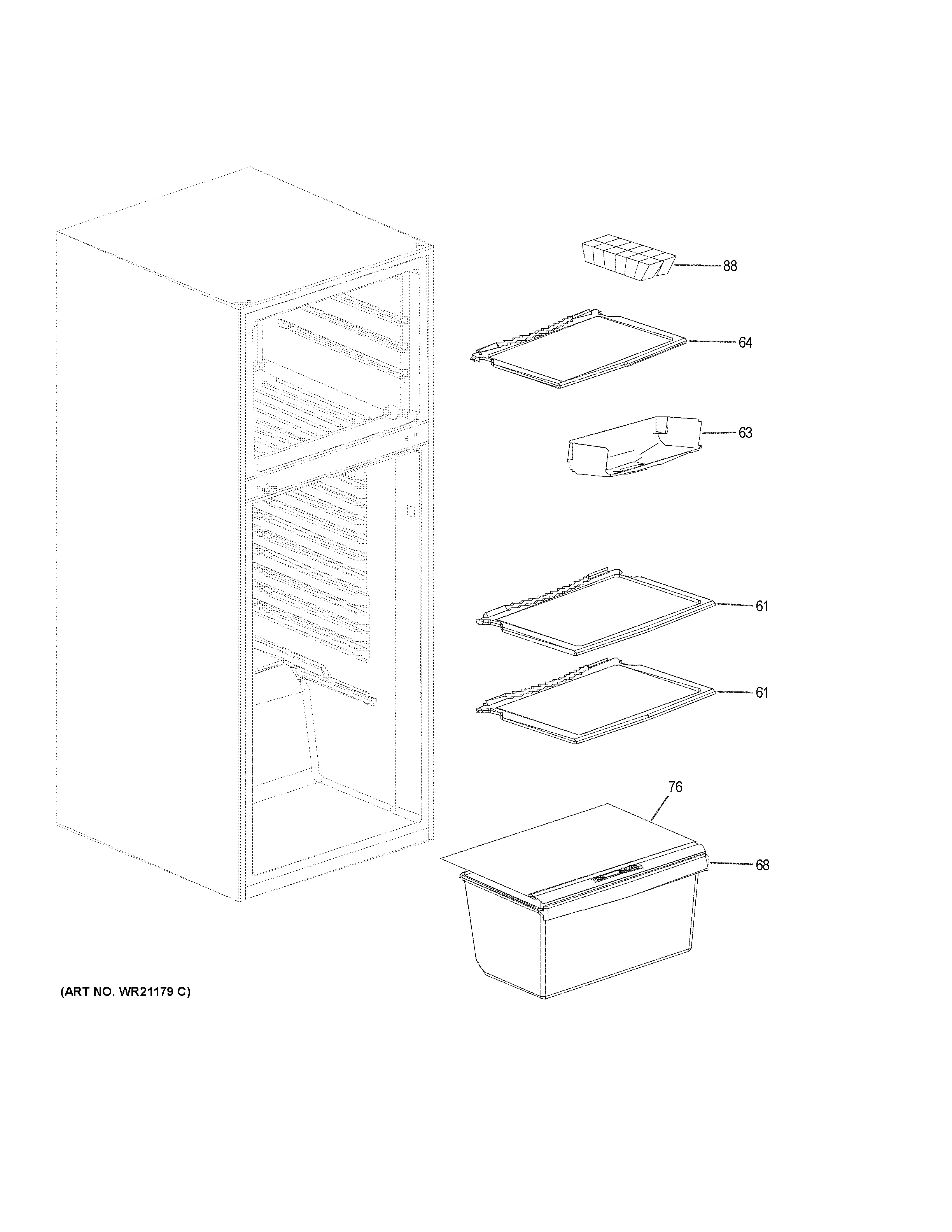

Shelves & drawers diagram

Refrigerator shelf end cap

Part #WR71X27793

$37.11
In Stock
Baffle Air T WR01X27750
#25

Cabinet diagram

Baffle air t

Part #WR01X27750

This item is not returnable
$4.35
In Stock
Fixed Shelf WR71X27796
#53

Doors diagram

Fixed shelf

Part #WR71X27796

$23.40
In Stock
Badge Haier WR02X27749
#58

Doors diagram

Badge haier

Part #WR02X27749

$17.69 |
10% OFF Phone Price : $19.69
In Stock
