Admiral
Gas Cooktop

Model # A8261RV Official Admiral gas counter unit cooktop

Here are the diagrams and repair parts for Official Admiral A8261RV gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Screw 7118P018-60
#12A

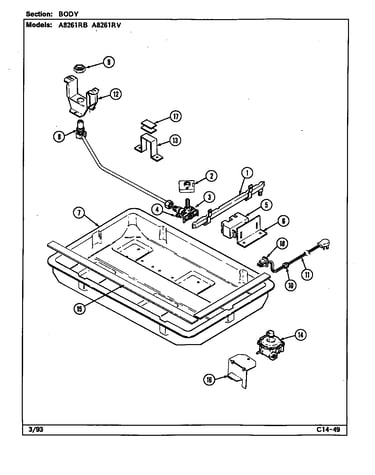

Body diagram

Screw

Part #7118P018-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7118P018-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Spark Module 7431P023-60
#5

Body diagram

Spark module

Part #7431P023-60

Replaced by #12001596

?
Manufacturer substitution
This part replaces 7431P023-60. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
Grounding Screw 7101P027-60
#10A

Body diagram

Grounding screw

Part #7101P027-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P027-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Burner Switch 7403P190-60
#2

Body diagram

Burner switch

Part #7403P190-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P190-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Screw 7101P059-60
#6A

Body diagram

Screw

Part #7101P059-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P059-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Manifold Seal 7208P019-60
#11A

Body diagram

Manifold seal

Part #7208P019-60

Replaced by #WP74001380

?
Manufacturer substitution
This part replaces 7208P019-60. Substitute parts can look different from the original.
$33.58
In Stock
Burner Seal 3412D017-26
#5

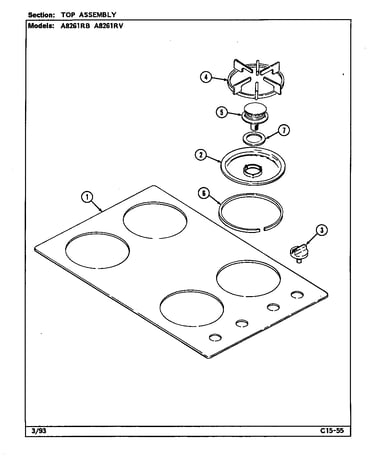

Top assy. diagram

Burner seal

Part #3412D017-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D017-26. Substitute parts can look different from the original.
$53.19 |
10% OFF Phone Price : $59.19
In Stock
Burner Seal 3412D018-09
#5A

Top assy. diagram

Burner seal

Part #3412D018-09

Replaced by #WP3412D024-09

?
Manufacturer substitution
This part replaces 3412D018-09. Substitute parts can look different from the original.
$58.10 |
9% OFF Phone Price : $64.10
In Stock
Use And Care Manual 8113P037-60
#7A

Top assy. diagram

Use and care manual

Part #8113P037-60

The manufacturer no longer makes this part, and there's no substitute part

Screw 7101P314-60
#2B

Top assy. diagram

Screw

Part #7101P314-60

The manufacturer no longer makes this part, and there's no substitute part
