Jenn-Air
Cooktop

Model # JEA8120ADB12 Official Jenn-Air radiant element cartridge

Here are the diagrams and repair parts for Official Jenn-Air JEA8120ADB12 radiant element cartridge, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Range Main Top 7920P201-60
#2

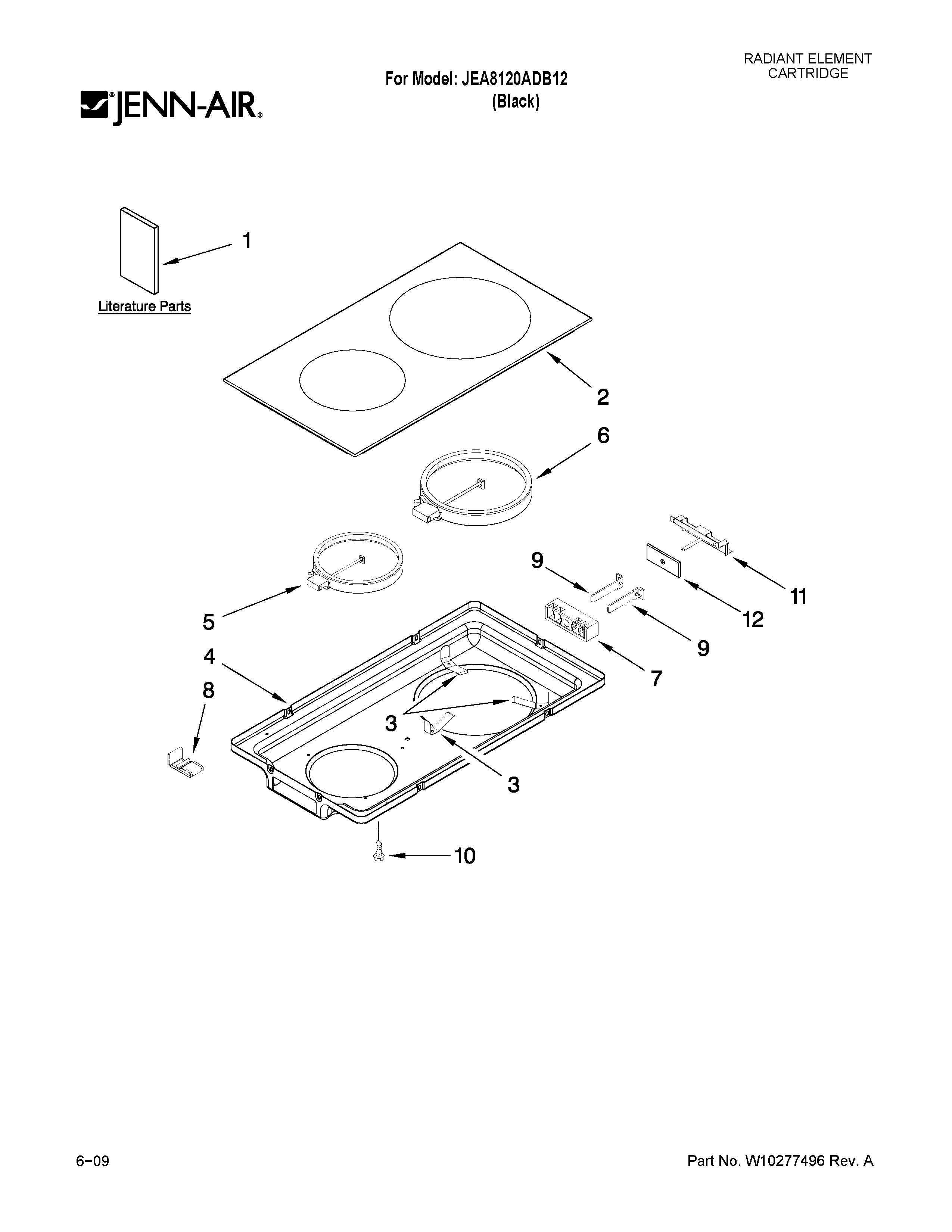

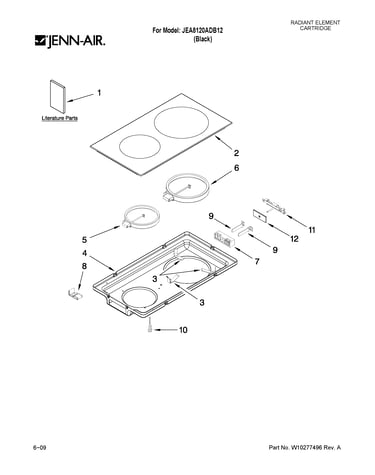

Glass cartridge diagram

Range main top

Part #7920P201-60

Replaced by #WP7920P201-60

?
Manufacturer substitution
This part replaces 7920P201-60. Substitute parts can look different from the original.
$198.66 |
6% OFF Phone Price : $210.66
In Stock
Screw 7101P403-60
#10

Glass cartridge diagram

Screw

Part #7101P403-60

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 7101P403-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Element Support 8004P053-60
#3

Glass cartridge diagram

Element support

Part #8004P053-60

The manufacturer no longer makes this part, and there's no substitute part

Contact, Spade 7405P131-60
#9

Glass cartridge diagram

Contact, spade

Part #7405P131-60

The manufacturer no longer makes this part, and there's no substitute part

Insulator, Contact Spade 7003P078-60
#12

Glass cartridge diagram

Insulator, contact spade

Part #7003P078-60

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support 5700A457-60
#11

Glass cartridge diagram

Bracket support

Part #5700A457-60

The manufacturer no longer makes this part, and there's no substitute part

Element (6") 7406P312-60
#5

Glass cartridge diagram

Element (6")

Part #7406P312-60

The manufacturer no longer makes this part, and there's no substitute part

Clip 7111P025-60
#8

Glass cartridge diagram

Clip

Part #7111P025-60

The manufacturer no longer makes this part, and there's no substitute part

Element (8") 7406P313-60
#6

Glass cartridge diagram

Element (8")

Part #7406P313-60

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Radiant Element Module Base Pan 3401F081-80
#4

Glass cartridge diagram

Cooktop radiant element module base pan

Part #3401F081-80

The manufacturer no longer makes this part, and there's no substitute part
