Model # 505474240 Official Sears 27" boys' 10-speed bicycle

Here are the diagrams and repair parts for Official Sears 505474240 27" boys' 10-speed bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
F Tube 16228
F tube

Part #16228

The manufacturer no longer makes this part, and there's no substitute part

R-deraillevr 14776

#NI

All parts diagram

R-deraillevr

Part #14776

The manufacturer no longer makes this part, and there's no substitute part

Tire 24472
Tire

Part #24472

The manufacturer no longer makes this part, and there's no substitute part

Rim 9854-B3
Rim

Part #9854-B3

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw 6220900
#1

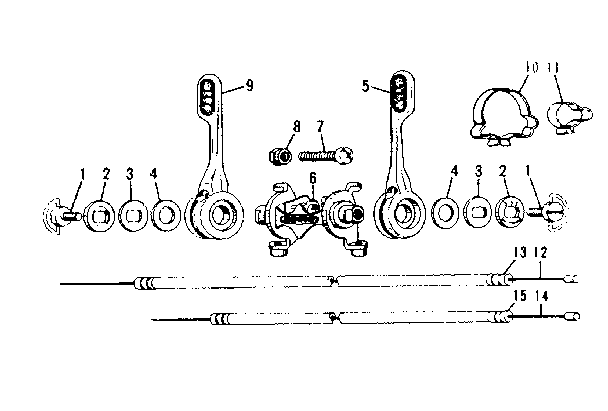

Shimano double lever shift control diagram

Wing screw

Part #6220900

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing RML-3
#2

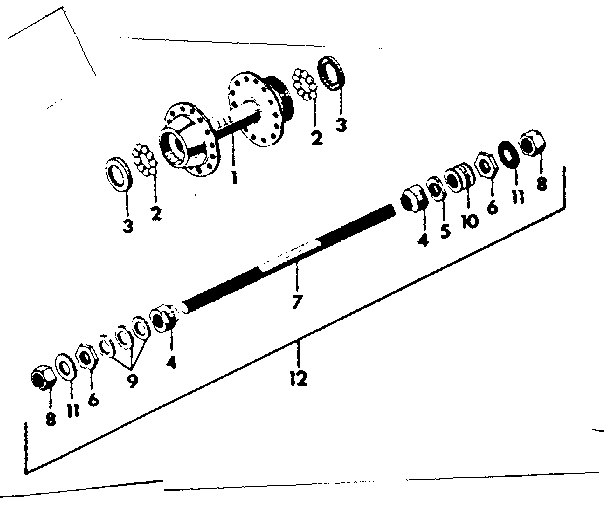

Shimano rear hub diagram

Ball bearing

Part #RML-3

The manufacturer no longer makes this part, and there's no substitute part

Pivot Bolt 27134
#6

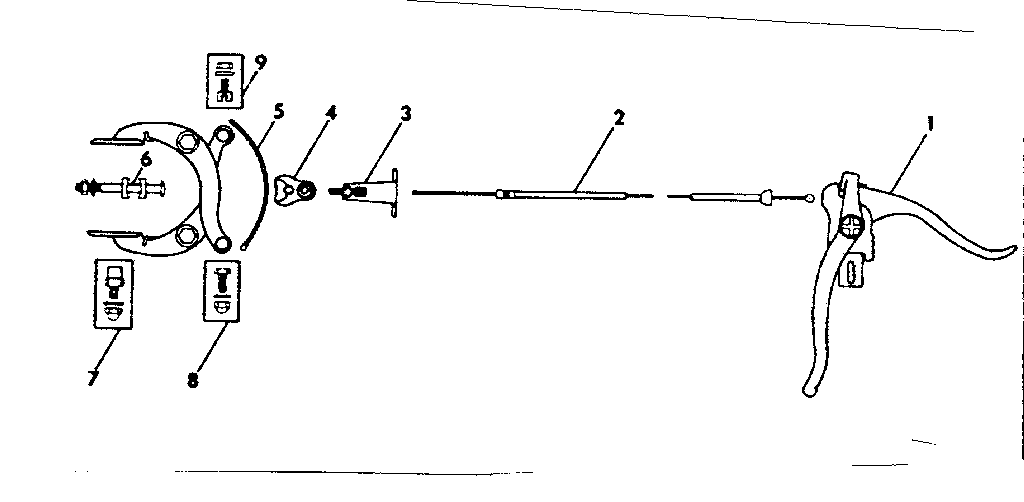

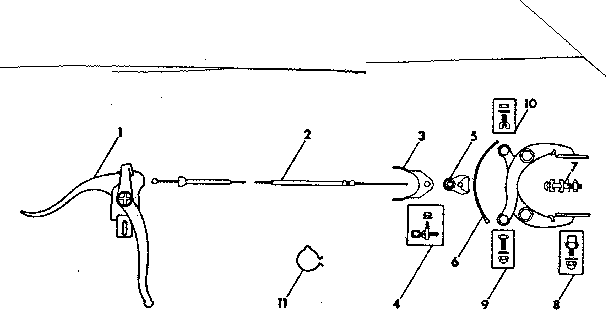

Arai center pull front caliper brake diagram

Pivot bolt

Part #27134

The manufacturer no longer makes this part, and there's no substitute part

Spoke Protr 13206-3
#26

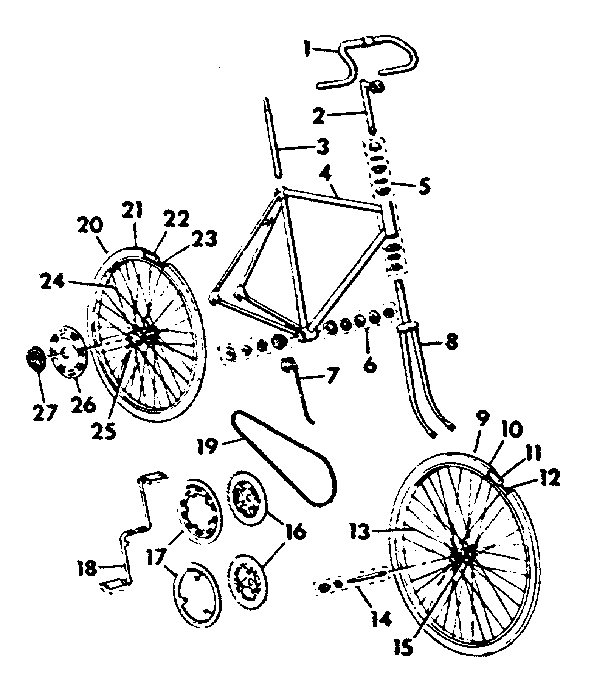

Unit parts diagram

Spoke protr

Part #13206-3

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 8514-BW2
#3

Unit parts diagram

Seat post

Part #8514-BW2

The manufacturer no longer makes this part, and there's no substitute part

Basket N/P
Basket

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
