Washer

Model # S3200Y1WW Official GE washer

Here are the diagrams and repair parts for Official GE S3200Y1WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
S3200Y1WW Washer
Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

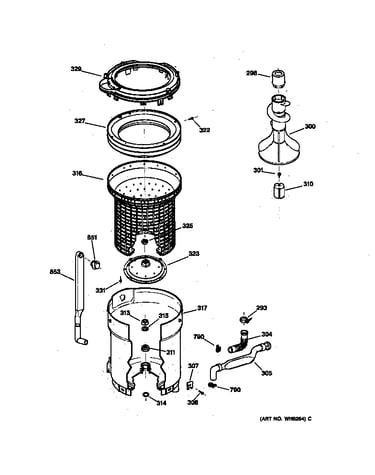

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

3 (2)
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
$11.72 |
15% OFF Phone Price : $13.72
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
$7.64 |
12% OFF Phone Price : $8.64
In Stock
Agitator A WH43X142
#300

Tub, basket & agitator diagram

Agitator a

Part #WH43X142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X142. Substitute parts can look different from the original.
4.35 (23)
BEST SELLER
$55.29 |
10% OFF Phone Price : $61.29
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$191.76 |
6% OFF Phone Price : $203.76
In Stock
Washer Suspension Rod (replaces Wh16x0544) WH16X544
#414

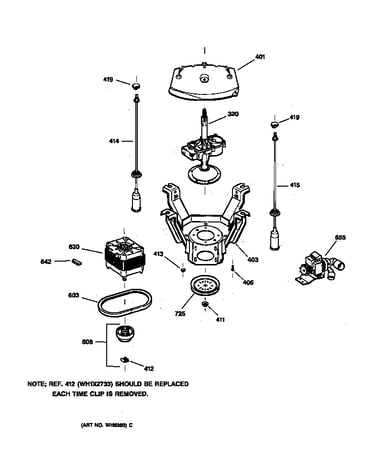

Suspension, pump & drive components diagram

Washer suspension rod (replaces wh16x0544)

Part #WH16X544

BEST SELLER
$41.29 |
13% OFF Phone Price : $47.29
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

Suspension, pump & drive components diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

5 (2)
BEST SELLER
$11.12 |
15% OFF Phone Price : $13.12
In Stock
Washer Suspension Rod Kit (replaces Wh16x0543) WH16X543
#415

Suspension, pump & drive components diagram

Washer suspension rod kit (replaces wh16x0543)

Part #WH16X543

1 (1)
$33.37 |
15% OFF Phone Price : $39.37
In Stock
Water Valve WH13X10004
#805

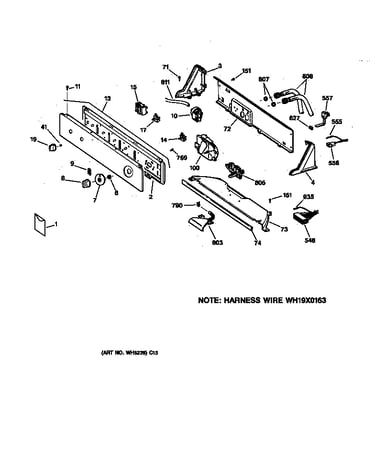

Controls & backsplash diagram

Water valve

Part #WH13X10004

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X10004. Substitute parts can look different from the original.
5 (2)
$108.13 |
10% OFF Phone Price : $120.13
In Stock
Knob WH1X10060
#19

Controls & backsplash diagram

Knob

Part #WH1X10060

Replaced by #WH01X10060

?
Manufacturer substitution
This part replaces WH1X10060. Substitute parts can look different from the original.
This item is not returnable
$22.99 |
21% OFF Phone Price : $28.99
In Stock
