GE
Electric Wall Oven

Model # JTP18WA4WW Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP18WA4WW electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

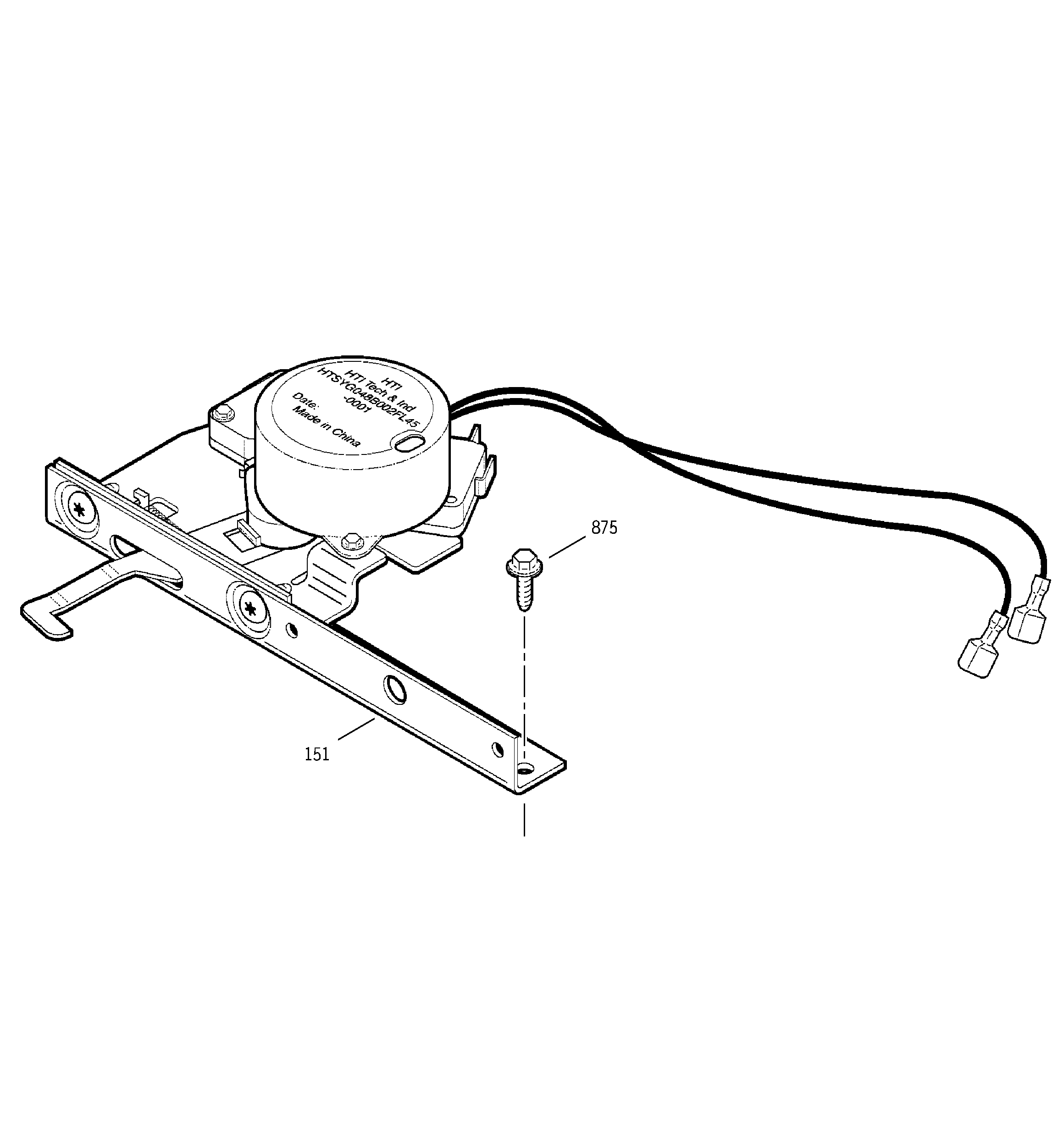

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Range Bake Element (replaces Wb44t10055) WB44T10021
#251

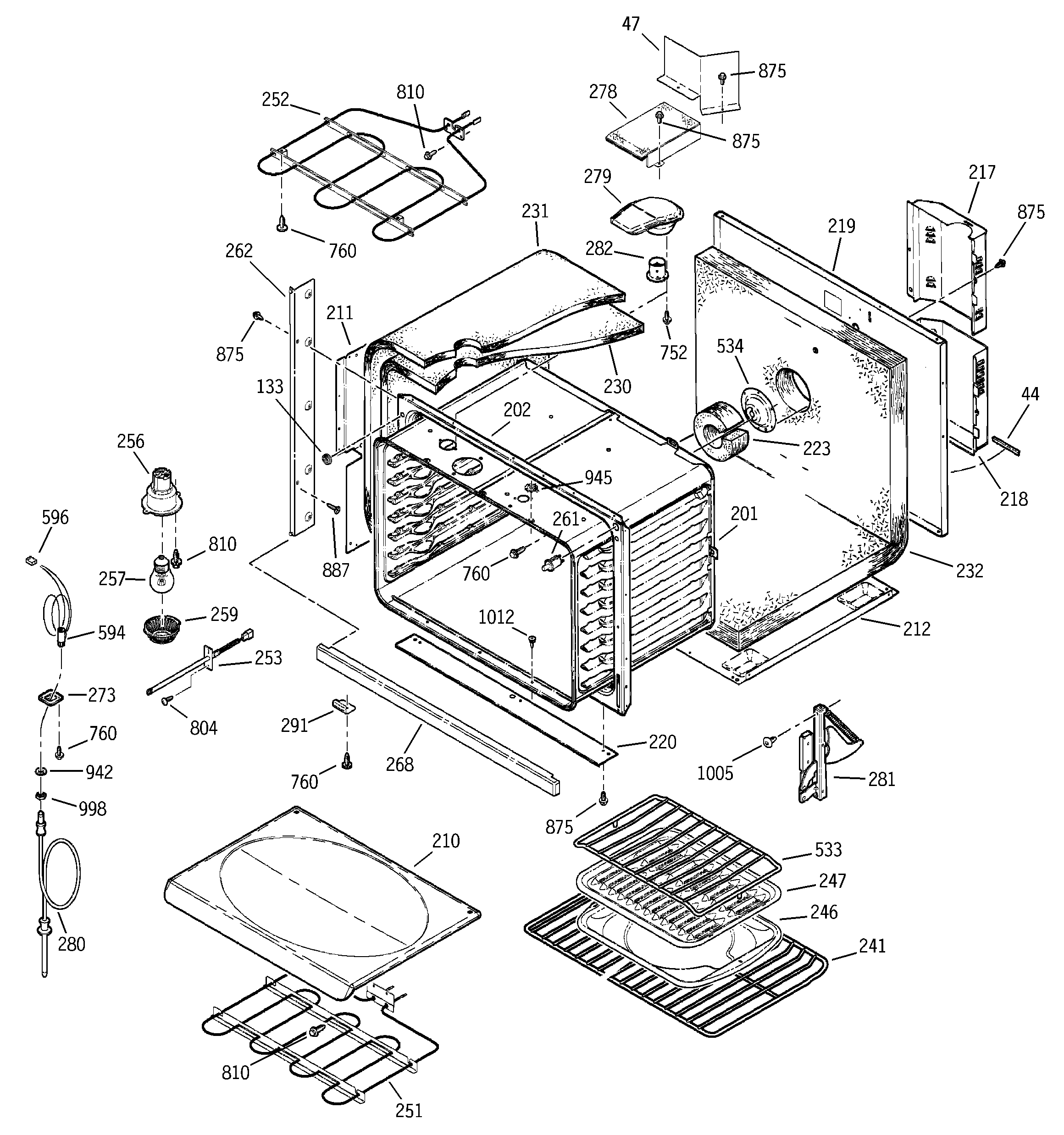

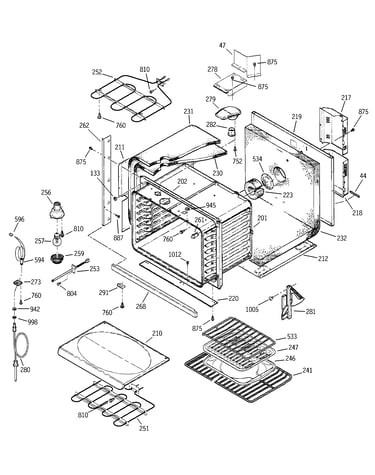

Body parts diagram

Range bake element (replaces wb44t10055)

Part #WB44T10021

BEST SELLER
$48.21 |
11% OFF Phone Price : $54.21
In Stock
Oven Lamp Holder WB08T10002
#256

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#158

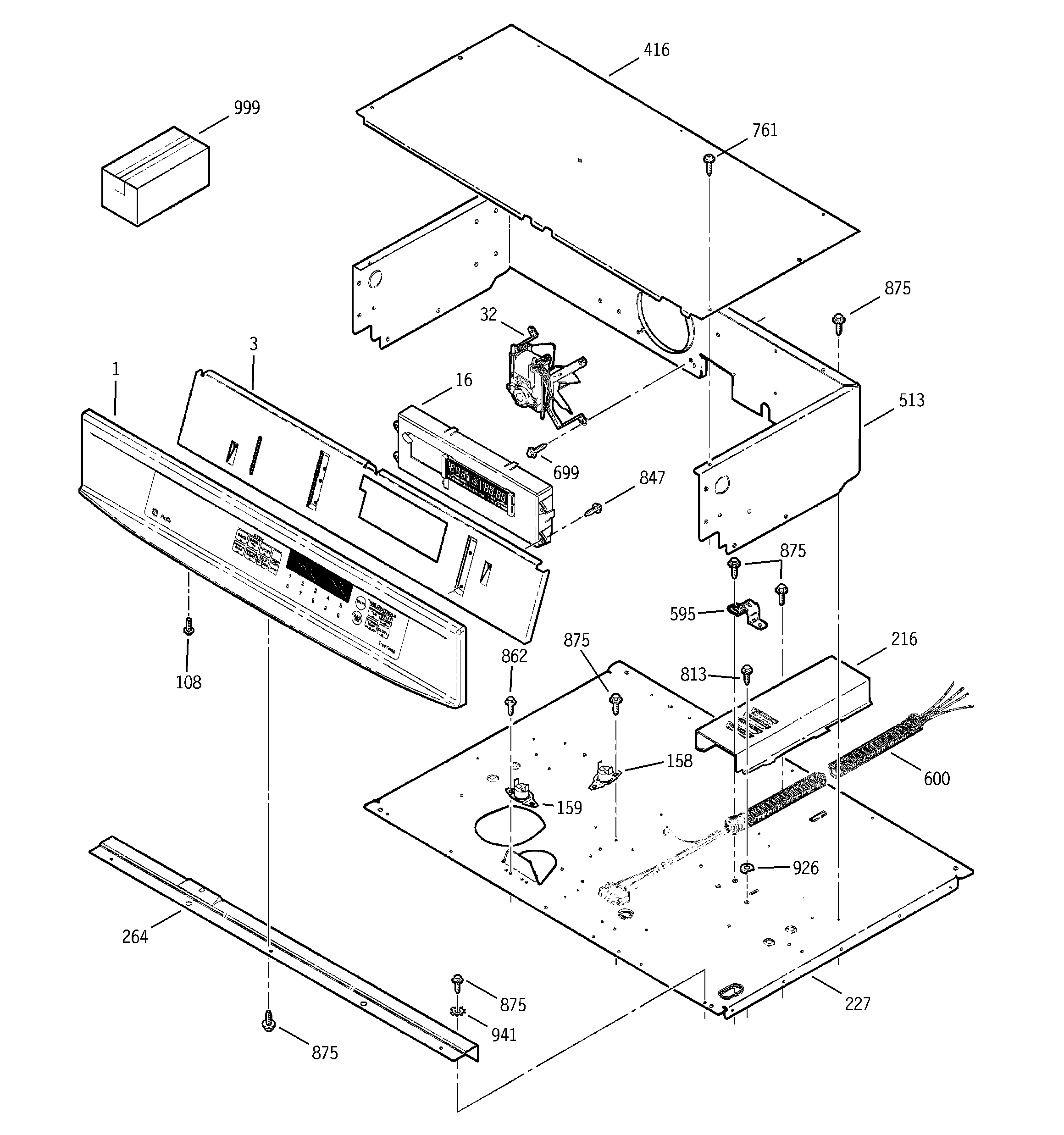

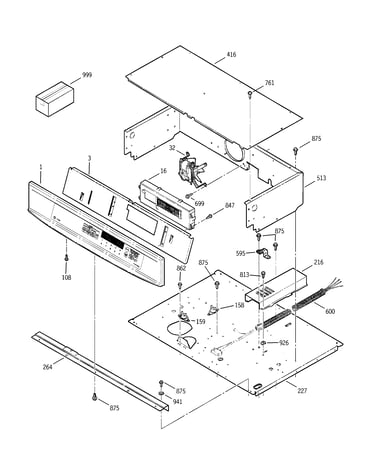

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Ov Lt Dr Sw WB24K5031
#261

Body parts diagram

Ov lt dr sw

Part #WB24K5031

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24K5031. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Screw WB01X1293
#856

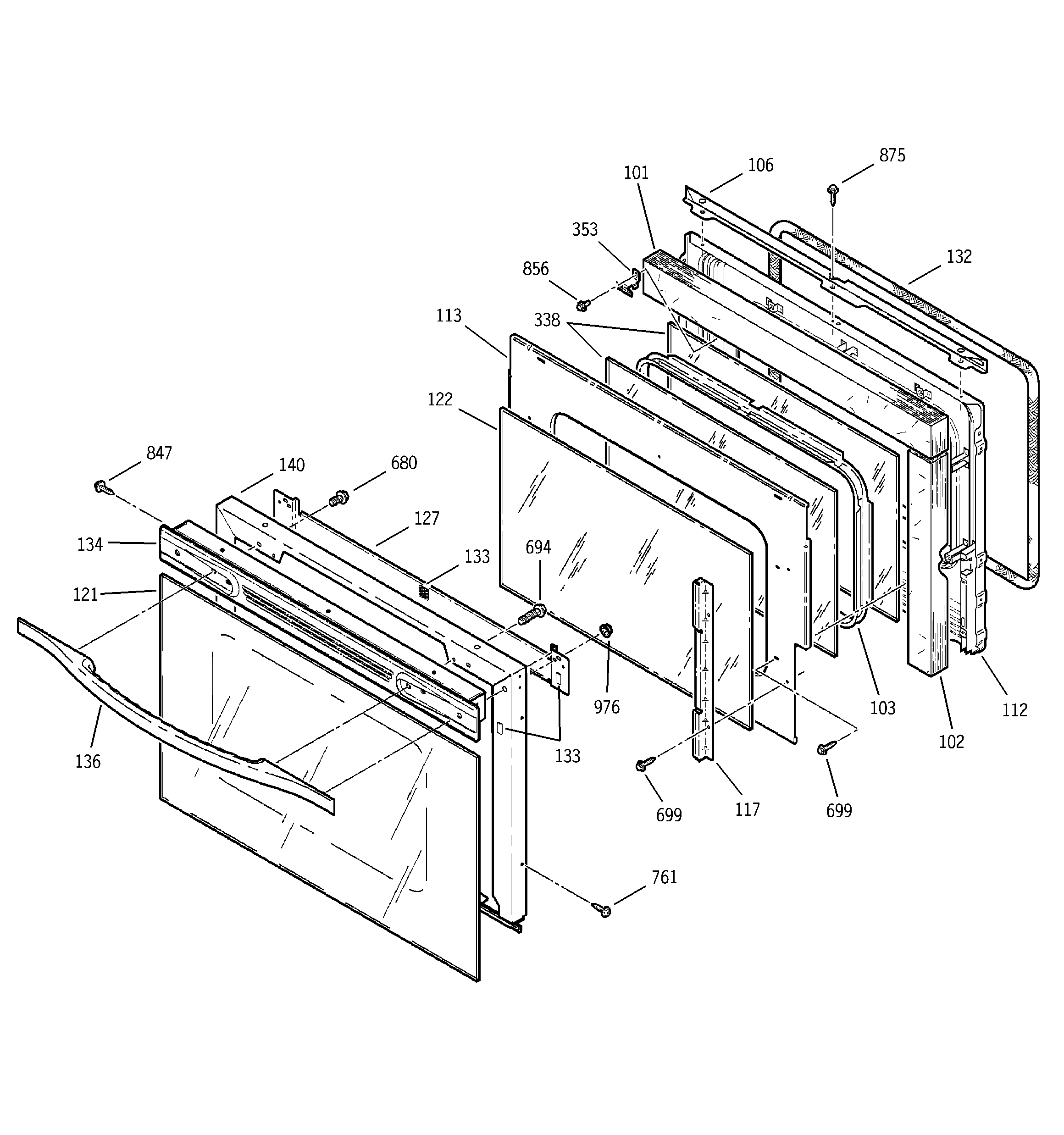

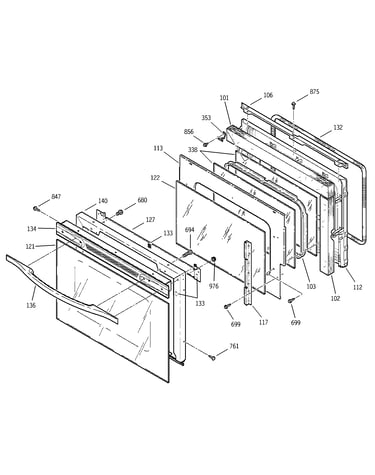

Door diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Unit WB44K10007
#252

Body parts diagram

Broil unit

Part #WB44K10007

Replaced by #WB44T10043

?
Manufacturer substitution
This part replaces WB44K10007. Substitute parts can look different from the original.
$70.47 |
8% OFF Phone Price : $76.47
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Fan Blade WB02T10018
#43

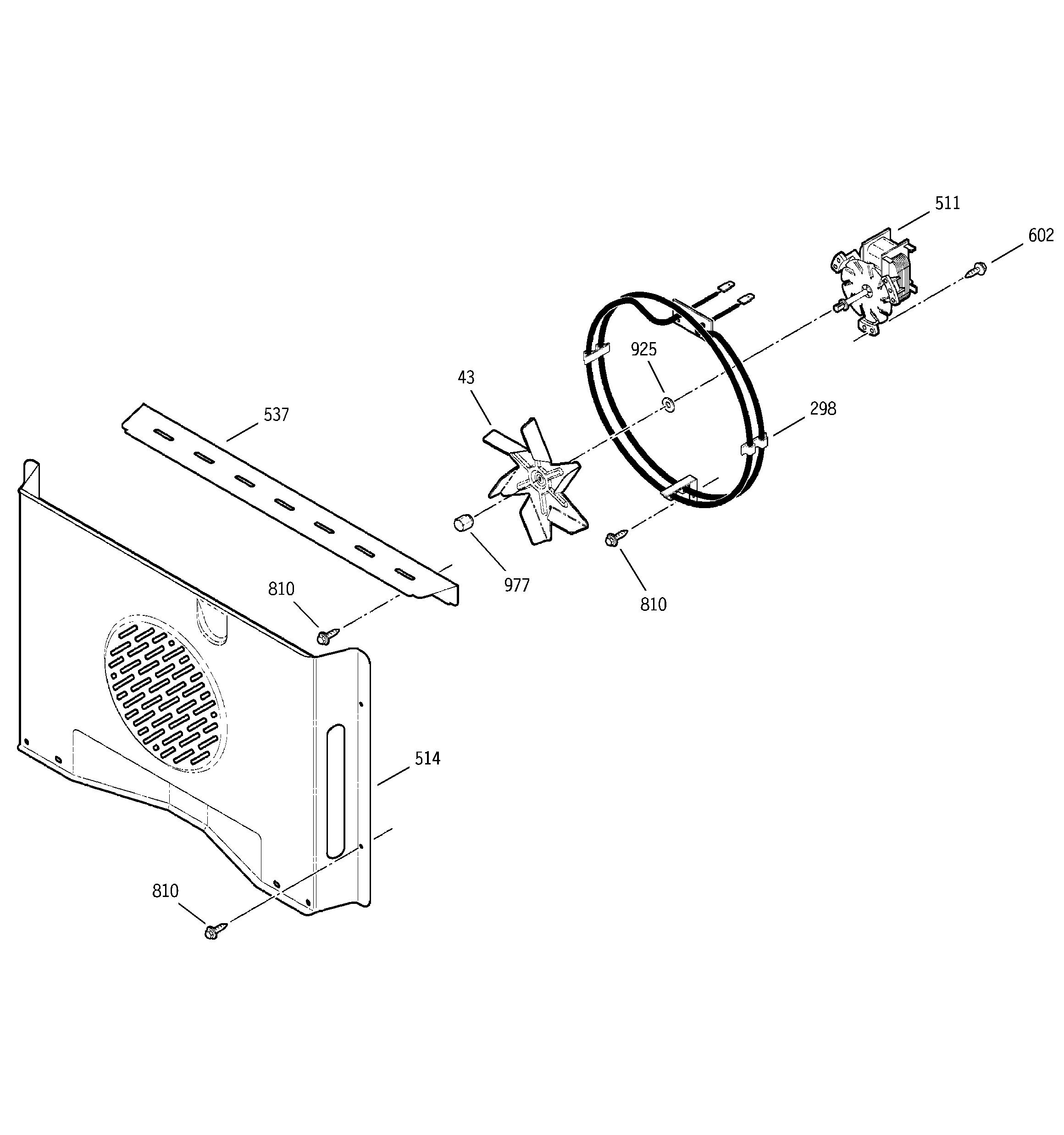

Convection fan diagram

Fan blade

Part #WB02T10018

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10018. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…
