Model # 919166701 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919166701 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 89 parts |

#3112

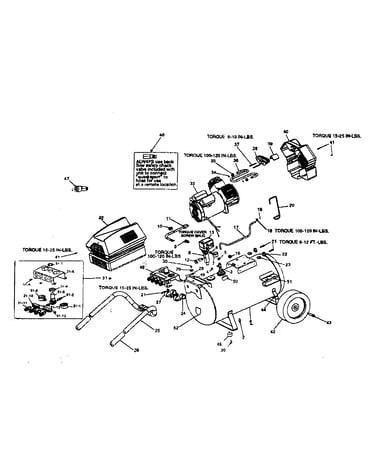

Tank assy diagram

Pipe plug

Part #D21432

The manufacturer no longer makes this part, and there's no substitute part

#40

Tank assy diagram

Air compressor shroud, front

Part #ACG-14

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Power Cord Strain Relief SSW-7482

#10

Tank assy diagram

Air compressor power cord strain relief

Part #SSW-7482

The manufacturer no longer makes this part, and there's no substitute part

#42

Tank assy diagram

Air compressor wheel

Part #D23067

The manufacturer no longer makes this part, and there's no substitute part

#37

Tank assy diagram

Air compressor screw

Part #SSF-554

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Regulator Retainer D20155

#317

Tank assy diagram

Air compressor pressure regulator retainer

Part #D20155

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor High-pressure Connecting Rod Kit D24958

#NI

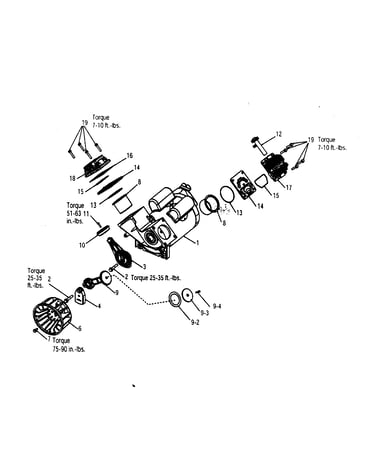

Pump assy diagram

Air compressor high-pressure connecting rod kit

Part #D24958

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7821-1

#18

Tank assy diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Tank assy diagram

Air compressor pressure relief valve

Part #TIA-4200

The manufacturer no longer makes this part, and there's no substitute part

#20

Tank assy diagram

Tube

Part #D22165

The manufacturer no longer makes this part, and there's no substitute part
