Thermador
Range Hood

Model # HCSW Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador HCSW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

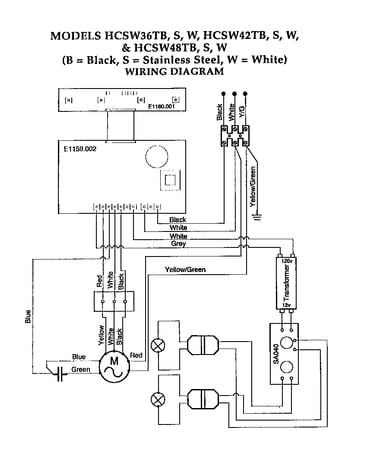

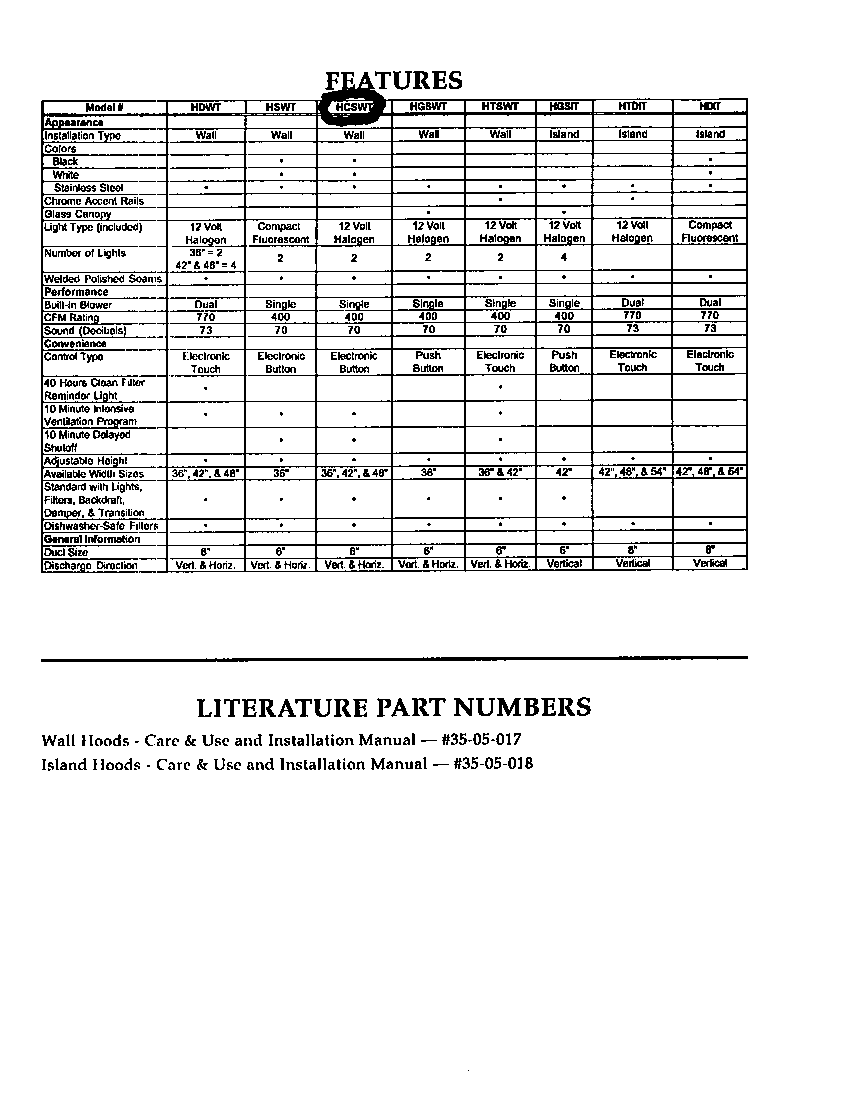

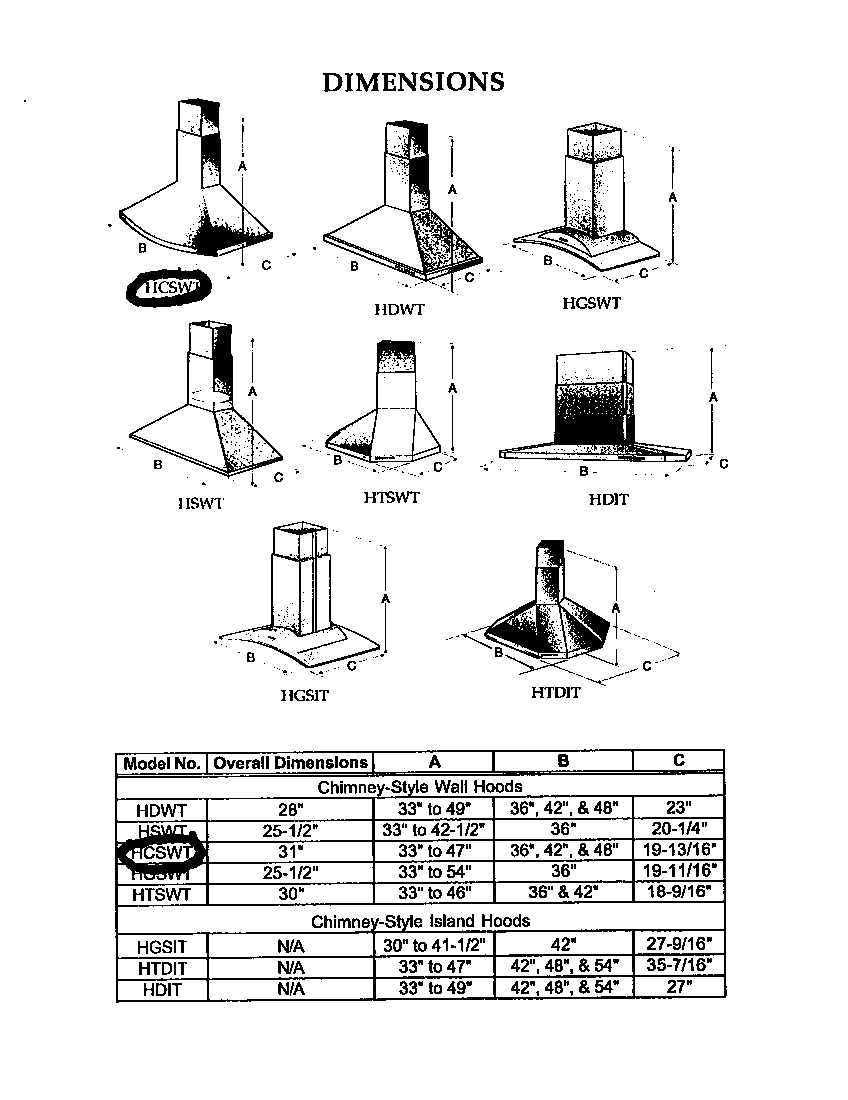

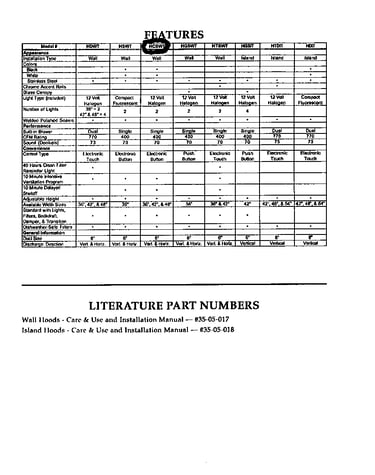

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
12.5 Mf Capacitor (part May Be Purchased Locally) 35-05-113
#6

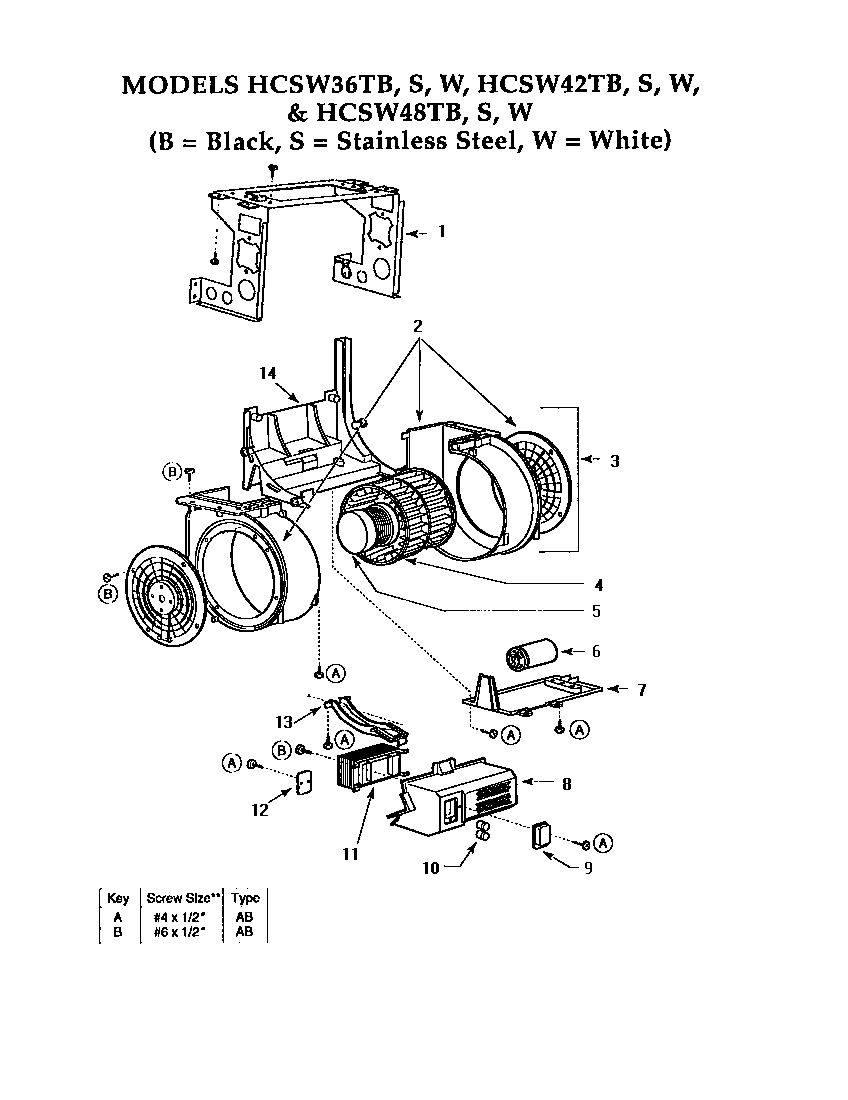

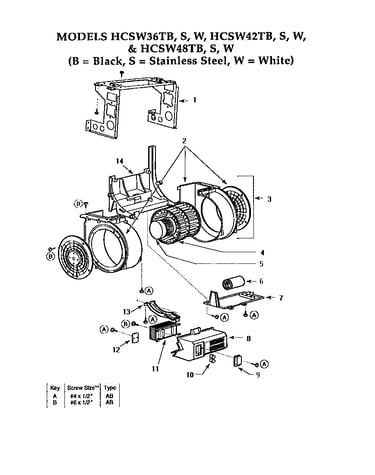

Blower assembly diagram

12.5 mf capacitor (part may be purchased locally)

Part #35-05-113

The manufacturer no longer makes this part, and there's no substitute part

Slider (blk) (part Is Not Normally Stocked Because Of Lo 35-05-154
#9

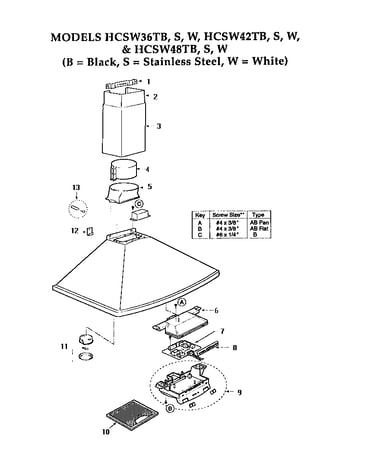

Range hood diagram

Slider (blk) (part is not normally stocked because of lo

Part #35-05-154

The manufacturer no longer makes this part, and there's no substitute part

Transformer 35-05-015
#11

Blower assembly diagram

Transformer

Part #35-05-015

The manufacturer no longer makes this part, and there's no substitute part

Transformer Box (part Is Not Normally Stocked Because Of 35-05-128
#8

Blower assembly diagram

Transformer box (part is not normally stocked because of

Part #35-05-128

The manufacturer no longer makes this part, and there's no substitute part

Plug And Screw (part Is Not Normally Stocked Because Of 35-05-123
#13

Range hood diagram

Plug and screw (part is not normally stocked because of

Part #35-05-123

The manufacturer no longer makes this part, and there's no substitute part

Fuse (3.15a Slo-blo)(part May Be Purchased Locally) 35-05-114
#10

Blower assembly diagram

Fuse (3.15a slo-blo)(part may be purchased locally)

Part #35-05-114

The manufacturer no longer makes this part, and there's no substitute part

Hook W/screw And Plug (part Is Not Normally Stocked Beca 35-05-151
#12

Range hood diagram

Hook w/screw and plug (part is not normally stocked beca

Part #35-05-151

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 35-05-129
#7

Blower assembly diagram

Box cover

Part #35-05-129

The manufacturer no longer makes this part, and there's no substitute part

Box Channel (part Is Not Normally Stocked Because Of Low 35-05-126
#13

Blower assembly diagram

Box channel (part is not normally stocked because of low

Part #35-05-126

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover, Lower, White 35-05-028
#2B

Range hood diagram

Duct cover, lower, white

Part #35-05-028

The manufacturer no longer makes this part, and there's no substitute part
