Model # 523002 Official Broan range hood

Here are the diagrams and repair parts for Official Broan 523002 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Range Hood Light Lens 99110437
#4

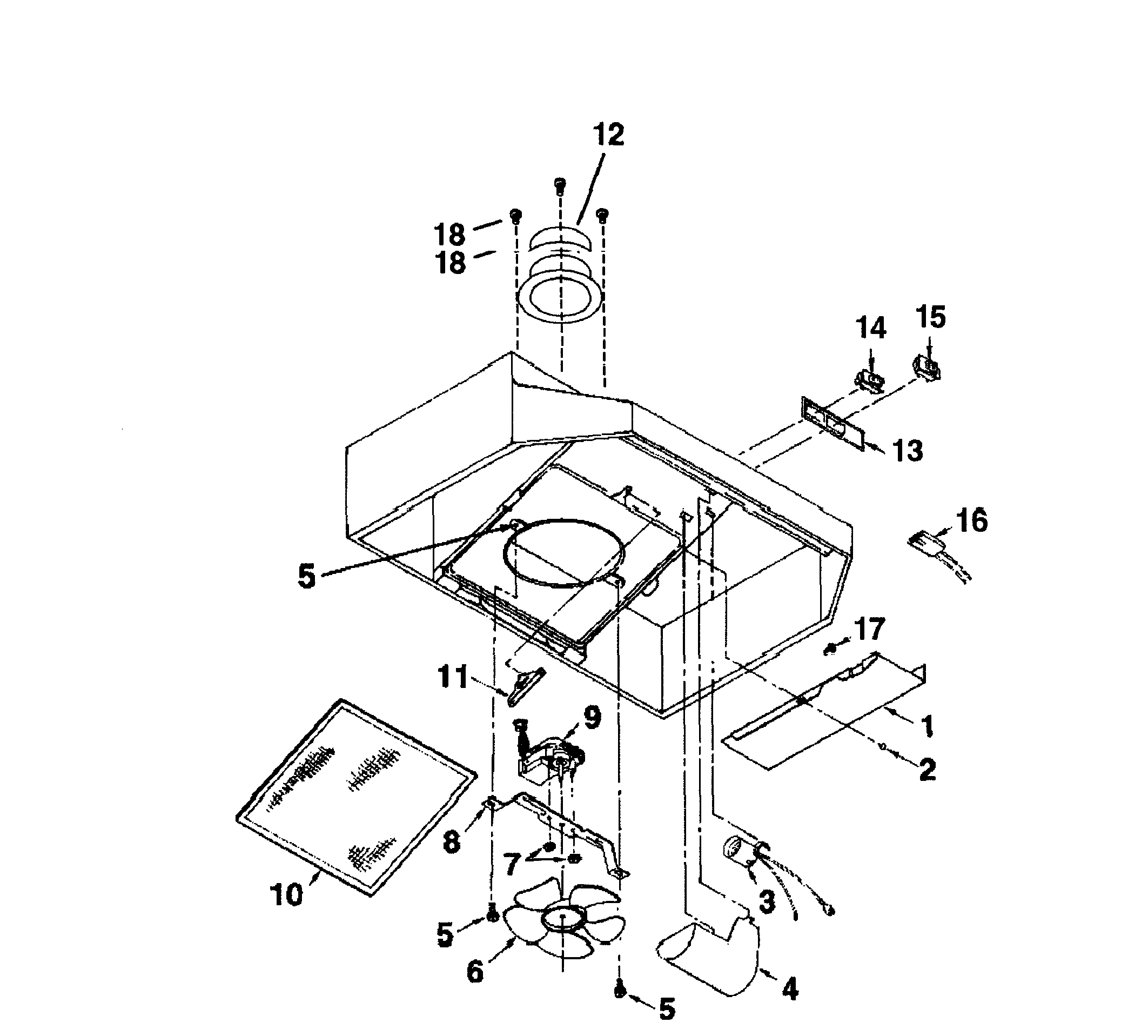

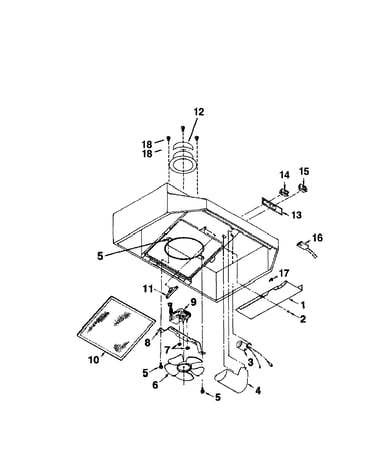

Range hood assy diagram

Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Nameplate 97010709
#13

Range hood assy diagram

Range hood nameplate

Part #97010709

Replaced by #S97010709

?
Manufacturer substitution
This part replaces 97010709. Substitute parts can look different from the original.
This item is not returnable
$6.05
In Stock
Range Hood Fan Blade 99020272
#6

Range hood assy diagram

Range hood fan blade

Part #99020272

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Motor Wire Harness 97005678
#16

Range hood assy diagram

Range hood blower motor wire harness

Part #97005678

Replaced by #S97005678

?
Manufacturer substitution
This part replaces 97005678. Substitute parts can look different from the original.
This item is not returnable
$5.63
In Stock
Range Hood Fan Motor And Light Switch Kit (replaces 97011093, 99030148, 99030149, 99030310, 99030315) 97016970
Range hood fan motor and light switch kit (replaces 97011093, 99030148, 99030149, 99030310, 99030315)

Part #97016970

$37.50 |
14% OFF Phone Price : $43.50
In Stock
Range Hood Grounding Screw (green) 99150471
#17

Range hood assy diagram

Range hood grounding screw (green)

Part #99150471

Replaced by #S99150471

?
Manufacturer substitution
This part replaces 99150471. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Range Hood Wiring Cover 98006621
#1

Range hood assy diagram

Range hood wiring cover

Part #98006621

Replaced by #S98006621

?
Manufacturer substitution
This part replaces 98006621. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
Back Order
Screw Kit (gray) 97011217
#5

Range hood assy diagram

Screw kit (gray)

Part #97011217

Replaced by #S97011217

?
Manufacturer substitution
This part replaces 97011217. Substitute parts can look different from the original.
This item is not returnable
$4.69
In Stock
Range Hood Fan Motor Bracket 98005568
#8

Range hood assy diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Fan Motor Lock Nut 99260428
#7

Range hood assy diagram

Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
