Model # AWNE9RSN115TW01 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AWNE9RSN115TW01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

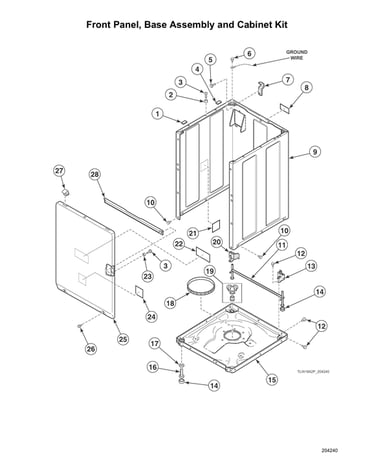

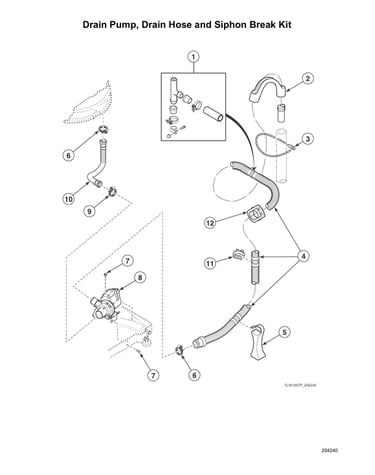

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Alliance Lid Lock Bezel 203643
#18

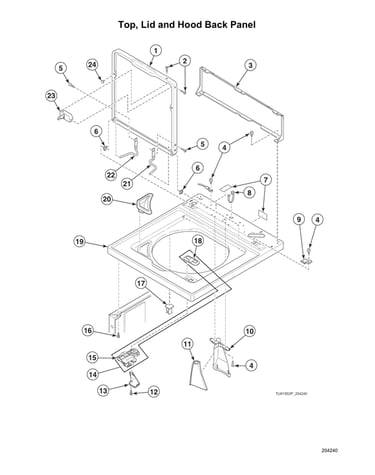

Top/lid/hood back panel diagram

Alliance lid lock bezel

Part #203643

BEST SELLER
$11.11
In Stock
Mixing Valve - All Other Models 202395P
#9

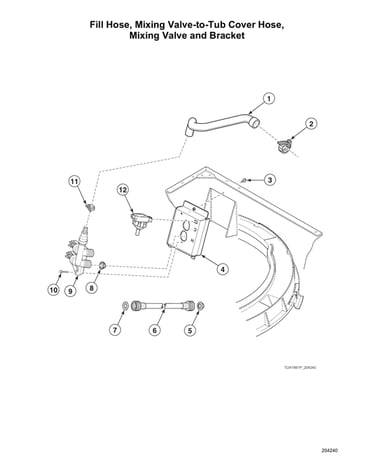

Fill hose/mixing valve-to-tub cover hose/mixing valve/bracket diagram

Mixing valve - all other models

Part #202395P

BEST SELLER
$84.11
In Stock
Mixing Valve (models Starting Serial No. 1812016077) 203741
#9

Fill hose/mixing valve-to-tub cover hose/mixing valve/bracket diagram

Mixing valve (models starting serial no. 1812016077)

Part #203741

$45.27
In Stock
Alliance Drive Control Assembly 203657P
#8

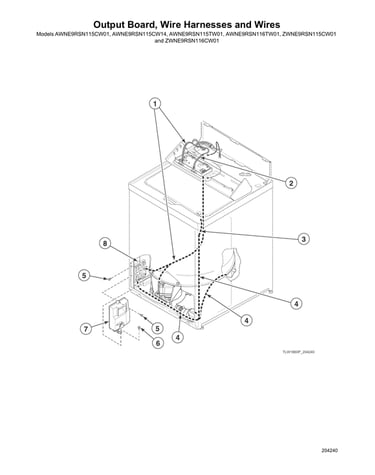

Output board/wire harnesses/wires diagram

Alliance drive control assembly

Part #203657P

$538.12
In Stock
Outer Tub Kit (includes Item 10 Installed) 204383
#3

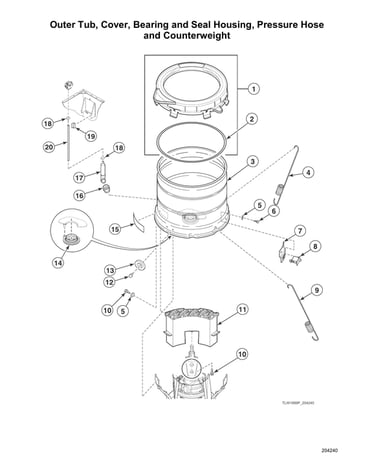

Outer tub/cover/bearing/seal housing/pressure hose/counterweight diagram

Outer tub kit (includes item 10 installed)

Part #204383

$502.07
In Stock
Washer Hub And Seal Kit 766P3A
Washer hub and seal kit

Part #766P3A

The manufacturer no longer makes this part, and there's no substitute part

Washer Main Bearing 28944RP
#2

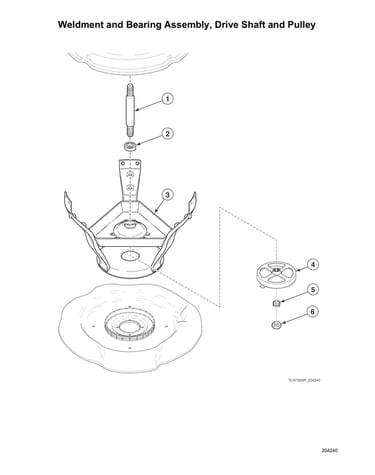

Weldment/bearing assy/drive shaft/pulley diagram

Washer main bearing

Part #28944RP

The manufacturer no longer makes this part, and there's no substitute part

Ring Assembly 39837
#2

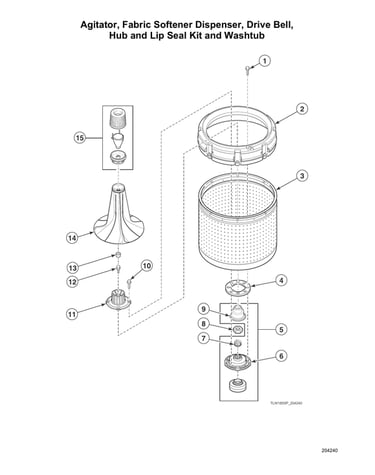

Agitator/fabric softener dispenser/drive bell/hub/lip seal kit/washtub diagram

Ring assembly

Part #39837

The manufacturer no longer makes this part, and there's no substitute part

Control Assembly (includes Item 6)(model Awne9rsn115tw01) 204074P
#5

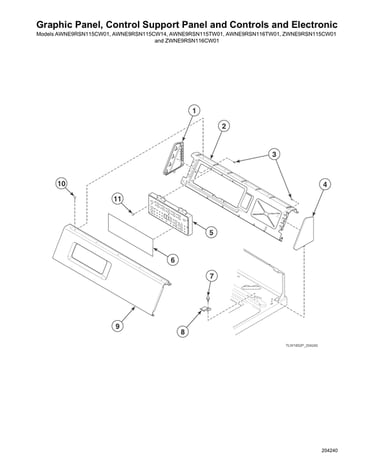

Graphic panel/control support panel/controls/electronic diagram

Control assembly (includes item 6)(model awne9rsn115tw01)

Part #204074P

$406.53
In Stock
Alliance Out-of-balance Switch Assembly (starting Serial No. 1906000001) 807384
#8

Outer tub/cover/bearing/seal housing/pressure hose/counterweight diagram

Alliance out-of-balance switch assembly (starting serial no. 1906000001)

Part #807384

$10.26
In Stock
