Model # 24B Official Husqvarna blower - 530165083

Here are the diagrams and repair parts for Official Husqvarna 24B blower - 530165083, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#31

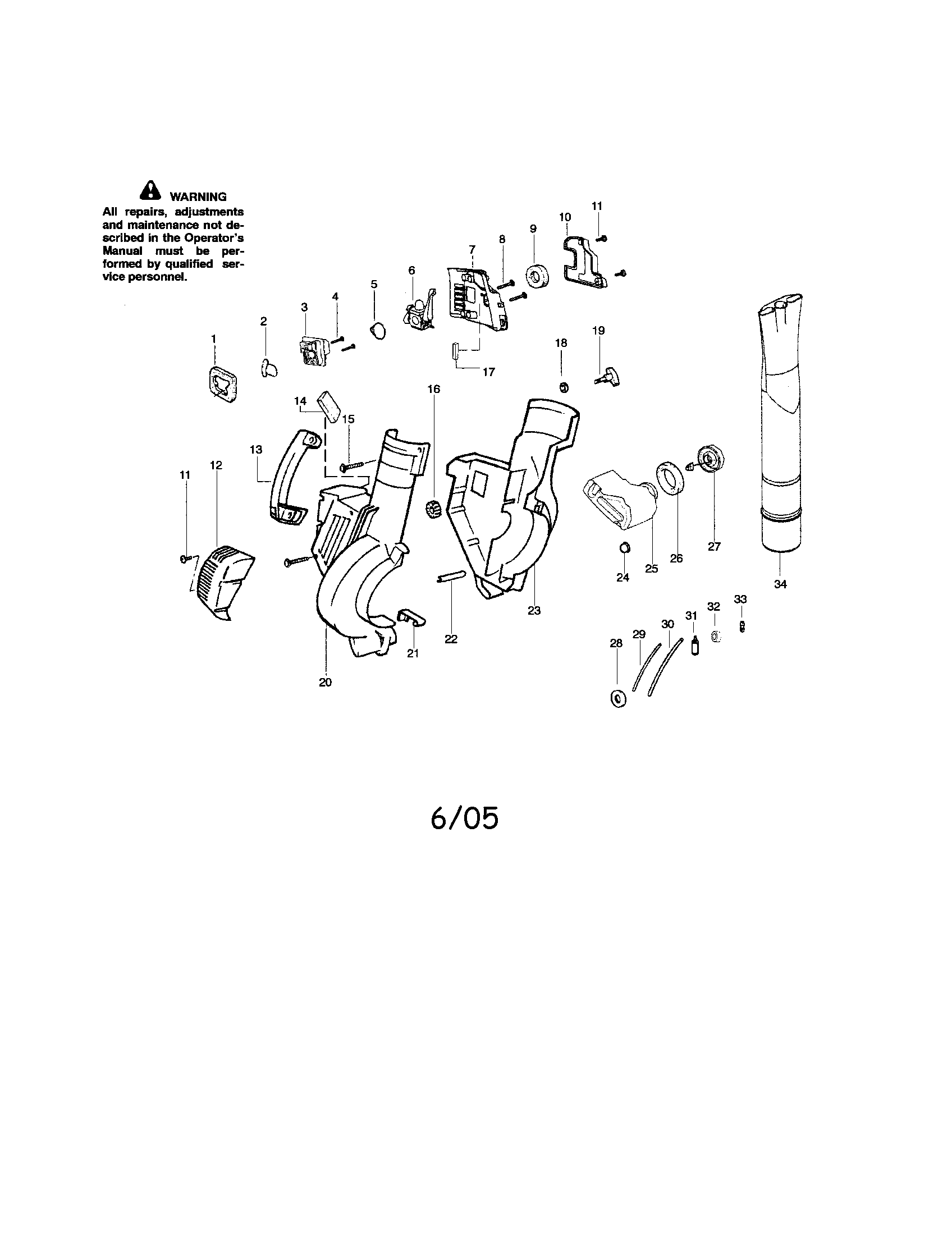

Blower housing/tube/handle/tank diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#29

Blower housing/tube/handle/tank diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#30

Blower housing/tube/handle/tank diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Leaf Blower Vacuum Bag (replaces 530-095564, 530095599, 53095564) 530095564
#1

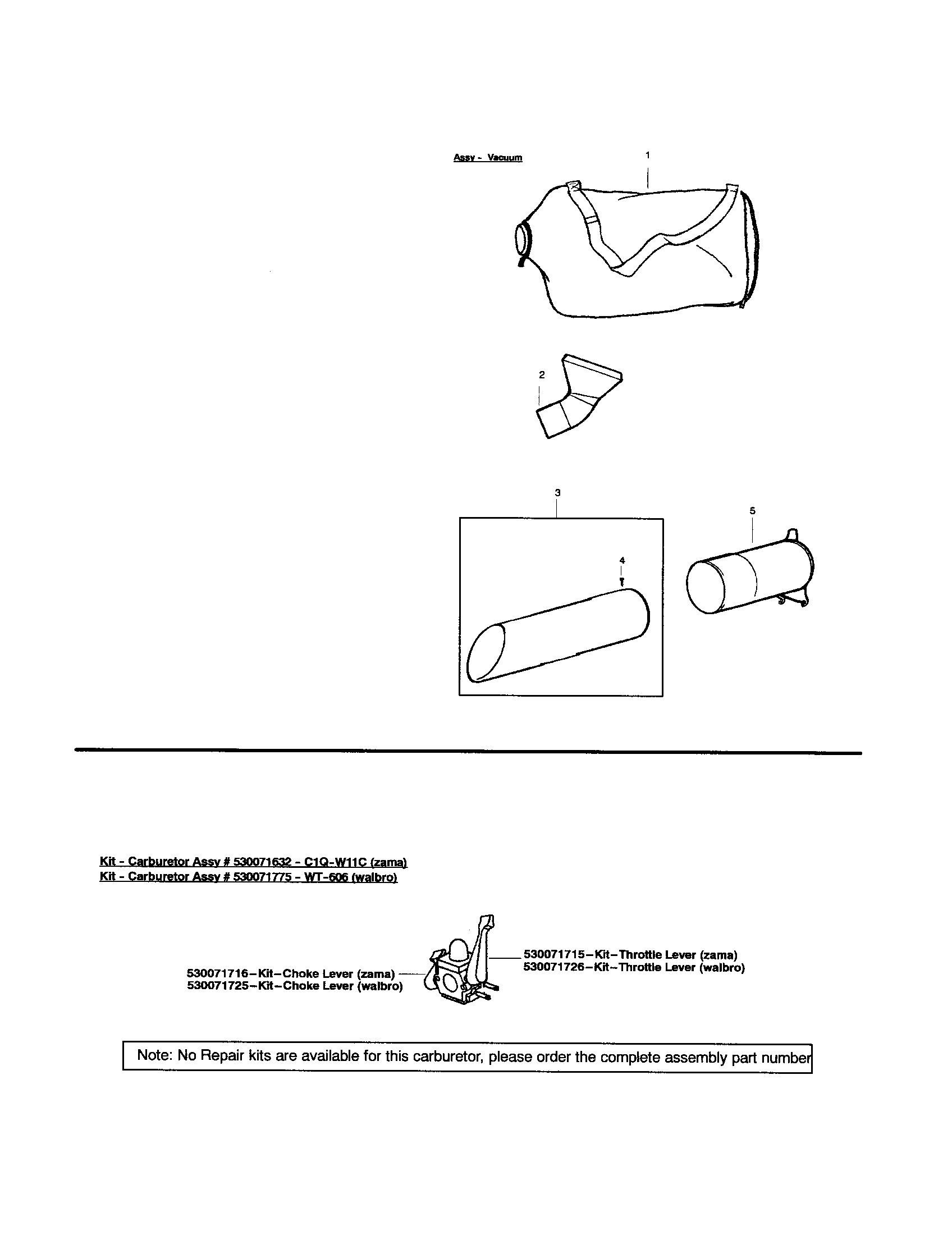

Vacuum assembly diagram

Leaf blower vacuum bag (replaces 530-095564, 530095599, 53095564)

Part #530095564

BEST SELLER

Get free shipping with Automatic Reorder

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#33

Blower housing/tube/handle/tank diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Piston Ring 530055120
#14

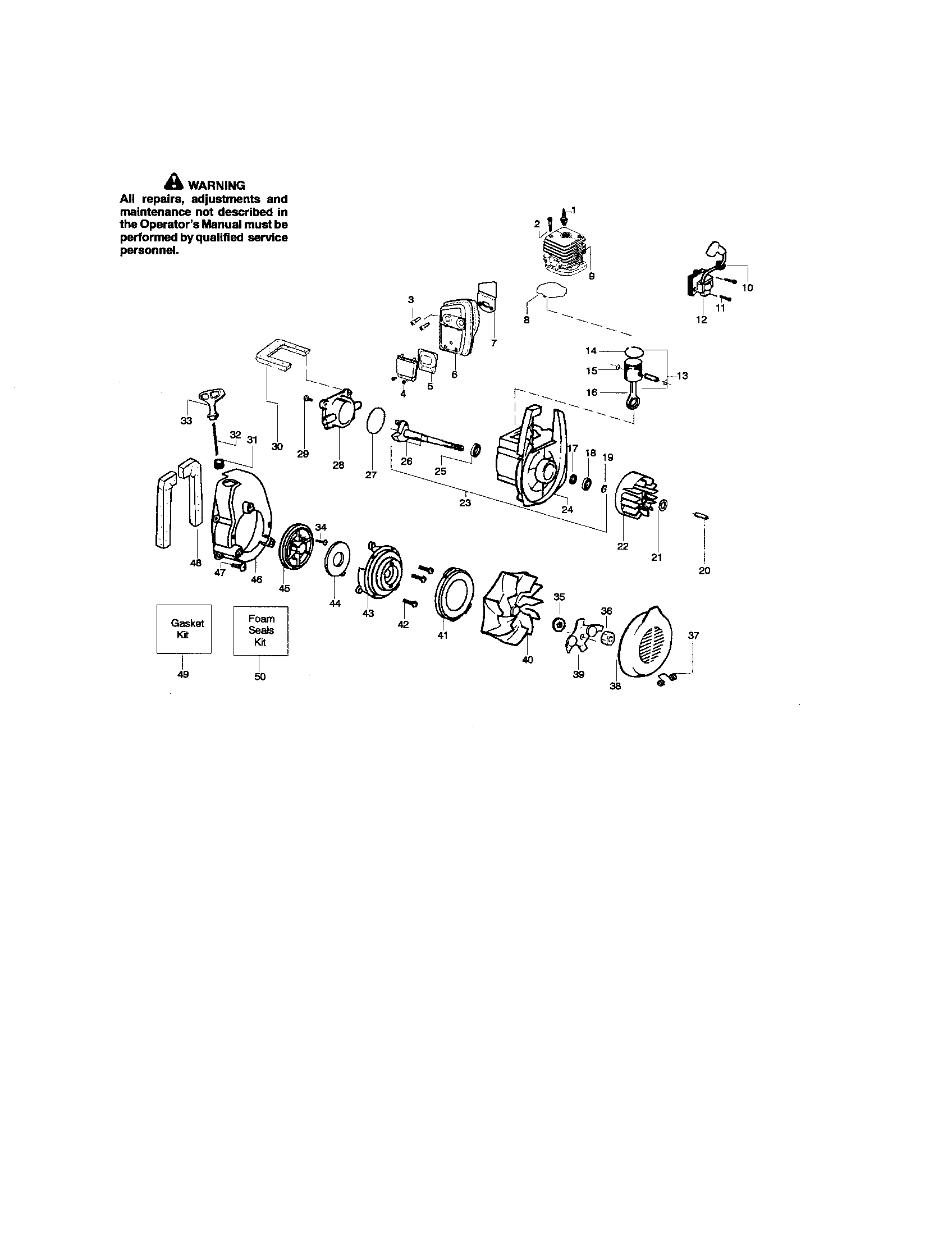

Cylinder/crankcase/crankshaft diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Start Spring 530042086
#44

Cylinder/crankcase/crankshaft diagram

Start spring

Part #530042086

Replaced by #545008011

?
Manufacturer substitution
This part replaces 530042086. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Lawn & Garden Equipment Screw 530016391
#34

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment screw

Part #530016391

Replaced by #530016080

?
Manufacturer substitution
This part replaces 530016391. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Line Trimmer Engine Piston Pin 530015162
#15

Cylinder/crankcase/crankshaft diagram

Line trimmer engine piston pin

Part #530015162

This item is not returnable
$5.54
In Stock
Lawn & Garden Equipment Screw 530015886
#15

Blower housing/tube/handle/tank diagram

Lawn & garden equipment screw

Part #530015886

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
