York
Air Handler

Model # N-VSD2006 Official York air handler

Here are the diagrams and repair parts for Official York N-VSD2006 air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Transformer 025-18452-700
#3

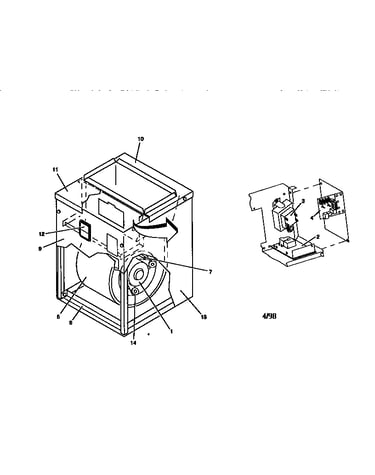

Variable speed air handler diagram

Transformer

Part #025-18452-700

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Electronic Control Board 031-01264-002
#2

Variable speed air handler diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Plate, Circuit Breaker 032-00158-000
#12

Variable speed air handler diagram

Plate, circuit breaker

Part #032-00158-000

The manufacturer no longer makes this part, and there's no substitute part

Wheel, Blower 11 X 10, Cw, 1/2 Bore 526-34363-000
#7

Variable speed air handler diagram

Wheel, blower 11 x 10, cw, 1/2 bore

Part #526-34363-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Top (rear) 373-16421-008
#10

Variable speed air handler diagram

Panel, top (rear)

Part #373-16421-008

The manufacturer no longer makes this part, and there's no substitute part

No Heat Assembly Kit 373-15450-001
#15

Variable speed air handler diagram

No heat assembly kit

Part #373-15450-001

The manufacturer no longer makes this part, and there's no substitute part

Cut-off Plate, Blower 073-15745-000
#6

Variable speed air handler diagram

Cut-off plate, blower

Part #073-15745-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Front Panel 073-18025-005
#8

Variable speed air handler diagram

Bracket, front panel

Part #073-18025-005

The manufacturer no longer makes this part, and there's no substitute part

Panel, Access (front) 373-18082-002
#9

Variable speed air handler diagram

Panel, access (front)

Part #373-18082-002

The manufacturer no longer makes this part, and there's no substitute part

Panel, Top (front) 373-15422-008
#11

Variable speed air handler diagram

Panel, top (front)

Part #373-15422-008

The manufacturer no longer makes this part, and there's no substitute part
