Model # U5781-900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5781-900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#16A

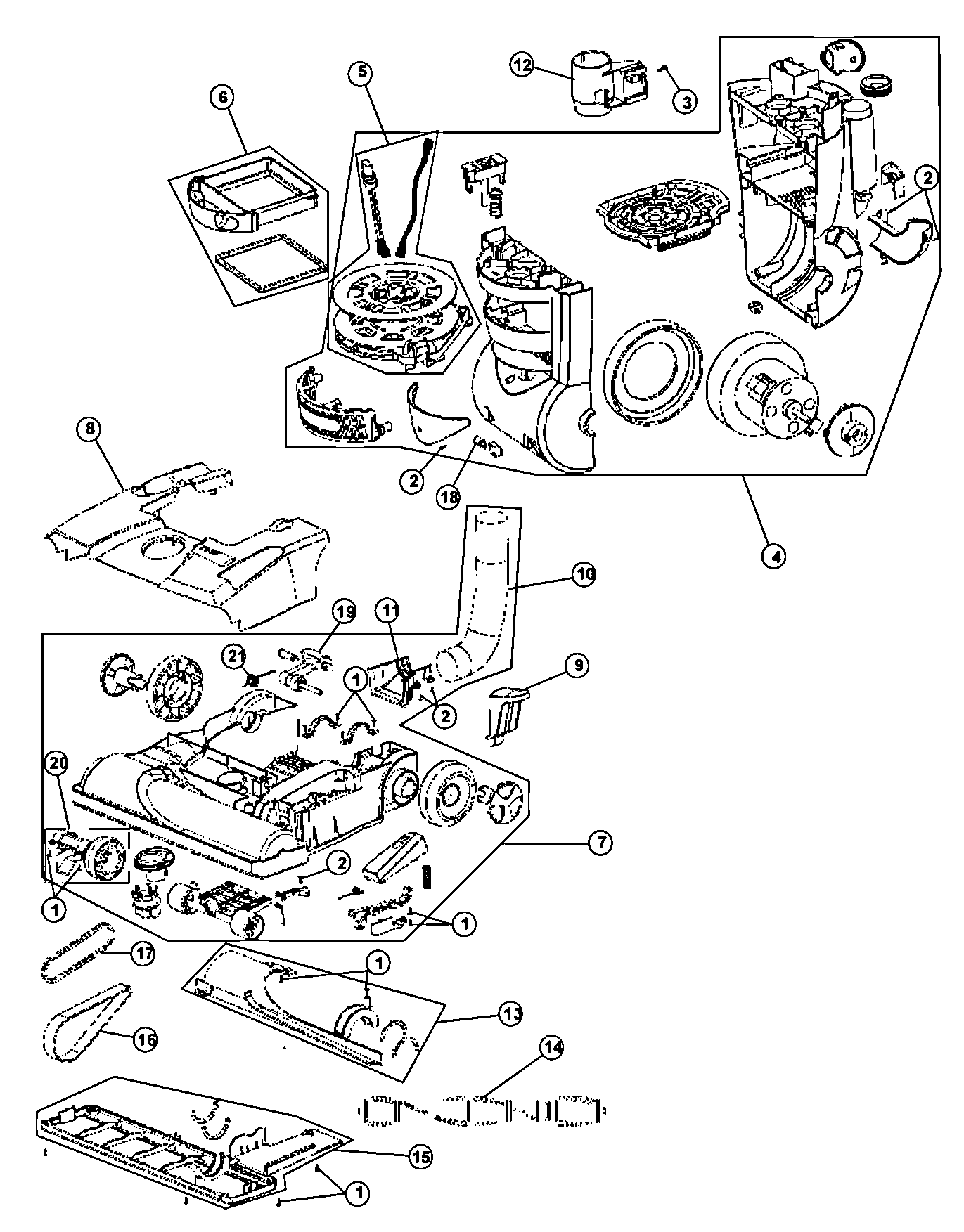

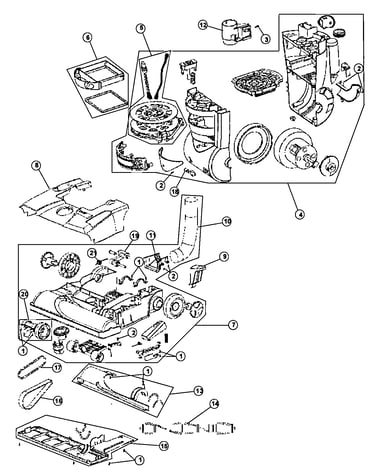

Base assy diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Vacuum Hose Assembly 23986900
#17

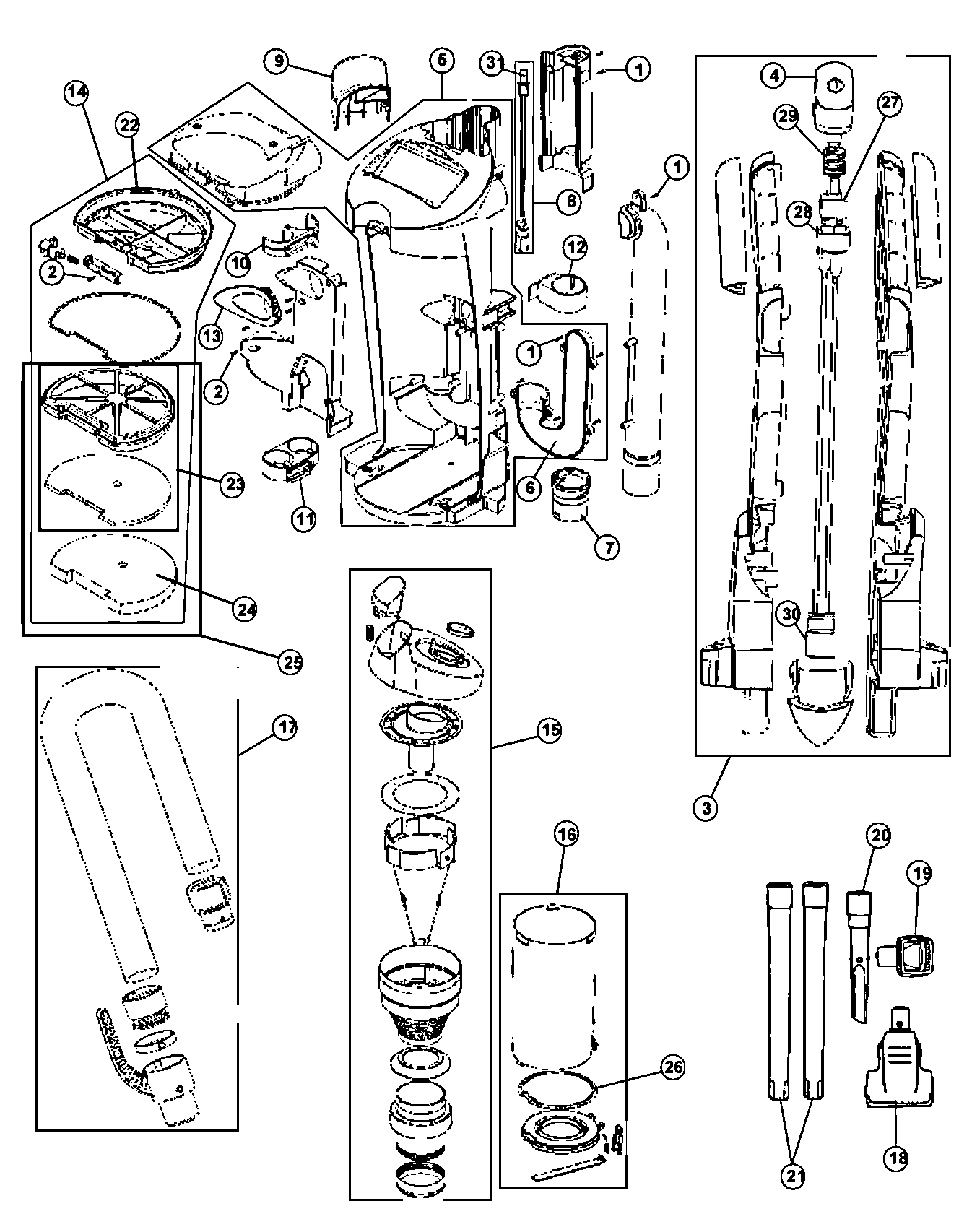

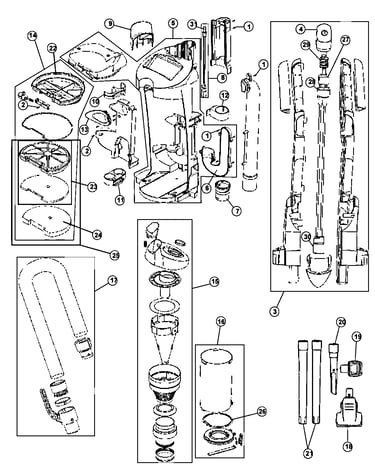

Main body diagram

Vacuum hose assembly

Part #23986900

The manufacturer no longer makes this part, and there's no substitute part

Female Control 93001717
#31

Main body diagram

Female control

Part #93001717

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Idler Arm Pulley Assembly 93005400
#20

Base assy diagram

Vacuum idler arm pulley assembly

Part #93005400

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover 11041043
#6

Main body diagram

Duct cover

Part #11041043

The manufacturer no longer makes this part, and there's no substitute part

Tube Holdr 11041052
#11

Main body diagram

Tube holdr

Part #11041052

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder 11041065
#12

Main body diagram

Tool holder

Part #11041065

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Cover 10134227
#8

Base assy diagram

Nozzle cover

Part #10134227

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313107
#18

Base assy diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 21150100
#3

Main body diagram

Vacuum handle

Part #21150100

The manufacturer no longer makes this part, and there's no substitute part
